Built for low-pressure air, water, and oil service, the Coxreels SHL-N-160 Spring Rewind Hose Reel gives maintenance teams a compact way to store and manage customer-supplied hose in shops, service bays, plant maintenance areas, and mobile equipment setups. This SH Series reel is configured less hose and is sized for 1/4" I.D. hose with up to 60 ft hose capacity and a 300 PSI maximum pressure rating, making it useful where hose type, material, or end fittings need to be selected separately for the application. The SHL-N-160 uses Coxreels’ Super Hub™ dual axle support system, which adds support at the center shaft to improve reel stability during payout and rewind. The spring rewind mechanism retracts hose after use, while the multi-position lock ratchet allows the operator to hold the hose at the working length needed for the task. Because this model is supplied without hose, it is a practical choice for buyers who already have approved hose on hand or need to match the reel with a specific air, water, or oil hose specification.

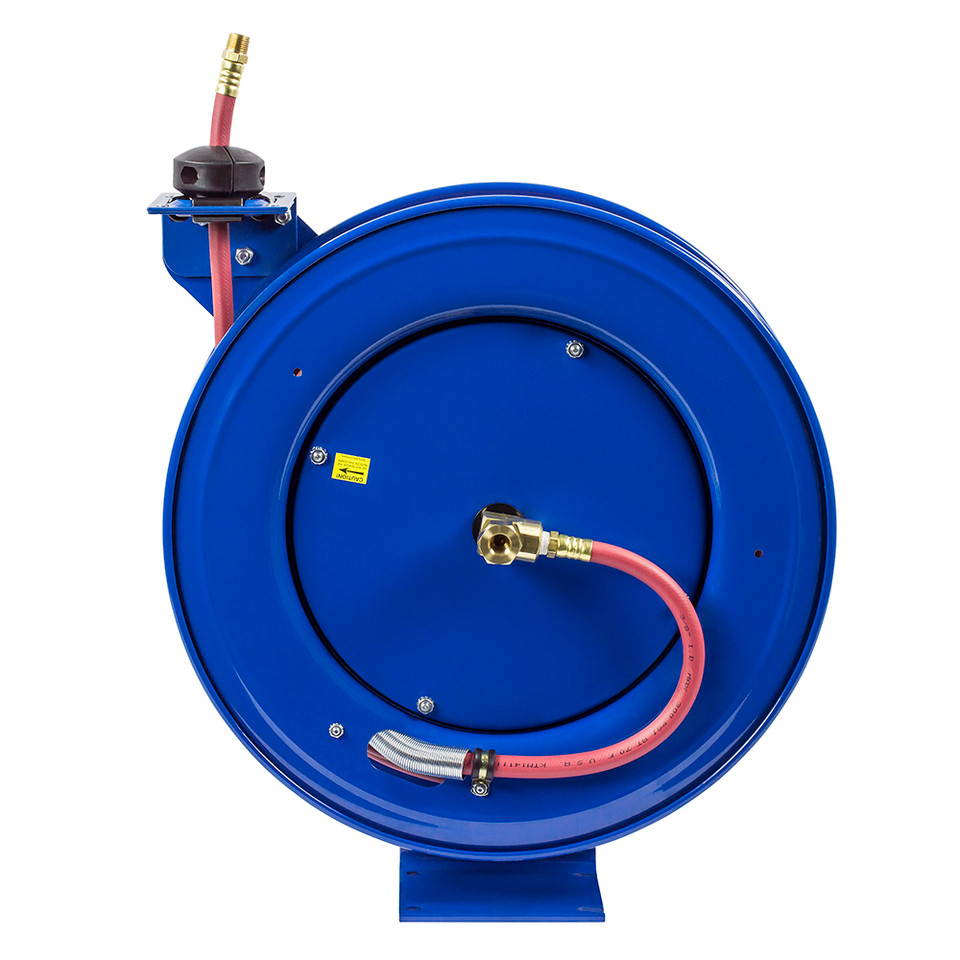

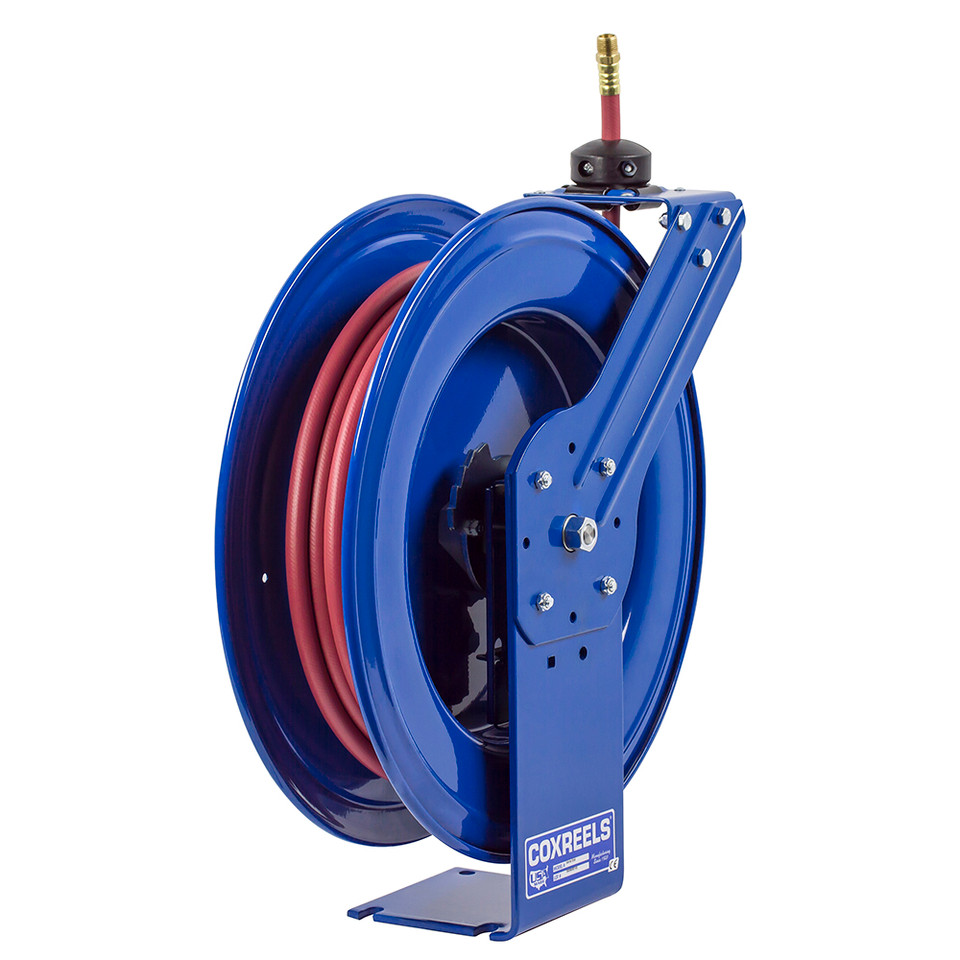

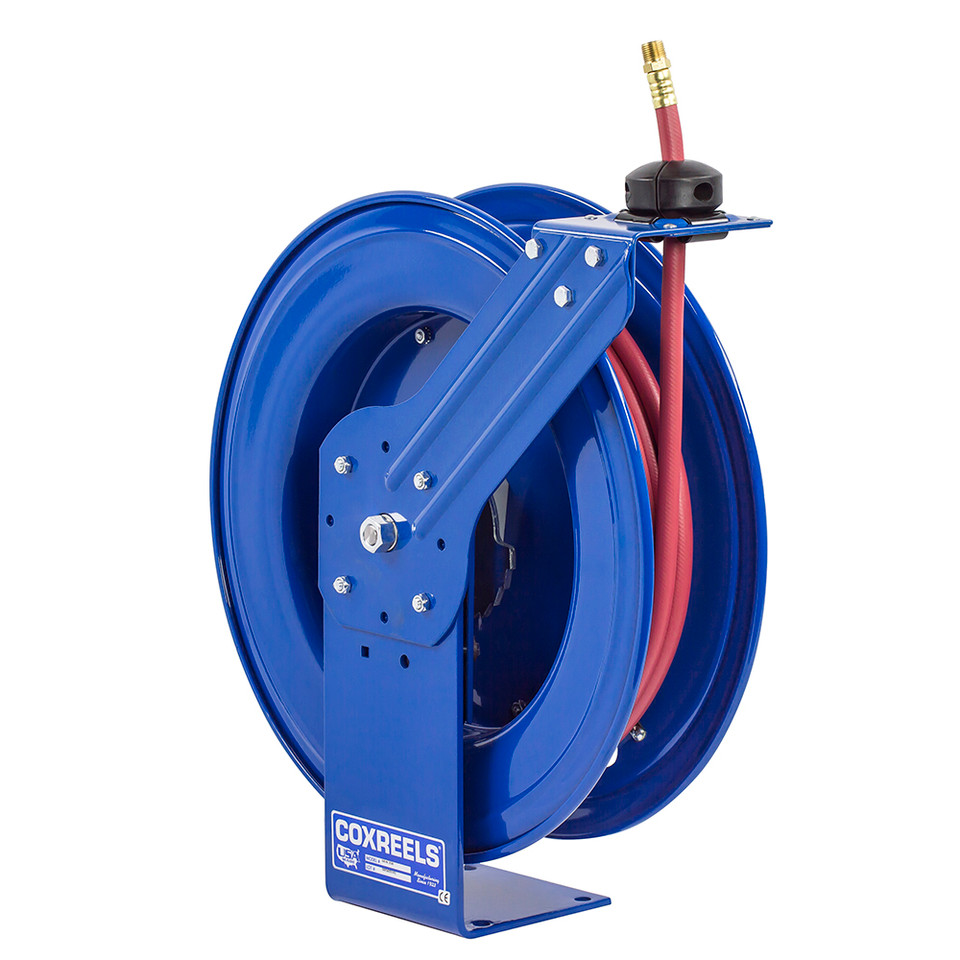

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: SH Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose I.D.: 1/4" | Maximum Hose O.D.: 1/2" | Hose Capacity: 60 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 50 lbs | Overall Dimensions: 7-5/8" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Less-hose configuration allows the buyer to install compatible hose separately for the intended air, water, or oil service.
- Spring rewind operation retracts the hose after use, helping keep work areas cleaner and reducing loose hose around equipment.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- Machined solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel assembly.
- Nitrile swivel seals are used for the listed low-pressure service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to support fixed shop or mobile installations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during hose payout and rewind.
Made in USA:
Applications:
- Industrial maintenance areas using low-pressure air, water, or oil hose at work cells, benches, and equipment service points.
- Automotive, fleet, and truck service shops that need organized hose storage near lifts, tire bays, or lubrication areas.
- Mobile mechanic, utility, and service vehicles where hose selection is handled separately for the job setup.
- Manufacturing plants and facilities installing retractable hose reels for general service lines and maintenance stations.
- DIY garages and home workshops where a bare reel is preferred because the user already has compatible hose to install.
FAQs:
- Q: What does “less hose” mean on the Coxreels SHL-N-160?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/4" I.D., 1/2" maximum O.D., 60 ft capacity, and 300 PSI pressure rating. - Q: What media can this reel be used with?
A: The SHL-N-160 is listed for low-pressure air, water, and oil service when used with compatible hose, fittings, and system components. Always verify hose material and fluid compatibility before installation. - Q: Can this reel be used for shop air?
A: Yes, when the selected hose and fittings match the shop air system’s pressure, flow, and connection requirements. The reel itself is rated for up to 300 PSI. - Q: Can the SHL-N-160 be mounted on a wall or service truck?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is securely mounted to a suitable structure. - Q: How is SHL-N-160 different from SH-N-160?
A: SHL-N-160 is the less-hose version and does not include hose. SH-N-160 is the corresponding hose-included version in the same SH Series size configuration.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Low Pressure Spring Rewind Hose Reel
- Series
- SH Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 60
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
