Built for high-pressure grease and hydraulic oil service, the Coxreels HPL-N-340 Heavy Duty Spring Rewind Hose Reel provides a reel-only platform for organizing customer-supplied high-pressure hose in hydraulic repair areas, lubrication points, service bays, and mobile maintenance vehicles. This HP Series model is configured less hose and supports 3/8" I.D. hose with up to 40 ft hose capacity and a 4,000 PSI maximum pressure rating, giving technicians added reach while allowing hose material, fittings, temperature rating, and end connections to be selected separately. The HPL-N-340 uses Coxreels’ Super Hub dual axle support system, which adds support at the center shaft to improve reel stability during payout and rewind. The spring rewind mechanism retracts the installed hose after use, while the multi-position lock ratchet lets the operator hold the hose at the working length needed for the job. Because this model is supplied without hose, it is a practical choice for maintenance teams that already stock approved 3/8" high-pressure hose or need to match the reel to a specific grease or hydraulic oil system.

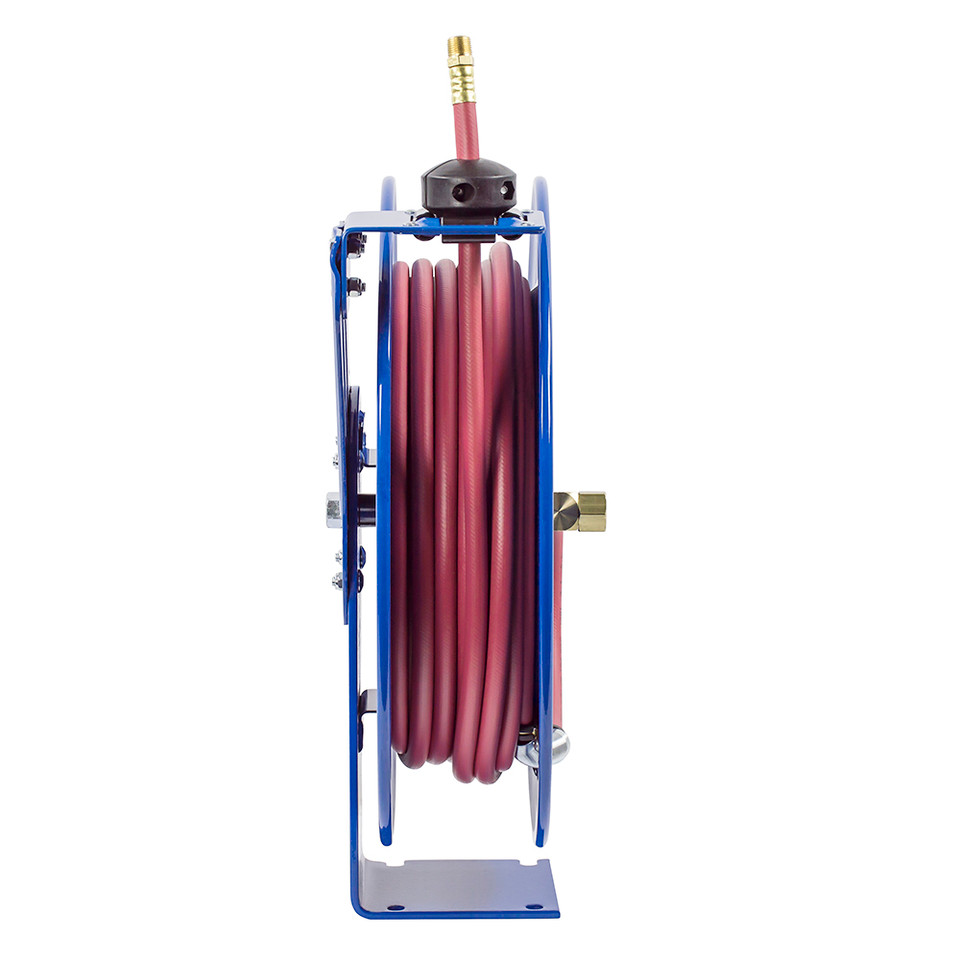

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: HP Series | Configuration: Less Hose | Pressure Class: High Pressure | Hose I.D.: 3/8" | Maximum Hose O.D.: 11/16" | Hose Capacity: 40 ft | Max Pressure: 4,000 PSI | Service: Grease, Hydraulic Oil | Approx. Weight: 54 lbs | Overall Dimensions: 8-3/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Less-hose configuration allows the buyer to install compatible 3/8" high-pressure hose separately for the intended grease or hydraulic oil application.
- 40 ft hose capacity provides extra reach compared with shorter 35 ft configurations while maintaining a compact reel layout for service areas and vehicles.
- Spring rewind operation retracts the installed hose after use, helping reduce loose hose around lubrication points, hydraulic equipment, and mobile work areas.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- External fluid path uses a machined 90° full-flow NPT swivel inlet, with zinc plated steel swivel construction on HP models.
- Nitrile swivel seals support the listed grease and hydraulic oil service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to support fixed shop or mobile installations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
Made in USA:
Applications:
- Hydraulic repair shops using 3/8" high-pressure hose for oil service on cylinders, pumps, lifts, jacks, and fluid power equipment.
- Fleet and automotive maintenance centers managing grease or hydraulic oil lines near service bays, lifts, and lubrication points.
- Mobile mechanic, utility, and service trucks where the hose assembly is selected separately to match field service requirements.
- Manufacturing plants installing high-pressure hose reels near hydraulic power units, maintenance work cells, or equipment service stations.
- Industrial MRO teams that need retractable storage for up to 40 ft of customer-supplied high-pressure hose.
FAQs:
- Q: What does “less hose” mean on the Coxreels HPL-N-340?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 3/8" I.D., 11/16" maximum O.D., 40 ft capacity, and 4,000 PSI pressure rating. - Q: What fluids is this reel intended for?
A: The HP Series high-pressure configuration is listed for grease and hydraulic oil applications. Confirm compatibility with the installed hose, swivel, seals, fittings, and fluid before placing the reel into service. - Q: What does the 4,000 PSI rating mean?
A: The 4,000 PSI rating is the maximum listed pressure for the reel configuration. The hose, pump, fittings, couplers, and accessories used with the reel should all be rated for the system’s actual working pressure. - Q: Can this reel be mounted on a wall, floor, or service vehicle?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is securely mounted to a suitable structure. - Q: How is HPL-N-340 different from HP-N-340?
A: HPL-N-340 is the less-hose version and does not include hose. HP-N-340 is the corresponding hose-included model in the same HP Series size configuration.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
