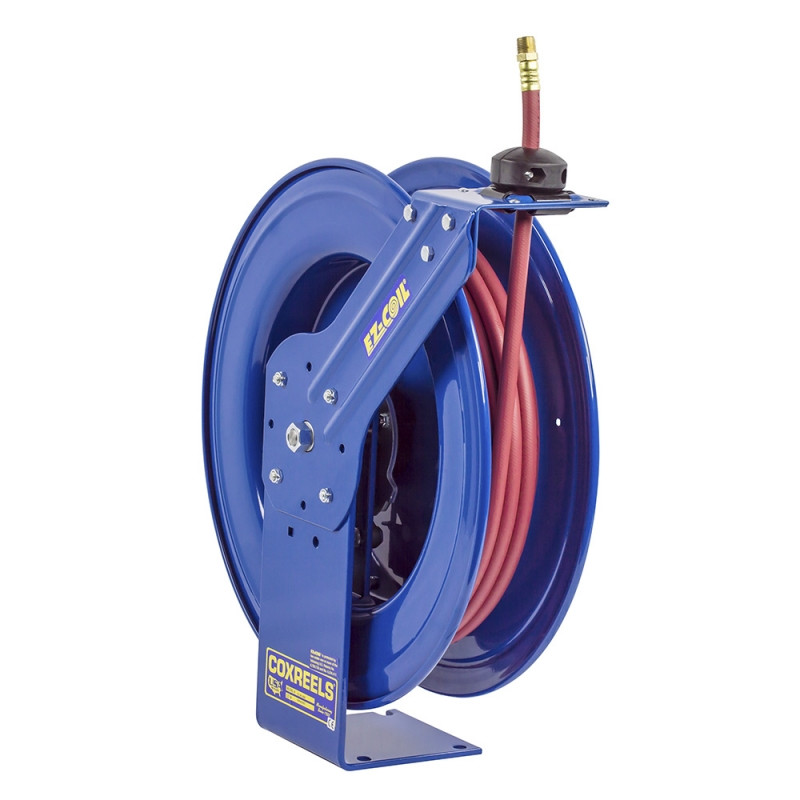

Built for high-pressure grease and hydraulic oil handling, the Coxreels EZ-HP-350 EZ-Coil Spring Rewind Hose Reel helps maintenance teams keep hose controlled, protected, and ready for use in service bays, lubrication stations, hydraulic repair areas, and mobile service vehicles. This EZ-HP Series Reel includes a 3/8" I.D. x 50 ft hose rated to 4,000 PSI, giving technicians extended reach for high-pressure fluid service while reducing loose hose around equipment, lifts, benches, and work cells. The EZ-HP-350 adds Coxreels’ EZ-Coil controlled rewind system to the HP Series platform. EZ-Coil slows hose retraction speed compared with standard spring rewind reels, helping reduce hose whip and making day-to-day hose handling more controlled. The reel also uses Coxreels’ Super Hub dual axle support system, which improves reel stability during payout and rewind. For shops and field service crews managing grease or hydraulic oil lines, this model combines 50 ft hose reach, 4,000 PSI pressure capacity, and controlled retraction in one high-pressure hose reel assembly.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-HP Series | Pressure Class: High Pressure | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 50 ft | Max Pressure: 4,000 PSI | Max Temperature: 250°F | Service: Grease, Hydraulic Oil | Approx. Weight: 65 lbs | Overall Dimensions: 9-1/4" W x 25-1/2" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- EZ-Coil controlled retraction slows hose rewind speed for safer, more controlled hose return after use.
- Spring rewind operation retracts the hose after each job, helping reduce hose clutter in shop, plant, and service vehicle environments.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- External fluid path uses a machined 90° full-flow NPT swivel inlet, with zinc plated steel swivel construction on HP models.
- Nitrile swivel seals support the listed grease and hydraulic oil service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match fixed or mobile installation layouts.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a rigid foundation for high-pressure hose handling.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during hose payout and controlled rewind.
Made in USA:
Applications:
- Hydraulic service and repair areas using 3/8" hose for high-pressure oil handling around cylinders, pumps, jacks, and lifts.
- Fleet and automotive maintenance shops managing grease or hydraulic oil lines near service bays, lifts, and lubrication points.
- Mobile mechanic, utility, and service trucks that need controlled 50 ft hose storage for field maintenance work.
- Manufacturing plants placing retractable high-pressure hose reels near hydraulic power units, production equipment, or maintenance work cells.
- Industrial MRO teams that need longer hose reach while keeping high-pressure fluid lines organized between tasks.
FAQs:
- Q: Does the Coxreels EZ-HP-350 include hose?
A: Yes. The EZ-HP-350 is supplied with a 3/8" I.D. x 50 ft high-pressure hose rated to 4,000 PSI. - Q: What does EZ-Coil mean on this reel?
A: EZ-Coil is Coxreels’ controlled rewind system. It slows the hose retraction speed compared with a standard spring rewind reel, helping reduce sudden hose return and improving handling during daily use. - Q: What fluids is this hose reel intended for?
A: The EZ-HP Series high-pressure configuration is listed for grease and hydraulic oil applications. Confirm compatibility with the hose, swivel, seals, fittings, and the fluid being handled before using the reel with any other media. - Q: What does the 4,000 PSI rating mean?
A: The 4,000 PSI rating is the maximum listed pressure for this reel and hose configuration. The pump, fittings, couplers, and accessories used with the reel should also be rated for the system’s working pressure. - Q: How is the EZ-HP-350 different from the HP-N-350?
A: Both are 3/8" x 50 ft high-pressure hose reel configurations for grease and hydraulic oil service. The EZ-HP-350 adds EZ-Coil controlled retraction, while the HP-N-350 is the standard spring rewind version.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
