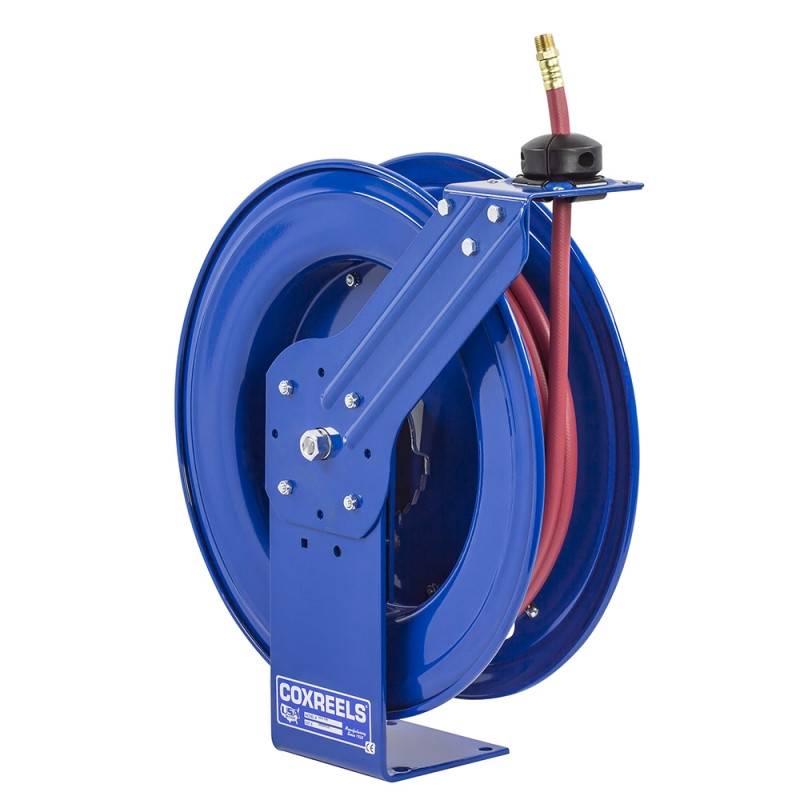

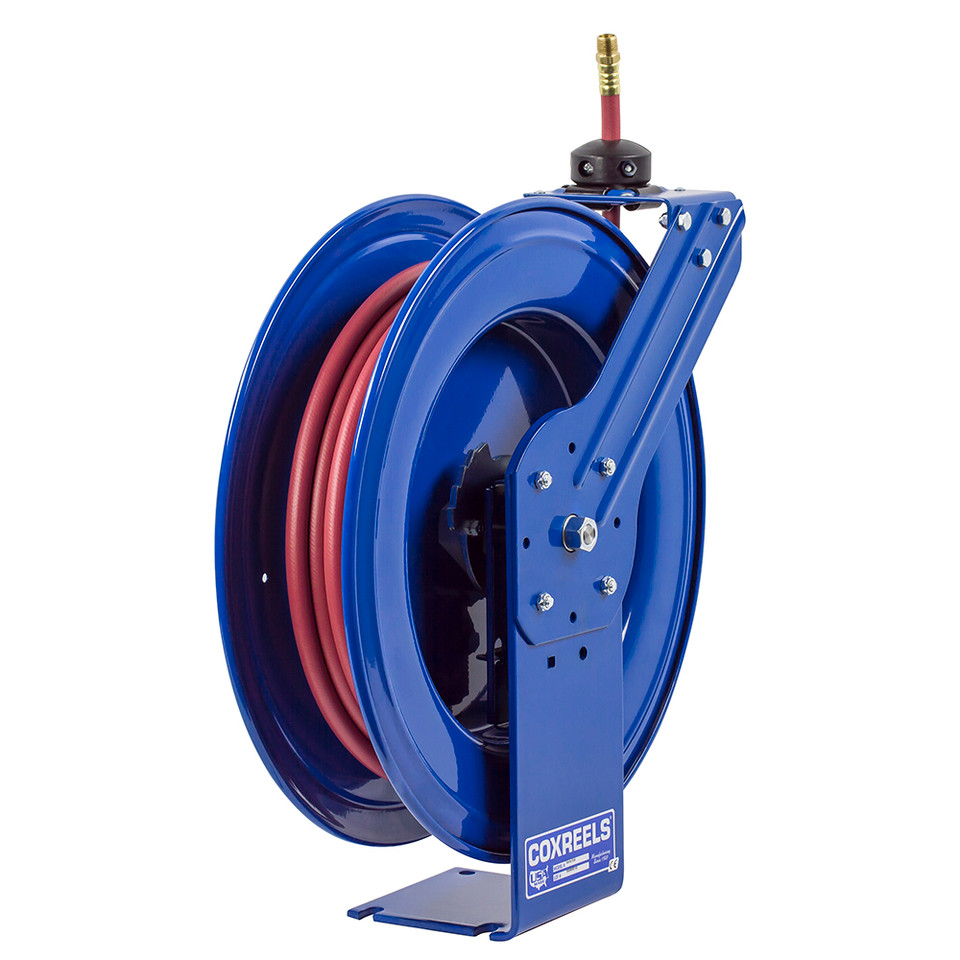

When a medium pressure application needs a larger hose diameter without the bulk of a long hose run, the Coxreels MP-N-525 gives maintenance teams a controlled spring rewind solution in the MP Series Heavy Duty Reel platform. This model is supplied with a 3/4" I.D. x 25 ft one wire braid hose, giving operators a larger flow path for compatible air, water, or oil service at localized workstations, service bays, mobile equipment, and facility maintenance points. The 1,500 PSI maximum pressure rating supports medium pressure utility work where standard low pressure reels are not sufficient. The MP-N-525 uses Coxreels’ Super Hub dual axle support system, which supports the reel drum from both sides to help increase stability during hose pull-out and rewind. Its spring rewind mechanism stores the hose after use, while the multi-position lock ratchet holds the hose at the selected working length so technicians can work without constant spring tension.
Type: Medium Pressure Spring Rewind Hose Reel | Series: MP Series | Model: MP-N-525 | Hose Included: Yes | Hose I.D.: 3/4" | Hose Length: 25 ft | Max Pressure: 1,500 PSI | Service: Air, Water, Oil | Hose Construction: One Wire Braid | Hose Specification: Exceeds SAE R1 | Rewind Type: Spring Rewind
Features:
- Medium pressure spring rewind reel supplied with one wire braid hose for compatible air, water, or oil applications.
- 3/4" hose I.D. provides a larger internal flow path than smaller 3/8" and 1/2" medium pressure hose configurations.
- 25 ft hose length keeps the working reach focused around a bay, station, or service vehicle without excess hose on the floor.
- Hose exceeds SAE R1 specifications for use in medium pressure service.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient flow routing into the reel.
- NITRILE swivel seals support compatible air, water, and oil service within the reel’s pressure and temperature ratings.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation planning.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during pull-out and rewind.
- Enclosed factory tuned and matched cartridge-style spring motor provides protected spring driven hose retraction.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Non-corrosive stainless steel spring and pawl with zinc plated ratchet help protect key rewind and locking components.
- Rolled edges and ribbed discs add strength and help reduce sharp exposed edges around the reel body.
- Durable proprietary CPC™ powder coat process helps protect the steel reel structure in shop, plant, and service vehicle environments.
Made in USA:
Applications:
- Lubrication and oil service: Managing medium pressure oil hose at service bays, equipment lubrication points, maintenance carts, and mechanic trucks.
- Industrial MRO departments: Supporting plant repair work, equipment service, and utility connections where a larger hose diameter is preferred.
- Fleet and heavy vehicle maintenance: Keeping air, water, or oil hose organized around truck bays, lift areas, mobile service units, and shop workstations.
- Manufacturing and facility support: Providing retractable medium pressure hose at production support areas, tool rooms, and maintenance stations.
- Washdown and utility service: Handling compatible water service within the reel’s 1,500 PSI maximum pressure rating and hose limitations.
- Mobile service vehicles: Mounting on utility, mechanic, and field service trucks where a shorter 25 ft hose reach and controlled storage are useful.
FAQs:
- Q: Does the Coxreels MP-N-525 include hose?
A: Yes. The MP-N-525 is supplied with a 3/4" I.D. x 25 ft one wire braid hose for compatible air, water, or oil service. - Q: Why choose a 3/4" hose with a 25 ft length?
A: A 3/4" hose provides a larger internal flow path than smaller hose sizes, while the 25 ft length keeps the reel focused around a workstation, bay, or vehicle installation. This is useful when the application needs more volume but not a long hose run. - Q: Can this reel be used for oil applications?
A: Yes. Coxreels lists MP Series reels with hose for air, water, or oil applications. Always confirm that the fluid, temperature, operating pressure, and seal compatibility match the system before installation. - Q: What does “medium pressure” mean on this reel?
A: Medium pressure means the reel and supplied hose are rated above standard low pressure air and water reels, but below high pressure hydraulic hose reel configurations. The MP-N-525 is rated to 1,500 PSI maximum pressure. - Q: What does the lock ratchet do?
A: The multi-position lock ratchet holds the hose at the length selected by the operator. When released, the spring rewind mechanism retracts the hose back onto the reel.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
