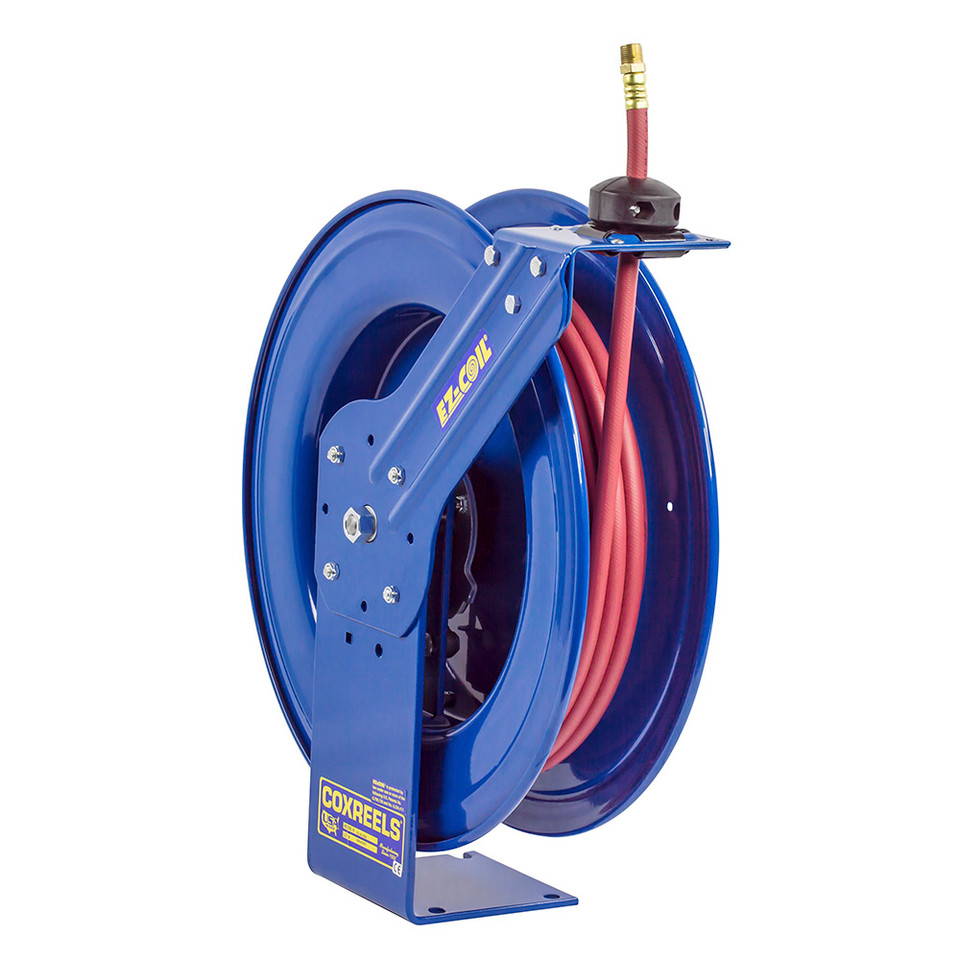

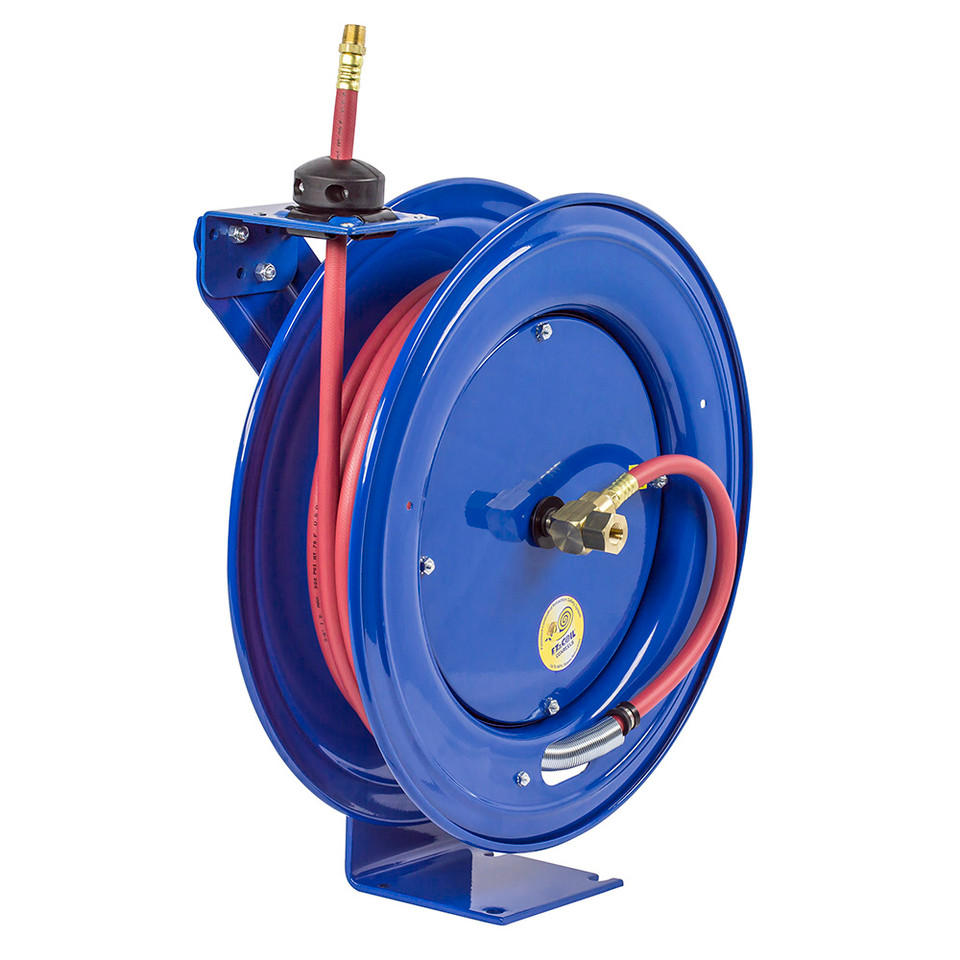

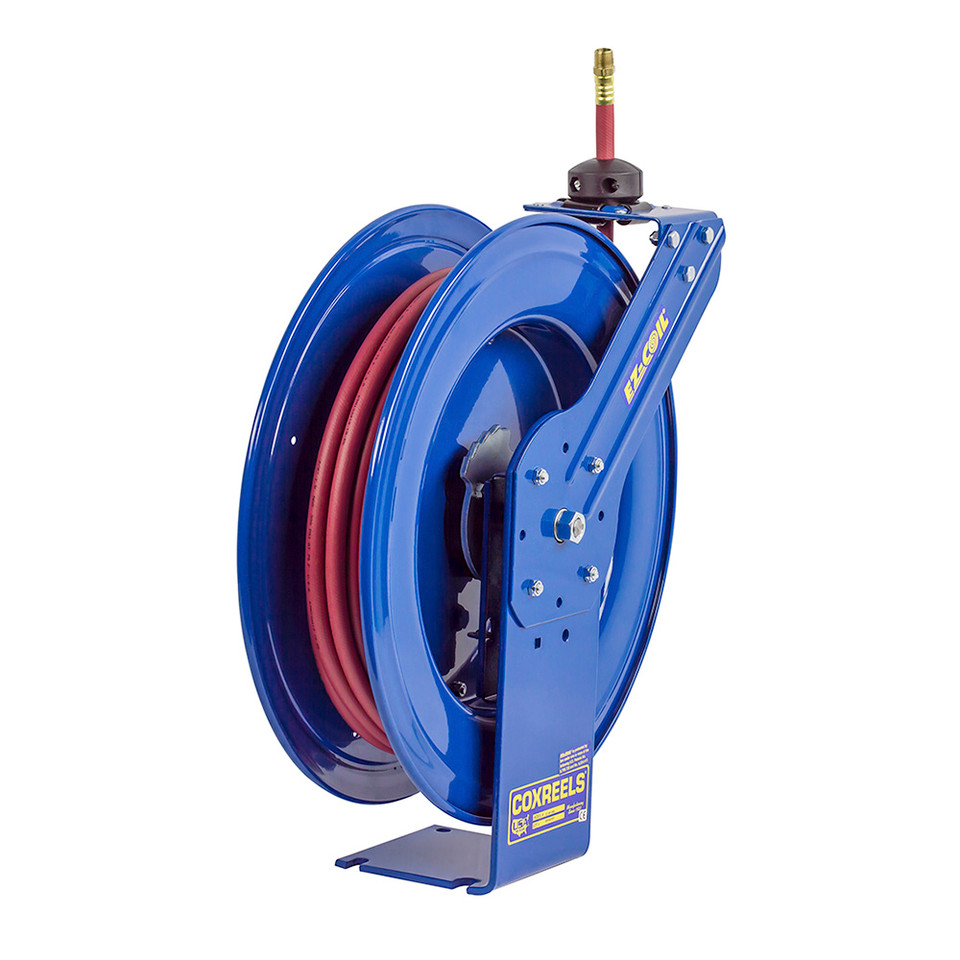

Built for work areas where controlled rewind speed matters, the Coxreels EZ-SH-525 EZ combines the larger SH Series Super Hub reel frame with Coxreels’ EZ-Coil retraction system. This Low Pressure Spring Rewind Hose Reel is supplied with a 3/4" I.D. x 25 ft hose, giving operators a short, higher-flow hose setup for air and water service in shops, service bays, maintenance areas, and mobile equipment layouts. The 250 PSI pressure rating supports compatible low pressure systems, while the EZ-Coil safety system retracts up to 80% slower than conventional spring driven reels to help make hose return more controlled. The EZ-SH Series uses Coxreels’ Super Hub dual axle support system, which helps increase stability during operation, reduce vibration, and strengthen the reel structure. Its 25 ft hose length is well suited for localized workstations where the operator needs a larger hose diameter without managing a long hose run across the floor.
Type: Low Pressure EZ-Coil Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-525 EZ | Hose Included: Yes | Hose I.D.: 3/4" | Hose Length: 25 ft | Max Pressure: 250 PSI | Service: Air and Water | Rewind System: EZ-Coil Controlled Retraction | Support System: Super Hub Dual Axle Support
Features:
- EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels.
- Super Hub dual axle support system increases stability, reduces vibration, and strengthens the reel structure during use.
- Larger EZ-SH Series chassis accommodates larger hose diameters for applications that need more flow than smaller hose reels provide.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient flow routing into the reel.
- NITRILE swivel seals support standard low pressure air and water service within the reel rating.
- Sturdy single pedestal reel layout provides a compact footprint for shop, wall, vehicle, floor, or overhead mounting.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation planning.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation.
- Enclosed factory tuned and matched cartridge-style spring motor keeps the rewind system protected inside the reel assembly.
- Non-corrosive stainless steel spring and pawl with zinc plated ratchet help protect key locking and retraction components.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Automotive and fleet service bays: Supplying a short, larger-diameter air or water hose at lifts, tire stations, and mechanic work areas.
- Plant maintenance and MRO: Keeping utility hose controlled at localized maintenance points, repair benches, and equipment service stations.
- Service trucks and mobile maintenance: Providing retractable hose storage where space is limited and controlled hose return is preferred.
- Washdown and cleanup areas: Managing compatible low pressure water hose for cleanup tasks within the reel’s pressure limits.
- Pneumatic tool support: Feeding compatible air tools when compressor output, hose size, pressure, and tool requirements match the system.
- Garage and workshop use: Keeping a 25 ft hose accessible for general repair, inflation, and utility tasks without leaving hose loose on the floor.
FAQs:
- Q: What makes the EZ-SH-525 EZ different from a standard SH Series reel?
A: The EZ-SH-525 EZ uses Coxreels’ EZ-Coil® controlled retraction system, which retracts the hose more slowly than a conventional spring driven reel. This helps make hose return more controlled in busy work areas. - Q: Does this reel include hose?
A: Yes. This model is supplied with a 3/4" I.D. x 25 ft hose for compatible low pressure air and water service. - Q: Why choose a 3/4" hose reel with only 25 ft of hose?
A: A 3/4" hose provides a larger internal flow path than smaller 3/8" or 1/2" hose sizes, while the 25 ft length keeps the installation focused around a workstation, bay, or service vehicle area. - Q: Can this reel be mounted overhead?
A: Yes. The guide arm can be adjusted for wall, floor, vehicle, and overhead mounting positions. The mounting surface and hardware must be appropriate for the reel weight, hose load, and pulling direction. - Q: Is this reel suitable for oil service?
A: Models supplied with hose in the low pressure EZ-SH Series are listed for air and water service. Less-hose versions may be configured for air, water, or oil when paired with compatible hose and seals.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
