Designed for low-pressure air and water hose management where the hose needs to be selected separately, the Coxreels SHL-N-350 Low Pressure Spring Rewind Hose Reel provides capacity for up to 50 ft of 3/8" I.D. hose and carries a maximum working pressure of 300 PSI. Part of the SH Series, this less-hose model combines automatic spring rewind with Coxreels' Super Hub dual axle support system, providing a practical reel platform for applications where buyers need to choose hose according to their specific operating requirements.
The SHL-N-350 incorporates an external fluid path with a machined solid brass 90-degree full-flow NPT swivel and a multi-position guide arm for installation flexibility. Its spring-driven rewind retrieves compatible hose after use, while the multi-position lock ratchet allows the hose to remain extended at the selected working length. The reel is supplied without hose, allowing a compatible 3/8-inch I.D. hose to be selected separately for the intended air or water service within the reel's specified operating limits.

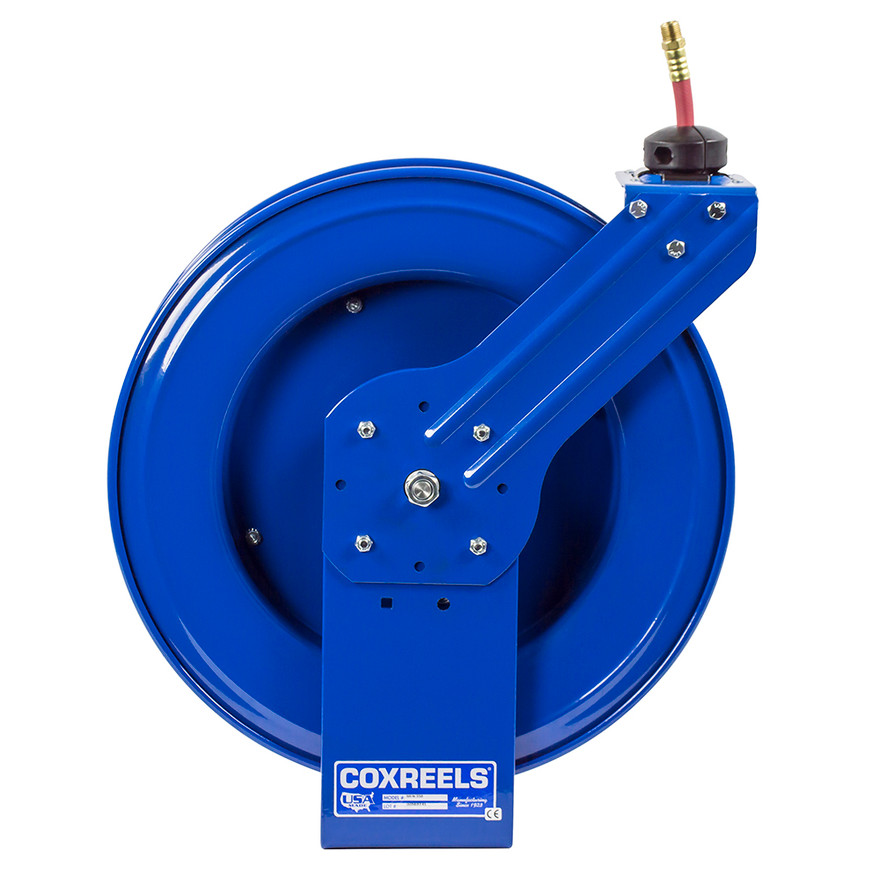

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SHL-N-350 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 300 PSI | Approx. Weight: 44 lbs
Features:
- Less-hose configuration allows compatible 3/8-inch I.D. hose to be selected separately for the intended application.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports flexible reel installation for different mounting requirements.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Rolled edges and ribbed discs add strength and safety to the reel structure.
- CPC powder coat finish helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Manufacturing and maintenance facilities that require automatic storage for a separately selected air or water hose.
- Repair shops and MRO work areas where spring rewind helps keep compatible hose organized between service tasks.
- Automotive and fleet service installations requiring capacity for up to 50 feet of 3/8-inch I.D. hose.
- Stationary or vehicle-mounted applications where the hose specification needs to be selected separately.
- Low-pressure air and water systems operating within the reel's specified 300 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SHL-N-350 include hose?
A: No. The SHL-N-350 is supplied as a less-hose reel and provides capacity for up to 50 feet of compatible 3/8-inch I.D. hose. - Q: What does the less-hose configuration allow the buyer to do?
A: It allows the hose to be selected separately according to the intended air or water service and applicable pressure, temperature, and dimensional requirements. - Q: What is the maximum working pressure of the SHL-N-350?
A: The reel is rated for a maximum working pressure of 300 PSI. The separately selected hose and other system components must also be suitable for the intended operating conditions. - Q: How is the hose held at the desired working length?
A: The multi-position lock ratchet allows compatible hose to remain extended at the selected length before the spring rewind mechanism retrieves it. - Q: What is the corresponding SH Series model supplied with hose?
A: The SH-N-350 is the corresponding hose-equipped configuration, while the SHL-N-350 is supplied without hose.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
