Built for medium-pressure air, water, and oil service, the Coxreels MPL-N-435 Spring Rewind Hose Reel gives maintenance teams a reel-only platform for organizing customer-supplied hose in shops, service bays, plant maintenance areas, and mobile equipment setups. This MP Series model is configured less hose and supports 1/2" I.D. hose with up to 35 ft hose capacity and a 2,500 PSI maximum pressure rating, making it useful when hose material, fitting style, or end connections need to be selected separately for the application. The MPL-N-435 uses Coxreels’ Super Hub dual axle support system, which adds support at the center shaft to help stabilize the drum during payout and rewind. The spring rewind mechanism retracts the installed hose after use, while the multi-position lock ratchet allows the operator to hold the hose at the desired working length. Because this model is supplied without hose, it is a practical choice for buyers who already stock approved 1/2" medium-pressure hose or need to match the reel to a specific air, water, or oil service requirement.

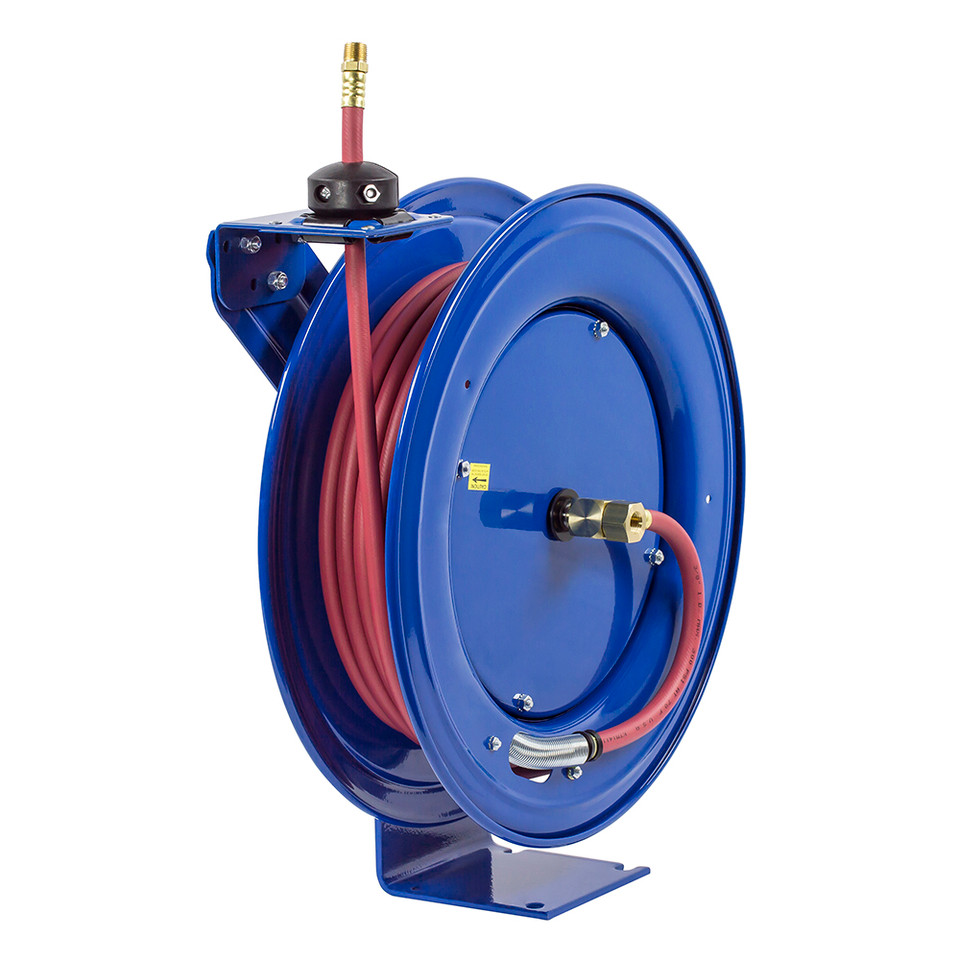

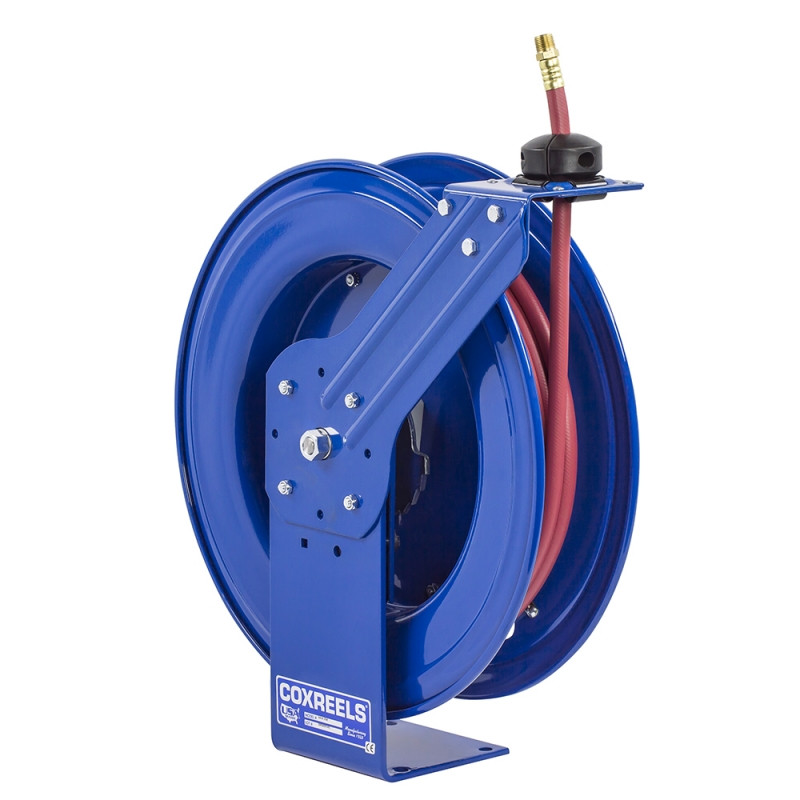

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: MP Series | Configuration: Less Hose | Pressure Class: Medium Pressure | Hose I.D.: 1/2" | Maximum Hose O.D.: 13/16" | Hose Capacity: 35 ft | Max Pressure: 2,500 PSI | Service: Air, Water, Oil | Approx. Weight: 51 lbs | Overall Dimensions: 8-1/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Less-hose configuration allows the buyer to install compatible 1/2" hose separately for the intended air, water, or oil application.
- Spring rewind operation retracts the installed hose after use, helping reduce loose hose around service bays, benches, work cells, and mobile equipment.
- Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- Machined solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel assembly.
- Nitrile swivel seals are used for the listed medium-pressure service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to support fixed shop or mobile installations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during hose payout and rewind.
Made in USA:
Applications:
- Industrial maintenance departments installing medium-pressure hose reels at work cells, benches, and equipment service points.
- Automotive, fleet, and truck service shops using 1/2" hose for air, oil, or water service around maintenance bays.
- Manufacturing facilities that need organized hose storage for general service lines near production equipment.
- Mobile mechanic, utility, and service vehicles where hose selection is handled separately to match the truck layout and service media.
- DIY garages and home workshops where the user already has compatible 1/2" hose and needs a bare spring rewind reel.
FAQs:
- Q: What does “less hose” mean on the Coxreels MPL-N-435?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/2" I.D., 13/16" maximum O.D., 35 ft capacity, and 2,500 PSI pressure rating. - Q: Can this reel be used for shop air?
A: Yes, when the selected hose and fittings match the shop air system’s pressure, flow, and connection requirements. The reel is listed for air, water, and oil service when used with compatible components. - Q: What fluids can the MPL-N-435 handle?
A: The MP Series configuration is listed for air, water, and oil applications. Always confirm that the installed hose, fittings, and seal materials are compatible with the exact media, temperature, and pressure conditions. - Q: Can this reel be installed on a wall or service truck?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is securely mounted to a suitable structure. - Q: How is MPL-N-435 different from MP-N-435?
A: MPL-N-435 is the less-hose version and does not include hose. MP-N-435 is the corresponding hose-included model in the same MP Series size configuration.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
