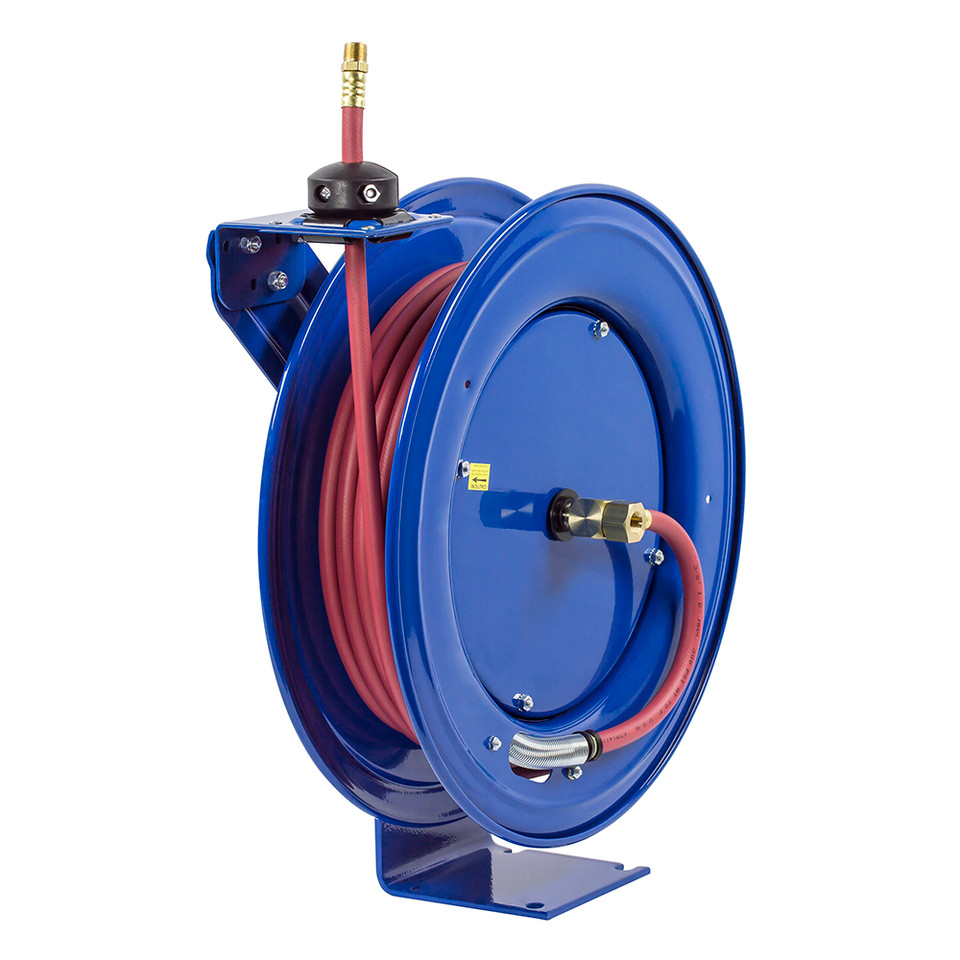

Built for low-pressure air and water service where additional hose reach and automatic retrieval are needed, the Coxreels SH-N-475 Low Pressure Spring Rewind Hose Reel combines a 75 ft hose length with a 1/2" hose I.D. and a 300 PSI maximum working pressure. Part of the SH Series, this reel incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity. The spring-driven rewind automatically retrieves the hose after use, helping keep longer hose runs organized around maintenance facilities, manufacturing work areas, service shops, and mobile installations.

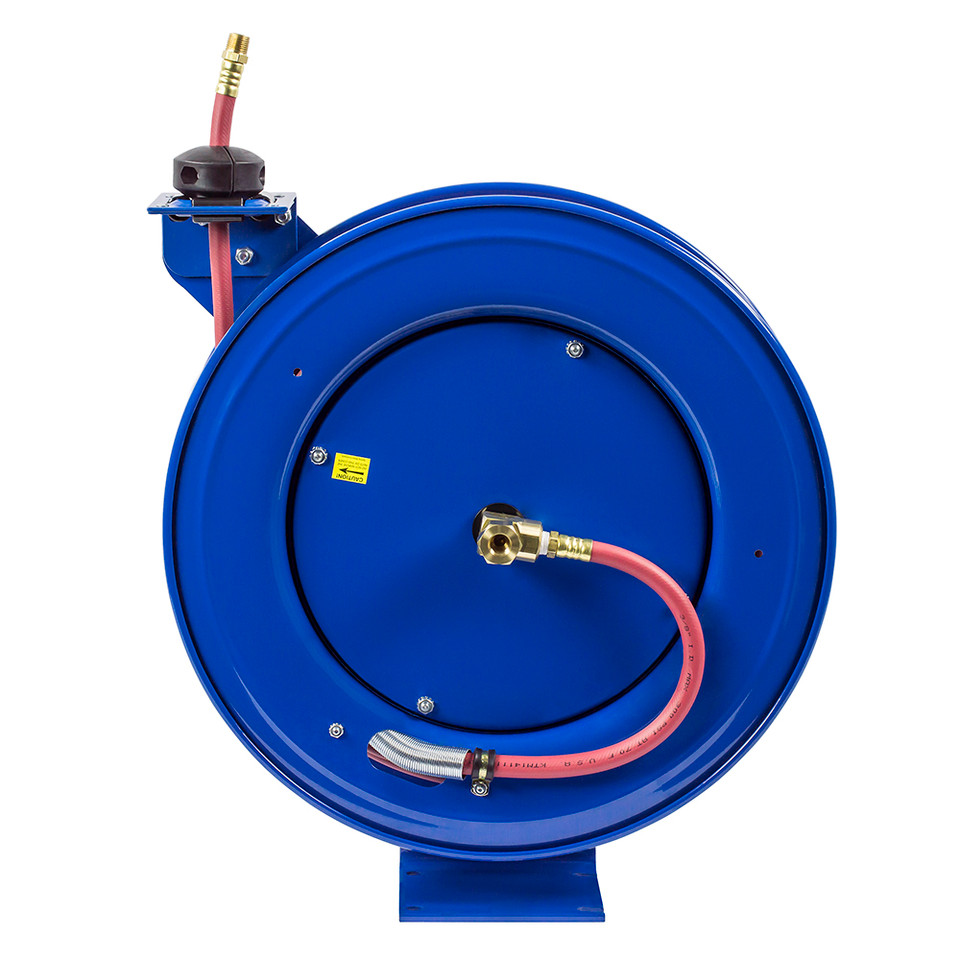

The SH-N-475 uses an external fluid path with a machined solid brass 90-degree full-flow NPT swivel, helping maintain an unrestricted flow path through the reel. Its multi-position guide arm allows the reel to be configured for wall, floor, vehicle, and overhead mounting positions, while the multi-position lock ratchet holds the hose at the required working length. A solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind, and the heavy-gauge steel base and support post provide a stable mounting structure for the 75-foot hose configuration.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SH-N-475 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 68 lbs
Features:
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- NITRILE swivel seals support the low-pressure SH Series configuration.
- Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.

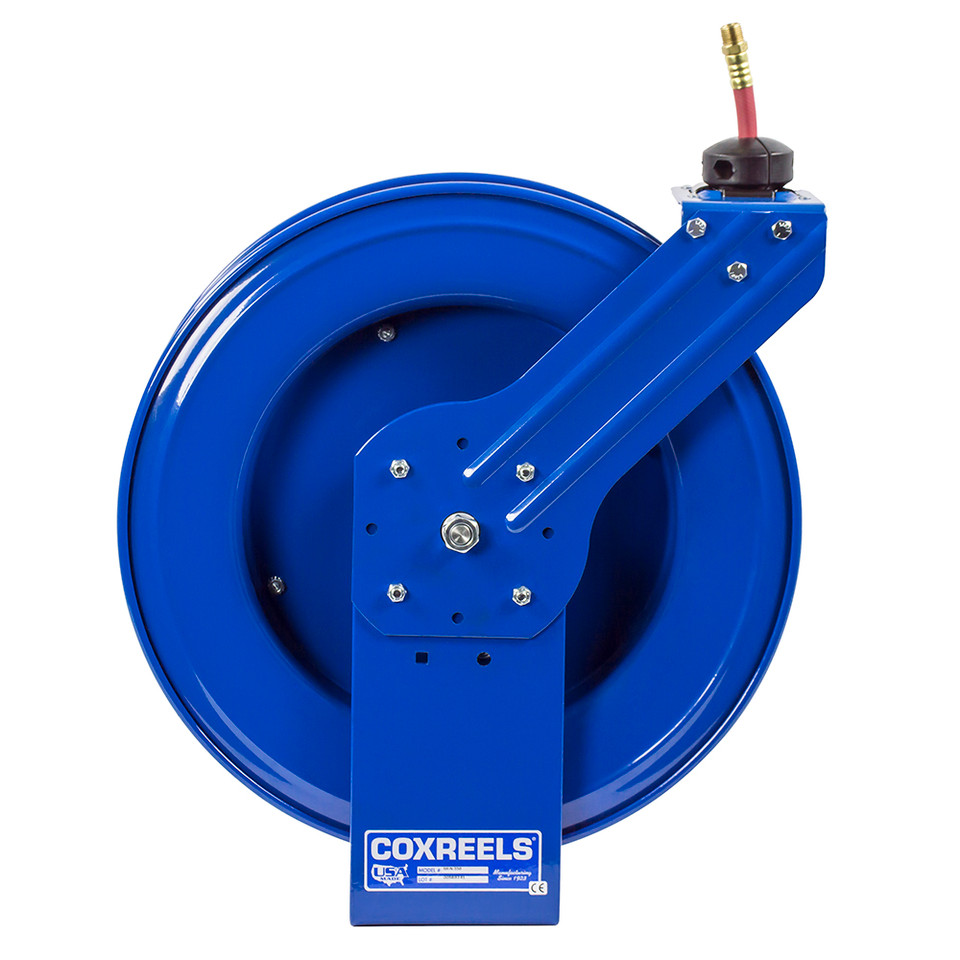

- Solid one-piece, heavy-gauge steel base and support post provide a stable reel mounting structure.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
- Adjustable hose stop controls the amount of hose that remains outside the reel after retraction.
- Rolled edges, ribbed discs, and Coxreels' CPC powder coat finish add strength and protection to the reel structure.
Made in USA:
Applications:
- Manufacturing and maintenance facilities requiring extended air or water hose reach around equipment and workstations.
- Automotive and fleet service operations managing hose across larger service bays and work areas.
- Repair shops and MRO departments where automatic spring rewind helps keep hose organized between uses.
- Service and utility vehicles requiring onboard hose storage with automatic retrieval.
- Air and water applications operating within the reel's specified 300 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SH-N-475 include hose?
A: Yes. The SH-N-475 is the hose-equipped configuration with 75 feet of 1/2-inch I.D. hose. - Q: What is the maximum working pressure of the SH-N-475?
A: The Coxreels SH-N-475 has a maximum working pressure rating of 300 PSI. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: Can the SH-N-475 be installed in different mounting positions?
A: Yes. The multi-position guide arm can be adjusted for wall, floor, vehicle, and overhead mounting arrangements. - Q: How does the hose remain extended while working?
A: The multi-position lock ratchet allows the hose to remain at the selected working length. The spring-driven rewind retrieves the hose when the locking mechanism is released and the hose is guided back toward the reel.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
