Built for low-pressure air and water applications where a larger hose diameter is required and the hose needs to be selected separately, the Coxreels SHL-N-550 Low Pressure Spring Rewind Hose Reel provides capacity for up to 50 ft of 3/4" I.D. hose and carries a maximum working pressure of 300 PSI. Part of the SH Series, this less-hose model combines automatic spring rewind with Coxreels' Super Hub dual axle support system, which increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel.
The SHL-N-550 uses the larger SH Series chassis and frame to accommodate greater hose diameters and capacities. A versatile guide arm supports wall, floor, ceiling, and vehicle mounting positions, while the multi-position lock ratchet secures the hose at the desired working length. The reel also features a machined solid brass 90-degree full-flow NPT swivel, permanently lubricated precision bearings, and heavy-duty steel construction. Because this model is supplied without hose, the buyer can select compatible 3/4-inch I.D. hose separately for the intended low-pressure air or water application.

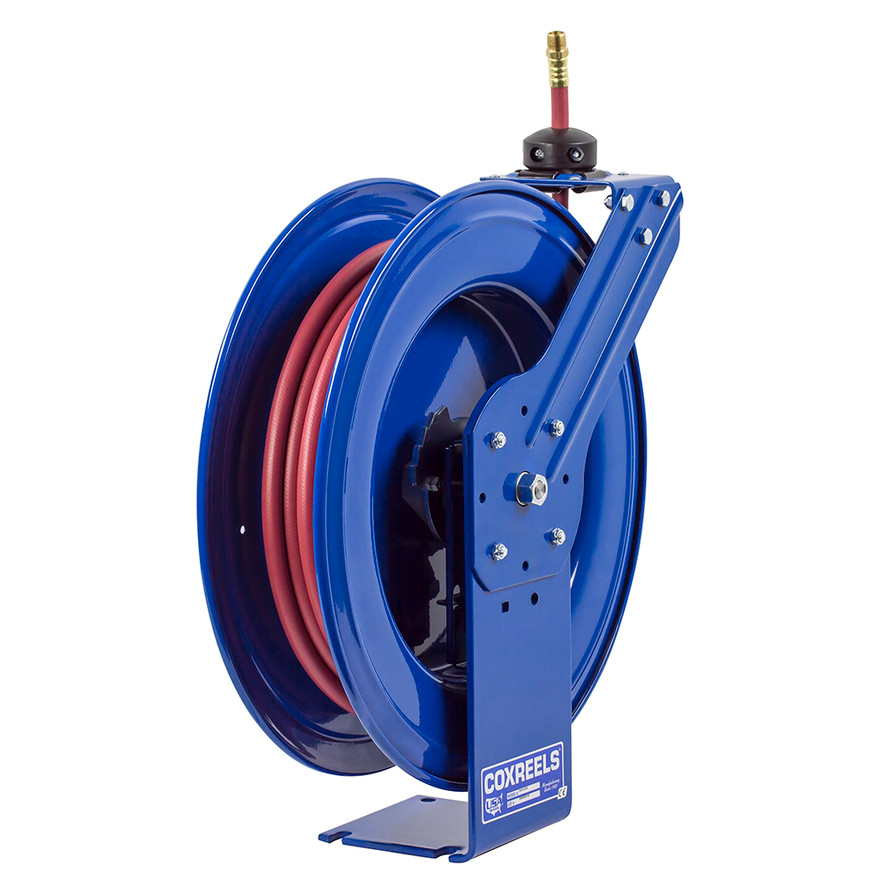

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SHL-N-550 | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 300 PSI | Ship Weight: 56 lbs
Features:
- Less-hose configuration provides capacity for up to 50 feet of compatible 3/4-inch I.D. hose.
- Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens structural integrity.
- Larger chassis and frame accommodate longer lengths and larger diameters of hose.
- Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
- Non-corrosive stainless steel spring and pawl with zinc-plated ratchet support dependable rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Machined solid brass 90-degree full-flow NPT swivel supports efficient fluid flow and straightforward seal maintenance.
- Versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
- Heavy-duty CNC-spun and ribbed discs with rolled edges provide strength, hose protection, and added operator safety.
- CPC powder coat finish, adjustable solid rubber hose stop, and permanently lubricated precision bearings support reel durability and smooth operation.
Made in USA:
Applications:
- Manufacturing and facility maintenance operations requiring organized storage for separately selected larger-diameter air or water hose.
- Repair shops and MRO work areas where automatic spring rewind helps keep compatible hose stored between service tasks.
- Stationary service installations requiring capacity for up to 50 feet of 3/4-inch I.D. hose.
- Vehicle-mounted service applications where hose specifications need to be selected separately for the operating requirements.
- Low-pressure air and water applications operating within the reel's specified 300 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SHL-N-550 include hose?
A: No. The SHL-N-550 is supplied as a less-hose reel. It provides capacity for up to 50 feet of compatible 3/4-inch I.D. hose with a maximum outside diameter of 1-1/16 inches. - Q: What is the maximum working pressure of the SHL-N-550?
A: The reel is rated for a maximum working pressure of 300 PSI. The separately selected hose and other connected system components must also be appropriately rated for the intended application. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases reel stability during operation, reduces vibration, and strengthens the structural integrity of the reel. - Q: Where can the SHL-N-550 be mounted?
A: The versatile guide arm can be adjusted for wall, floor, ceiling, and vehicle mounting positions, allowing the reel orientation to be matched to the installation. - Q: How much installation space does the SHL-N-550 require?
A: The reel measures 9.88 inches wide by 25.5 inches high by 24 inches long. It has a 6-inch by 6-inch base with a 4-inch by 5-inch mounting pattern.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
