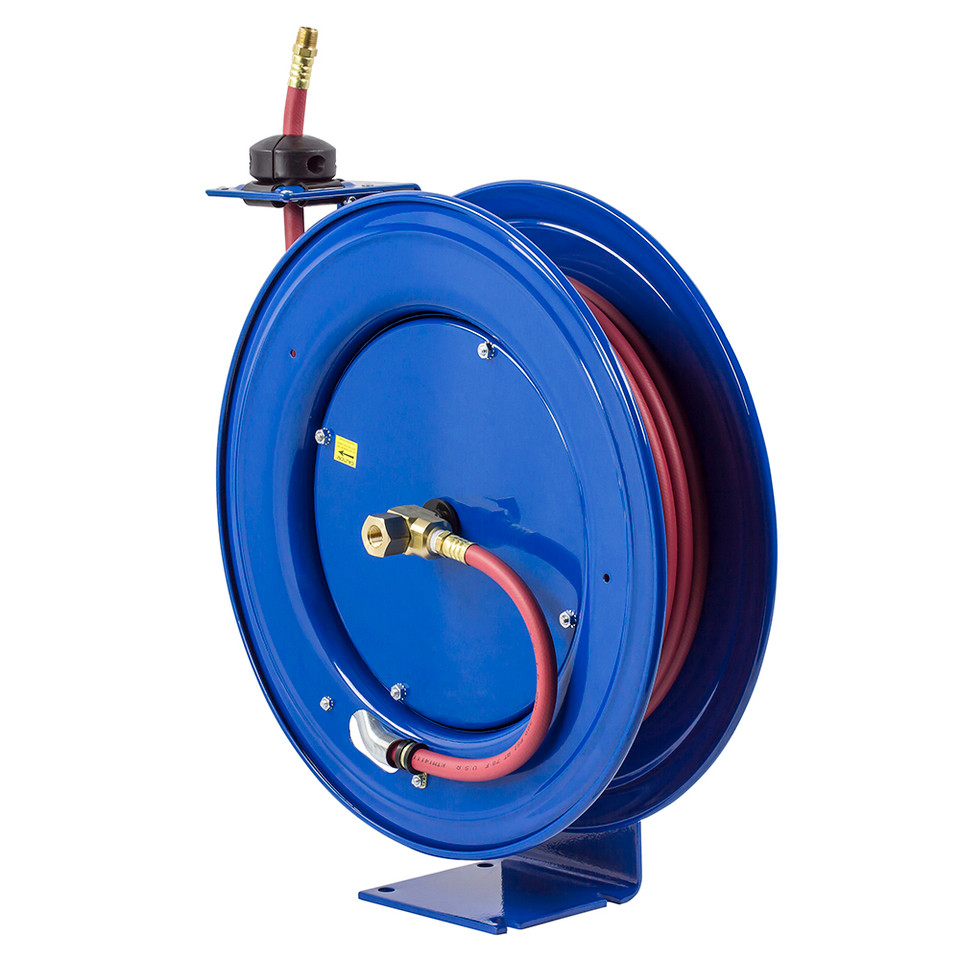

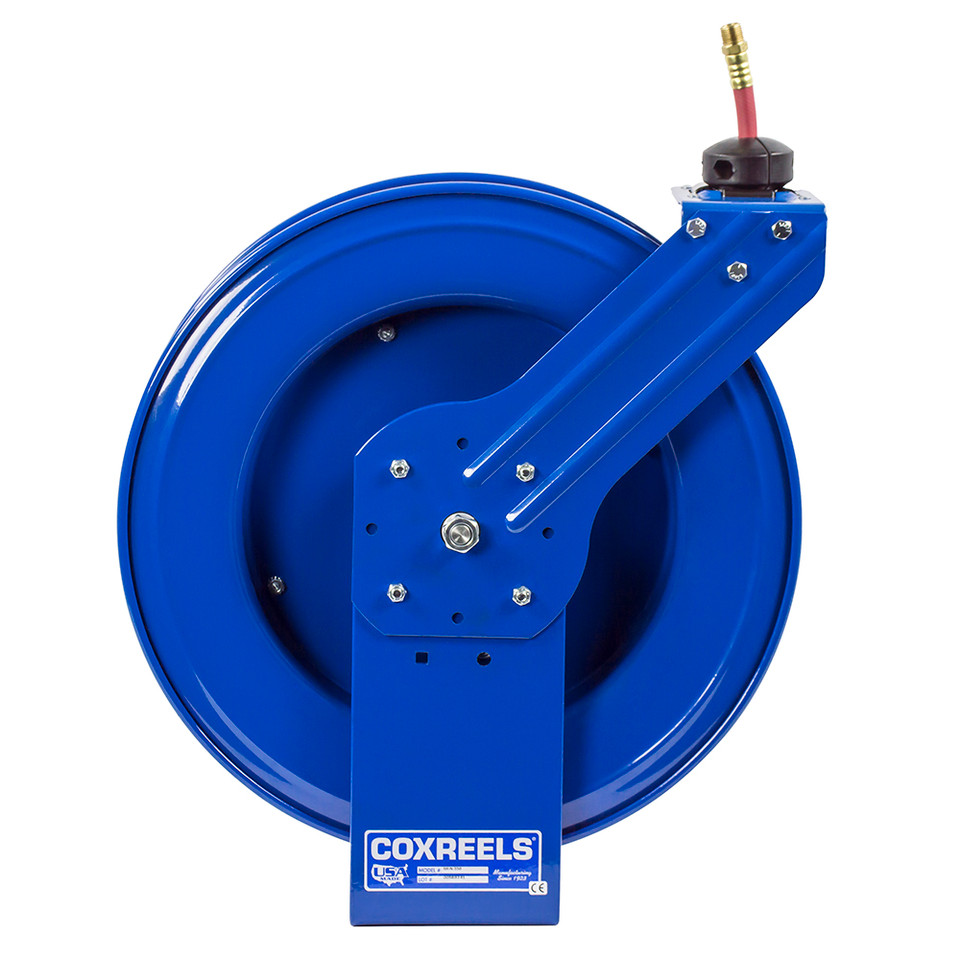

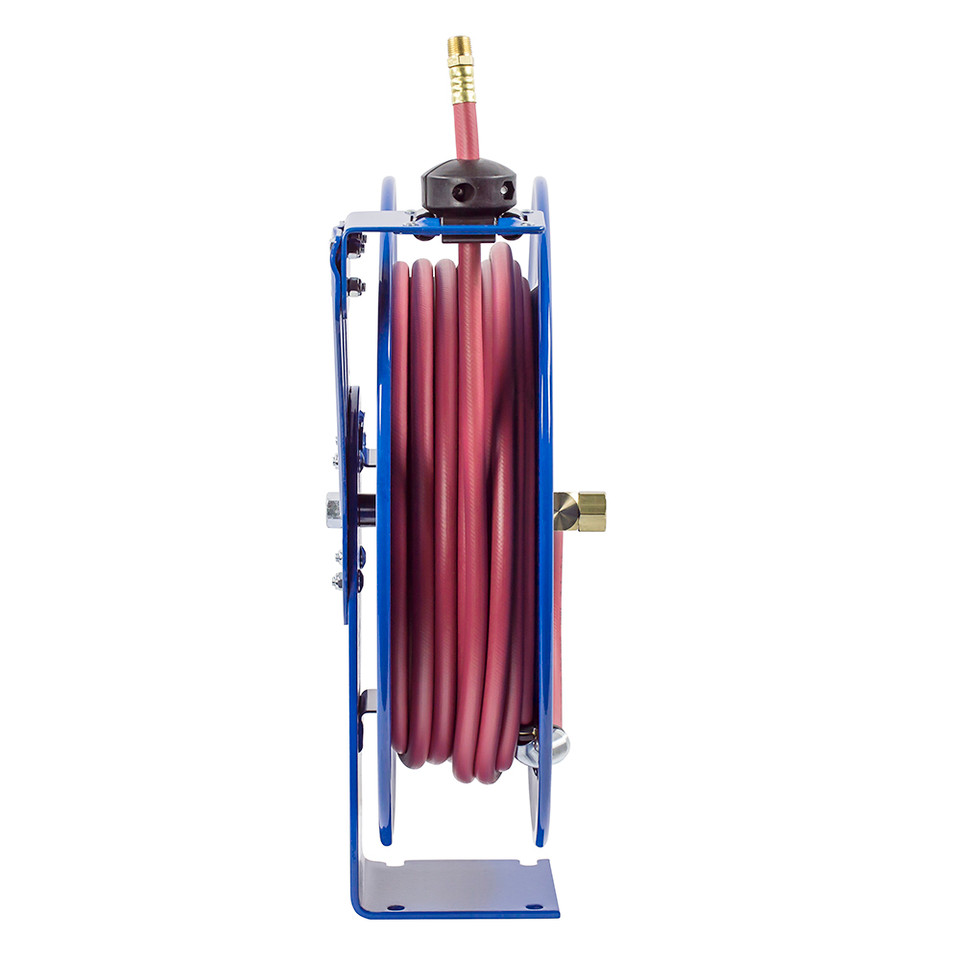

Built for shops, service vehicles, and plant work areas that need longer hose reach without loose hose on the floor, the Coxreels SH-N-375 is a Low-Pressure Spring Rewind Hose Reel from the SH Series. It is supplied with a 3/8" I.D. x 75 ft hose for air and water service, giving technicians extra working range for pneumatic tools, washdown tasks, and general utility use while keeping the hose stored on a controlled retracting reel. The 300 PSI pressure rating supports common low pressure shop systems, and the Super Hub dual axle support system helps stabilize the drum during pull-out and rewind. The larger SH Series chassis accommodates longer hose lengths and larger hose diameters than smaller reel frames, making this model a practical choice when a standard 50 ft reach is not enough. Its spring driven rewind mechanism retracts the hose after use, while the multi-position lock ratchet secures the hose at the desired length so the operator can work without continuous pullback tension.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SH-N-375 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 75 ft | Max Pressure: 300 PSI | Service: Air and Water | Max Temperature: 150°F | Approx. Weight: 68 lbs
Features:
- Super Hub dual axle support system increases reel stability during hose pull-out and rewind.
- Larger SH Series chassis and frame accommodate longer lengths and larger hose diameters.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet for reliable flow routing into the reel.
- NITRILE swivel seals support standard low pressure air and water service requirements.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned and matched cartridge-style spring motor provides spring driven hose retraction.
- Non-corrosive stainless steel spring and pawl with zinc plated ratchet help protect key retraction components.
- Rolled edges and ribbed discs add strength and help reduce sharp exposed edges around the reel structure.
- Durable proprietary CPC™ powder coat process helps protect the steel reel body in shop and service environments.
Made in USA:
Applications:
- Maintenance, repair, and operations: Keeping air or water hose accessible at workstations, repair bays, and general plant service areas.
- Automotive and fleet service centers: Supplying reach for shop air, vehicle service, and cleanup tasks around lifts, bays, and service trucks.
- Manufacturing plants and facilities: Managing hose at assembly areas, tool drops, and utility stations where loose hose can create clutter.
- Service, mechanic, and utility vehicles: Mounting on mobile equipment where controlled hose storage helps keep the vehicle organized.
- Pneumatic tool support: Providing a retractable hose point for compatible low pressure air tools when system pressure and hose requirements match the reel rating.
- Washdown and air/water service: Handling low pressure water or compressed air use within the reel and hose temperature and pressure limits.
FAQs:
- Q: Does the SH-N-375 include hose?
A: Yes. The SH-N-375 model is supplied with a 3/8" I.D. x 75 ft hose for low pressure air and water service. - Q: What does the Super Hub™ system do?
A: Super Hub™ is Coxreels’ dual axle support system. It helps increase stability during operation, reduce vibration, and strengthen the reel structure. - Q: Can this reel be mounted on a wall or vehicle?
A: Yes. The guide arm can be adjusted for wall, floor, vehicle, and overhead mounting positions, provided the reel is installed to a solid structure using appropriate hardware. - Q: Is this reel suitable for oil service?
A: This SH-N-375 model with hose is listed for air and water service with a maximum temperature of 150°F. Coxreels notes that less-hose models can be used for air, water, or oil when fitted with compatible hose. - Q: What is the benefit of a spring rewind hose reel?
A: A spring rewind reel retracts the hose after use, helping reduce loose hose on the floor and keeping the work area more organized.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
