Built for low-pressure air and water applications where extended hose reach is needed but the hose must be selected separately, the Coxreels SHL-N-3100 Low Pressure Spring Rewind Hose Reel provides capacity for up to 100 ft of 3/8" I.D. hose and carries a maximum working pressure of 300 PSI. Part of the SH Series, this less-hose configuration combines automatic spring rewind with Coxreels' Super Hub dual axle support system, which helps increase reel stability, reduce vibration, and strengthen structural integrity during operation.
The SHL-N-3100 uses a larger-capacity SH Series chassis to accommodate the 100-foot hose length. Its external fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel, while the multi-position guide arm supports flexible installation in different mounting orientations. A multi-position lock ratchet allows compatible hose to remain extended at the required working length, and the spring rewind mechanism automatically retrieves the hose when the job is complete. Because this model is supplied less hose, the buyer can select a compatible 3/8-inch I.D. hose that matches the intended media and operating requirements.

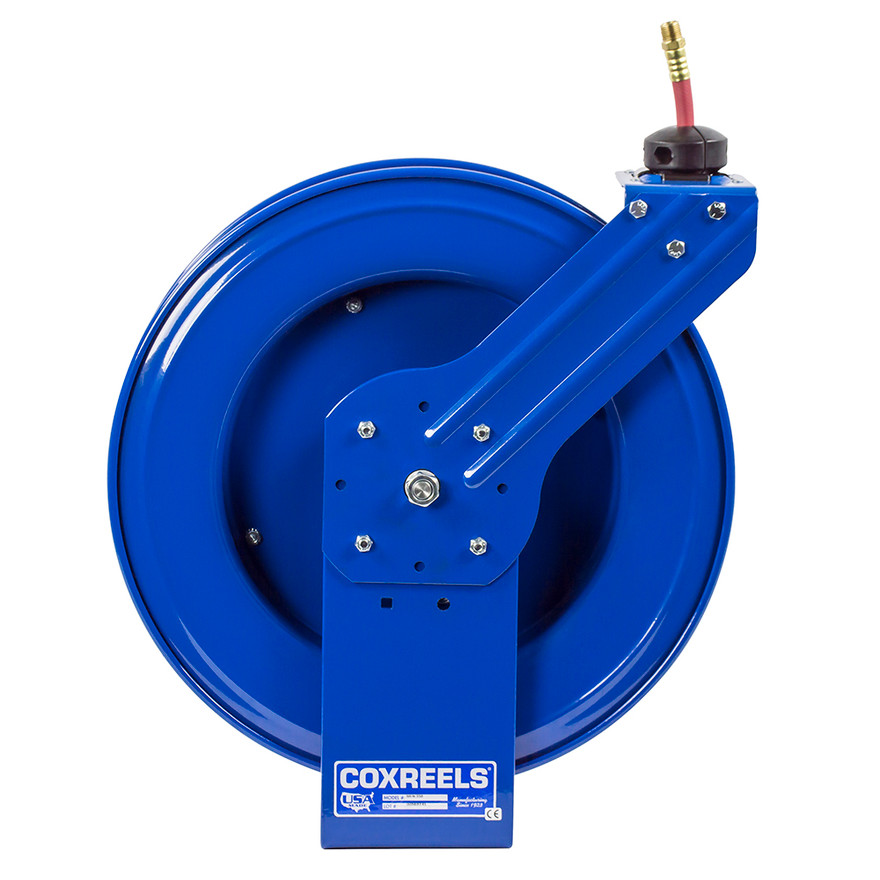

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SHL-N-3100 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 100 ft | Hose Included: No | Max Pressure: 300 PSI | Approx. Weight: 60 lbs
Features:
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports flexible installation for different mounting requirements.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
- Larger-capacity SH Series chassis accommodates up to 100 feet of 3/8-inch I.D. hose.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Rolled edges and ribbed discs add strength and safety to the reel structure.
- CPC powder coat finish helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Manufacturing and maintenance facilities that need extended air or water hose reach with separately selected hose.
- Repair shops and MRO work areas where spring rewind helps keep long hose runs organized between uses.
- Automotive and fleet service operations requiring up to 100 feet of compatible 3/8-inch hose.
- Service and utility vehicle installations where the hose specification needs to be selected separately for the application.
- Low-pressure air and water systems operating within the reel's specified 300 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SHL-N-3100 include hose?
A: No. The SHL-N-3100 is a less-hose reel and is supplied without hose. It provides capacity for up to 100 feet of compatible 3/8-inch I.D. hose. - Q: What does "less hose" mean for this model?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately based on the intended air or water service and operating conditions. - Q: What is the maximum working pressure of the SHL-N-3100?
A: The reel is rated for a maximum working pressure of 300 PSI. Any hose installed on the reel must also be appropriately rated for the application. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: Does the SHL-N-3100 automatically rewind the hose?
A: Yes. The reel uses a spring-driven rewind mechanism for automatic hose retrieval, while the multi-position lock ratchet allows the hose to remain extended at the selected working length.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
