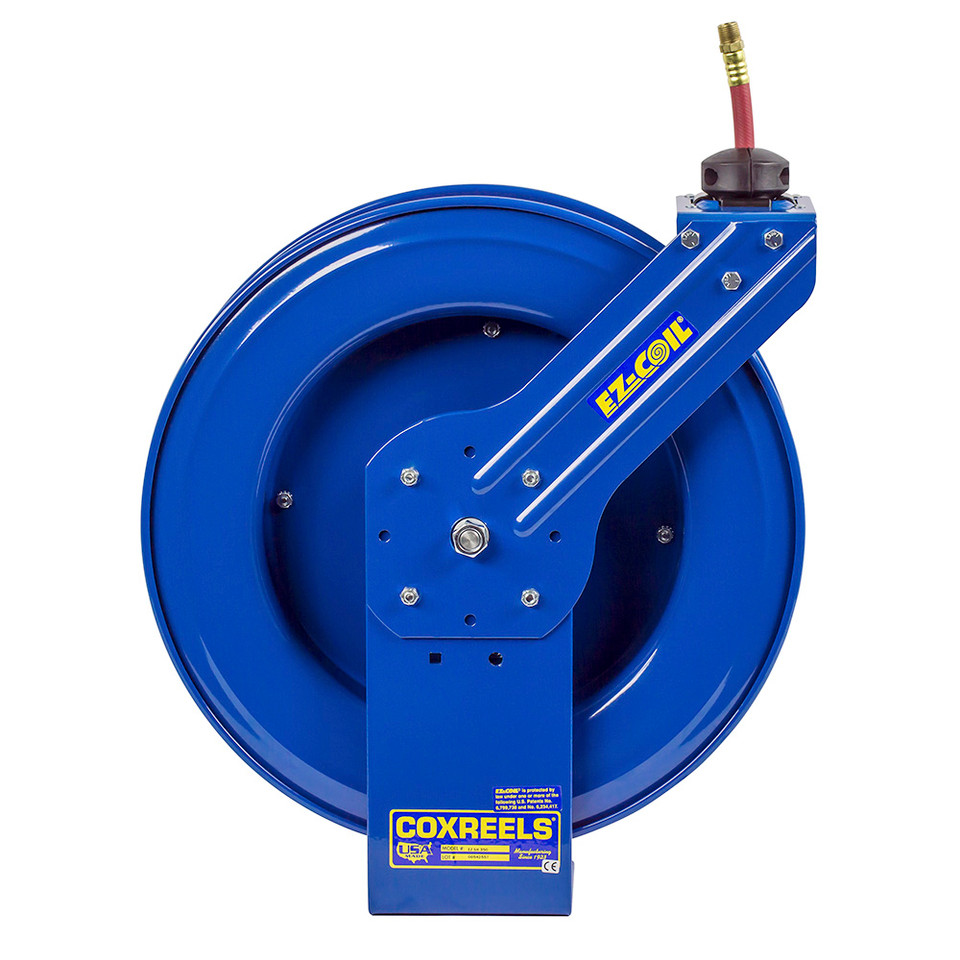

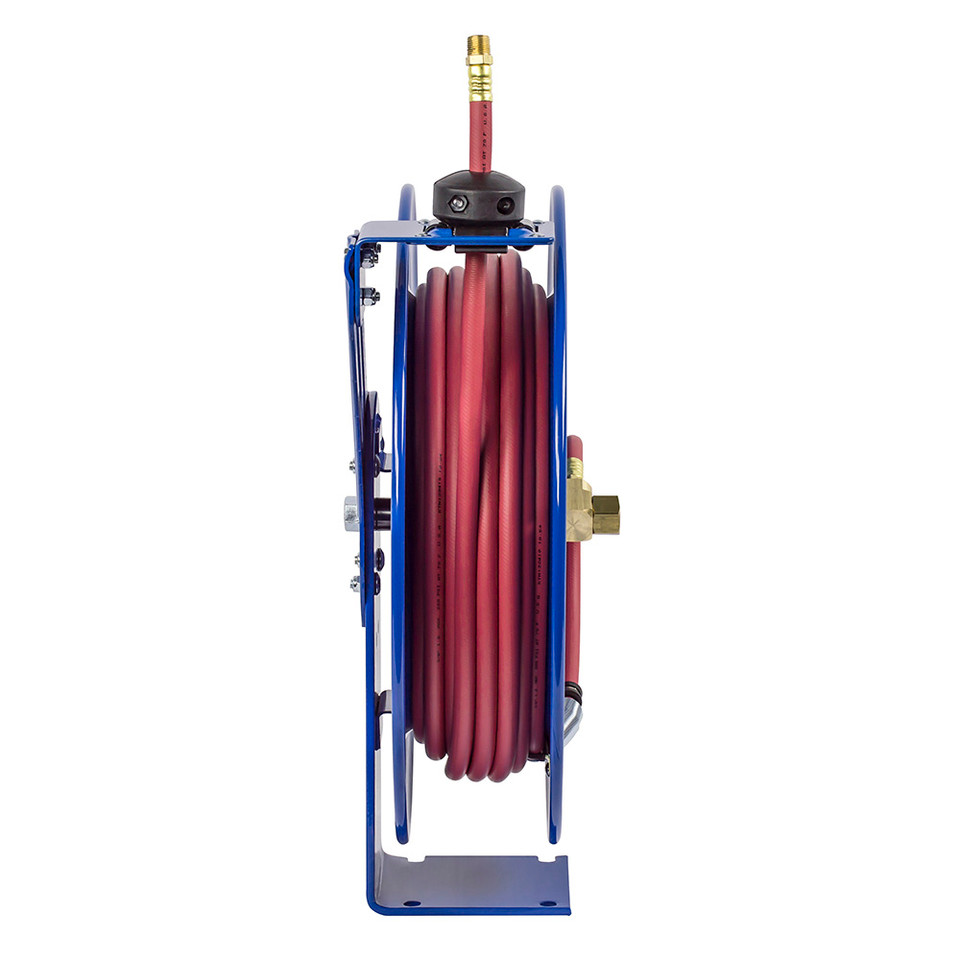

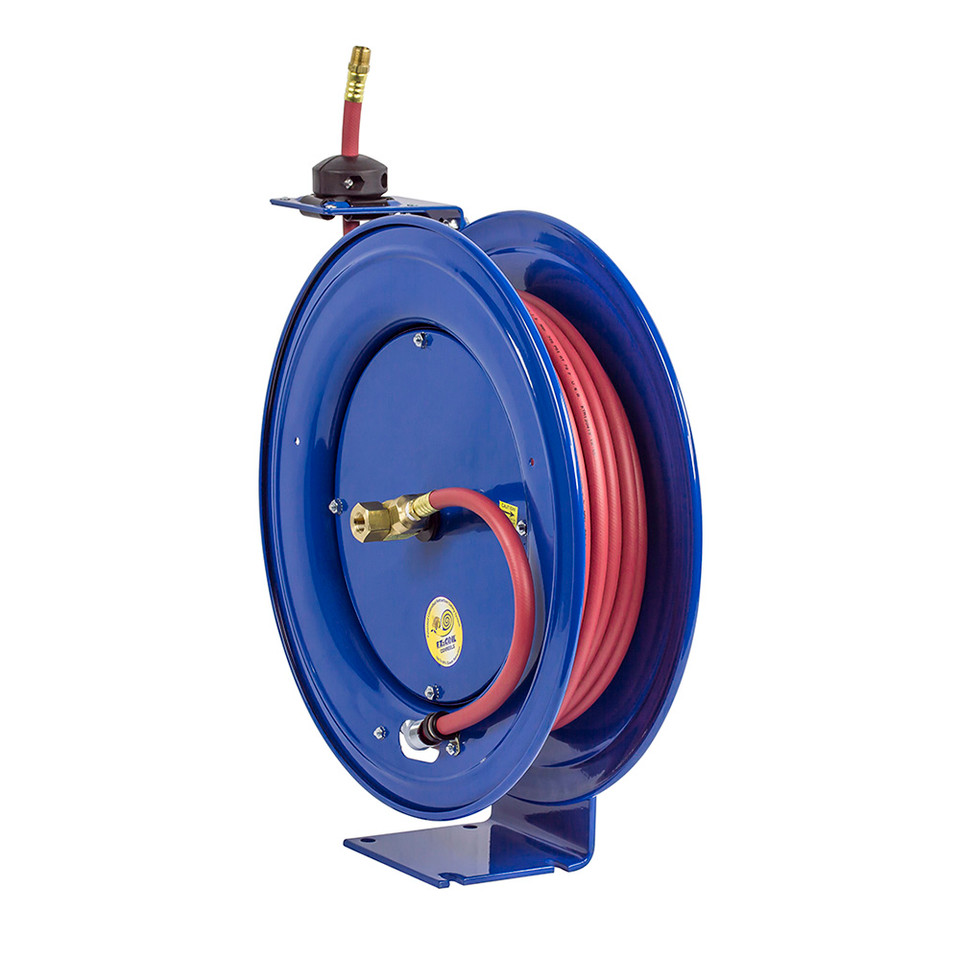

Built for air and water hose management where extended reach and controlled automatic retraction are required, the Coxreels EZ-SH-4100 Super Hub Spring Rewind Hose Reel combines a 100 ft hose length with a 1/2" hose I.D. and a 300 PSI maximum working pressure. Part of the EZ-SH Series, this model incorporates Coxreels' patented EZ-Coil safety system, which retracts the hose up to 80% slower than conventional spring-driven reels. The controlled rewind helps manage a longer 100-foot hose run during retrieval, while automatic spring operation keeps the hose stored when the job is complete.
The EZ-SH-4100 also incorporates Coxreels' Super Hub dual axle support system to increase reel stability, reduce vibration, and strengthen structural integrity. Its single-pedestal construction uses a solid one-piece, heavy-gauge steel base and support post, while the multi-position guide arm accommodates different mounting orientations. An external fluid path with a machined solid brass 90-degree full-flow NPT swivel supports fluid transfer through the reel, and the multi-position lock ratchet allows the hose to remain extended at the selected working length before rewind.
Type: Super Hub Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-4100 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 81 lbs
Features:
- Patented EZ-Coil safety system retracts the hose up to 80% slower than conventional spring-driven reels for a more controlled return.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports flexible reel installation for different mounting requirements.
- Solid one-piece, heavy-gauge steel base and support post provide a stable reel mounting structure.
- Solid steel axle and lubricated precision bearings support smooth reel rotation.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
- Rolled edges and ribbed discs add strength and safety to the reel structure.
- CPC powder coat process helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Manufacturing and maintenance facilities requiring extended air or water hose reach across larger work areas.
- Automotive and fleet service operations managing hose around multiple vehicles or service positions.
- Repair shops and MRO departments where controlled automatic rewind helps keep long hose runs organized between jobs.
- Service and utility vehicles requiring spring-rewind hose storage for mobile air or water applications.
- Air and water service operating within the manufacturer's specified 300 PSI maximum working pressure.
FAQs:
- Q: What hose size is used on the Coxreels EZ-SH-4100?
A: The EZ-SH-4100 is configured with a 1/2-inch I.D. hose and a 100-foot hose length. - Q: What does the EZ-Coil system do?
A: Coxreels' patented EZ-Coil safety system controls the rewind speed so the hose retracts up to 80% slower than conventional spring-driven reels, providing a slower and more controlled return. - Q: What is the purpose of the Super Hub system?
A: The Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: How does the hose remain extended while in use?
A: A multi-position lock ratchet mechanism allows the hose to remain at the selected working length. The spring rewind retrieves the hose when the operator disengages the locking mechanism and guides the hose back toward the reel. - Q: What is the advantage of the 100-foot hose configuration?
A: The 100-foot hose provides additional reach for larger work areas where the reel cannot be mounted close to every point of use. The EZ-Coil system helps provide more controlled retrieval of the longer hose after use.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
