Built for low-pressure air and water applications where compact hose capacity is needed and the hose must be selected separately, the Coxreels SHL-N-435 Low Pressure Spring Rewind Hose Reel provides capacity for up to 35 ft of 1/2" I.D. hose and carries a maximum working pressure of 300 PSI. Part of the SH Series, this less-hose configuration uses automatic spring rewind to retrieve compatible hose after use, helping keep work areas organized while allowing the buyer to choose hose that matches the intended application.
The SHL-N-435 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity during operation. The SH Series uses a larger chassis and frame to accommodate longer lengths and larger hose diameters, while its spring-driven design provides automatic hose storage after use. With a compact 35-foot capacity and a 1/2-inch hose size, this model provides a practical reel platform for applications where longer hose runs are not required.

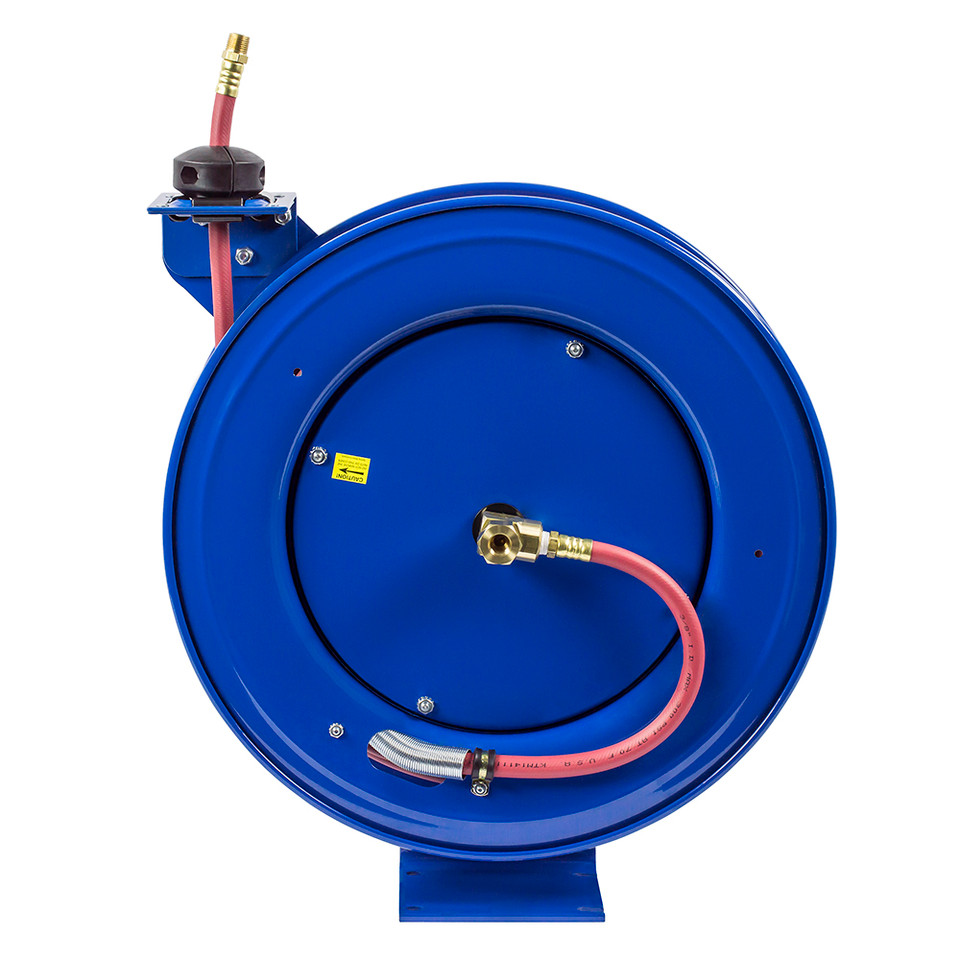

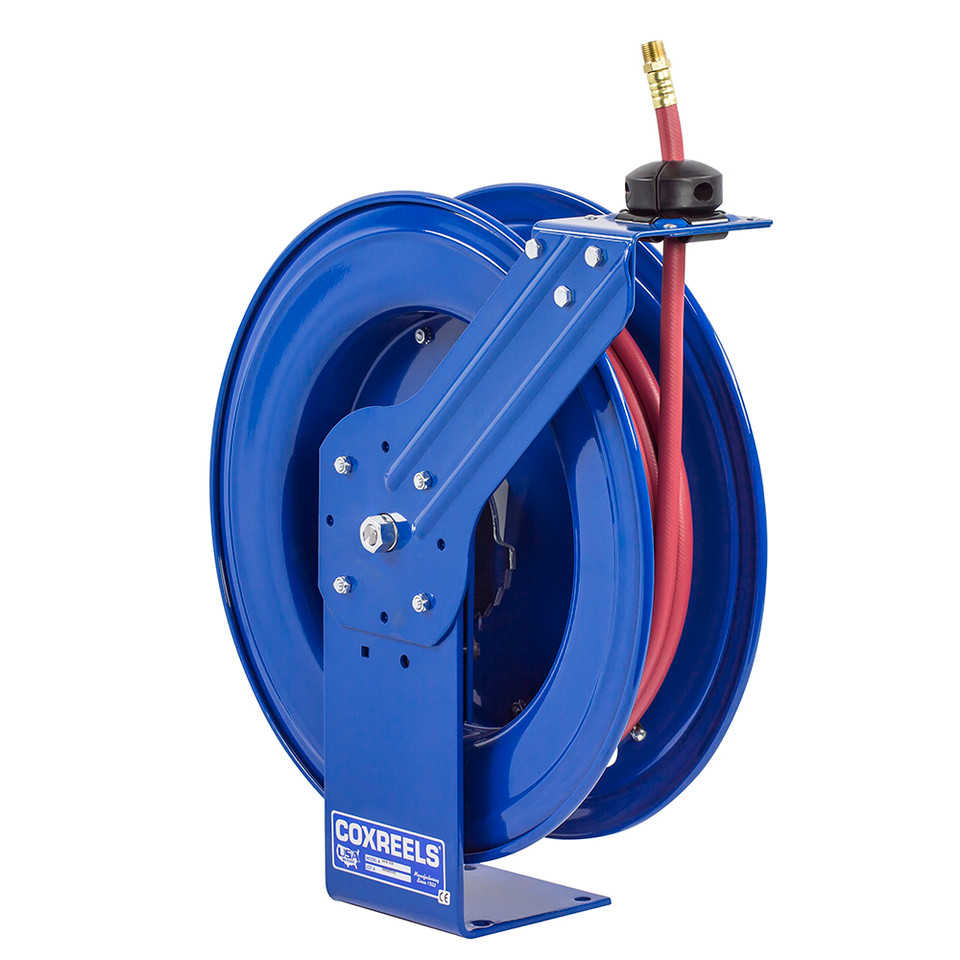

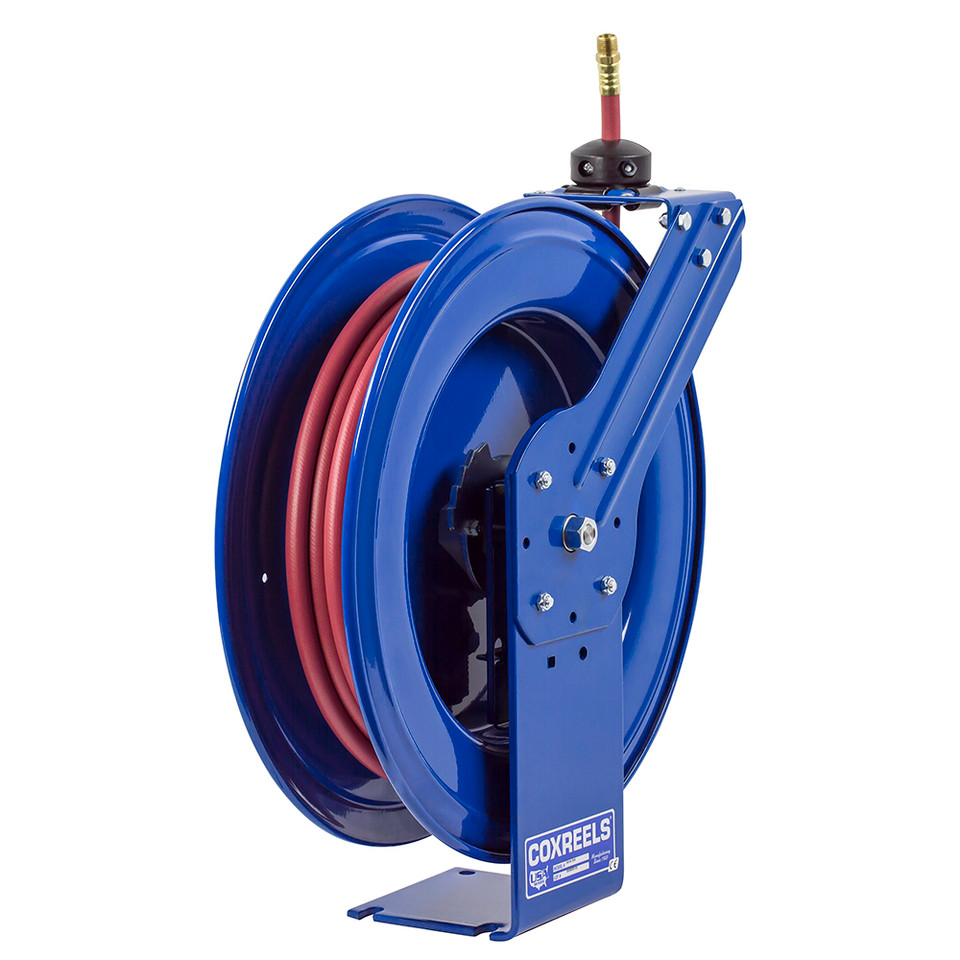

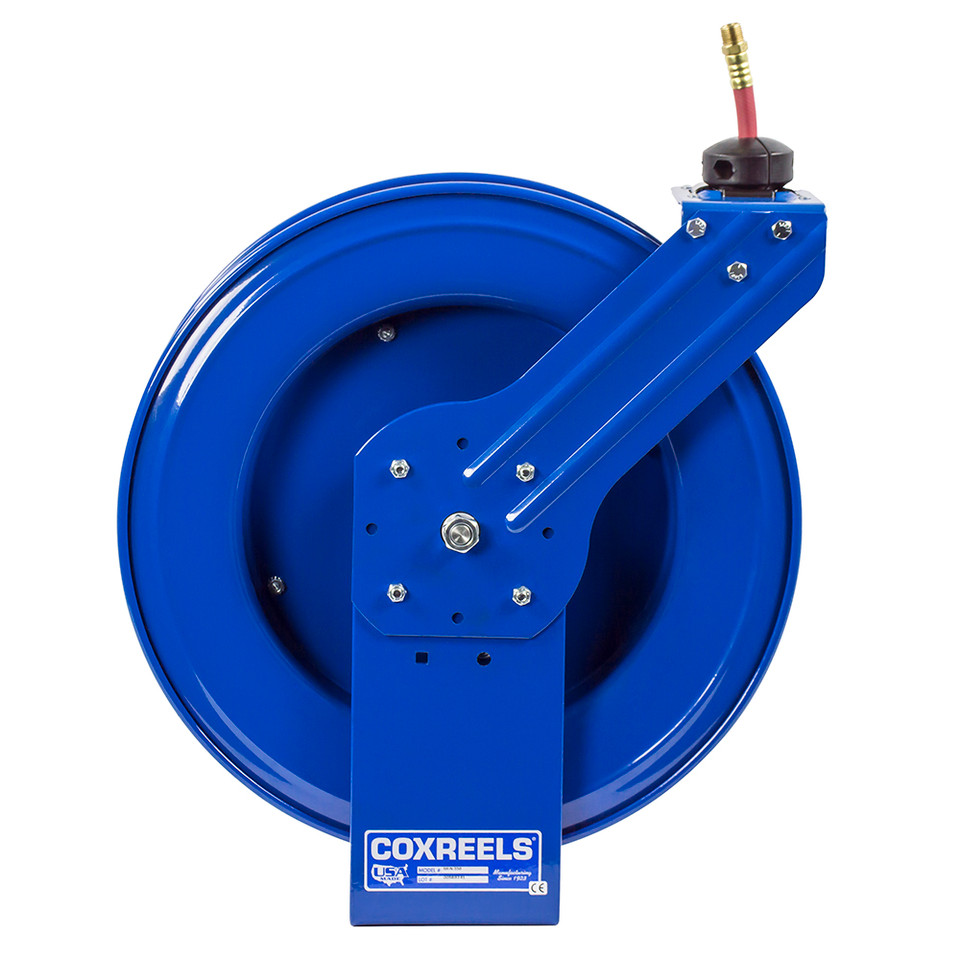

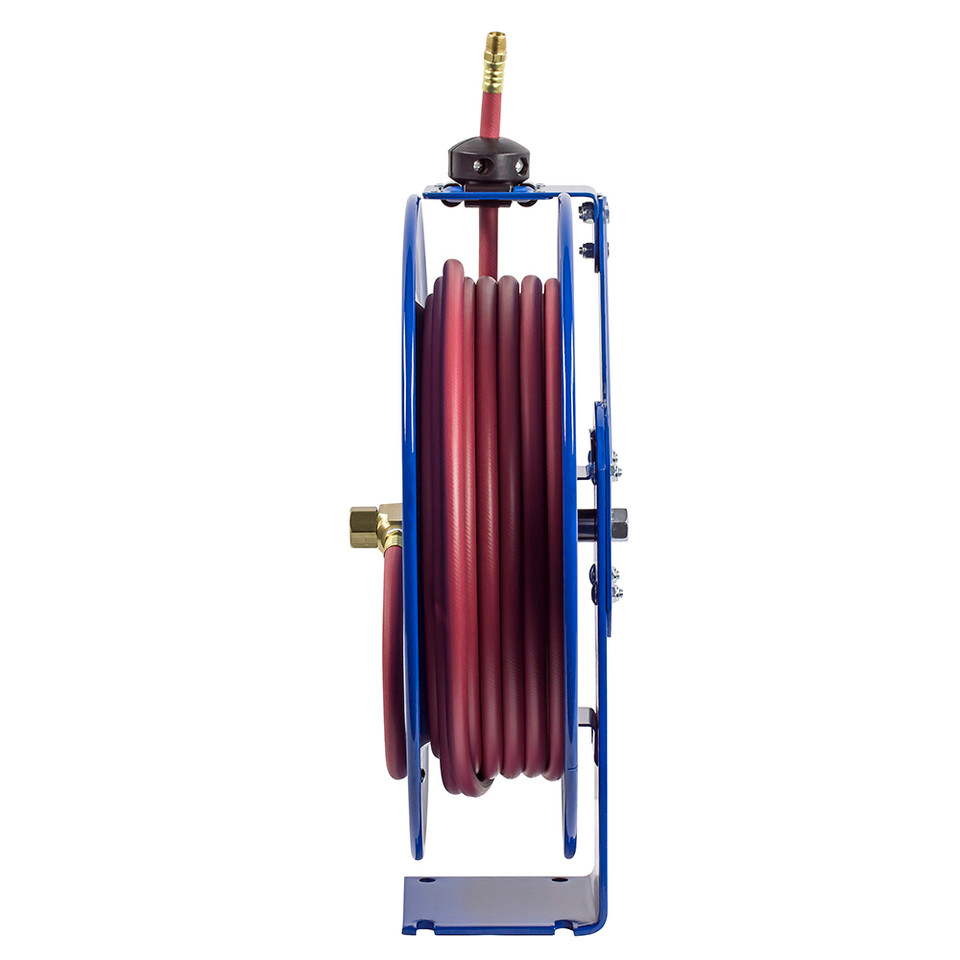

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SHL-N-435 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 35 ft | Hose Included: No | Max Pressure: 300 PSI | Ship Weight: 43 lbs
Features:
- Less-hose configuration provides capacity for up to 35 feet of compatible 1/2-inch I.D. hose.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.
- Larger SH Series chassis and frame accommodate longer lengths and larger hose diameters.
- Compact 35-foot hose capacity suits installations where a shorter working reach is sufficient.
- Maximum listed hose outside diameter of 3/4 inch helps buyers select hose that fits the reel's stated capacity.
- 43-pound reel weight supports installation planning for fixed mounting locations.
- 6-inch by 6-inch base and 4-inch by 5-inch mounting pattern provide manufacturer-specified dimensions for mounting preparation.
Made in USA:
Applications:
- Manufacturing and maintenance facilities requiring automatic storage for separately selected compatible hose.
- Repair shops and MRO work areas where spring rewind helps keep hose organized between service tasks.
- Automotive and fleet service installations requiring up to 35 feet of 1/2-inch I.D. hose capacity.
- Fixed service areas where a shorter hose run provides sufficient reach without requiring a larger-capacity reel.
- Applications operating within the reel's manufacturer-specified 300 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SHL-N-435 include hose?
A: No. Coxreels lists the SHL-N-435 as a less-hose model. It provides capacity for up to 35 feet of compatible 1/2-inch I.D. hose. - Q: What hose size can be installed on the SHL-N-435?
A: The reel is sized for 1/2-inch I.D. hose with a maximum listed outside diameter of 3/4 inch and a capacity of up to 35 feet. - Q: What is the maximum working pressure of the SHL-N-435?
A: Coxreels lists the reel with a maximum pressure rating of 300 PSI. The separately selected hose and connected system components must also meet the requirements of the intended application. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases reel stability during operation, reduces vibration, and strengthens the structural integrity of the reel. - Q: How much mounting space does the SHL-N-435 require?
A: Coxreels lists overall dimensions of 8.25 inches wide by 21.25 inches high by 19.5 inches long, with a 6-inch by 6-inch base and a 4-inch by 5-inch mounting pattern.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
