Built for low-pressure air, water, and oil service, the Coxreels SHL-N-440 Spring Rewind Hose Reel gives shops, service vehicles, and maintenance areas a compact reel body for storing customer-supplied hose. This SH Series model is configured less hose and supports 1/2" I.D. hose with up to 40 ft hose capacity and a 300 PSI maximum pressure rating, making it useful when the buyer needs to select a specific hose material, fitting style, or hose brand separately. The SHL-N-440 uses Coxreels’ Super Hub dual axle support system, which helps stabilize the drum during hose payout and rewind. The spring rewind mechanism retracts the installed hose after use, while the multi-position lock ratchet lets the operator hold the hose at the desired working length. For general service lines, shop air stations, oil transfer points, and water service areas, this less-hose reel provides organized hose handling without forcing a pre-installed hose choice.

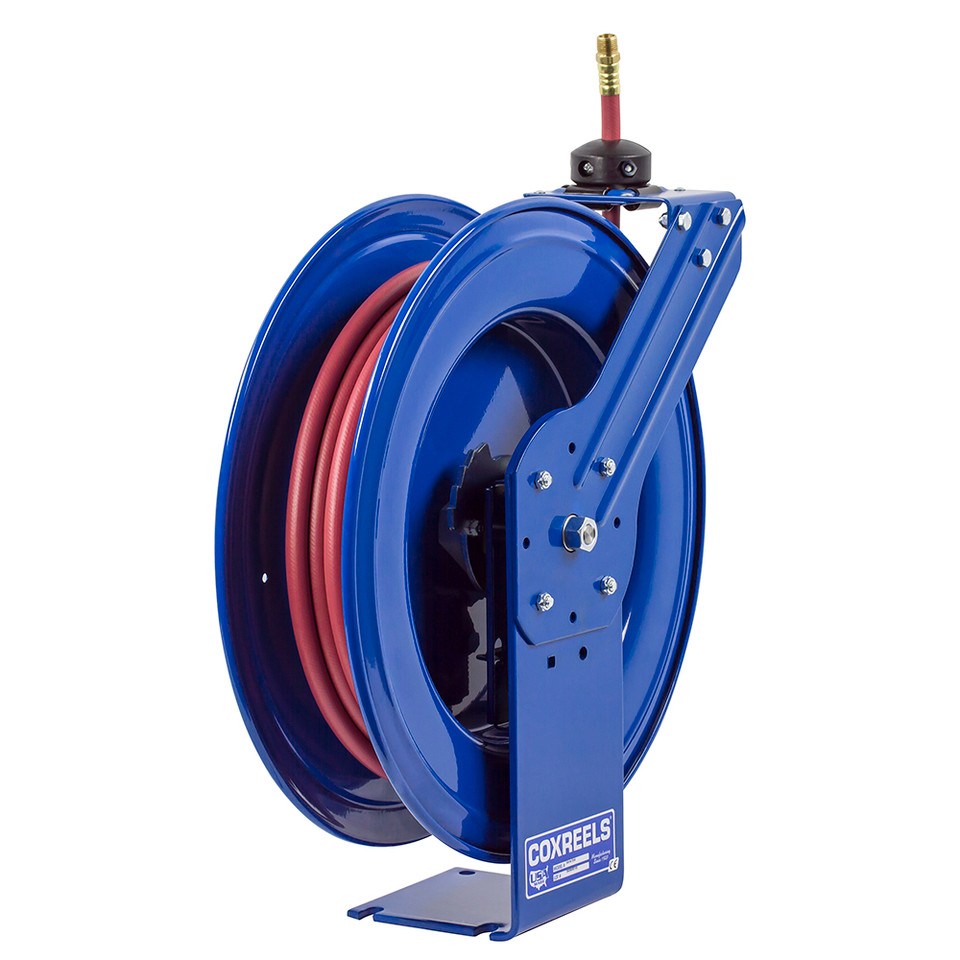

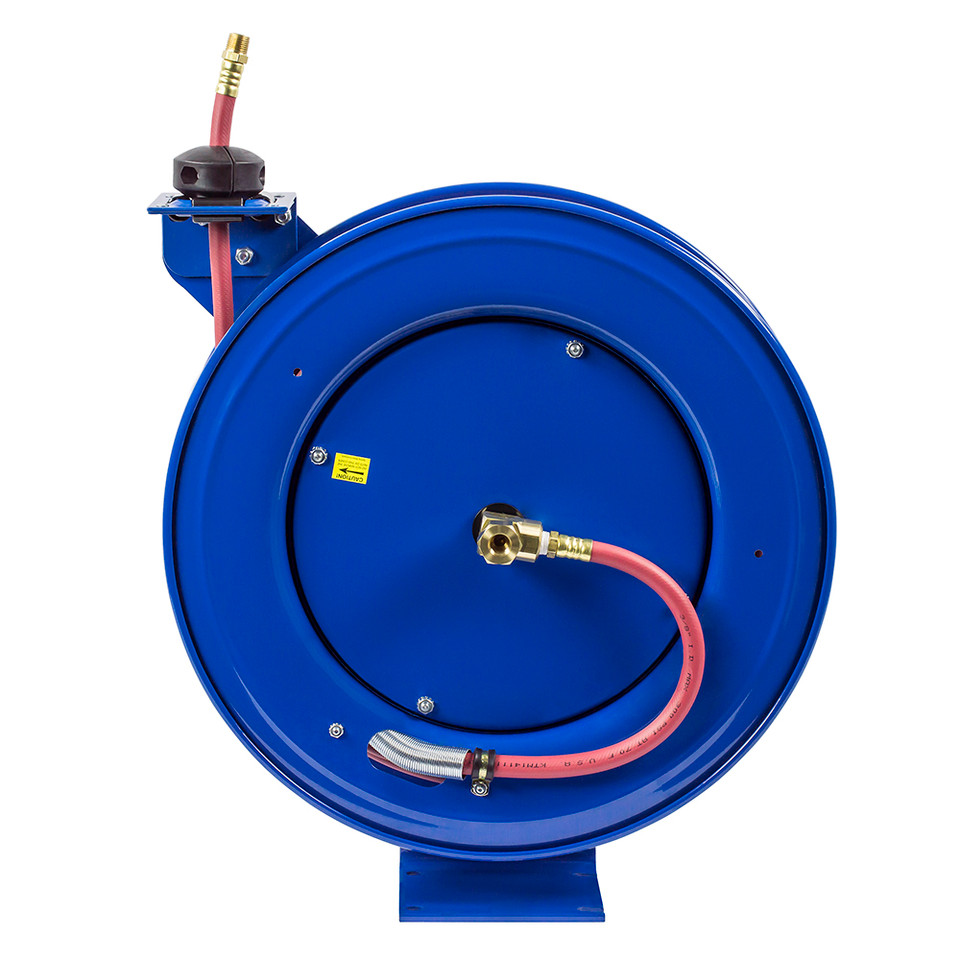

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: SH Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose I.D.: 1/2" | Maximum Hose O.D.: 3/4" | Hose Capacity: 40 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 45 lbs | Overall Dimensions: 8-1/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Less-hose configuration allows the buyer to install compatible hose separately for the intended air, water, or oil service.
- Spring rewind operation retracts the hose after use, helping reduce loose hose around benches, service bays, and equipment areas.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- Machined solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel assembly.
- Nitrile swivel seals are used for the listed low-pressure service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to support fixed shop or mobile installations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during hose payout and rewind.
Made in USA:
Applications:
- Automotive and fleet service shops using 1/2" low-pressure hose for air, oil, or water service around lifts and service bays.
- Industrial maintenance departments installing retractable hose reels at work cells, benches, or general utility stations.
- Manufacturing facilities that need organized hose storage for low-pressure service lines near production equipment.
- Mobile mechanic, utility, and service vehicles where hose selection is handled separately to match the vehicle setup.
- DIY garages and home workshops where the user already has compatible 1/2" hose and needs a bare spring rewind reel.
FAQs:
- Q: What does “less hose” mean on the Coxreels SHL-N-440?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/2" I.D., 3/4" maximum O.D., 40 ft capacity, and 300 PSI pressure rating. - Q: Can this reel be used for shop air?
A: Yes, when the selected hose and fittings match the shop air system’s pressure, flow, and connection requirements. The reel itself is rated for low-pressure service up to 300 PSI. - Q: What fluids can the SHL-N-440 handle?
A: This SH Series configuration is listed for air, water, and oil service. Always confirm that the hose, fittings, and seal materials are compatible with the exact media and operating conditions before installation. - Q: Can the SHL-N-440 be mounted on a wall or service truck?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is secured to a suitable mounting surface. - Q: How is SHL-N-440 different from SH-N-440?
A: SHL-N-440 is the less-hose version and does not include hose. SH-N-440 is the corresponding hose-included configuration in the same SH Series size range.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
