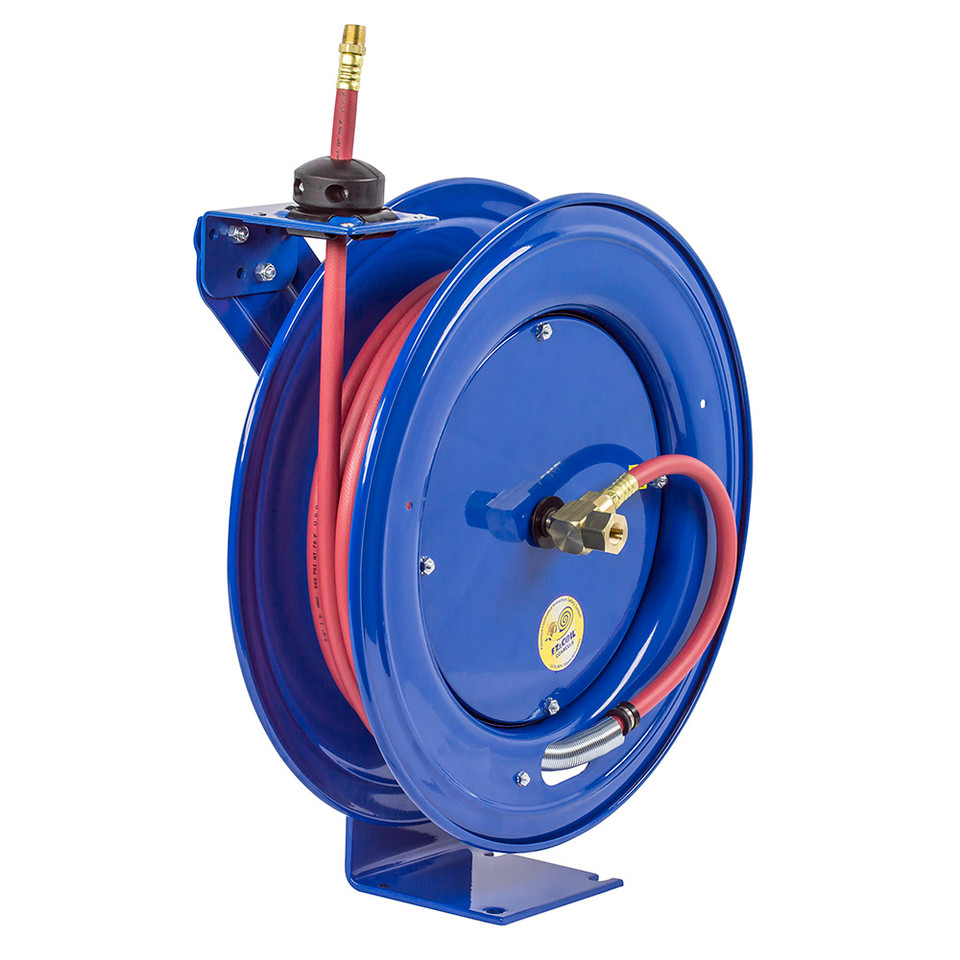

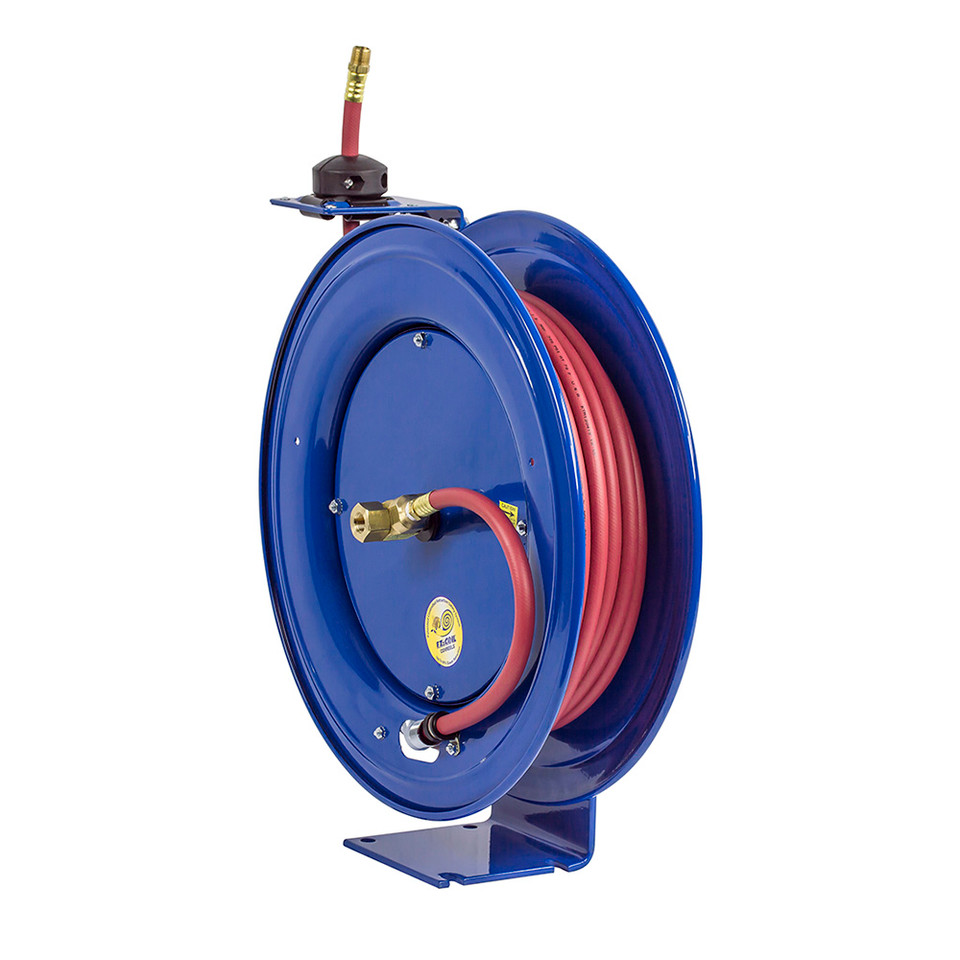

Built for low-pressure air and water service where extended hose reach and controlled automatic retraction are important, the Coxreels EZ-SH-3100 Super Hub Spring Rewind Hose Reel combines a 100 ft hose length with a 3/8" hose I.D. and a 300 PSI maximum working pressure. Part of the EZ-SH Series, this model incorporates Coxreels' patented EZ-Coil controlled retraction technology, which retracts hose up to 80% slower than conventional spring-driven reels. The slower return helps provide more controlled hose retrieval in maintenance facilities, manufacturing areas, service bays, and mobile equipment installations.
The EZ-SH-3100 also uses Coxreels' Super Hub dual axle support system to increase reel stability, reduce vibration, and strengthen structural integrity. Its single-pedestal construction, multi-position guide arm, and external fluid path support flexible installation and hose handling, while a machined solid brass 90-degree full-flow NPT swivel helps maintain fluid flow through the reel. The multi-position lock ratchet allows the hose to remain extended at the selected working length before controlled spring rewind.
Type: Super Hub Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-3100 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 71 lbs
Features:
- Patented EZ-Coil controlled retraction technology retracts hose up to 80% slower than conventional spring-driven reels.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports flexible installation for different mounting requirements.
- Single-pedestal reel construction provides a compact mounting configuration.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
- Rolled edges and ribbed discs add strength and safety to the reel structure.
- CPC powder coat finish helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Manufacturing plants and maintenance departments requiring extended air or water hose reach across larger work areas.
- Automotive and fleet service facilities managing hose around multiple vehicles or service positions.
- Repair shops and MRO operations where controlled spring rewind helps keep long hose runs organized between jobs.
- Service and utility vehicles requiring automatic hose storage with a slower, more controlled retraction speed.
- Low-pressure air and water applications operating within the reel's specified 300 PSI maximum working pressure.
FAQs:
- Q: What hose size is used on the Coxreels EZ-SH-3100?
A: The EZ-SH-3100 is configured with a 3/8-inch I.D. hose and a 100-foot hose length. - Q: What does the EZ-Coil system do?
A: Coxreels' patented EZ-Coil technology controls the rewind speed so the hose retracts up to 80% slower than conventional spring-driven reels. - Q: What is the purpose of the Super Hub system?
A: The Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: How does the hose stay extended while in use?
A: The reel uses a multi-position lock ratchet mechanism that allows the hose to remain extended at the selected working length before rewind. - Q: Why choose the 100-foot configuration?
A: The 100-foot hose length provides additional reach across larger work areas while the EZ-Coil system helps provide a slower, more controlled return after use.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- EZ-SH Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 100
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- Yes
- Width (in.)
- 8.25
- Height (in.)
- 21.25
- Length (in.)
- 24
- Mounting Pattern (in.)
- 4M
- Mounting Pattern (in.)
- 5N
- Base (in.)
- 6X
- Base (in.)
- 6Y
