Designed for medium-pressure hose management where the hose must be selected separately, the Coxreels MPL-N-350 Heavy Duty Spring Rewind Hose Reel provides capacity for up to 50 ft of 3/8" I.D. hose and carries a maximum working pressure of 3,000 PSI. Part of the MP Series, this less-hose configuration gives buyers the flexibility to select compatible hose for the intended application while retaining automatic spring-powered retrieval and organized hose storage.
The MPL-N-350 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity during operation. Its external fluid path uses a machined solid brass 90-degree full-flow NPT swivel, while the multi-position guide arm supports flexible installation. An enclosed cartridge-style spring motor provides automatic hose retraction, and the multi-position lock ratchet allows compatible hose to remain extended at the desired working length before retrieval.

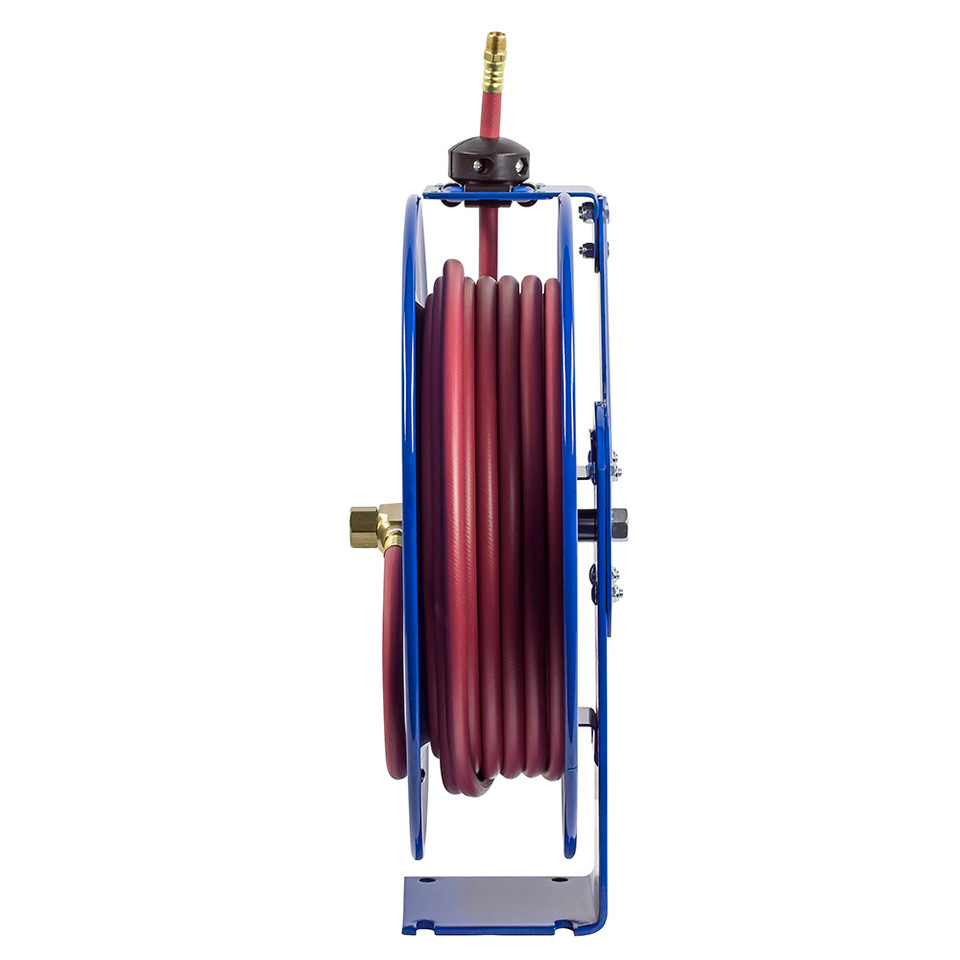

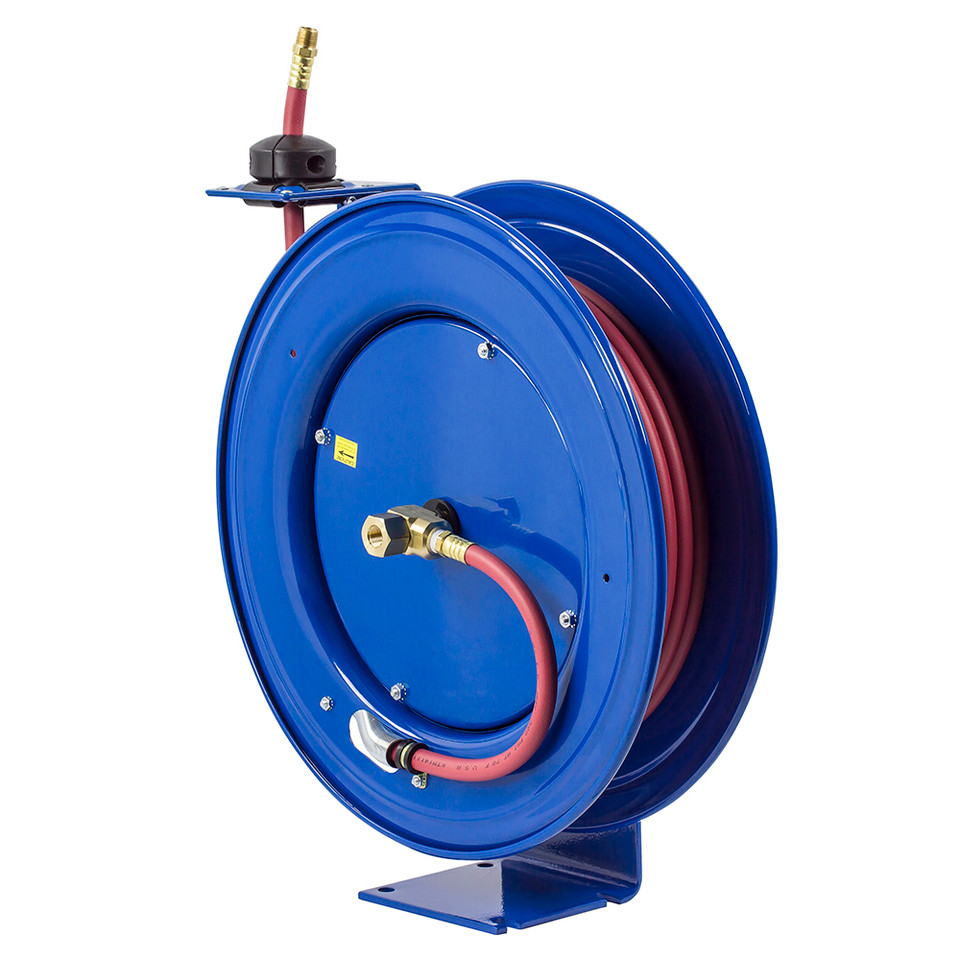

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Medium Pressure Spring Rewind Hose Reel | Series: MP Series | Model: MPL-N-350 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 3,000 PSI | Approx. Weight: 53 lbs
Features:
- Less-hose configuration provides capacity for up to 50 feet of compatible 3/8-inch I.D. hose.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports flexible installation for different mounting requirements.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the desired working length.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
- Rolled edges and ribbed discs add strength and safety to the reel structure.
- CPC powder coat finish helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Medium-pressure hose management applications requiring separately selected compatible hose.
- Maintenance and MRO operations where automatic spring rewind helps keep hose organized between service tasks.
- Manufacturing and equipment service areas requiring capacity for up to 50 feet of 3/8-inch I.D. hose.
- Stationary and vehicle-mounted installations where the hose specification must be selected for the operating requirements.
- Applications operating within the reel's specified 3,000 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels MPL-N-350 include hose?
A: No. The MPL-N-350 is a less-hose reel and is supplied without hose. It provides capacity for up to 50 feet of compatible 3/8-inch I.D. hose. - Q: What does "less hose" mean for the MPL-N-350?
A: It means the reel is supplied without hose installed. The buyer must select and install hose separately according to the intended media, pressure, temperature, and dimensional requirements. - Q: What is the maximum working pressure of the MPL-N-350?
A: The reel carries a maximum working pressure rating of 3,000 PSI. The separately selected hose and other system components must also be appropriately rated for the intended operating conditions. - Q: How does the reel manage hose during use?
A: The multi-position lock ratchet holds compatible hose at the desired working length, while the spring rewind mechanism retrieves the hose for storage after use. - Q: What is the corresponding MP Series model supplied with hose?
A: The MP-N-350 is the corresponding hose-equipped configuration, while the MPL-N-350 is supplied without hose.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
