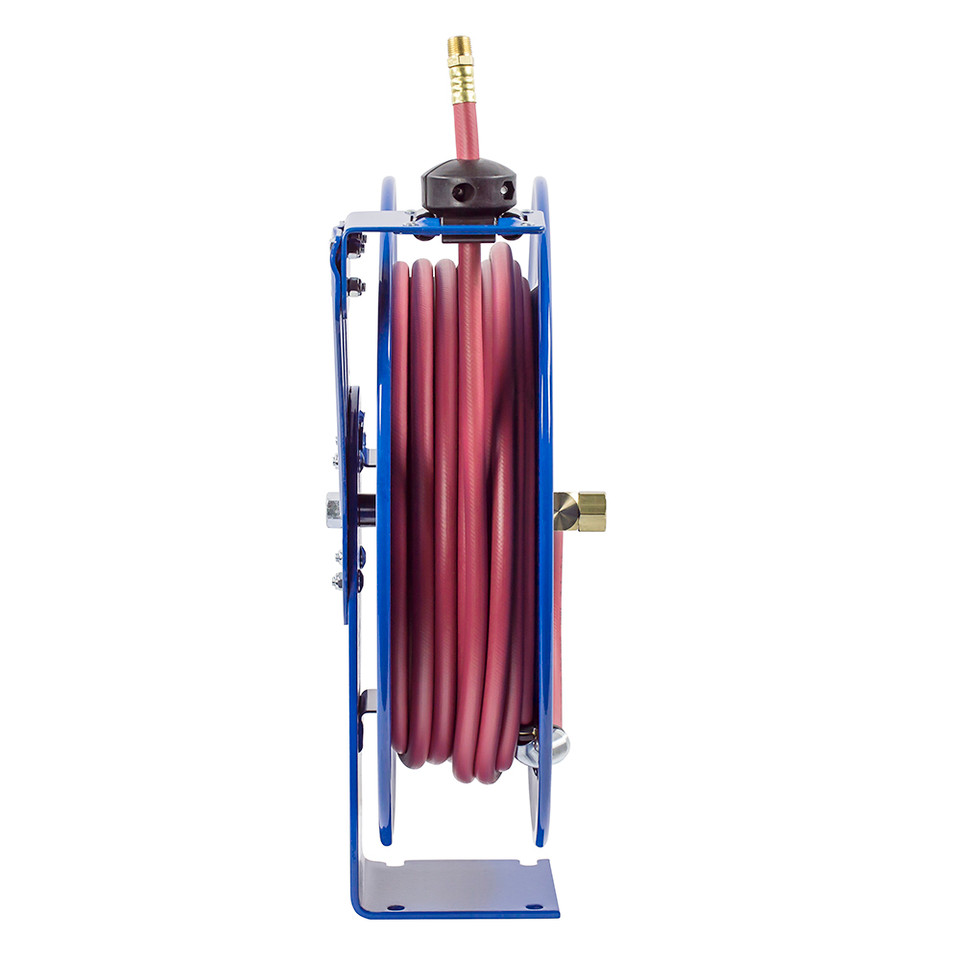

Designed for medium-pressure fluid handling applications that require a larger hose diameter and automatic retrieval, the Coxreels MP-N-535 Heavy Duty Spring Rewind Hose Reel is supplied with 35 ft of 3/4" I.D. hose and carries a maximum working pressure of 1,500 PSI. Part of the MP Series, this model combines spring-powered hose retrieval with Coxreels' Super Hub reel platform for organized hose storage in compatible air, water, and oil service applications.
The MP-N-535 is configured for applications that benefit from the flow capacity of a 3/4-inch hose without requiring an extended hose run. Its spring rewind mechanism automatically retrieves the hose after use, while the multi-position lock ratchet allows the hose to remain extended at the desired working length. The Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity during operation.
Type: Medium Pressure Spring Rewind Hose Reel | Series: MP Series | Model: MP-N-535 | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 35 ft | Hose Included: Yes | Max Pressure: 1,500 PSI | Approx. Weight: 68 lbs
Features:
- Supplied with 35 feet of 3/4-inch I.D. hose for compatible medium-pressure fluid handling applications.
- 1,500 PSI maximum working pressure supports applications operating within the reel and hose ratings.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the desired working length.
- Larger 3/4-inch hose diameter provides increased flow capacity compared with smaller MP Series hose configurations.
- Heavy-duty reel construction supports organized hose payout, storage, and retrieval in demanding service environments.
Made in USA:
Applications:
- Air, water, and oil applications operating within the reel and hose pressure ratings.
- Maintenance and MRO operations requiring automatic storage of larger-diameter hose.
- Manufacturing and equipment service areas using compatible medium-pressure fluid systems.
- Stationary service installations where a 35-foot hose provides sufficient working reach.
- Service and equipment applications requiring a 3/4-inch hose configuration with automatic spring rewind.
FAQs:
- Q: Does the Coxreels MP-N-535 include hose?
A: Yes. The MP-N-535 is the hose-equipped configuration and is supplied with 35 feet of 3/4-inch I.D. hose. - Q: What is the maximum working pressure of the MP-N-535?
A: The Coxreels MP-N-535 has a maximum working pressure rating of 1,500 PSI. - Q: What services is the MP-N-535 intended for?
A: The MP Series is designed for compatible air, water, and oil applications operating within the specified pressure and hose limitations. - Q: How does the hose stay extended during use?
A: The multi-position lock ratchet allows the hose to remain extended at the selected working length before the spring rewind mechanism retrieves it. - Q: Why choose the 3/4-inch hose configuration?
A: The larger hose diameter provides greater flow capacity than smaller MP Series hose sizes, making it suitable where the application requires a larger fluid passage.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
