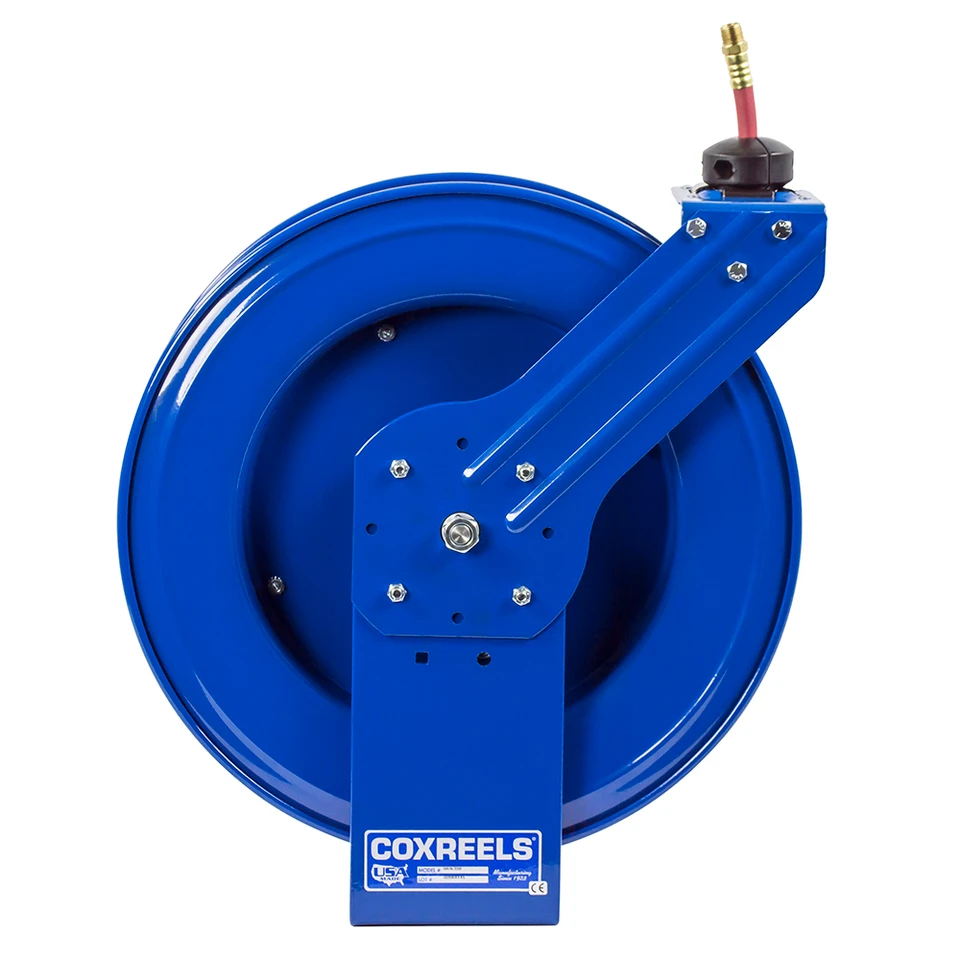

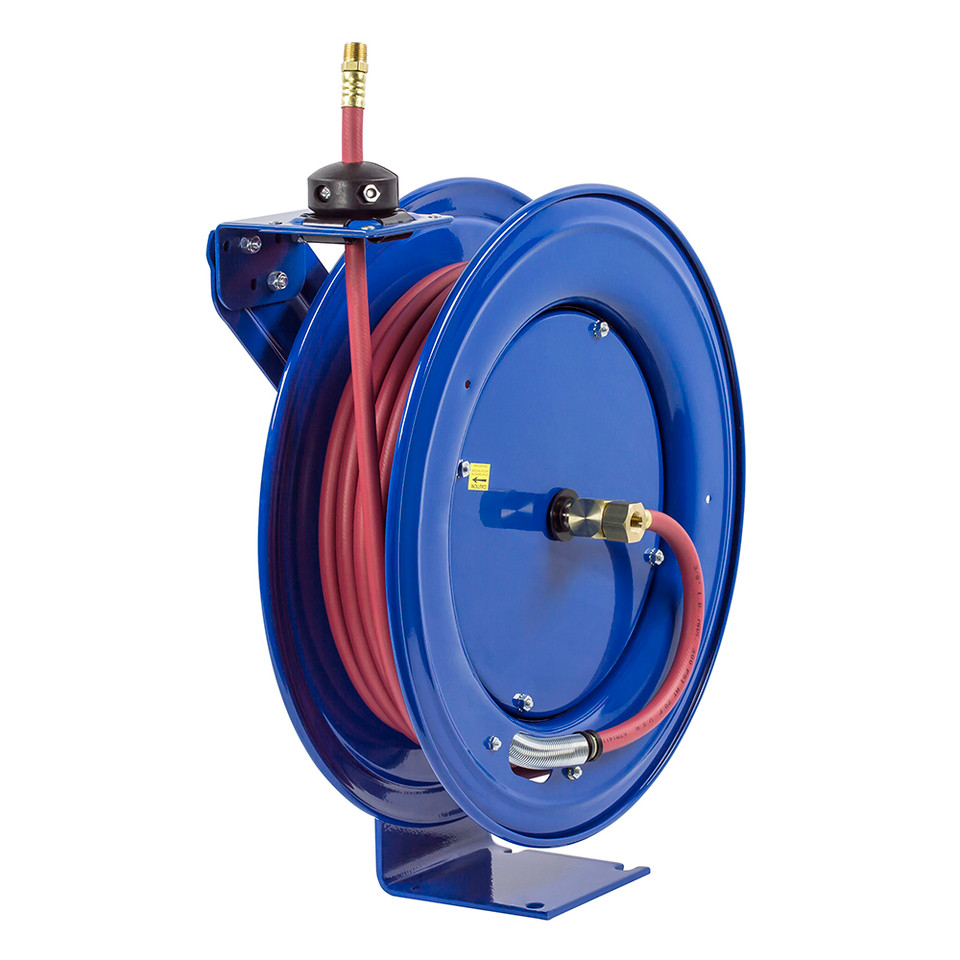

Built for medium-pressure hose applications that require automatic retrieval and a compact 35-foot working length, the Coxreels MP-N-435 Heavy Duty Spring Rewind Hose Reel is supplied with 35 ft of 1/2" I.D. hose and carries a maximum working pressure of 2,500 PSI. Part of the MP Series, this model is furnished with standard one-wire-braid hose suitable for air, water, or oil applications. The hose exceeds SAE R1 specifications and has a maximum temperature rating of 250°F, supporting compatible fluid handling and equipment service within the manufacturer's stated operating limits.
The MP-N-435 uses Coxreels' heavy-duty SH platform with the Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity. Its spring-driven rewind automatically retrieves the hose after use, while a multi-position lock ratchet secures the hose at the desired working length. The 35-foot configuration provides practical reach where a longer hose is unnecessary, while the 1/2-inch hose size supports compatible medium-pressure air, water, and oil service.
Type: Medium Pressure Spring Rewind Hose Reel | Series: MP Series | Model: MP-N-435 | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Length: 35 ft | Hose Included: Yes | Max Pressure: 2,500 PSI | Approx. Weight: 61 lbs
Features:
- Standard one-wire-braid hose is suitable for air, water, or oil applications and exceeds SAE R1 specifications.
- 2,500 PSI maximum working pressure supports compatible medium-pressure fluid handling applications.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- 35-foot hose length provides practical working reach for applications that do not require a longer hose run.
- 1/2-inch I.D. hose provides a larger internal flow path than the 3/8-inch MP Series configurations.
- Supplied hose has a maximum manufacturer-specified temperature rating of 250°F.
Made in USA:
Applications:
- Air, water, and oil applications operating within the reel's specified pressure and temperature ratings.
- Maintenance and MRO operations requiring organized storage and automatic retrieval of medium-pressure hose.
- Manufacturing and equipment service areas using compatible fluid handling systems.
- Service and repair installations where a 35-foot hose provides sufficient reach without excess hose length.
- Stationary or mobile equipment applications requiring a 1/2-inch hose and up to 2,500 PSI working pressure.
FAQs:
- Q: Does the Coxreels MP-N-435 include hose?
A: Yes. The MP-N-435 is supplied with 35 feet of 1/2-inch I.D., 13/16-inch O.D. standard one-wire-braid hose. - Q: What fluids can the MP-N-435 handle?
A: Coxreels specifies the supplied MP Series hose for air, water, or oil applications. Operating conditions must remain within the pressure and temperature ratings of the reel, hose, and connected system components. - Q: What is the maximum working pressure of the MP-N-435?
A: The Coxreels MP-N-435 is rated for a maximum working pressure of 2,500 PSI. - Q: What is the maximum temperature rating of the supplied hose?
A: Coxreels specifies a maximum temperature of 250°F for the standard one-wire-braid hose furnished with MP Series models. - Q: Is a less-hose version of the MP-N-435 available?
A: Yes. Coxreels lists the MPL-N-435 as the corresponding less-hose configuration. The MP-N-435 itself is supplied with hose.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
