Built for high-pressure hose applications where the hose must be selected separately, the Coxreels HPL-N-150 Heavy Duty Spring Rewind Hose Reel provides capacity for up to 50 ft of 1/4" I.D. hose and carries a maximum working pressure of 5,000 PSI. This model belongs to the HP Series and is supplied less hose, giving buyers the flexibility to select compatible high-pressure hose for their specific operating requirements. Automatic spring rewind retrieves the hose after use, helping keep service areas and equipment installations organized.
The HPL-N-150 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity during operation. Its spring-driven rewind works with a multi-position lock ratchet that secures compatible hose at the desired working length before retrieval. The less-hose configuration is suited to applications where hose material, pressure rating, and service compatibility need to be selected separately while retaining the high-pressure capability and automatic storage features of the HP Series.

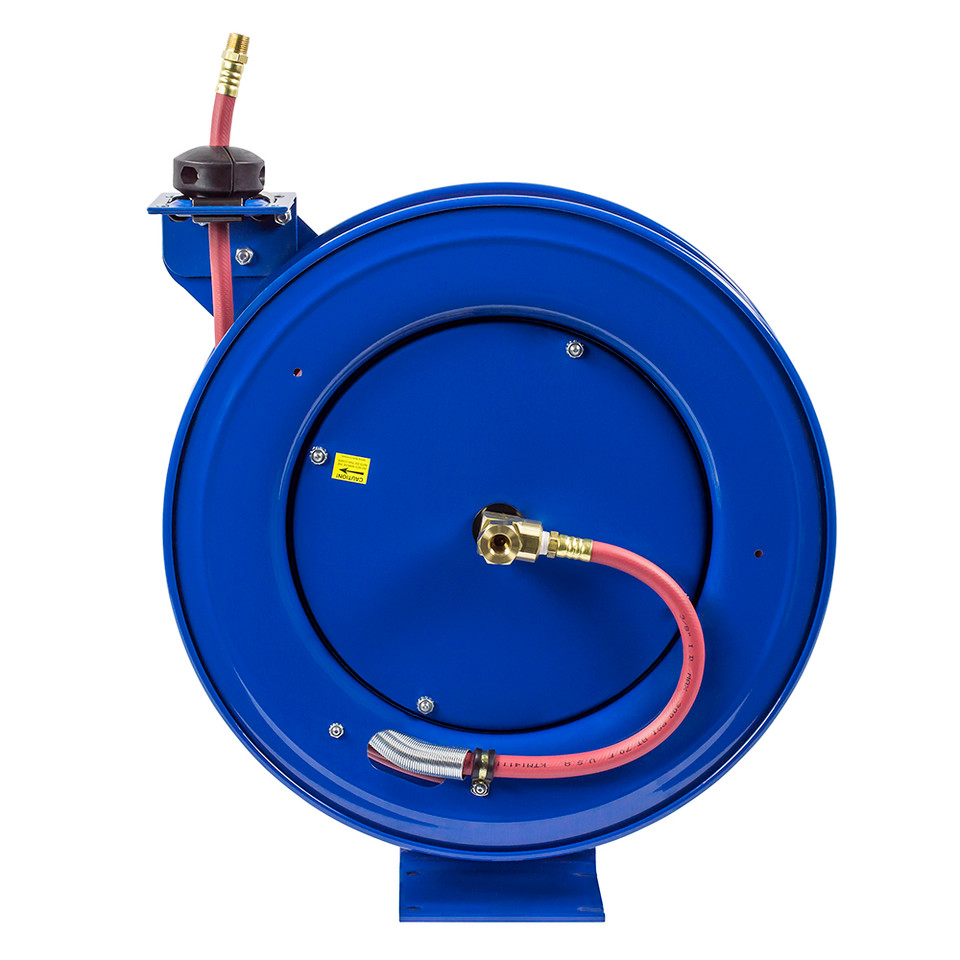

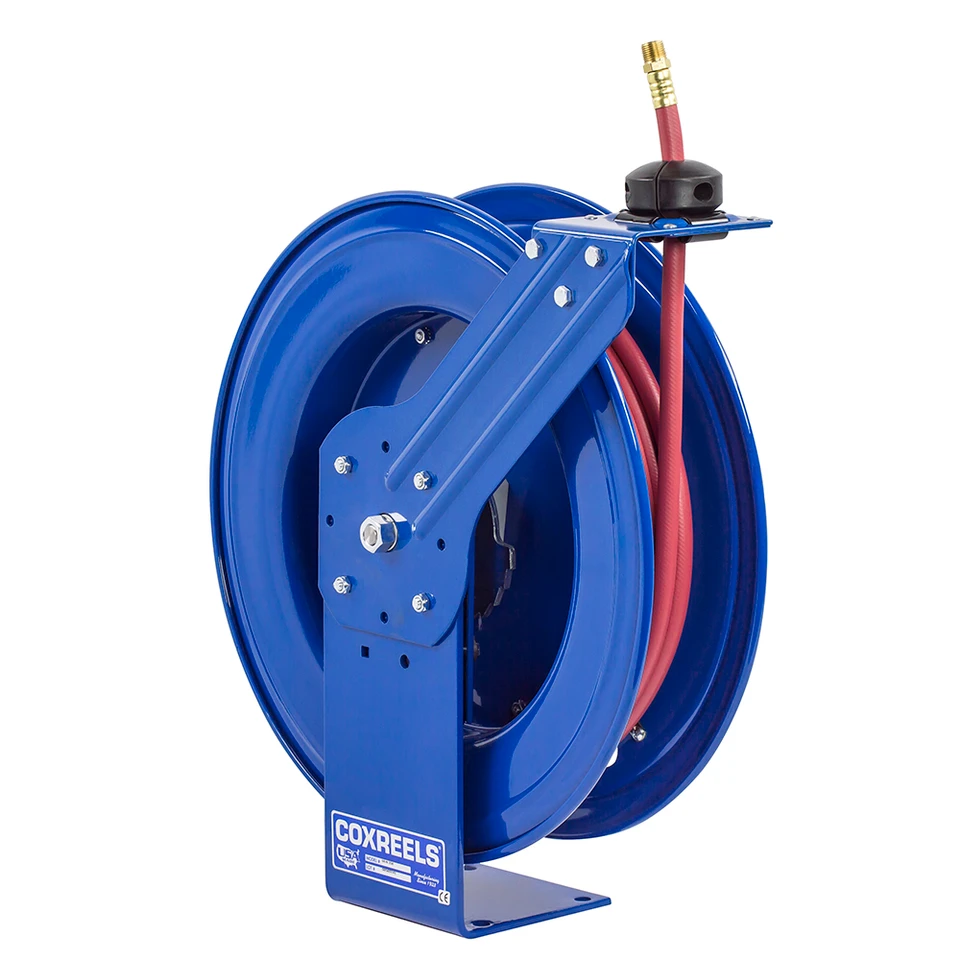

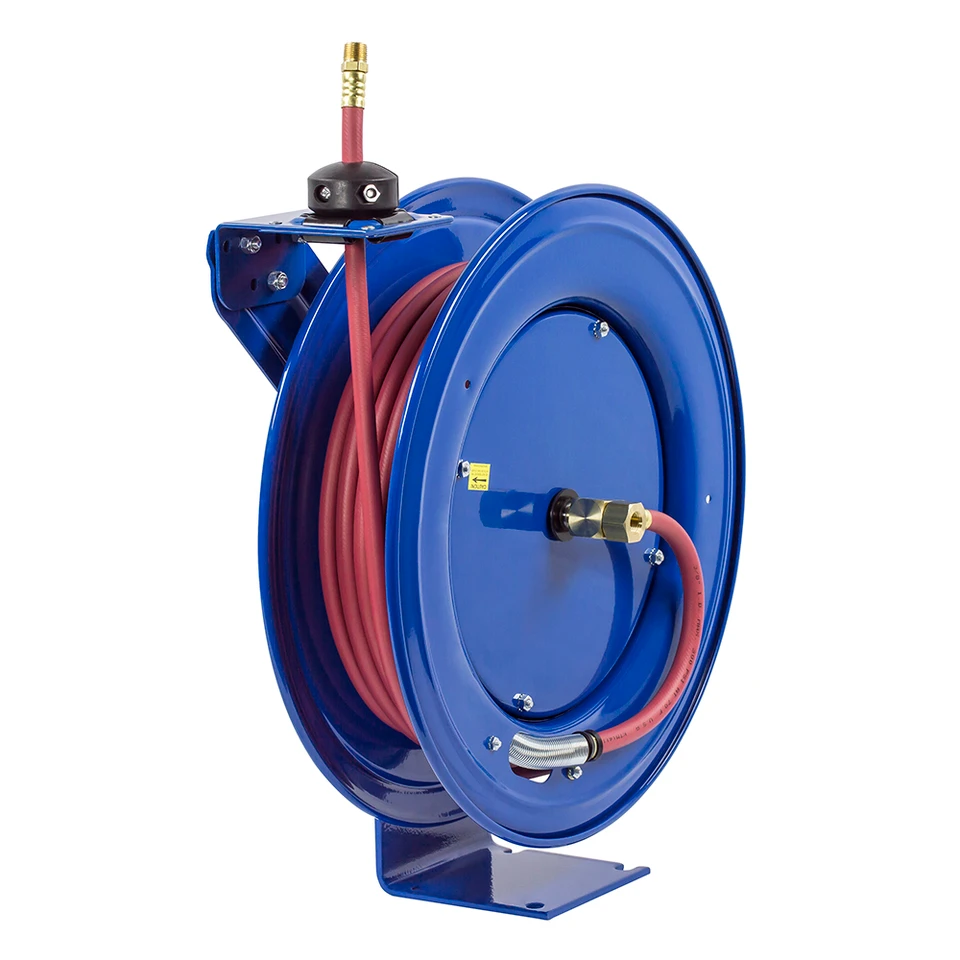

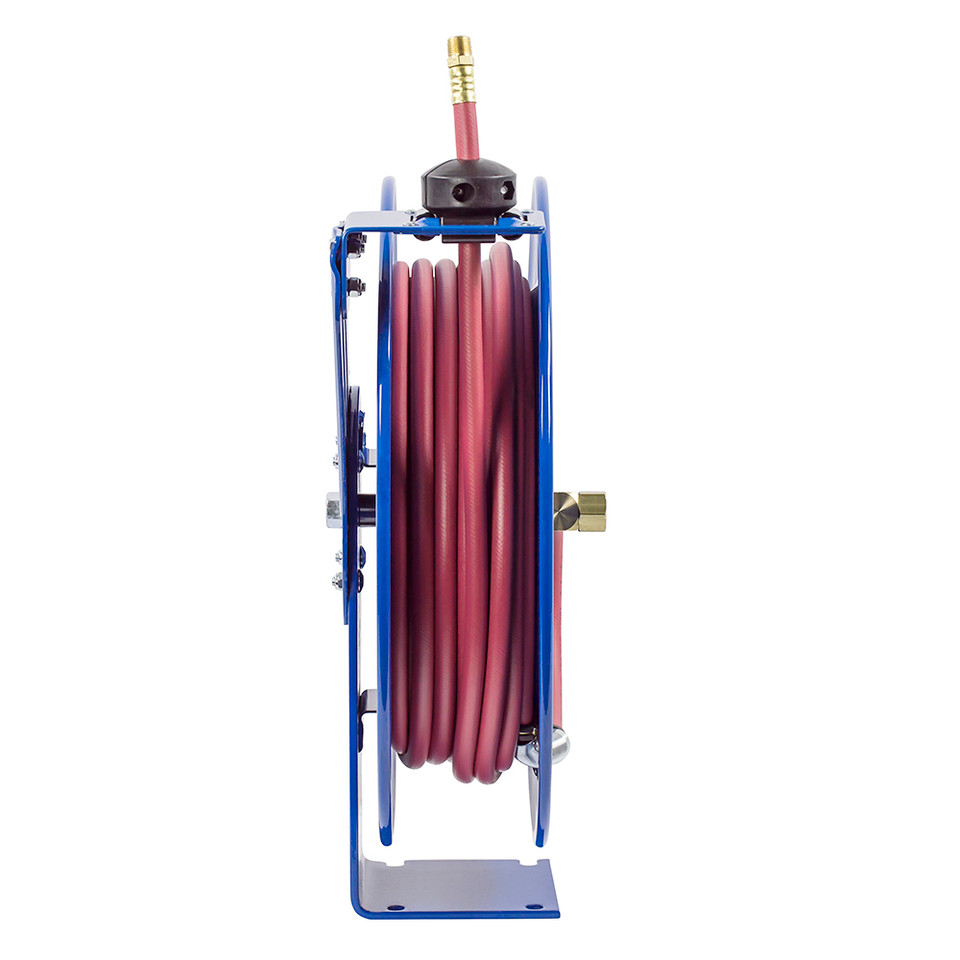

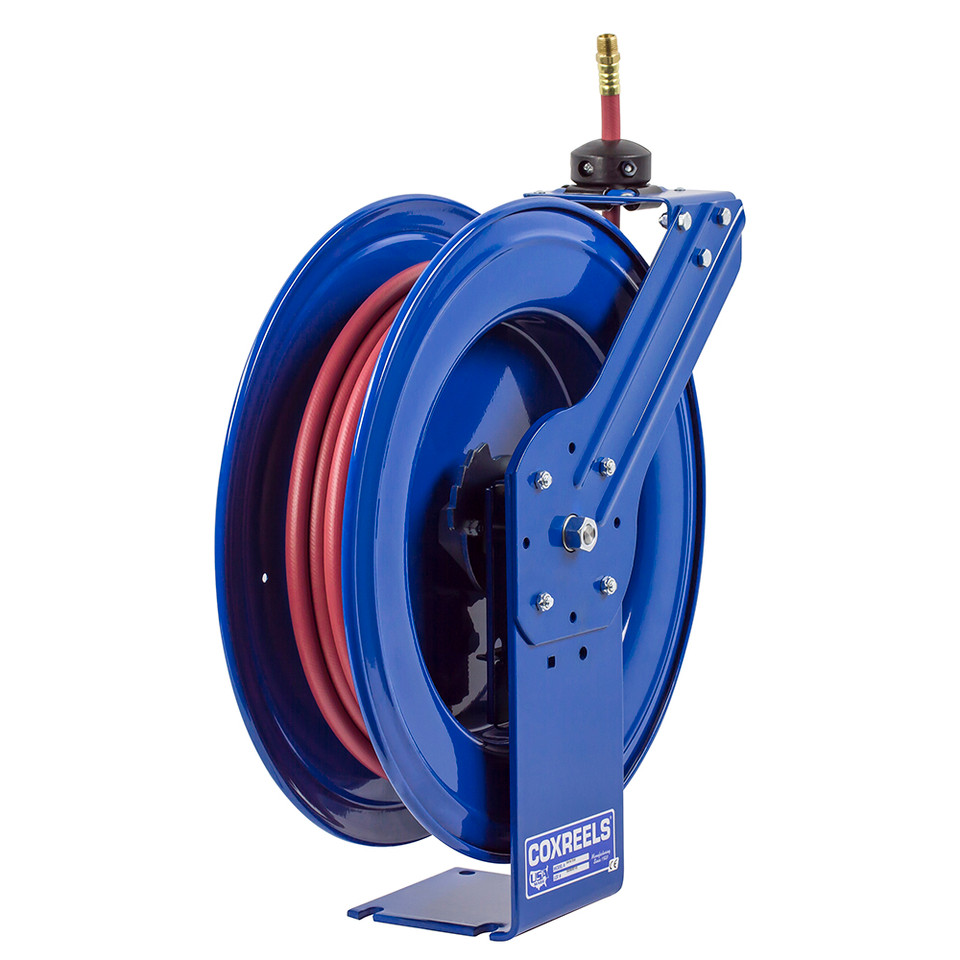

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: High Pressure Spring Rewind Hose Reel | Series: HP Series | Model: HPL-N-150 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 5,000 PSI | Approx. Weight: 53 lbs
Features:
- Less-hose configuration provides capacity for up to 50 feet of compatible 1/4-inch I.D. hose.
- 5,000 PSI maximum working pressure supports compatible high-pressure hose applications.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the desired working length.
- Heavy-duty reel construction supports high-pressure hose storage and retrieval.
- Less-hose design allows hose to be selected separately according to the intended service and operating requirements.
Made in USA:
Applications:
- High-pressure hose applications operating within the reel's specified 5,000 PSI maximum working pressure.
- Maintenance and equipment service operations requiring automatic storage of separately selected high-pressure hose.
- Lubrication and hydraulic service installations using hose compatible with the intended fluid and operating conditions.
- Stationary service areas where spring rewind helps keep high-pressure hose organized between uses.
- Mobile service installations requiring compact, automatic hose storage with separately specified hose.
FAQs:
- Q: Does the Coxreels HPL-N-150 include hose?
A: No. The HPL-N-150 is a less-hose reel and is supplied without hose. It provides capacity for up to 50 feet of compatible 1/4-inch I.D. hose. - Q: What is the maximum working pressure of the HPL-N-150?
A: The reel is rated for a maximum working pressure of 5,000 PSI. Any hose and connected components installed with the reel must also be appropriately rated for the intended application. - Q: What does "less hose" mean for this model?
A: It means the reel is supplied without hose installed. The buyer must select compatible hose separately according to the required pressure rating, fluid compatibility, temperature range, and dimensional requirements. - Q: Does the HPL-N-150 automatically rewind the hose?
A: Yes. The reel uses a spring-driven rewind mechanism to retrieve compatible hose after use, while the lock ratchet allows the hose to remain extended at the selected working length. - Q: Is the HPL-N-150 part of the MP Series?
A: No. The HPL-N-150 is an HP Series high-pressure hose reel. The MP Series is Coxreels' medium-pressure reel range.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
