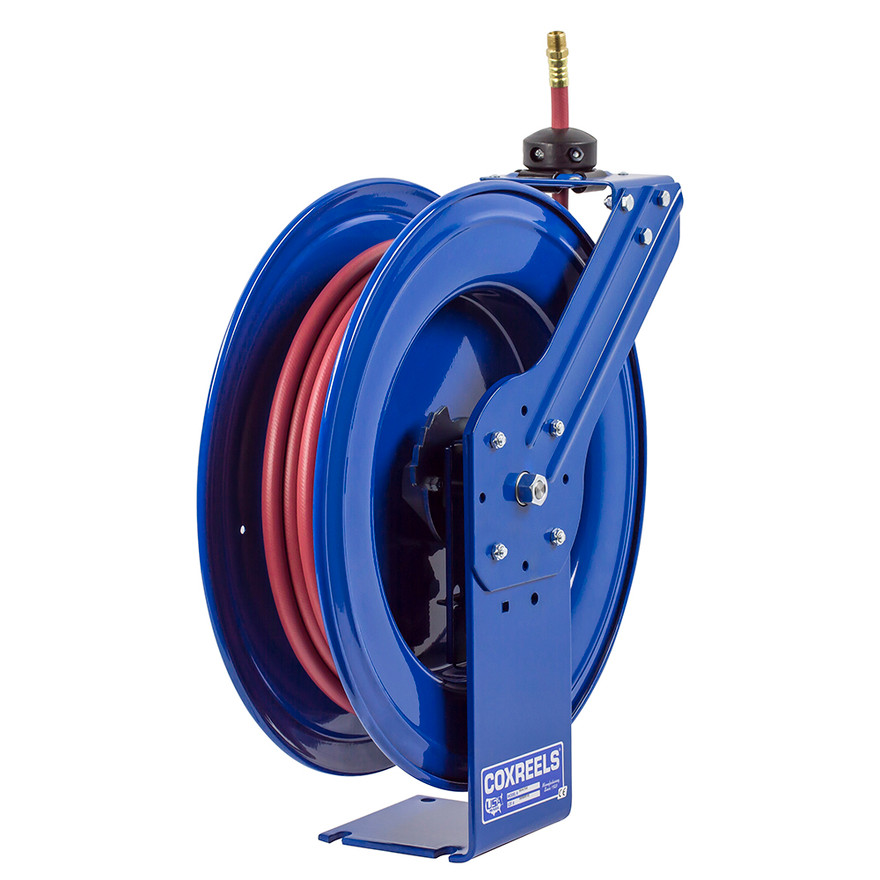

Built for high-pressure grease and hydraulic oil applications that require automatic hose retrieval, the Coxreels HP-N-150 Heavy Duty Spring Rewind Hose Reel is supplied with 50 ft of 1/4" I.D. hose and carries a maximum working pressure of 5,000 PSI. Part of the HP Series, this model is furnished with SAE 100R16 #1 or #2 wire-braid hose suitable for grease and hydraulic oil service. The spring-driven rewind automatically retrieves the hose after use, helping keep lubrication bays, hydraulic service areas, maintenance facilities, and mobile equipment installations organized.
The HP-N-150 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity during operation. Its high-pressure configuration uses a zinc-plated steel swivel with NITRILE seals, while the multi-position lock ratchet holds the hose at the desired working length before automatic retrieval. The supplied hose has a manufacturer-specified maximum temperature of 250°F, supporting compatible grease and hydraulic oil applications within the reel and hose operating limits.
Type: High Pressure Spring Rewind Hose Reel | Series: HP Series | Model: HP-N-150 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 5,000 PSI | Approx. Weight: 64 lbs
Features:
- Supplied with 50 feet of 1/4-inch I.D., 9/16-inch O.D. SAE 100R16 #1 or #2 wire-braid hose.
- 5,000 PSI maximum working pressure supports compatible high-pressure grease and hydraulic oil applications.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- Zinc-plated steel swivel is used on the HP Series high-pressure configuration.
- NITRILE swivel seals support the reel's specified fluid-handling configuration.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Supplied high-pressure hose has a maximum temperature rating of 250°F.
Made in USA:
Applications:
- Grease dispensing systems operating within the reel's 5,000 PSI maximum working pressure.
- Hydraulic oil service applications using compatible equipment, fittings, and operating conditions.
- Maintenance and MRO operations requiring organized storage and automatic retrieval of high-pressure hose.
- Equipment lubrication and hydraulic service areas where a 50-foot hose provides useful working reach.
- Mobile service installations requiring automatic storage of high-pressure grease or hydraulic oil hose.
FAQs:
- Q: Does the Coxreels HP-N-150 include hose?
A: Yes. The HP-N-150 is supplied with 50 feet of 1/4-inch I.D., 9/16-inch O.D. SAE 100R16 #1 or #2 wire-braid hose. - Q: What is the maximum working pressure of the HP-N-150?
A: The Coxreels HP-N-150 is rated for a maximum working pressure of 5,000 PSI. - Q: What fluids is the supplied hose intended to handle?
A: Coxreels specifies the HP Series high-pressure hose for grease and hydraulic oil applications. The complete system should remain within the manufacturer's stated pressure and temperature limits. - Q: What is the maximum temperature rating of the supplied hose?
A: Coxreels specifies a maximum hose temperature of 250°F for the HP Series high-pressure hose configuration. - Q: Is a less-hose version of the HP-N-150 available?
A: Yes. Coxreels lists the HPL-N-150 as the corresponding less-hose configuration, while the HP-N-150 is supplied with hose.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
