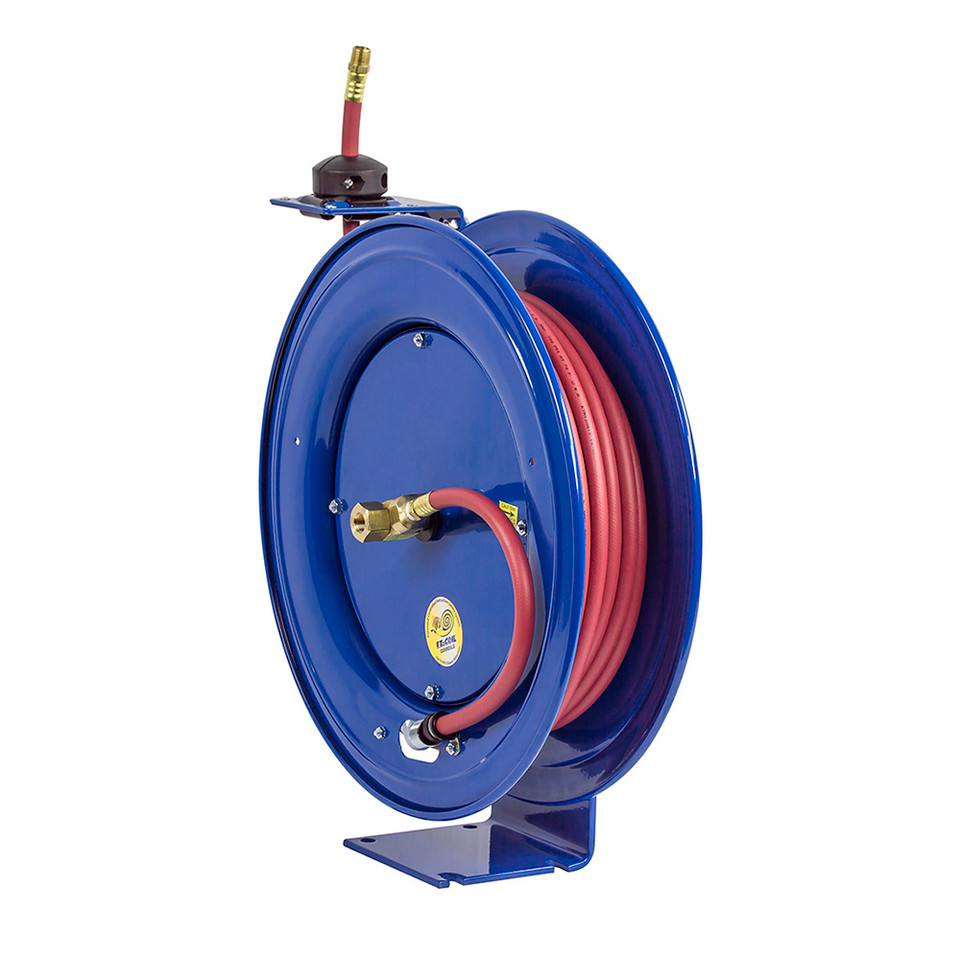

Built for air and water hose management where extended reach and controlled automatic retraction are important, the Coxreels EZ-SH-475 Super Hub Spring Rewind Hose Reel combines a 75 ft hose length with a 1/2" hose I.D. and a 300 PSI maximum working pressure. Part of the EZ-SH Series, this reel incorporates Coxreels' patented EZ-Coil® controlled retraction technology, which retracts hose up to 80% slower than conventional spring-driven reels. The slower return helps provide more controlled hose retrieval in maintenance facilities, manufacturing areas, service bays, and mobile equipment installations.
The EZ-SH-475 also features Coxreels' Super Hub dual axle support system, which increases reel stability during operation, reduces vibration, and strengthens structural integrity. Its larger chassis accommodates longer hose lengths and larger hose diameters, while the multi-position guide arm supports wall, floor, vehicle, and overhead mounting arrangements. An external fluid path with a machined solid brass 90-degree full-flow NPT swivel supports fluid transfer through the reel, and the single-pedestal design uses a solid one-piece, heavy-gauge 1/4-inch steel base and support post for stability.
Type: Super Hub Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-475 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 68 lbs
Features:
- Patented EZ-Coil controlled retraction technology retracts hose up to 80% slower than conventional spring-driven reels.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Larger chassis and frame accommodate longer hose lengths and larger hose diameters.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel inlet.
- NITRILE swivel seals are used in the low-pressure EZ-SH Series configuration.
- Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
- Solid one-piece, heavy-gauge 1/4-inch steel base and support post provide maximum stability.
- Spring-driven rewind automatically retrieves the hose after use.
- Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
Made in USA:
Applications:
- Manufacturing and maintenance facilities requiring longer air or water hose reach across larger work areas.
- Automotive and fleet service operations managing hose around multiple vehicles or service positions.
- Repair shops and MRO departments where controlled spring rewind helps keep hose organized between jobs.
- Service and utility vehicles requiring automatic hose storage with flexible reel mounting positions.
- Air and water applications operating within the manufacturer's specified 300 PSI maximum working pressure.
FAQs:
- Q: What hose size is used on the Coxreels EZ-SH-475?
A: The EZ-SH-475 is configured for a 1/2-inch I.D. hose with a 75-foot hose length and a maximum working pressure of 300 PSI. - Q: What does the EZ-Coil system do?
A: Coxreels' patented EZ-Coil technology controls the rewind speed so the hose retracts up to 80% slower than conventional spring-driven reels. - Q: What is the purpose of the Super Hub system?
A: The Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel. - Q: Can the EZ-SH-475 be mounted in different positions?
A: Yes. Coxreels specifies that the guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. - Q: Why choose the 75-foot hose configuration?
A: The 75-foot configuration provides additional working reach compared with shorter models while retaining automatic spring rewind and the controlled retraction provided by the EZ-Coil system.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
