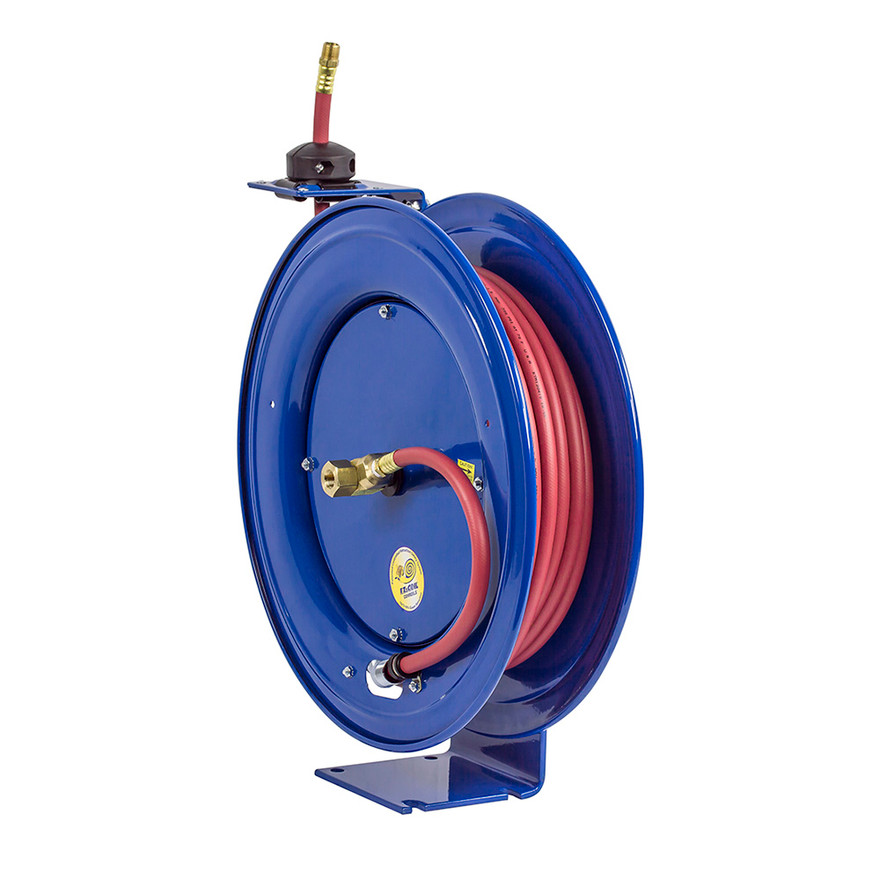

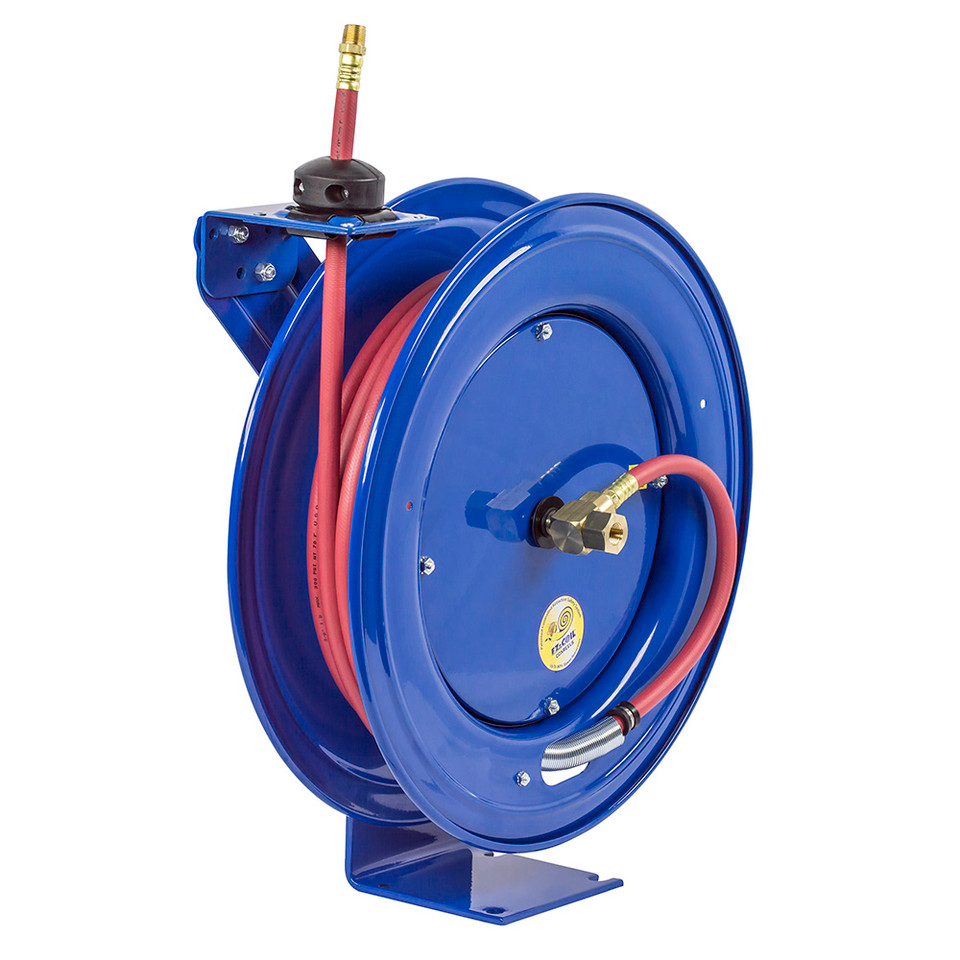

Built for air and water service where controlled hose retraction and larger reel capacity are important, the Coxreels EZ-SH-450 Super Hub Spring Rewind Hose Reel combines a 50 ft long, 1/2" I.D. hose with a 300 PSI maximum pressure rating. Part of the EZ-SH Series, this reel uses Coxreels' patented EZ-Coil safety system to retract the hose up to 80% slower than conventional reels, helping provide a more controlled return to the reel. The larger SH Series chassis accommodates longer lengths and larger hose diameters, while the Super Hub dual axle support system increases stability, reduces vibration, and strengthens the structural integrity of the reel.
The EZ-SH-450 features a single-pedestal configuration with a solid one-piece, heavy-gauge 1/4" steel base and support post. A 1" solid steel axle and lubricated precision bearings support smooth reel rotation, while the multi-position guide arm allows installation on walls, floors, vehicles, or overhead locations. The reel is supplied with hose for air or water service with a maximum temperature of 150°F, giving maintenance facilities, service vehicles, manufacturing plants, and other work areas a manufacturer-specified hose management solution for low-pressure applications.
Type: Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-450 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 54 lbs
Features:
- EZ-Coil safety system provides controlled hose retraction at speeds up to 80% slower than conventional reels.
- Coxreels' exclusive Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- External fluid path with a machined solid brass 90° full-flow NPT swivel inlet supports unrestricted fluid movement through the reel.
- NITRILE swivel seals are used in the low-pressure SH Series configuration.
- Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
- Solid one-piece, heavy-gauge 1/4-inch steel base and support post provide maximum stability.
- 1-inch solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed discs add strength and safety, while the CPC powder coat finish helps resist chips and rust.
Made in USA:
Applications:
- Air and water service in manufacturing plants, facilities, and general industrial work areas.
- Pneumatic tool applications requiring organized storage and controlled handling of a 50-foot air hose.
- Maintenance, repair, and operations departments managing air or water hose around equipment and workstations.
- Service, mechanic, and utility vehicles that require a reel capable of vehicle mounting.
- Automotive and fleet service centers using compressed air or water within the reel's specified pressure and temperature limits.
- Washdown applications where the supplied hose and operating conditions remain within the manufacturer's stated ratings.
FAQs:
- Q: Does the Coxreels EZ-SH-450 include hose?
A: Yes. The EZ-SH-450 is supplied with 50 feet of 1/2-inch I.D., 3/4-inch O.D. hose for air or water service. - Q: What does EZ-Coil do on this hose reel?
A: Coxreels' patented EZ-Coil safety system controls the rewind speed so the hose retracts up to 80% slower than on conventional reels. This provides a slower, more controlled return when the hose is released. - Q: Can the EZ-SH-450 be mounted on a wall or vehicle?
A: Yes. The multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. The reel has a 6-inch by 6-inch base and a 4-inch by 5-inch mounting pattern. - Q: What services can the included hose handle?
A: Coxreels specifies the hose-equipped low-pressure SH models for air and water service. The EZ-SH-450 is rated to a maximum of 300 PSI and a maximum hose service temperature of 150°F. - Q: What is the purpose of the Super Hub system?
A: Coxreels' Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
