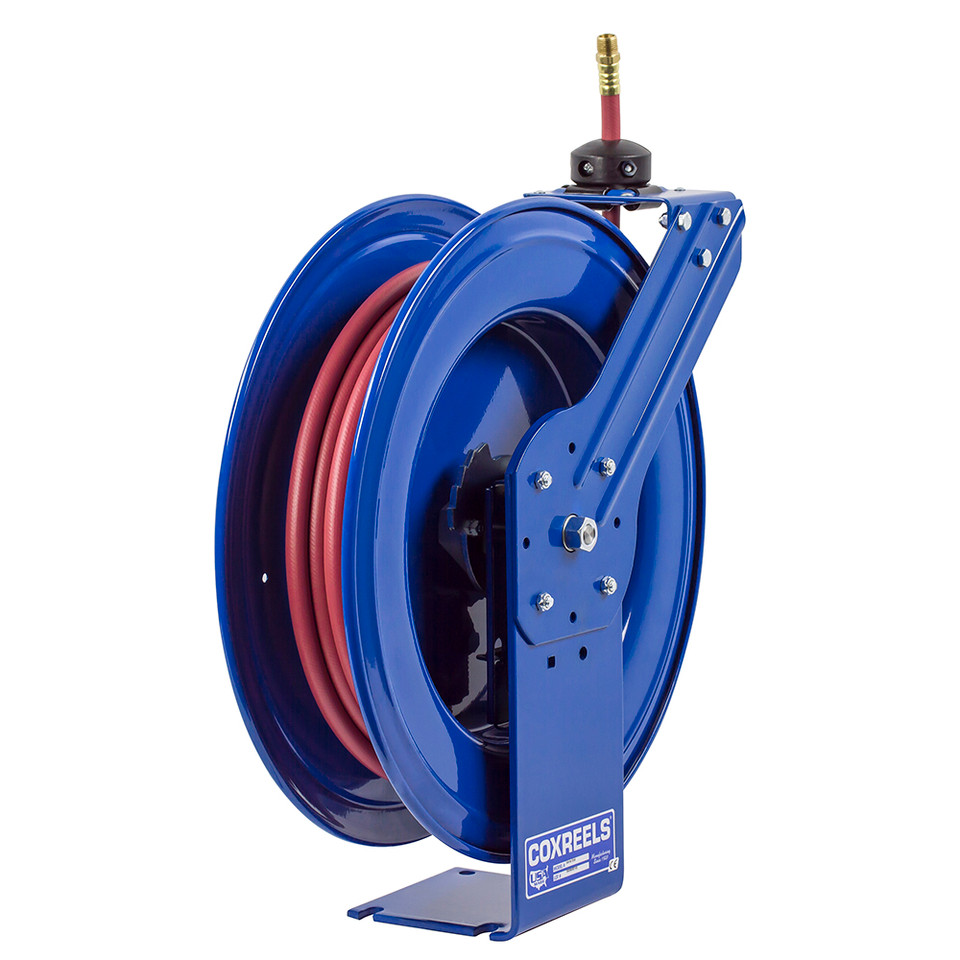

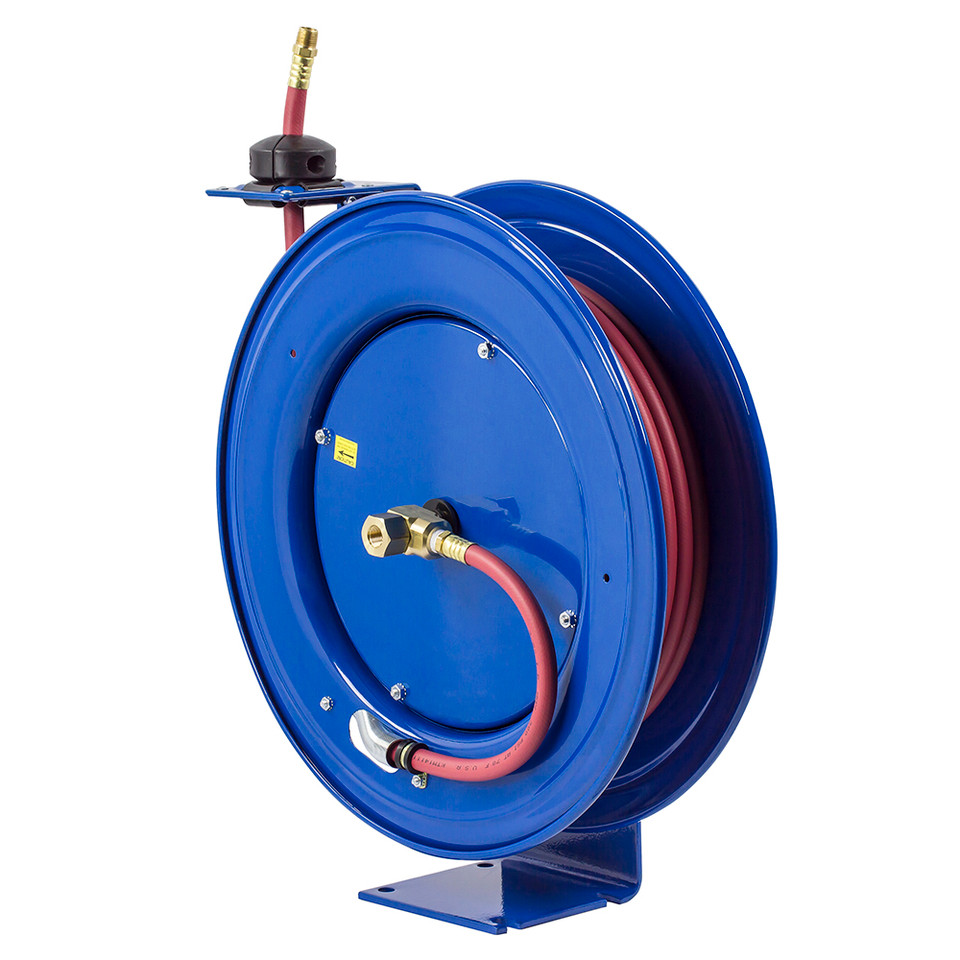

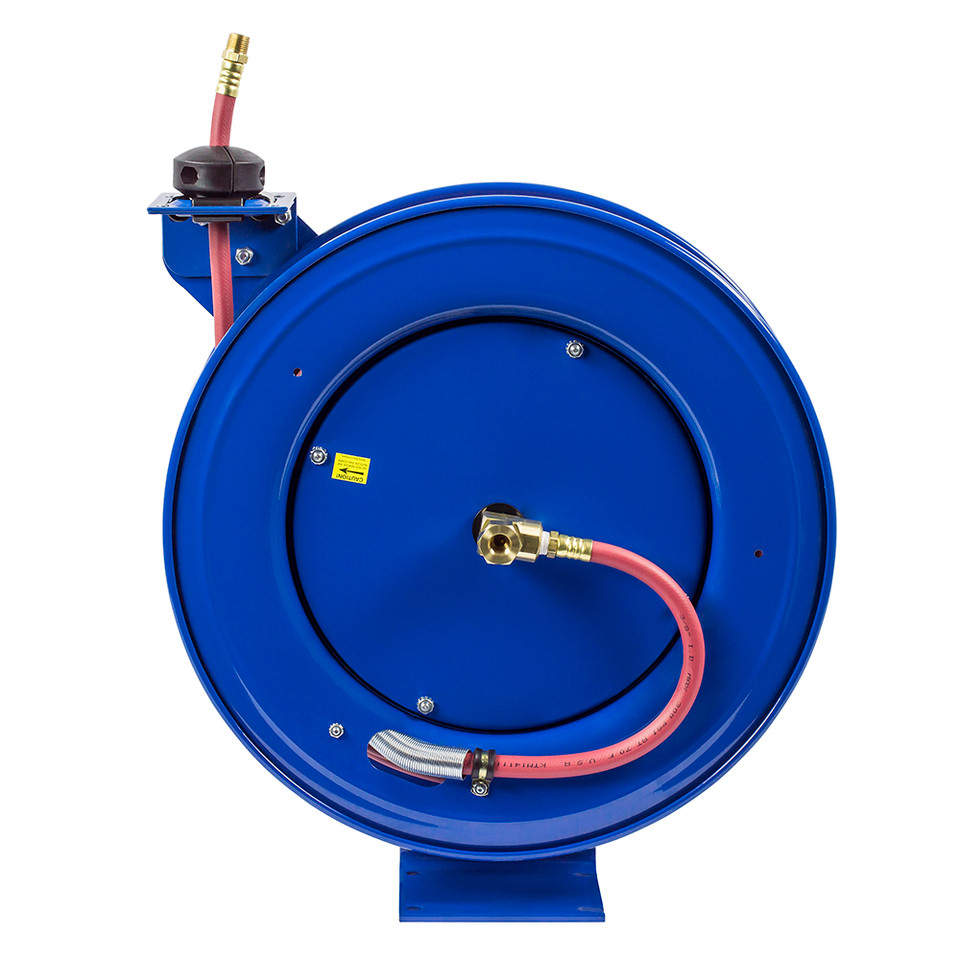

Coxreels EZ-HP-150 Spring Rewind Hose Reel | HP Series | 1/4" Hose Diameter | 50' Hose Length | 5000 Max PSI

Built for high-pressure hose applications where controlled automatic retraction is important, the Coxreels EZ-HP-150 Spring Rewind Hose Reel combines a 50 ft hose length with a 1/4" hose I.D. and a 5,000 PSI maximum working pressure. Part of the HP Series, this model incorporates Coxreels' patented EZ-Coil safety system, which retracts the hose up to 80% slower than conventional spring-driven reels. The controlled return helps manage hose retrieval after use while the high-pressure configuration supports applications operating within the reel and hose pressure limits.

The EZ-HP-150 uses Coxreels' Super Hub dual axle support system to increase reel stability, reduce vibration, and strengthen structural integrity. Its spring-driven rewind automatically retrieves the hose, while a multi-position lock ratchet allows the hose to remain extended at the required working length. Coxreels lists the EZ-HP-150 as a hose-equipped model with 50 ft of 1/4" I.D. hose, rather than a less-hose configuration.

Type: High Pressure Spring Rewind Hose Reel | Series: HP Series | Model: EZ-HP-150 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 5,000 PSI | Approx. Weight: 64 lbs

Features:

• Patented EZ-Coil safety system retracts the hose up to 80% slower than conventional spring-driven reels for a more controlled return.
• Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
• Spring-driven rewind automatically retrieves and stores the hose after use.
• Multi-position lock ratchet mechanism allows the hose to remain extended at the selected working length.
• High-pressure configuration supports operating pressures up to 5,000 PSI.
• 1/4-inch I.D. hose configuration provides 50 feet of working reach.
• 6-inch by 6-inch base with a 4-inch by 5-inch mounting pattern supports installation planning.
• Overall reel dimensions are 8-3/4 inches wide by 25-1/2 inches high by 19-1/2 inches long.

Applications:

• High-pressure hose applications operating within the manufacturer's specified 5,000 PSI maximum working pressure.
• Maintenance and service operations requiring automatic hose retrieval with a slower, controlled rewind speed.
• Manufacturing and equipment service areas where a 50-foot high-pressure hose provides practical working reach.
• Fixed or mobile installations that require organized storage of high-pressure hose between uses.
• Work areas where the EZ-Coil system helps provide more controlled hose return than a conventional spring rewind reel.

FAQs:

• Q: Does the Coxreels EZ-HP-150 include hose?
  A: Yes. Coxreels lists the EZ-HP-150 with 50 feet of 1/4-inch I.D., 9/16-inch O.D. hose. The manufacturer's product data does not identify this model as a less-hose reel.
• Q: What is the maximum pressure rating of the EZ-HP-150?
  A: The Coxreels EZ-HP-150 is rated for a maximum working pressure of 5,000 PSI.
• Q: What does the EZ-Coil system do?
  A: Coxreels' patented EZ-Coil safety system controls spring rewind speed so the hose retracts up to 80% slower than conventional reels.
• Q: What is the purpose of the Super Hub system?
  A: The Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens the structural integrity of the reel during operation.
• Q: How much installation space does the EZ-HP-150 require?
  A: Coxreels lists overall dimensions of 8-3/4 inches wide by 25-1/2 inches high by 19-1/2 inches long, with a 6-inch by 6-inch base and a 4-inch by 5-inch mounting pattern.
