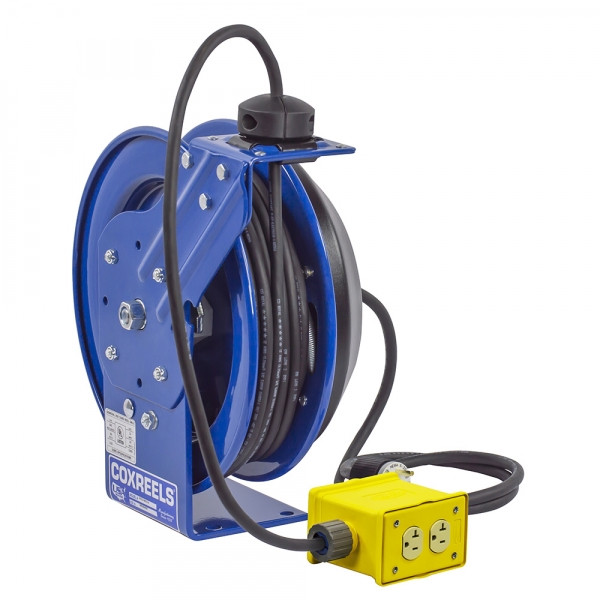

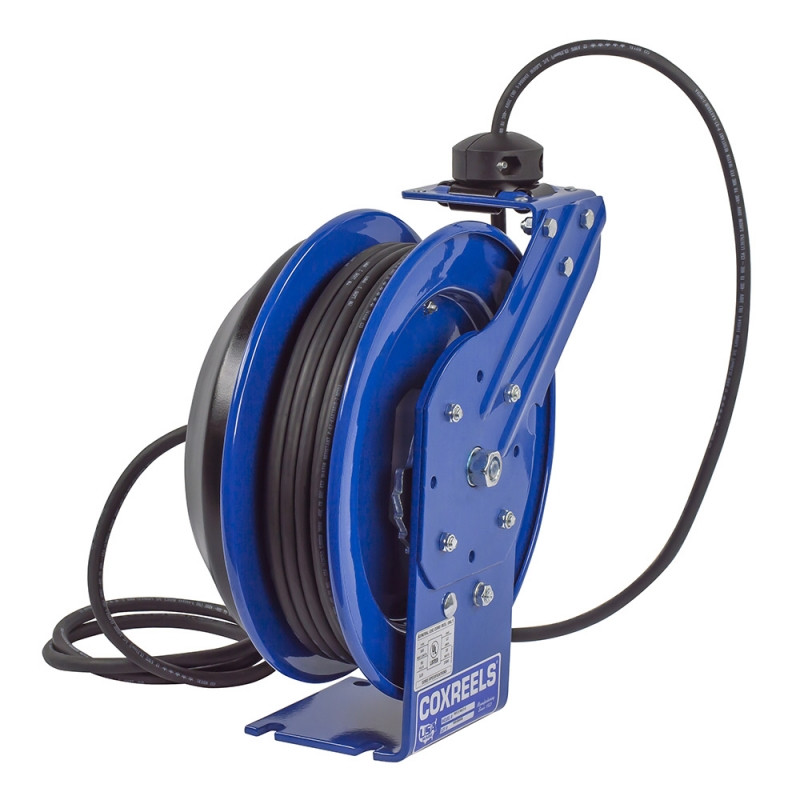

Coxreels PC19-7516-A Spring Rewind Power Cord Reel | P Series | 75' Cord Length | 13 Amps | 115 Volts

The Coxreels PC19-7516-A is a spring rewind power cord reel from the P Series, designed to keep electrical cord organized, retractable, and ready for use in shops, maintenance areas, service vehicles, and industrial workstations. This model includes a 75 ft cord length and is rated for 13 amps at 115 volts, giving users extended reach for compatible electrical applications where the cord, amperage, voltage, plug, receptacle, and connected equipment requirements match the reel rating.

Built on Coxreels compact single pedestal platform, the PC19-7516-A helps reduce loose cord across floors, benches, and work zones while allowing the cord to retract after use. The spring rewind mechanism supports automatic cord return, the multi-position lock ratchet holds the cord at the selected working length, and the adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.

Type: Spring Rewind Power Cord Reel | Series: P Series | Model: PC19-7516-A | Cord Included: Yes | Cord Length: 75 ft | Amps: 13 | Volts: 115 | Rewind Type: Spring Rewind | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Power Cord Reel

Features:

• Spring driven power cord reel helps keep electrical cord stored neatly when not in use, reducing loose cord across work areas and walk paths.
• 75 ft cord length provides extended reach for service bays, benches, maintenance areas, and equipment work zones.
• 13 amp and 115 volt rating supports compatible electrical applications when the connected load, cord type, plug, receptacle, and power source match the reel rating.
• Single pedestal, space-saving reel design is well suited for compact mounting locations in shops, vehicles, and workstations.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Solid one-piece heavy gauge steel base and support post provide stable reel support.
• 1" solid steel axle and lubricated precision bearings support smooth cord payout and rewind.
• Enclosed factory-tuned cartridge-style spring motor powers automatic cord return after use.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during operation.
• CPC powder coat finish helps protect the reel structure in shop, maintenance, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO areas where retractable 115 volt cord access helps keep workspaces cleaner and more organized.
• Automotive, fleet, and equipment service bays where 75 ft of cord reach helps power compatible tools, lights, or electrical devices.
• Manufacturing workstations and assembly areas where a spring rewind cord reel supports point-of-use electrical access.
• Service trucks and mobile repair vehicles where retractable cord storage helps reduce loose cable during transport and field work.
• Garages, warehouses, and industrial work areas where controlled cord payout and automatic rewind improve cord management between tasks.

FAQs:

• Q: Does the Coxreels PC19-7516-A include cord?
  A: Yes. This model is supplied as a power cord reel with a 75 ft cord length.
• Q: What amperage and voltage is this reel rated for?
  A: The PC19-7516-A is rated for 13 amps and 115 volts. Always confirm that the connected equipment does not exceed the reel's electrical rating.
• Q: What does the spring rewind mechanism do?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping keep the work area organized and reducing loose cord on the floor.
• Q: Can this cord reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are appropriate for the reel and work environment.
• Q: Is this reel suitable for all 115 volt tools?
  A: No. The connected device must be compatible with the reel’s 13 amp and 115 volt rating, and the plug, receptacle, cord type, and work environment must match the application requirements.
• Q: When should I choose a 75 ft cord reel?
  A: A 75 ft cord reel is useful when the power source is farther from the work area or when users need to reach across larger bays, workstations, or service zones. A shorter reel may be preferred when the outlet is close to the work area.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
