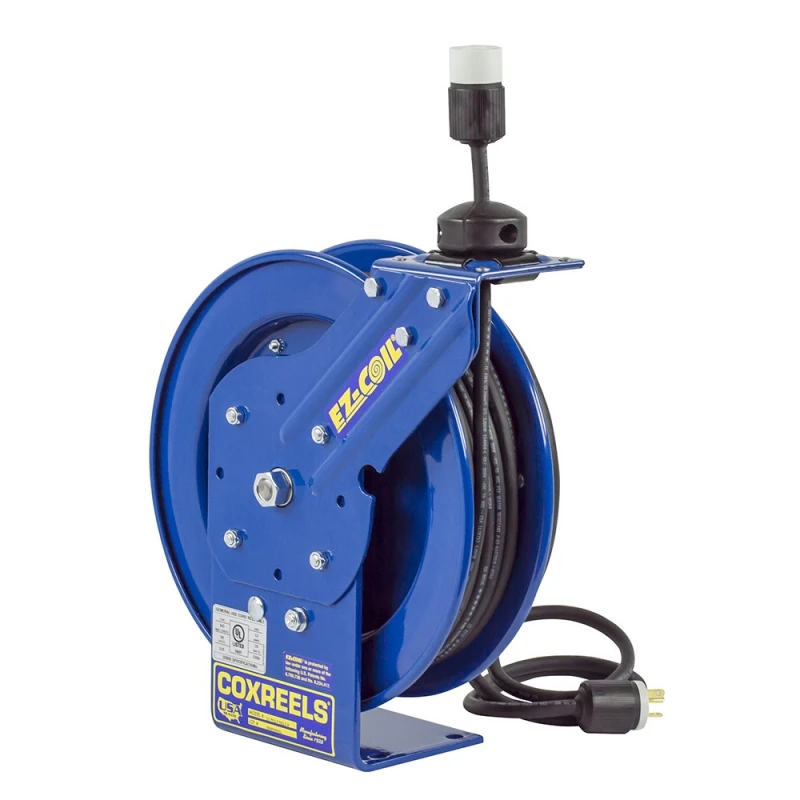

Coxreels EZ-PC24-0012-F Spring Rewind Power Cord Reel | EZ-PC Series | 100' Cord Length | 20 Amps | 115 Volts

The Coxreels EZ-PC24-0012-F is a spring rewind power cord reel from the EZ-PC Series, designed to provide extended 115 volt power access with Coxreels EZ-Coil controlled-retraction system. This model includes a 100 ft cord length, 12/3 SJO cord, and is rated for 20 amps at 115 volts, making it a long-reach, higher-amperage cord reel for compatible indoor tools, lights, and electrical devices.

The EZ-PC24-0012-F helps keep electrical cord controlled in larger service bays, maintenance areas, production floors, garages, warehouses, and indoor industrial workspaces. EZ-Coil rewind slows cord return compared with a standard spring rewind reel, helping improve handling during retraction. The “F” configuration is supplied with a duplex G.F.C.I. metal industrial receptacle, giving users ground-fault protected outlet access when the connected load, plug configuration, receptacle type, and indoor work environment match the reel rating.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24-0012-F | Cord Included: Yes | Cord Length: 100 ft | Cord Size: 12/3 AWG | Cord Type: SJO | Outlet: Duplex G.F.C.I. Metal Industrial Receptacle | Amps: 20 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only

Features:

• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
• 100 ft cord length provides extended reach for larger service bays, warehouses, maintenance zones, production areas, and workstations located farther from the power source.
• 20 amp and 115 volt rating supports compatible electrical loads when the connected equipment, plug, receptacle, and power source match the reel rating.
• 12/3 SJO cord provides a heavier conductor size than 16/3 cord configurations for applications requiring the higher 20 amp rating.
• Duplex G.F.C.I. metal industrial receptacle provides two outlet positions with ground-fault circuit interrupter protection for compatible indoor use.
• Designed for indoor use only and rated for 115 volts, 60 Hz single phase service.
• Spring driven power cord reel helps reduce loose extension cords by storing cord neatly between tasks.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle, lubricated precision bearings, and CPC powder coat finish support dependable operation in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Large automotive, fleet, and equipment service bays where 100 ft of retractable 115 volt cord helps reach around vehicles, lifts, benches, and equipment.
• Maintenance shops and MRO departments where controlled cord rewind helps reduce loose electrical cord across floors, work areas, and walk paths.
• Manufacturing, assembly, and repair workstations that need organized point-of-use power for compatible 20 amp, 115 volt devices.
• Warehouses, garages, and indoor industrial work areas where extended cord reach and automatic rewind support cleaner cord management.
• Service trucks and mobile repair setups where retractable cord storage helps keep electrical cord controlled during transport and field work.

FAQs:

• Q: Does the Coxreels EZ-PC24-0012-F include cord?
  A: Yes. This model includes 100 ft of 12/3 SJO cord.
• Q: What does the 'F' configuration mean?
  A: For this EZ-PC model, the 'F' configuration is listed with a duplex G.F.C.I. metal industrial receptacle.
• Q: What is a G.F.C.I. receptacle?
  A: G.F.C.I. stands for ground-fault circuit interrupter. It is designed to interrupt power when it detects a ground-fault condition, helping add electrical protection in compatible indoor applications.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels controlled-retraction system that slows the rewind speed compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: The EZ-PC24-0012-F is rated for 20 amps at 115 volts, 60 Hz single phase. Confirm that the connected load stays within this rating before use.
• Q: Can this reel be used outdoors?
  A: No. Coxreels lists EZ-PC power cord reel models for indoor use only.
• Q: How is the EZ-PC24-0012-F different from the EZ-PC24-0012-B?
  A: Both models include 100 ft of 12/3 SJO cord and are rated for 20 amps at 115 volts. The EZ-PC24-0012-F has a duplex G.F.C.I. metal industrial receptacle, while the EZ-PC24-0012-B has a quad receptacle box.
• Q: When should I choose a 100 ft power cord reel?
  A: Choose a 100 ft reel when the power source is farther from the work area or when users need to reach across larger bays, warehouses, workstations, or indoor service zones.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
