Coxreels EZ-PC24L-0012 Spring Rewind Power Cord Reel | EZ-PC Series | 100' Cord Length | 25 Amps | 115 Volts | Less Cord

The Coxreels EZ-PC24L-0012 is a spring rewind power cord reel from the EZ-PC Series, supplied in a less cord configuration for buyers who need to install compatible electrical cord separately. This model is configured for a 100 ft cord capacity and is rated for 25 amps at 115 volts, giving users a long-reach controlled-retraction reel platform for compatible indoor power applications where the installed cord, plug, receptacle, connected load, and mounting environment are selected to match the reel rating.

Designed for larger service bays, maintenance departments, warehouses, production areas, garages, and indoor industrial workspaces, the EZ-PC24L-0012 helps keep electrical cord organized without requiring a factory-installed cord package. Coxreels EZ-Coil system slows rewind speed compared with a standard spring rewind reel, helping improve handling during cord return. The reel also includes a multi-position lock ratchet for holding the cord at the desired working length and an adjustable guide arm for wall, floor, vehicle, or overhead mounting when installed on a suitable surface.

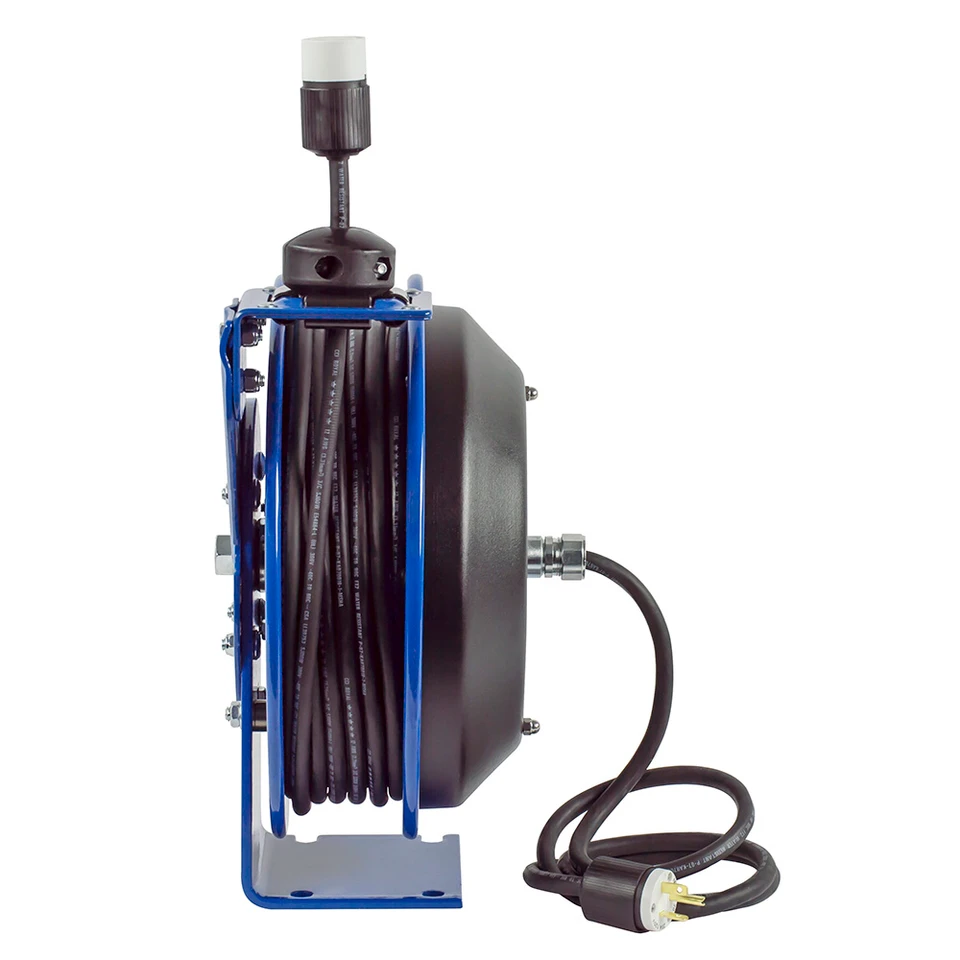

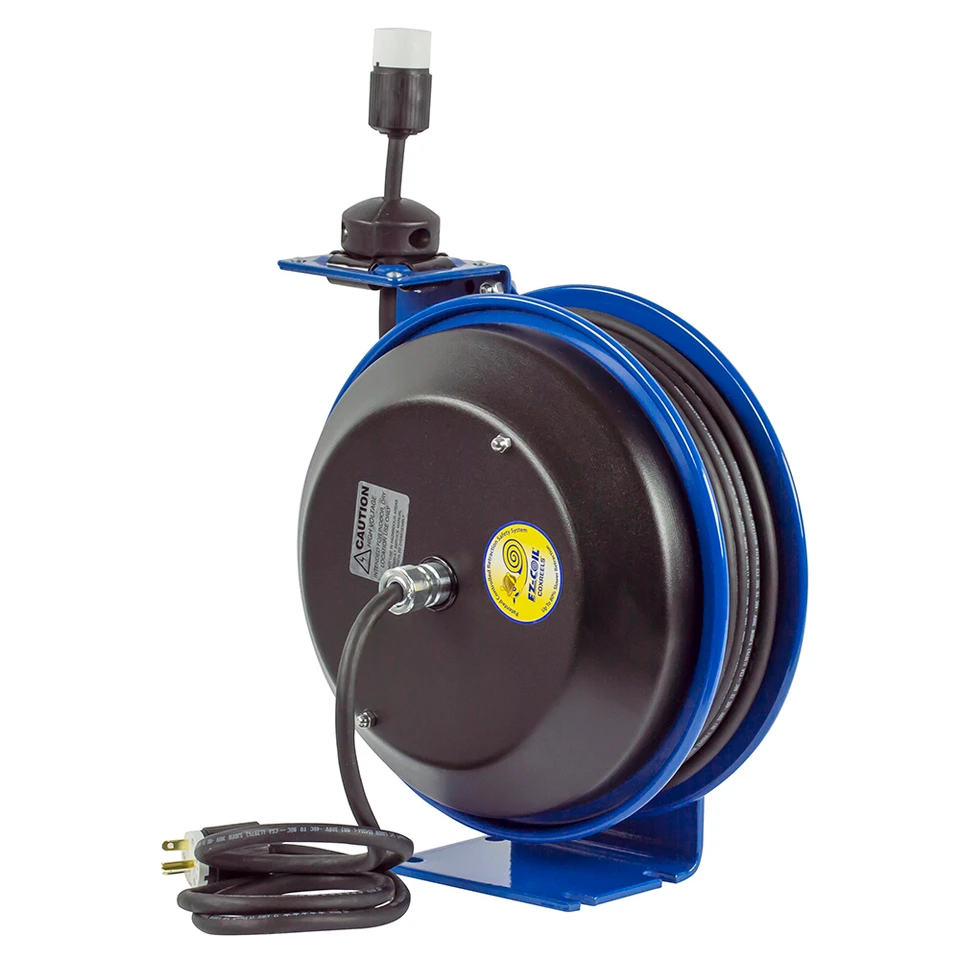

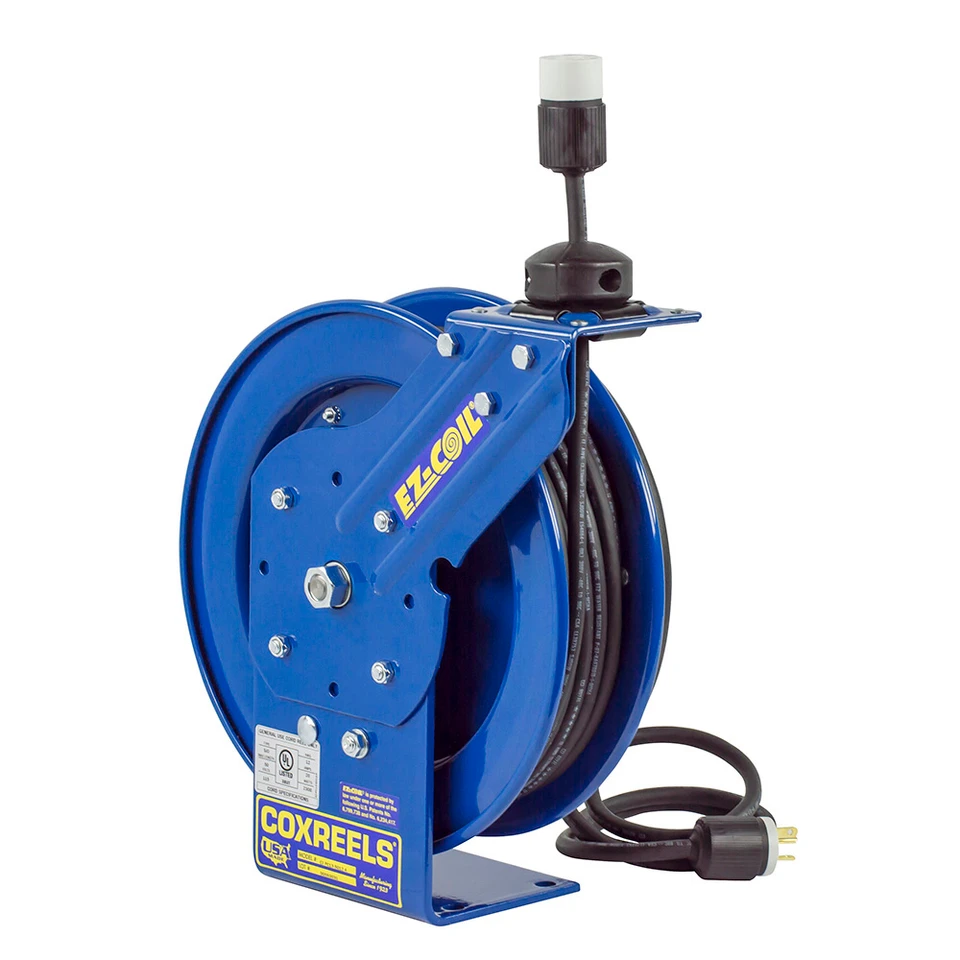

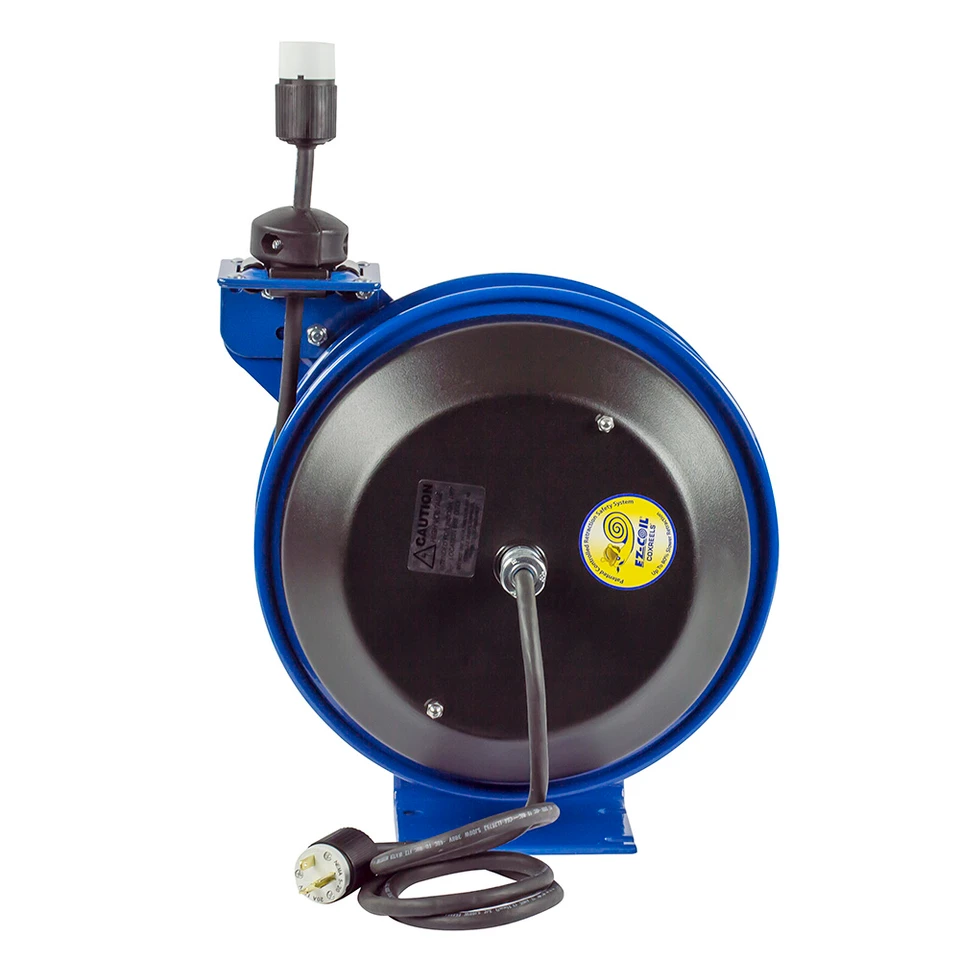

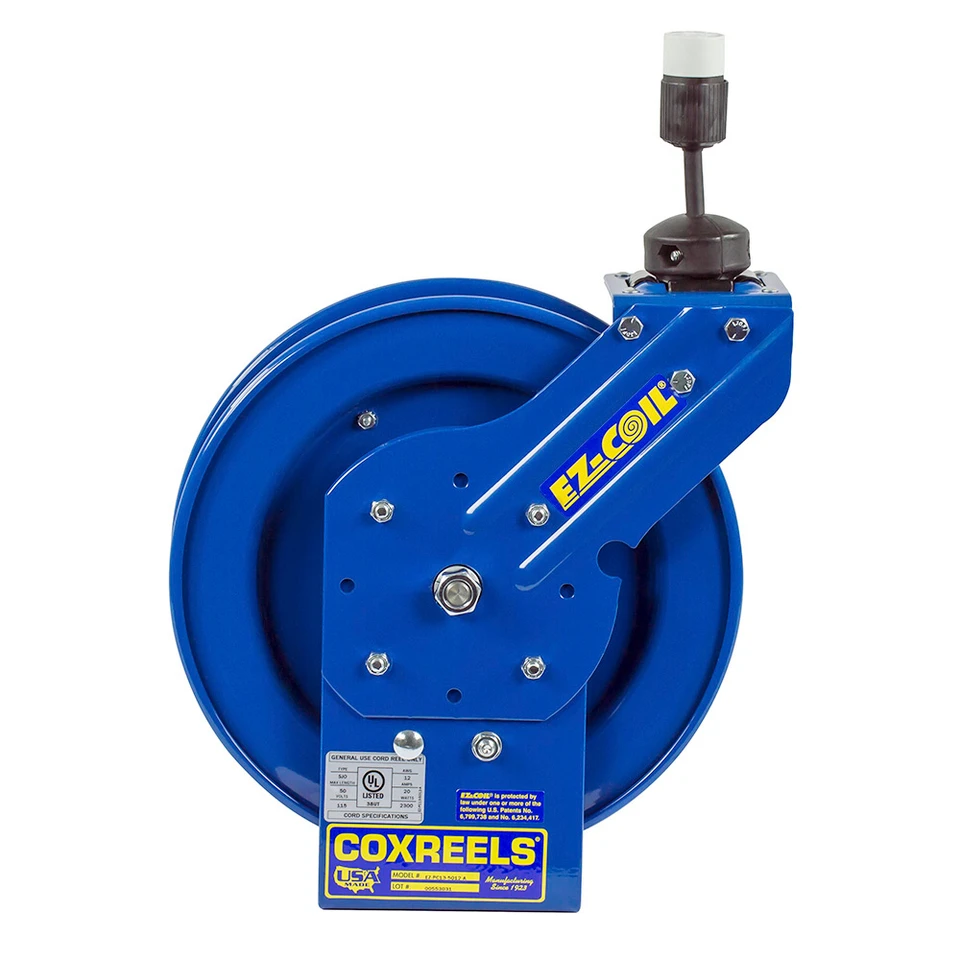

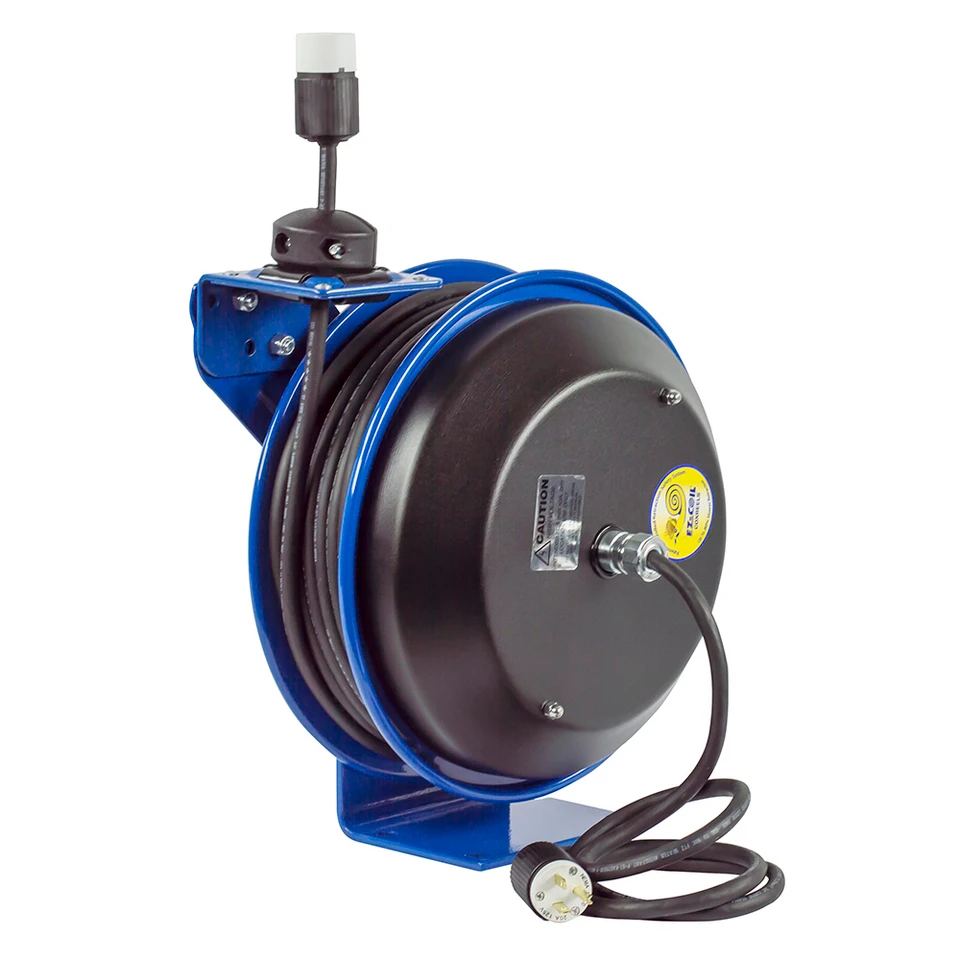

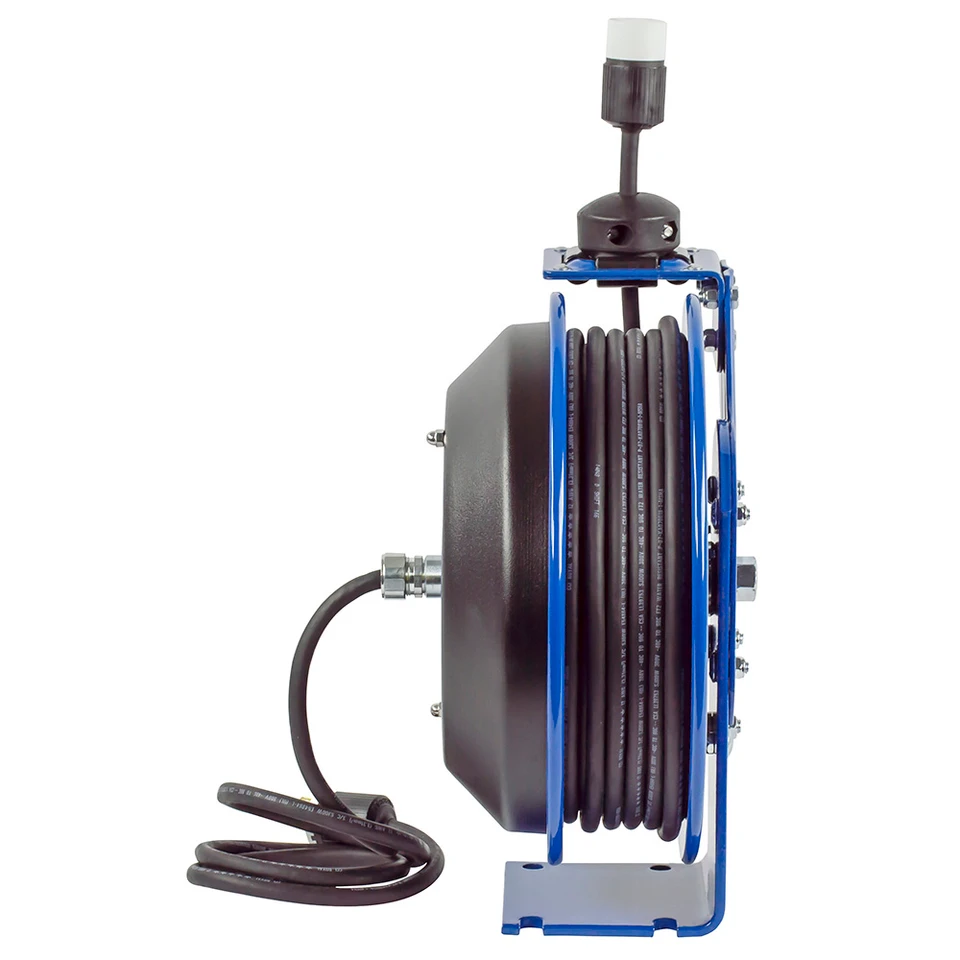

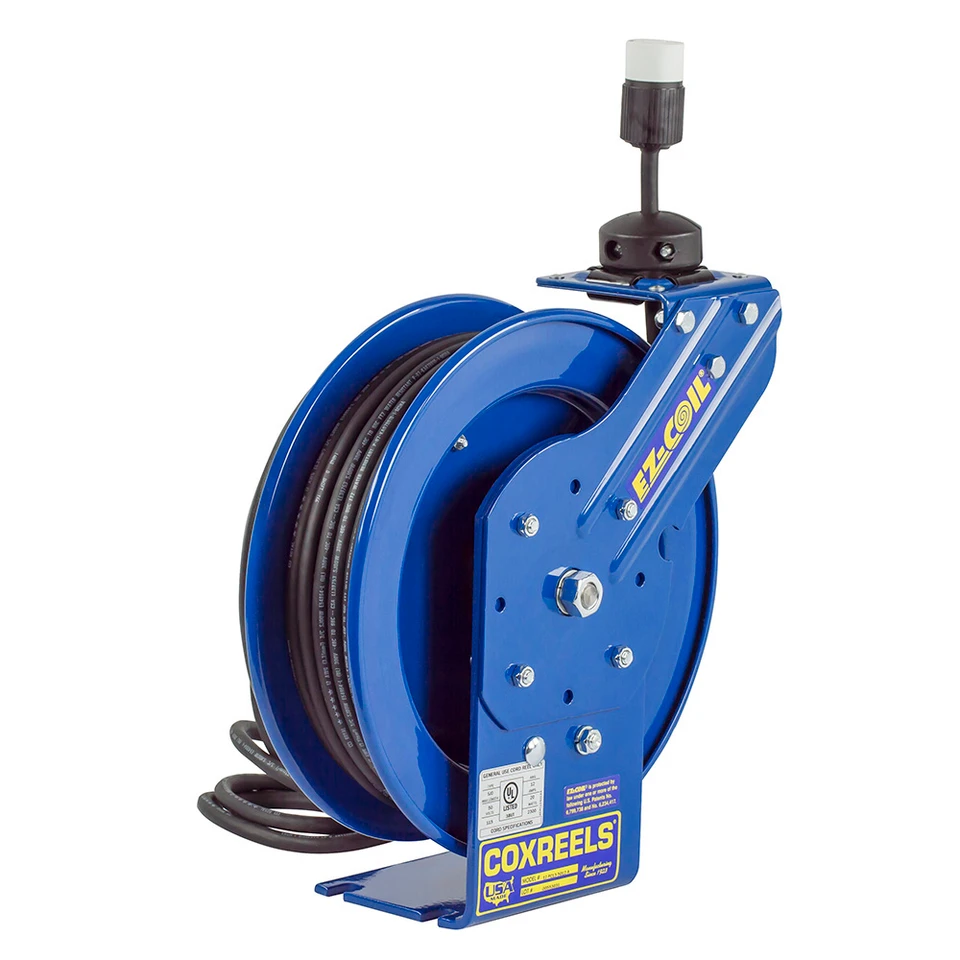

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24L-0012 | Configuration: Less Cord | Cord Included: No | Cord Capacity: 100 ft | Amps: 25 | Volts: 115 | Rewind Type: EZ-Coil Spring Rewind | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Power Cord Reel

Features:

• Less-cord configuration allows the buyer to install compatible electrical cord selected for the required amperage, voltage, plug, receptacle, cord jacket, and indoor work environment.
• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
• 100 ft cord capacity provides extended reach for larger service bays, warehouses, production areas, maintenance zones, and workstations located farther from the power source.
• 25 amp and 115 volt rating supports compatible electrical applications when the installed cord, plug, receptacle, power source, and connected load are rated accordingly.
• Spring driven reel design stores the installed cord neatly between tasks, helping reduce loose cable across floors, benches, and work areas.
• Multi-position lock ratchet mechanism secures the cord at the selected working length during use.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when installed on an appropriate mounting surface.
• Single pedestal, space-saving construction helps conserve mounting space in service vehicles, shops, workstations, warehouses, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Large maintenance shops and MRO departments that need a 100 ft controlled-retraction reel body for buyer-selected 115 volt power cord.
• Automotive, fleet, and equipment service bays where retractable cord management helps reach around vehicles, lifts, benches, and nearby equipment.
• Manufacturing, assembly, and repair workstations that require organized point-of-use power with a separately selected cord and receptacle setup.
• Warehouses, garages, and indoor industrial work areas where long-reach EZ-Coil rewind helps improve cord handling between tasks.
• Service trucks and mobile repair vehicles where retractable cord storage helps keep electrical cable controlled during transport and field service work.

FAQs:

• Q: Does the Coxreels EZ-PC24L-0012 include cord?
  A: No. This is a less-cord model, meaning the reel is supplied without electrical cord installed. The buyer must provide compatible cord separately.
• Q: What does 'less cord' mean?
  A: It means the reel is supplied as the retractable reel body only. Cord, plug, receptacle, and any required electrical components must be selected and installed separately to match the reel rating and application.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels' controlled-retraction system that slows the rewind speed compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: The EZ-PC24L-0012 is rated for 25 amps at 115 volts. The installed cord, plug, receptacle, power source, and connected load must all be compatible with that rating.
• Q: How is the EZ-PC24L-0012 different from the EZ-PC13L-5012?
  A: Both are less-cord EZ-PC Series reel platforms rated for 25 amps at 115 volts. The EZ-PC24L-0012 supports 100 ft of cord capacity, while the EZ-PC13L-5012 supports 50 ft.
• Q: How is this model different from cord-included EZ-PC reels?
  A: The EZ-PC24L-0012 is supplied without cord so the buyer can choose the compatible cord and connection setup. Cord-included EZ-PC models are supplied with factory-installed cord and a defined outlet configuration.
• Q: Can I install any 100 ft cord on this reel?
  A: No. The cord must be compatible with the reel capacity, amperage rating, voltage rating, plug or receptacle configuration, and work environment. Confirm all electrical requirements before installation.
• Q: Can this reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are suitable for the reel and work environment.
• Q: When should I choose a 100 ft cord capacity?
  A: Choose a 100 ft capacity when the power source is farther from the work area or when users need to reach across larger bays, warehouses, workstations, or service zones while keeping cord storage controlled between tasks.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
