Coxreels EZ-PC24-0012-A Spring Rewind Power Cord Reel | EZ-PC Series | 115 Volts | 100' Cord Length | 20 Amps

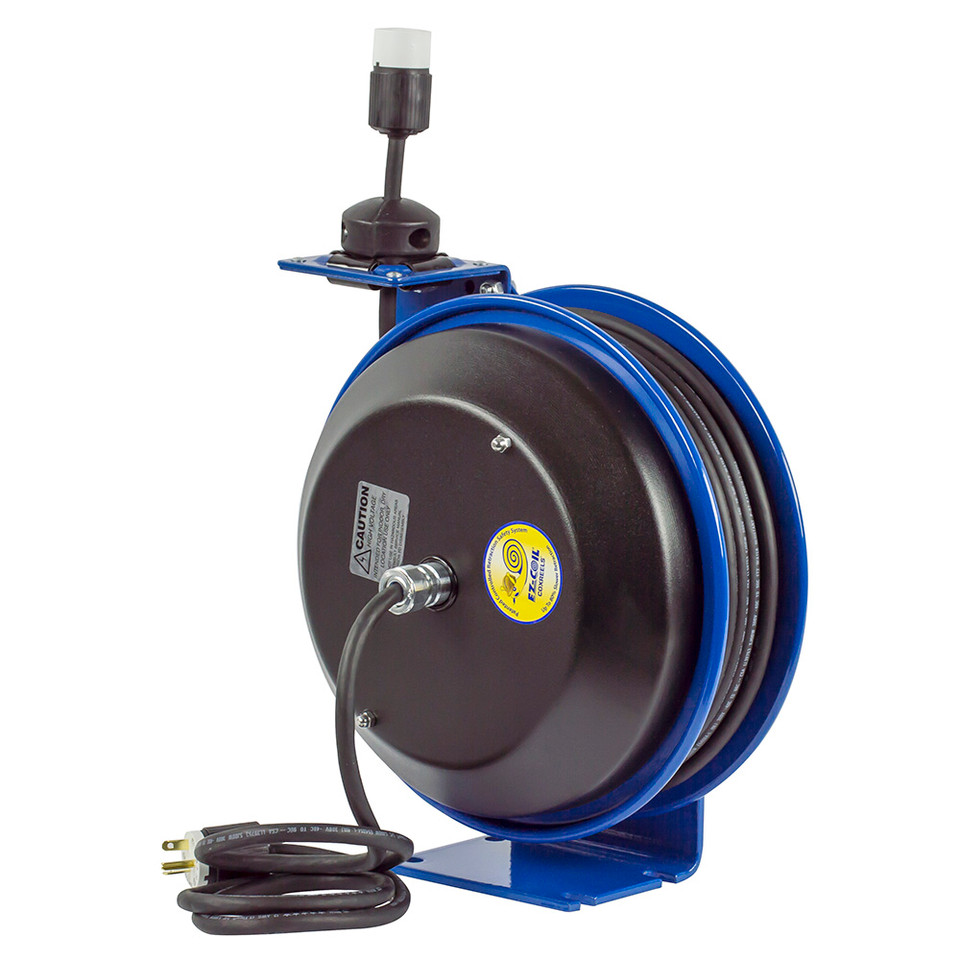

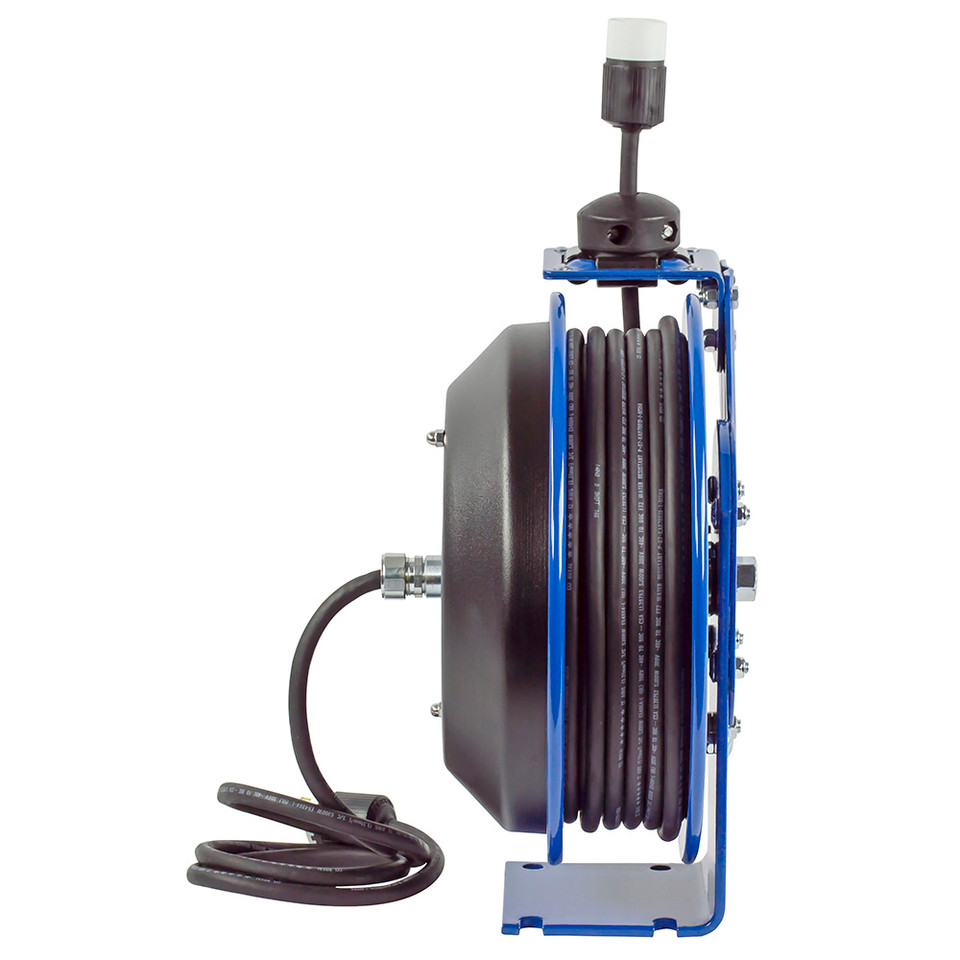

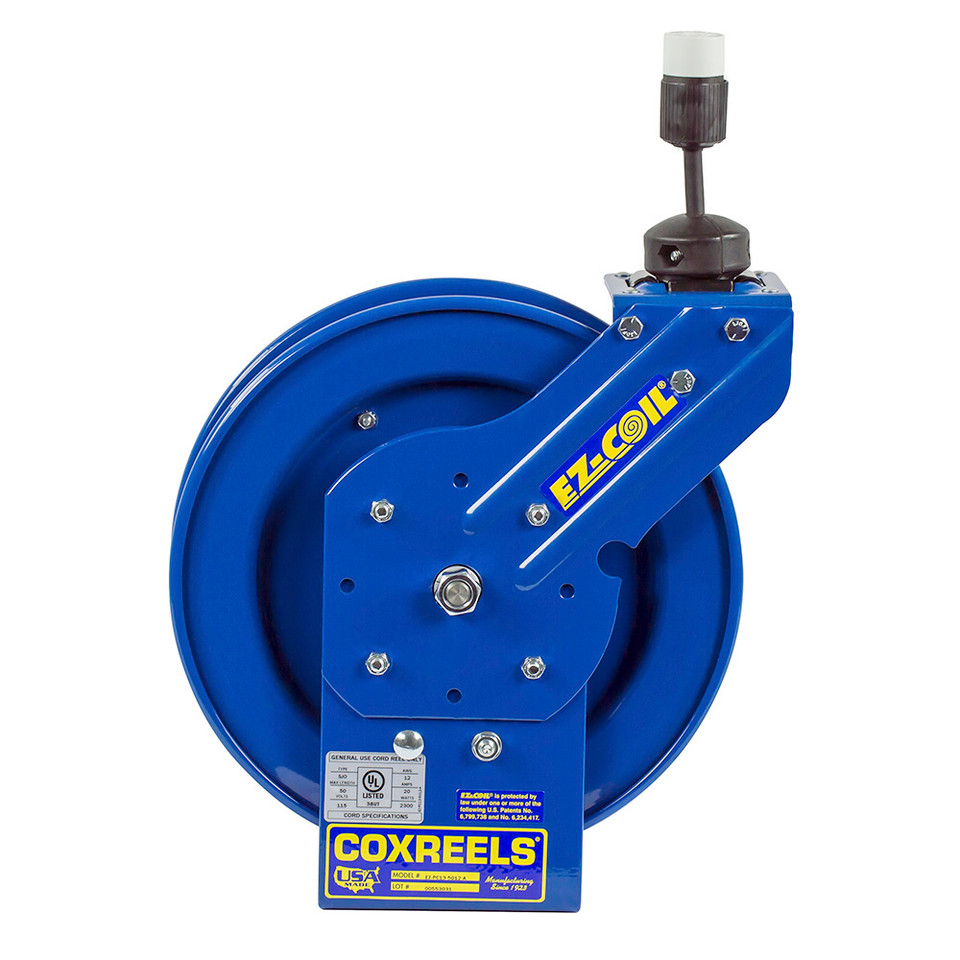

Designed for work areas that need extended electrical reach with controlled automatic cord retrieval, the Coxreels EZ-PC24-0012-A Spring Rewind Power Cord Reel is supplied with a 100 ft power cord for 115-volt, 20-amp service. Part of the EZ-PC Series, this model incorporates Coxreels' patented EZ-Coil safety system, which retracts up to 80% slower than conventional reels for more controlled cord return. The 100-foot configuration provides substantial reach from a fixed mounting location while allowing the cord to retract onto the reel when the job is complete.

The EZ-PC24-0012-A combines a single-pedestal, one-piece steel base and support post with a multi-position guide arm that adjusts for wall, floor, ceiling, and vehicle mounting positions. Its enclosed cartridge-style spring motor powers automatic retraction, while the multi-position lock ratchet secures the cord at the desired working length. An external heavy-gauge CPC powder-coated steel component cover provides convenient access for routine slip-ring maintenance without requiring the reel to be removed from its mount.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24-0012-A | Voltage: 115 V | Amperage: 20 A | Cord Length: 100 ft

Features:

• EZ-Coil patented safety system retracts the cord up to 80% slower than conventional reels for more controlled return.
• Supplied with a 100-foot power cord for extended electrical reach from the reel's mounting location.
• Electrical current passes through a 25-amp, 600-volt rated slip ring.
• Multi-position lock ratchet mechanism secures the cord at the desired working length.
• Versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
• Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic cord retrieval.
• Stainless steel spring and pawl with a zinc-plated ratchet provide corrosion-resistant rewind components.
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide added strength and cord protection.
• External heavy-gauge CPC powder-coated steel component cover provides convenient access for routine slip-ring maintenance.
• Additional manufacturer-listed features include an adjustable solid rubber cord stop, 5-foot lead cable and grounding plug, and permanently lubricated precision bearings.

Made in USA:

2 Year Warranty

Applications:

• Maintenance and repair facilities requiring extended access to compatible 115-volt electrical power.
• Workshops and service bays where portable electrical equipment must operate at greater distances from a fixed power source.
• Manufacturing and industrial MRO work areas where controlled cord retraction supports organized storage between tasks.
• Vehicle-mounted service applications requiring a long retractable power cord and flexible reel mounting options.
• Work areas where the EZ-Coil system's slower controlled rewind is preferred for managing a 100-foot electrical cord.

FAQs:

• Q: How long is the cord supplied with the Coxreels EZ-PC24-0012-A?
  A: The reel is supplied with a 100-foot power cord.
• Q: What are the electrical ratings of the EZ-PC24-0012-A?
  A: This model is rated for 115-volt service at 20 amps.
• Q: How does the EZ-Coil system affect cord retraction?
  A: Coxreels states that its patented EZ-Coil safety system retracts up to 80% slower than conventional reels, providing a more controlled return.
• Q: Can the cord remain extended at a selected working length?
  A: Yes. The multi-position lock ratchet mechanism secures the cord at the desired length during use.
• Q: What mounting positions does the EZ-PC24-0012-A support?
  A: The multi-position guide arm can be adjusted for wall, floor, ceiling, and vehicle mounting positions.
