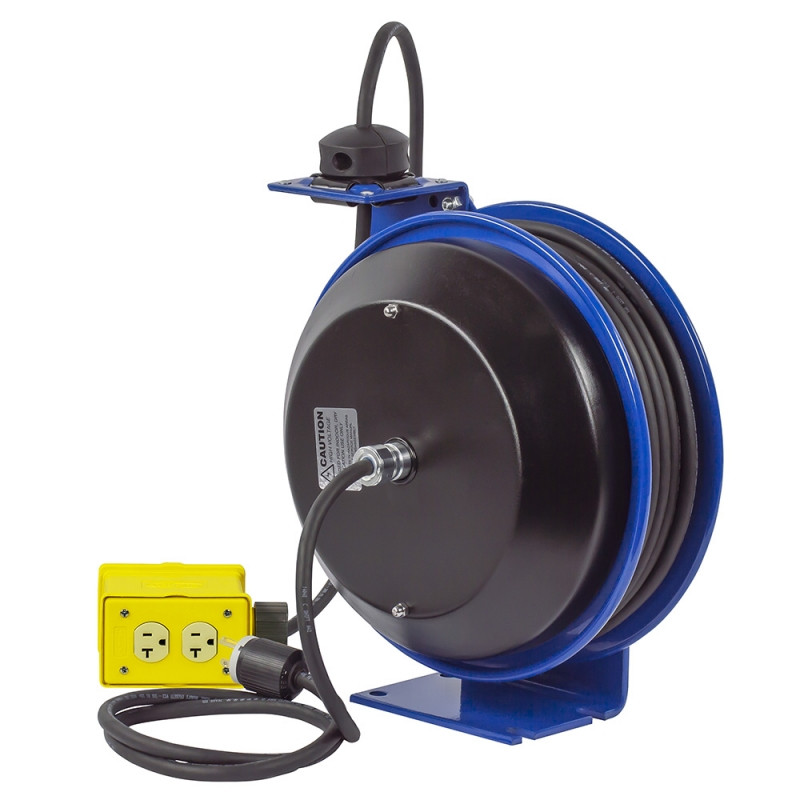

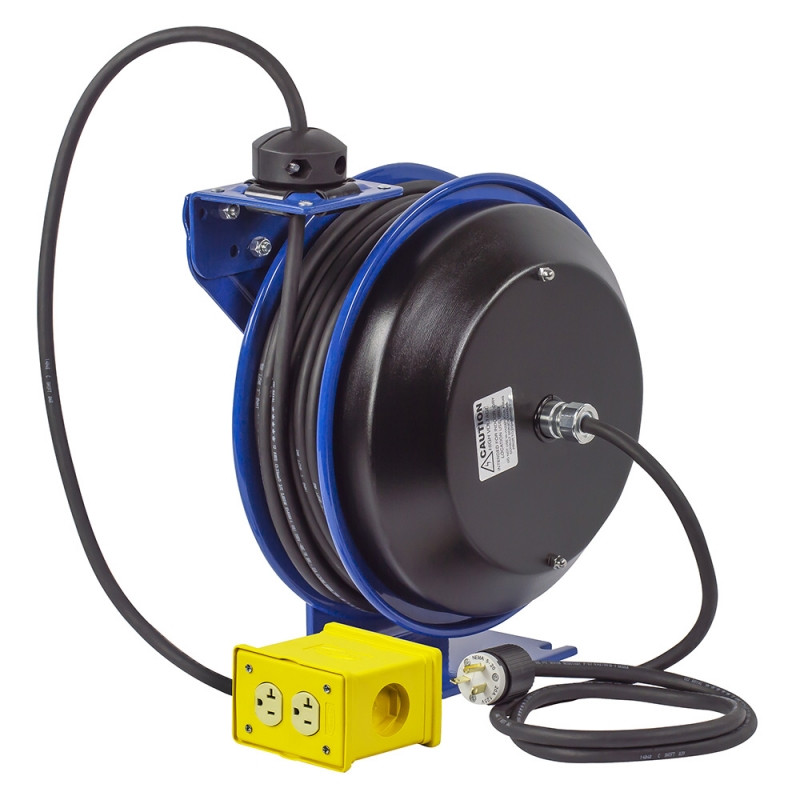

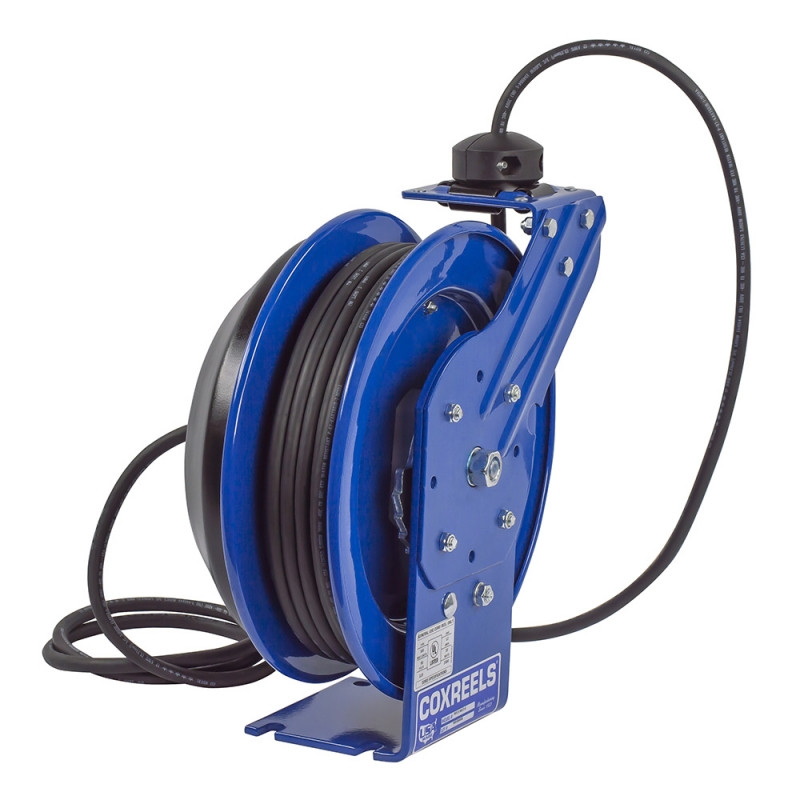

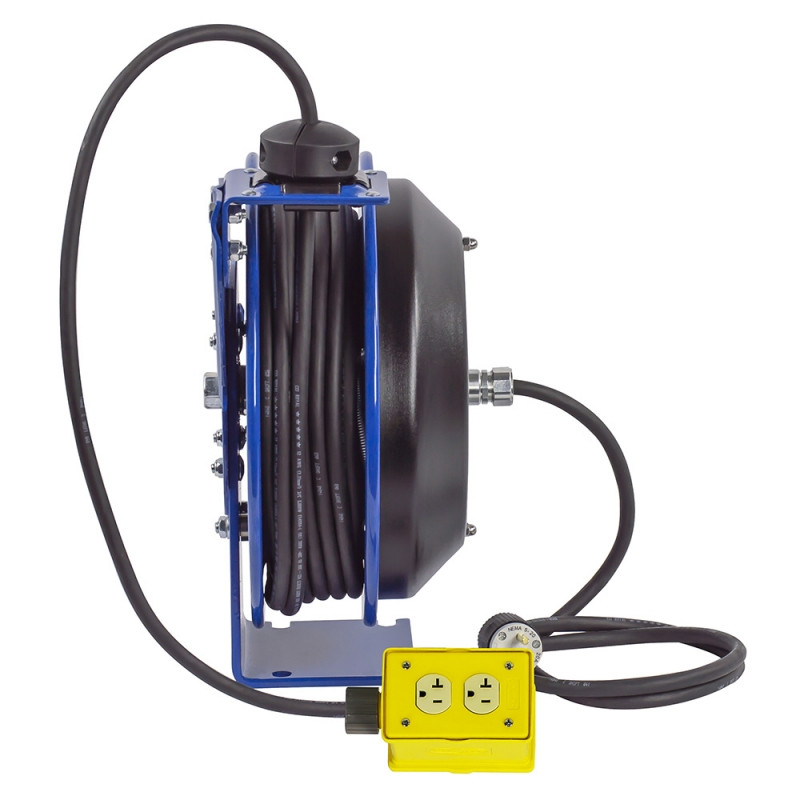

Coxreels PC13-5012-B Power Cord Spring Rewind Reel | PC Series | 115 Volts | 50' Cord Length | 20 Amps

Designed to provide convenient electrical power access while keeping unused cord stored and organized, the Coxreels PC13-5012-B Power Cord Spring Rewind Reel is equipped with a 50 ft power cord for 115-volt, 20-amp service. Part of the PC Series, this reel uses spring-powered rewind to retrieve the cord after use, providing practical electrical reach for compatible tools and equipment while helping reduce loose cord around the work area.

The PC13-5012-B combines Coxreels' compact single-pedestal construction with an enclosed, factory-tuned cartridge-style spring motor for automatic cord retrieval. A multi-position lock ratchet holds the cord at the desired working length, while the adjustable guide arm supports wall, floor, and overhead mounting positions. The reel's steel construction and CPC powder coat finish support dependable cord management in workshops, service bays, maintenance facilities, and other work environments requiring a retractable power source.

Type: Power Cord Spring Rewind Reel | Series: PC Series | Model: PC13-5012-B | Voltage: 115 V | Amperage: 20 A | Cord Length: 50 ft

Features:

• Supplied with a 50-foot power cord for extended electrical reach from the reel's installed location.
• Spring-powered rewind automatically retrieves the cord for organized storage after use.
• Multi-position lock ratchet holds the cord at the desired working length during use.
• Adjustable guide arm supports wall, floor, and overhead mounting positions.
• Enclosed, factory-tuned cartridge-style spring motor provides automatic cord retraction.
• Single-pedestal construction provides a compact footprint for installations where mounting space is limited.
• Steel reel construction supports repeated cord deployment and storage in workplace applications.
• CPC powder coat finish provides a protective surface treatment for the reel.
• Configured for compatible 115-volt electrical service with a 20-amp rating.

Made in USA:

2 Year Warranty

Applications:

• Maintenance and repair areas requiring retractable access to compatible 115-volt electrical power.
• Workshops and service bays where portable electrical tools need additional reach from a fixed power source.
• Manufacturing and MRO workstations where automatic cord storage helps keep unused cord organized between tasks.
• Garages and service facilities requiring a 50-foot retractable power cord for compatible equipment.
• Fixed work areas where spring-powered retrieval provides convenient storage after electrical equipment is disconnected or no longer in use.

FAQs:

• Q: What are the electrical ratings of the Coxreels PC13-5012-B?
  A: The PC13-5012-B is configured for 115-volt service and carries a 20-amp rating.
• Q: How much cord is supplied with the PC13-5012-B?
  A: This model is supplied with a 50-foot power cord.
• Q: Does the PC13-5012-B automatically retrieve the cord?
  A: Yes. The reel uses a spring-powered rewind mechanism to retract and store the cord after use.
• Q: Can the cord remain extended at the required working length?
  A: Yes. The multi-position lock ratchet holds the cord at the selected length until retraction is initiated.
• Q: What mounting positions does the adjustable guide arm support?
  A: Coxreels specifies an adjustable guide arm that supports wall, floor, and overhead mounting positions.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
