Coxreels PC24L-0016 Spring Rewind Power Cord Reel | PC Series | 100' Cord Length | 25 Amps | 115 Volts | Less Cord

The Coxreels PC24L-0016 is a spring rewind power cord reel from the PC Series, supplied in a less cord configuration for buyers who need to install compatible electrical cord separately. This model is configured for a 100 ft cord capacity and is rated for 25 amps at 115 volts, making it a flexible long-reach reel platform for compatible power applications where the installed cord, plug, receptacle, amperage rating, voltage rating, and work environment must match the electrical system requirements.

Designed for larger service bays, maintenance shops, warehouses, production areas, garages, and industrial workspaces, the PC24L-0016 helps keep electrical cord retractable and organized without locking the buyer into a factory-installed cord configuration. The spring rewind mechanism retracts the installed cord after use, the multi-position lock ratchet holds the cord at the selected working length, and the adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.

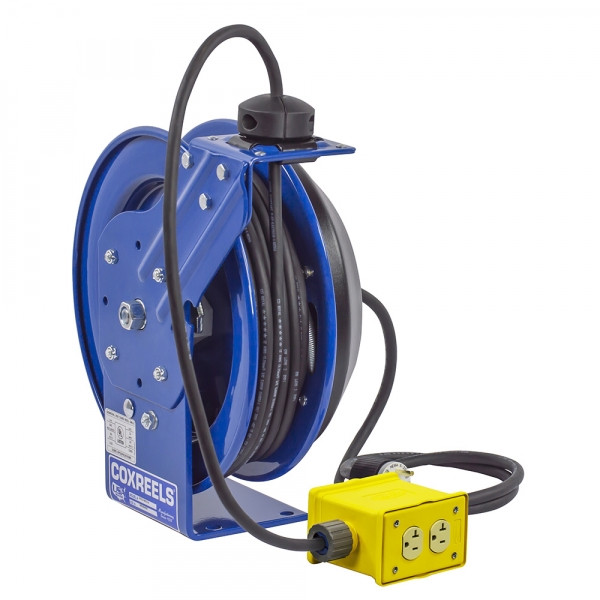

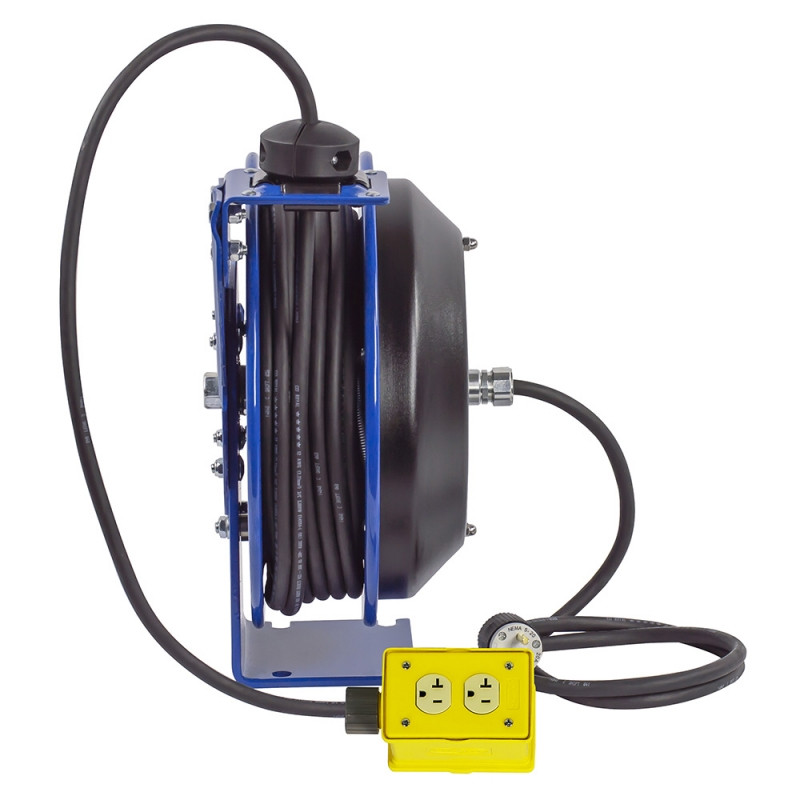

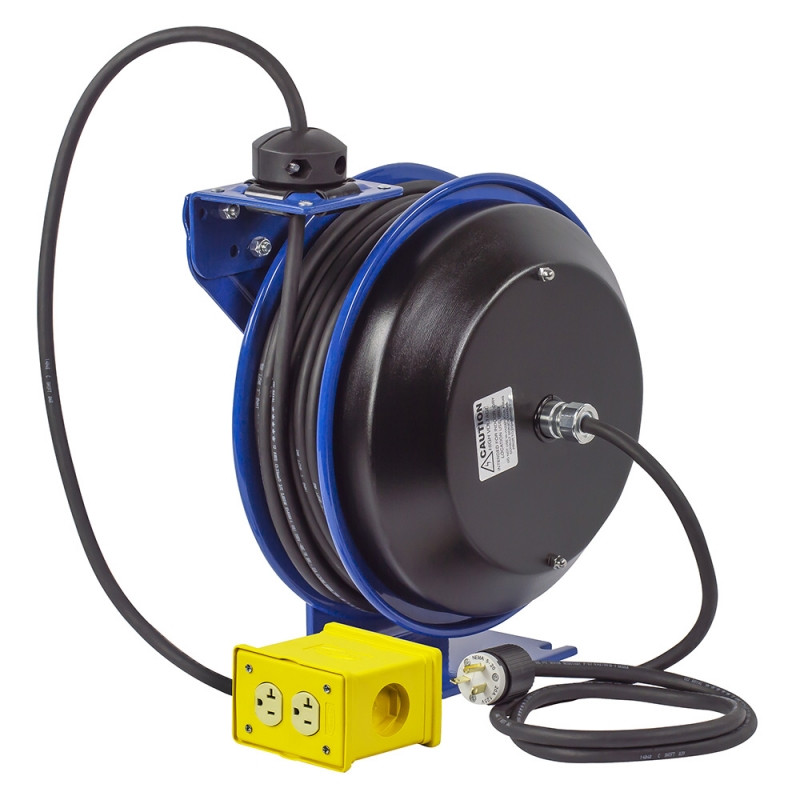

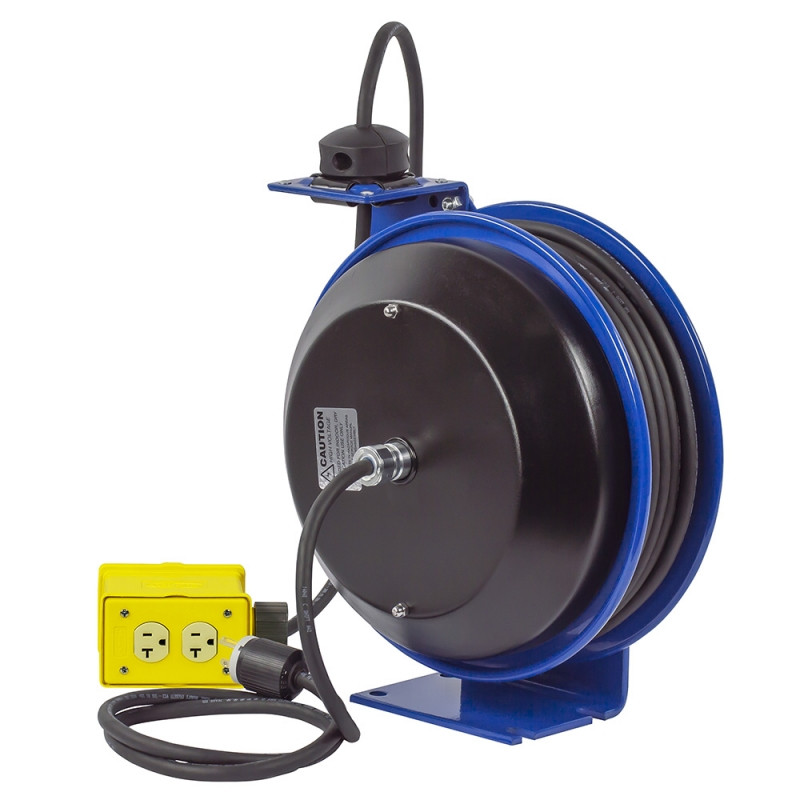

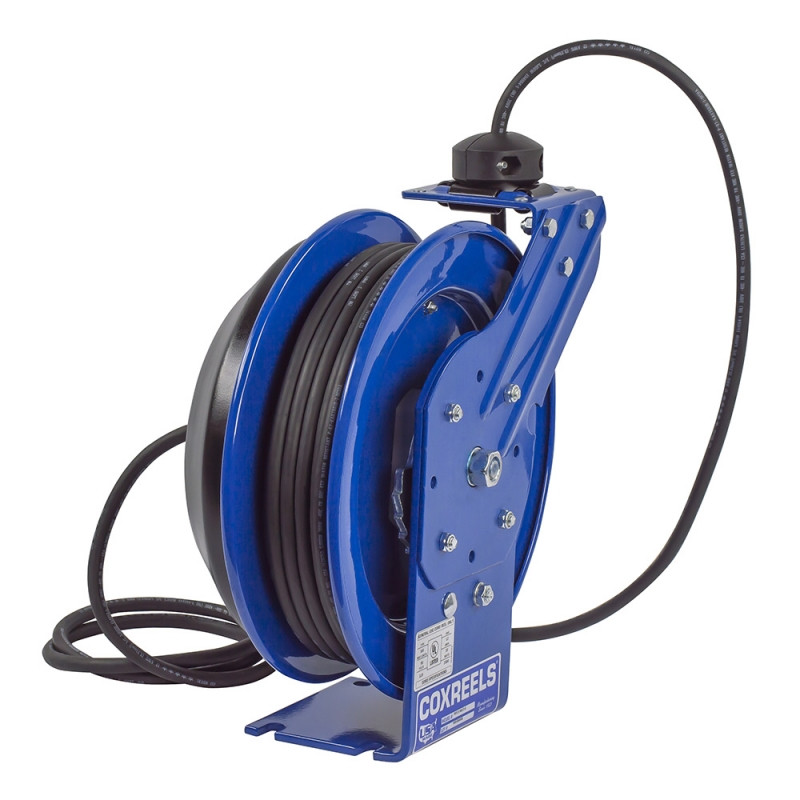

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Spring Rewind Power Cord Reel | Series: PC Series | Model: PC24L-0016 | Configuration: Less Cord | Cord Included: No | Cord Capacity: 100 ft | Amps: 25 | Volts: 115 | Rewind Type: Spring Rewind | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Power Cord Reel

Features:

• Less-cord configuration allows the buyer to install compatible electrical cord selected for the required amperage, voltage, plug, receptacle, cord jacket, and work environment.
• 100 ft cord capacity provides long reach for larger service bays, warehouses, maintenance zones, production areas, and workstations located farther from the power source.
• 25 amp and 115 volt rating supports compatible electrical applications when the installed cord, plug, receptacle, power source, and connected load are rated accordingly.
• Spring driven reel design helps reduce loose electrical cord by storing the installed cord neatly between tasks.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Large maintenance shops and MRO departments where a retractable reel body is needed for buyer-selected 115 volt power cord.
• Automotive, fleet, and equipment service bays where 100 ft of cord capacity helps reach around vehicles, lifts, benches, and equipment.
• Manufacturing, assembly, and repair areas that need organized point-of-use power access with a separately selected cord and receptacle setup.
• Warehouses, garages, and general industrial workspaces where extended cord reach and spring rewind storage help keep electrical cord controlled between tasks.
• Service trucks and mobile repair vehicles where retractable cord storage helps reduce loose cable during transport and field work.

FAQs:

• Q: Does the Coxreels PC24L-0016 include cord?
  A: No. This is a less-cord model, meaning the reel is supplied without electrical cord installed. The buyer must provide compatible cord separately.
• Q: What does “less cord” mean?
  A: It means the reel is supplied as the retractable reel body only. Cord, plug, receptacle, and any required electrical components must be selected and installed separately to match the reel rating and application.
• Q: What electrical rating does this reel have?
  A: The PC24L-0016 is rated for 25 amps at 115 volts. The installed cord, plug, receptacle, power source, and connected load must all be compatible with that rating.
• Q: How is the PC24L-0016 different from the PC19L-7516?
  A: Both are less-cord PC Series spring rewind reels rated for 25 amps at 115 volts. The PC24L-0016 supports 100 ft of cord capacity, while the PC19L-7516 supports 75 ft.
• Q: Can I install any 100 ft cord on this reel?
  A: No. The cord must be compatible with the reel capacity, amperage rating, voltage rating, intended plug or receptacle configuration, and work environment. Confirm all electrical requirements before installation.
• Q: Can this reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are suitable for the reel and work environment.
• Q: When should I choose a 100 ft cord capacity?
  A: Choose a 100 ft capacity when the power source is farther from the work area or when users need to reach across larger bays, warehouses, workstations, or service zones while keeping cord storage controlled between tasks.
