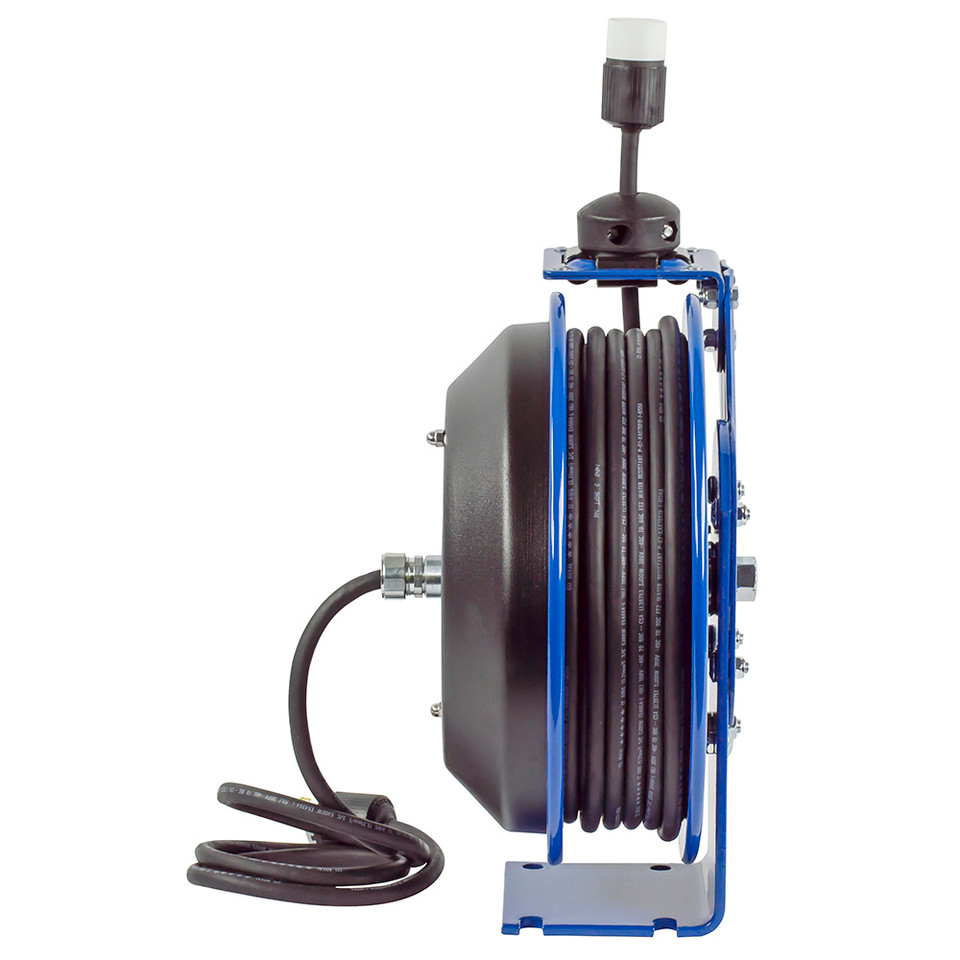

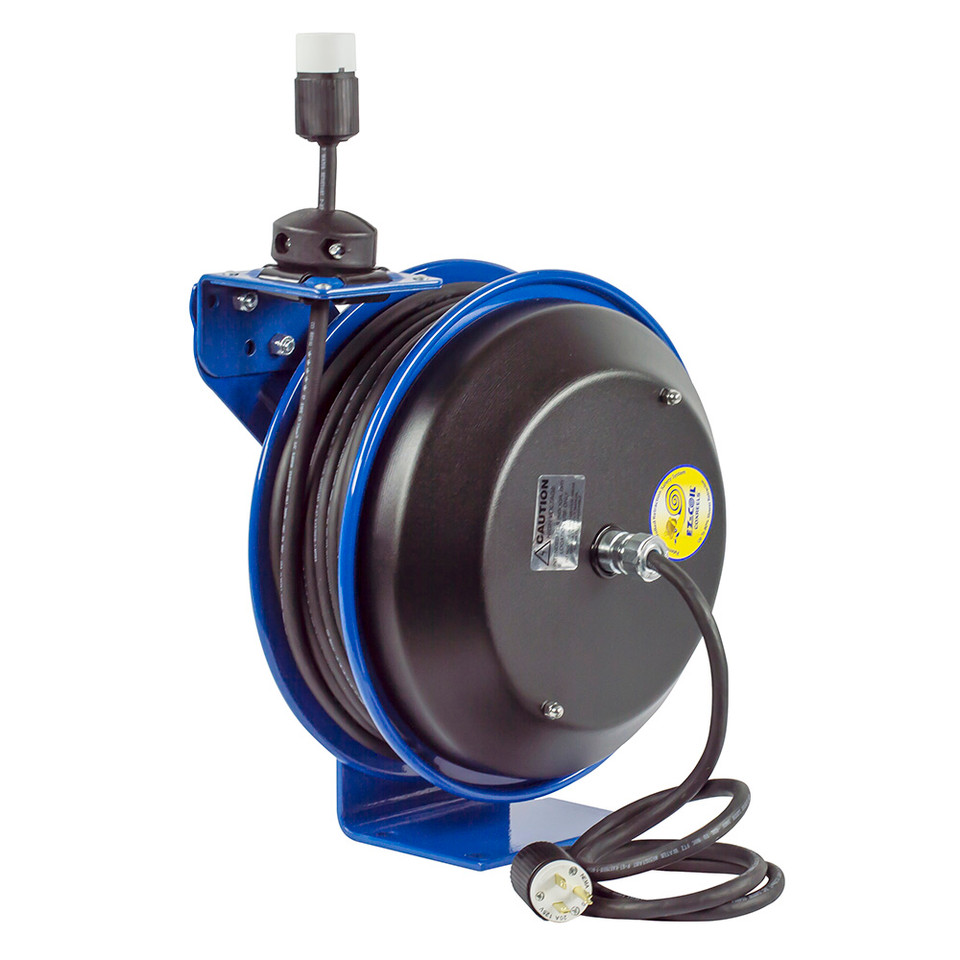

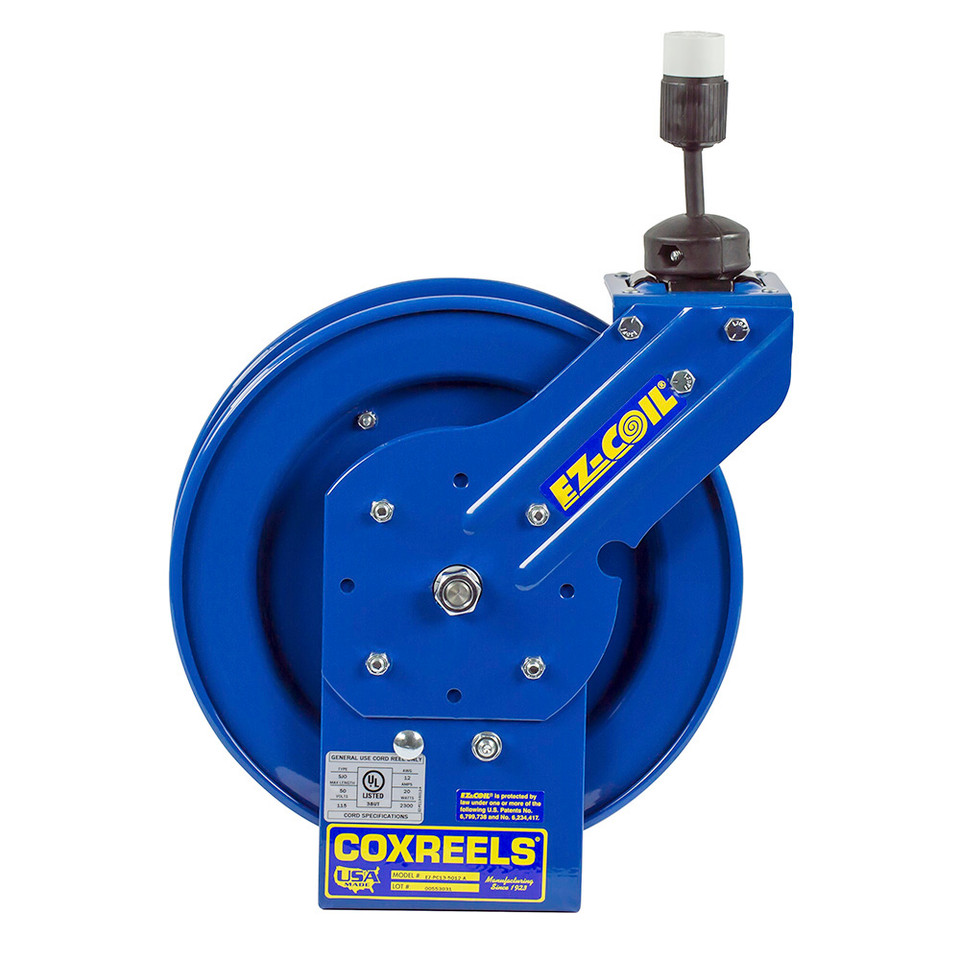

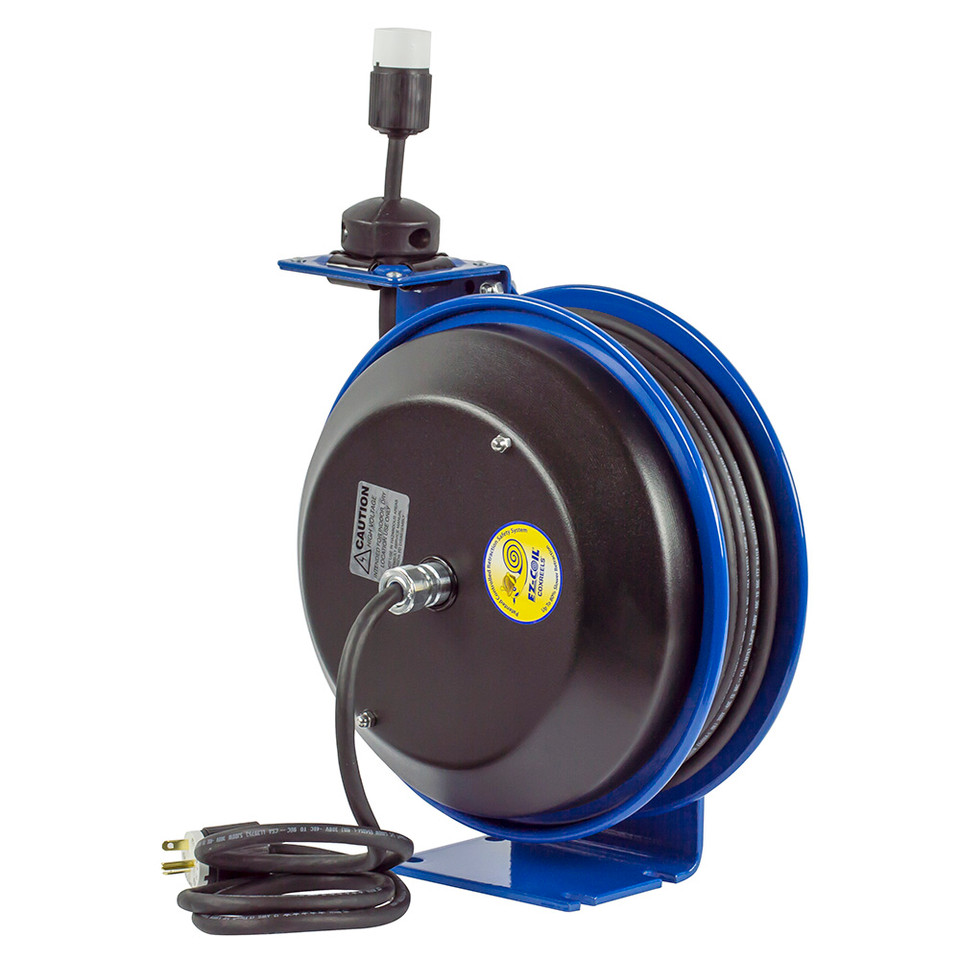

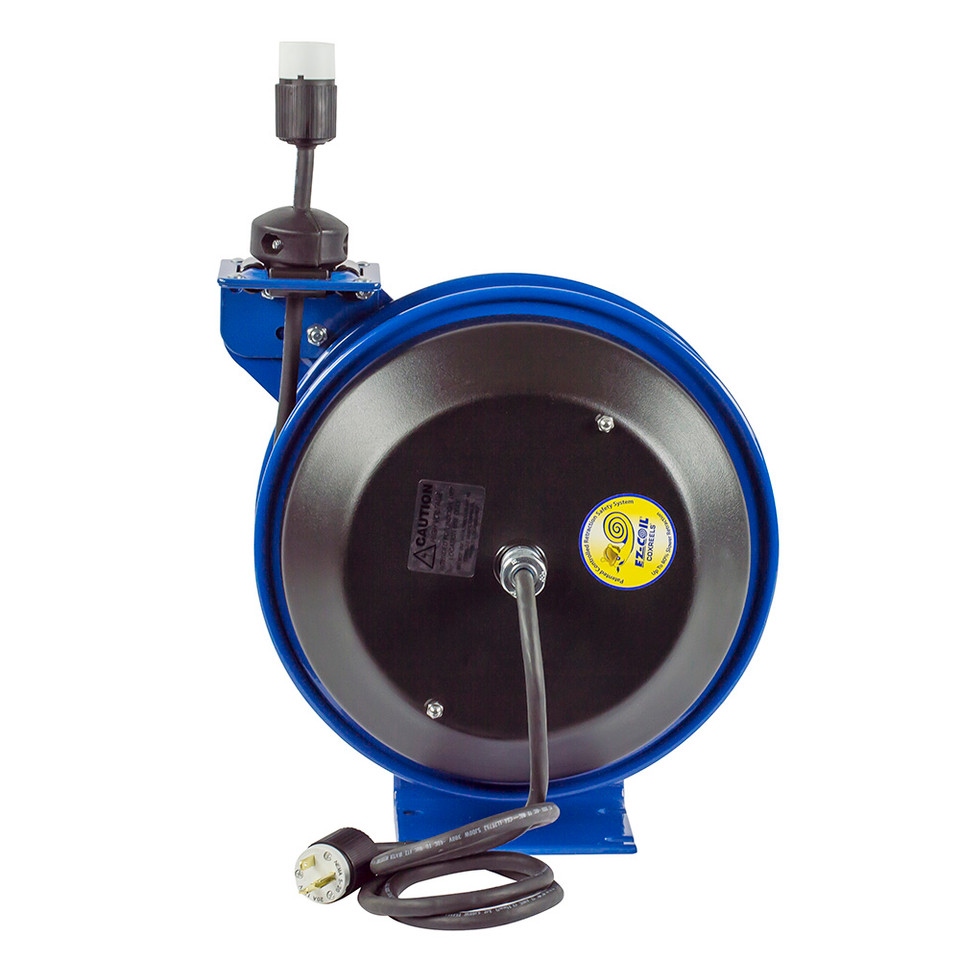

Coxreels EZ-PC24-0012-X Spring Rewind Power Cord Reel | EZ-PC Series | 115 Volts | 100' Cord Length | 20 Amps

Designed for work areas that require extended electrical reach with controlled automatic cord retrieval, the Coxreels EZ-PC24-0012-X Spring Rewind Power Cord Reel is supplied with a 100 ft power cord for 115-volt, 20-amp service. Part of the EZ-PC Series, this reel incorporates Coxreels' patented EZ-Coil safety system, which retracts up to 80% slower than conventional spring-driven reels for more controlled cord return. Its 100-foot cord length provides substantial operating range from a fixed reel location while allowing unused cord to remain stored between tasks.

The EZ-PC24-0012-X combines automatic spring rewind with a multi-position lock ratchet that secures the cord at the desired working length. Its adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions, providing installation flexibility for different work environments. An enclosed, factory-tuned cartridge-style spring motor powers cord retrieval, while the external component cover provides access for routine slip-ring maintenance without requiring removal of the reel from its mount.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24-0012-X | Voltage: 115 V | Amperage: 20 A | Cord Length: 100 ft

Features:

• EZ-Coil patented safety system retracts the cord up to 80% slower than conventional reels for more controlled return.
• Supplied with a 100-foot power cord for extended electrical reach from the reel's mounting location.
• Multi-position lock ratchet secures the cord at the desired working length during use.
• Adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions.
• Enclosed, factory-tuned cartridge-style spring motor provides automatic cord retrieval.
• Electrical current passes through a 25-amp, 600-volt rated slip ring.
• Heavy-duty steel reel construction supports repeated cord deployment and storage.
• External component cover provides convenient access for routine slip-ring maintenance.
• Adjustable cord stop controls the amount of cord remaining outside the reel after retraction.
• Permanently lubricated precision bearings support smooth reel rotation during cord deployment and retrieval.

Made in USA:

2 Year Warranty

Applications:

• Maintenance and repair facilities requiring extended access to compatible 115-volt electrical power.
• Workshops and service bays where portable electrical equipment must operate at greater distances from a fixed power source.
• Manufacturing and MRO work areas where controlled cord retraction helps organize long electrical cord runs between tasks.
• Vehicle-mounted service applications that benefit from a 100-foot retractable power cord and adjustable reel mounting positions.
• Work areas where the EZ-Coil system's slower controlled rewind is preferred for managing extended cord lengths.

FAQs:

• Q: How long is the cord supplied with the Coxreels EZ-PC24-0012-X?
  A: The EZ-PC24-0012-X is supplied with a 100-foot power cord.
• Q: What are the electrical ratings of the EZ-PC24-0012-X?
  A: This model is configured for 115-volt service and carries a 20-amp rating.
• Q: How does EZ-Coil affect cord retraction?
  A: Coxreels states that the patented EZ-Coil safety system retracts up to 80% slower than conventional reels, providing more controlled cord return.
• Q: Can the cord remain extended at a selected working length?
  A: Yes. The multi-position lock ratchet secures the cord at the desired working length until retraction is initiated.
• Q: Where can the EZ-PC24-0012-X be mounted?
  A: The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
