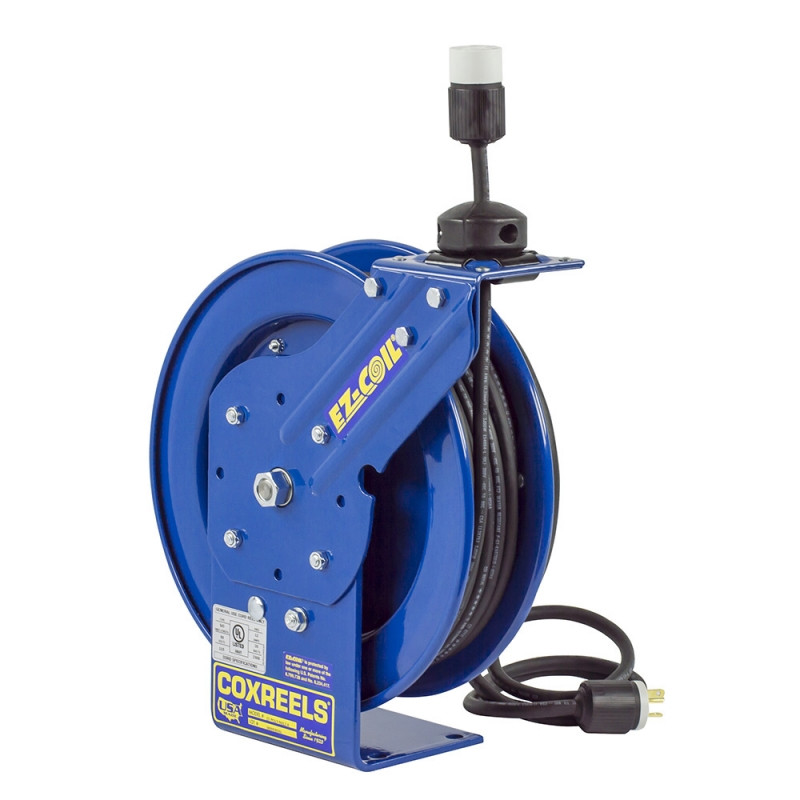

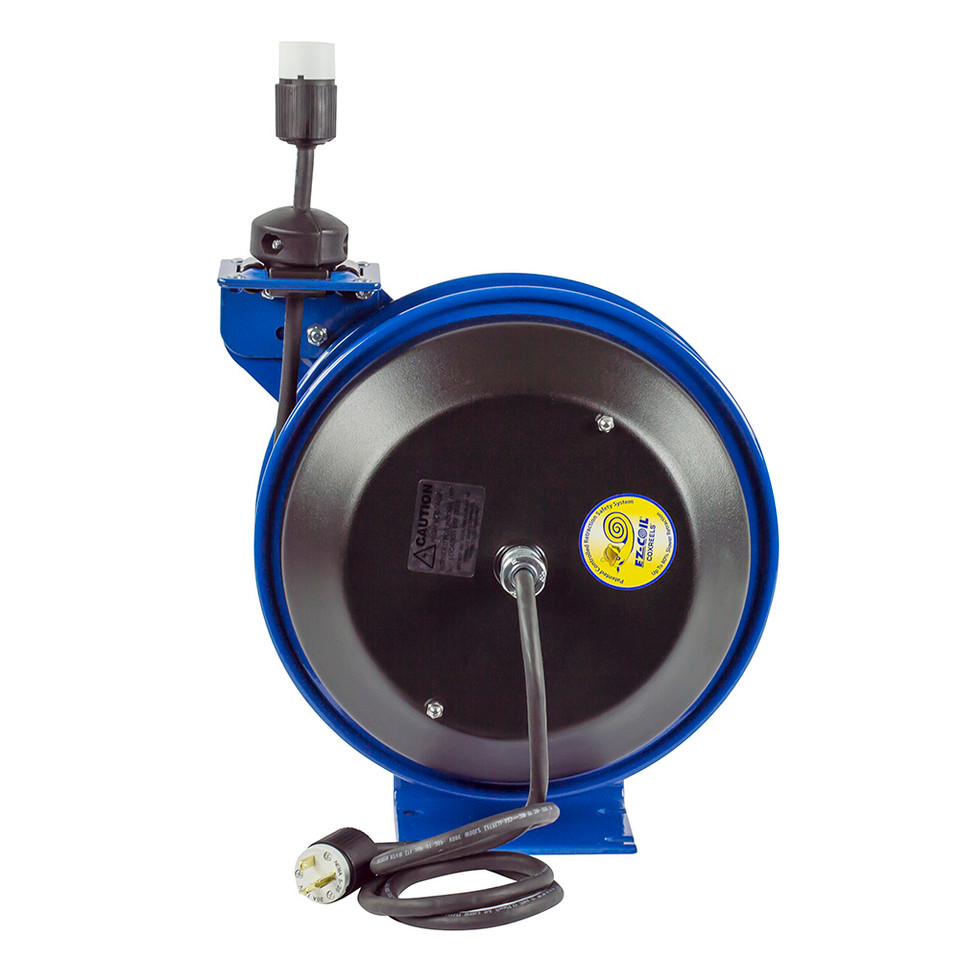

Coxreels EZ-PC24-0016-A Spring Rewind Power Cord Reel | EZ-PC Series | 100' Cord Length | 13 Amps | 115 Volts

The Coxreels EZ-PC24-0016-A is a spring rewind power cord reel from the EZ-PC Series, designed to provide long-reach retractable 115 volt power access with Coxreels EZ-Coil controlled-retraction system. This model includes a 100 ft cord length, 16/3 SJO cord, and is rated for 13 amps at 115 volts, making it a practical extended-reach cord reel for compatible electrical tools, lights, and devices in indoor shops, service bays, maintenance departments, production areas, and workstations.

The EZ-PC24-0016-A helps keep electrical cord controlled by allowing users to pull out the needed length, lock it in place during use, and retract it back onto the reel when the job is complete. EZ-Coil rewind slows the cord return compared with a standard spring rewind reel, helping improve handling during retraction. The 'A' configuration is supplied with a single industrial receptacle for point-of-use power when the connected load, plug, receptacle, and indoor work environment match the reel rating.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24-0016-A | Cord Included: Yes | Cord Length: 100 ft | Cord Size: 16/3 AWG | Cord Type: SJO | Outlet: Single Industrial Receptacle | Amps: 13 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only

Features:

• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
• 100 ft cord length provides extended reach for larger bays, maintenance zones, workstations, and indoor service areas where the power source is farther from the task.
• 16/3 SJO cord supports compatible 115 volt, 13 amp electrical applications when the connected device and power source match the reel rating.
• Single industrial receptacle provides a straightforward outlet connection for compatible plugs and point-of-use power needs.
• Designed for indoor use only and rated for 115 volts, 60 Hz single phase service.
• Spring driven power cord reel helps replace loose extension cords with retractable cord storage for cleaner, more organized work areas.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions when installed on a suitable surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Large automotive, fleet, and equipment service bays where 100 ft of retractable 115 volt cord helps reach around vehicles, lifts, and nearby equipment.
• Maintenance shops and MRO departments where controlled cord rewind helps reduce loose electrical cord across floors, benches, and walk paths.
• Manufacturing, assembly, and repair workstations that need organized point-of-use power for compatible 115 volt devices.
• Warehouses, garages, and indoor industrial work areas where extended cord reach and automatic rewind support cleaner cord management.
• Service trucks and mobile repair setups where retractable cord storage helps keep electrical cord controlled during transport and field work.

FAQs:

• Q: Does the Coxreels EZ-PC24-0016-A include cord?
  A: Yes. This model includes 100 ft of 16/3 SJO cord.
• Q: What does the 'A' configuration mean?
  A: For this EZ-PC model, the 'A' configuration is listed with a single industrial receptacle outlet.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels controlled-retraction system that slows the cord rewind compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: The EZ-PC24-0016-A is rated for 13 amps at 115 volts, 60 Hz single phase. Confirm that the connected equipment stays within this rating before use.
• Q: Can this reel be used outdoors?
  A: No. Coxreels lists EZ-PC power cord reel models for indoor use only.
• Q: How is the EZ-PC24-0016-A different from the EZ-PC13-5016-A?
  A: Both models are rated for 13 amps at 115 volts and include EZ-Coil controlled retraction, but the EZ-PC24-0016-A provides 100 ft of cord length while the EZ-PC13-5016-A provides 50 ft.
• Q: When should I choose a 100 ft cord reel?
  A: Choose a 100 ft cord reel when the power source is farther from the work area or when users need to reach across larger bays, workstations, warehouses, or indoor service zones.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
