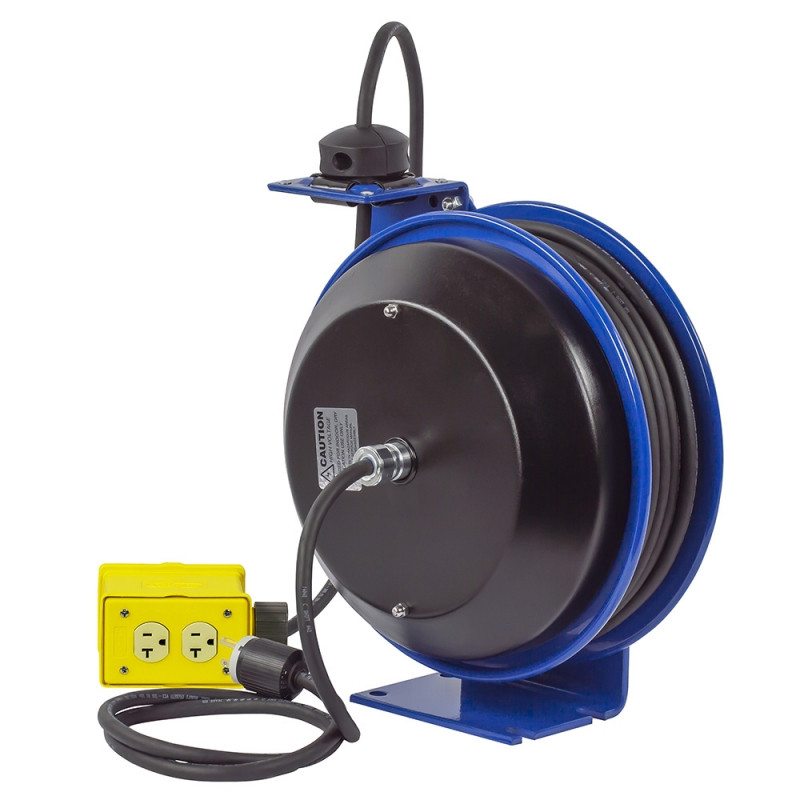

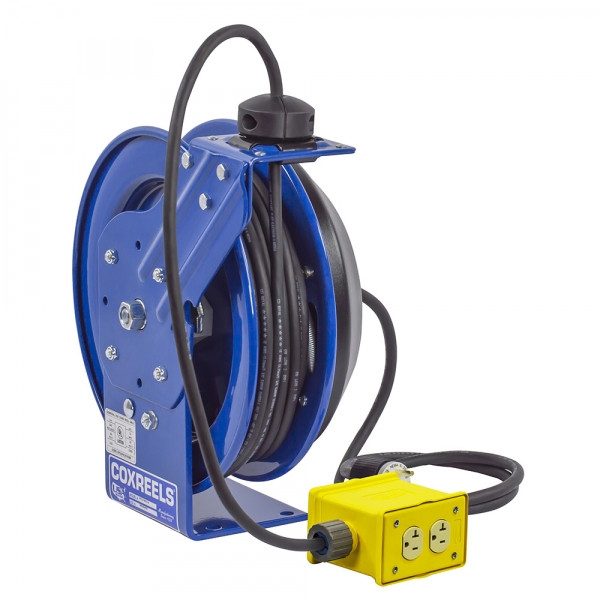

Coxreels PC19-7516-F Spring Rewind Power Cord Reel | PC Series | 75' Cord Length | 13 Amps | 115 Volts

The Coxreels PC19-7516-F is a spring rewind power cord reel from the PC Series, designed to provide extended retractable electrical cord access while helping keep service bays, maintenance shops, production areas, garages, and workstations better organized. This model includes a 75 ft cord length and is rated for 13 amps at 115 volts, making it a long-reach cord reel for compatible electrical tools, lights, and equipment when the connected load, plug, receptacle, cord type, and power source match the reel rating.

The PC19-7516-F helps reduce loose cord across floors and benches by storing the cord on a spring rewind reel when not in use. Users can pull out the required length, lock the cord in place with the multi-position ratchet, and retract it after the task is complete. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when the reel is installed on a suitable surface for the application.

Type: Spring Rewind Power Cord Reel | Series: PC Series | Model: PC19-7516-F | Cord Included: Yes | Cord Length: 75 ft | Amps: 13 | Volts: 115 | Rewind Type: Spring Rewind | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Power Cord Reel

Features:

• Spring driven power cord reel keeps cord stored neatly between tasks, helping reduce loose electrical cord across work areas, walk paths, and service bays.
• 75 ft cord length provides extended reach for larger bays, equipment service areas, production zones, and workstations located farther from the power source.
• 13 amp and 115 volt rating supports compatible electrical loads when the connected device, plug, receptacle, and power source match the reel rating.
• Compact single pedestal reel design helps save space in maintenance shops, garages, service vehicles, production areas, and industrial workstations.
• Adjustable guide arm allows wall, floor, vehicle, or overhead mounting to suit the reel location and cord payout direction.
• Solid one-piece heavy gauge steel base and support post provide a stable mounting platform for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during cord use.
• Enclosed factory-tuned cartridge-style spring motor provides automatic cord return after use.
• Multi-position lock ratchet mechanism holds the cord at the selected working length during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive, fleet, and equipment service bays where 75 ft of retractable 115 volt cord helps reach around vehicles, lifts, and nearby equipment.
• Maintenance shops and MRO departments where longer cord reach is needed while keeping electrical cord controlled between tasks.
• Manufacturing, assembly, and repair areas that need point-of-use power access for compatible 115 volt devices.
• Service trucks and mobile repair vehicles where retractable cord storage helps reduce loose cable during transport and field work.
• Garages, warehouses, and general industrial workspaces where extended cord reach and automatic rewind support cleaner cord management.

FAQs:

• Q: Does the Coxreels PC19-7516-F include the cord?
  A: Yes. This model is supplied as a power cord reel with a 75 ft cord length.
• Q: What electrical rating does this reel have?
  A: The PC19-7516-F is rated for 13 amps and 115 volts. Always confirm that the connected equipment stays within this electrical rating before use.
• Q: How is the PC19-7516-F different from the PC13-5016-F?
  A: Both models are rated for 13 amps at 115 volts, but the PC19-7516-F provides 75 ft of cord length while the PC13-5016-F provides 50 ft.
• Q: What does the spring rewind mechanism do?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping keep the cord organized and reducing loose cable on the floor.
• Q: Can this reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are suitable for the reel and work environment.
• Q: Is this reel compatible with every 115 volt device?
  A: No. The connected device must be compatible with the reel’s 13 amp and 115 volt rating, and the plug, receptacle, cord type, and work environment must match the application requirements.
• Q: When should I choose a 75 ft cord reel?
  A: Choose a 75 ft cord reel when the power source is farther from the work area or when users need to reach across larger bays, workstations, or service zones. A shorter reel may be better when the outlet is close to the task area.
