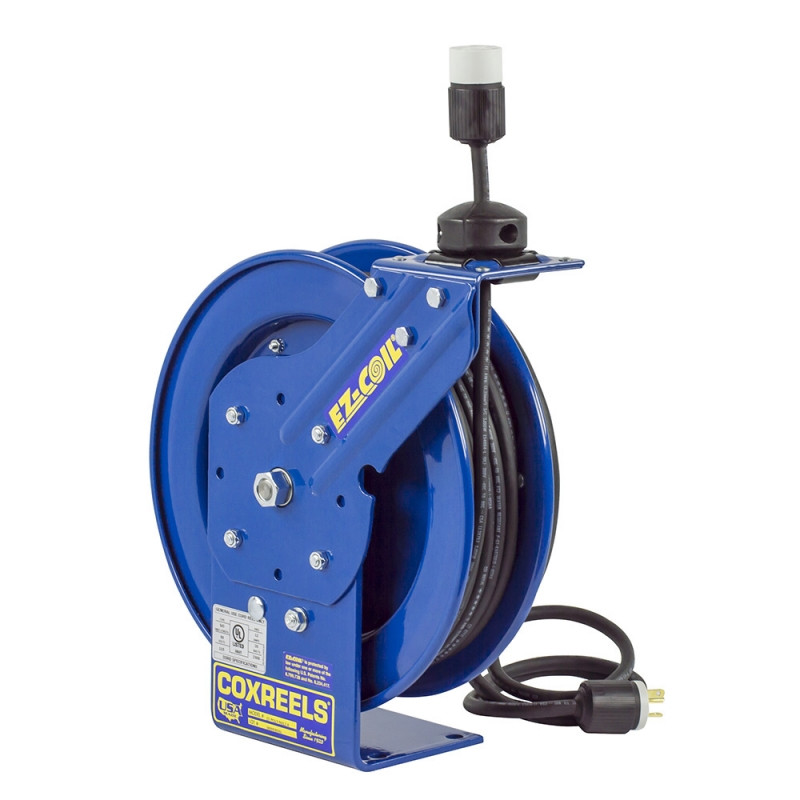

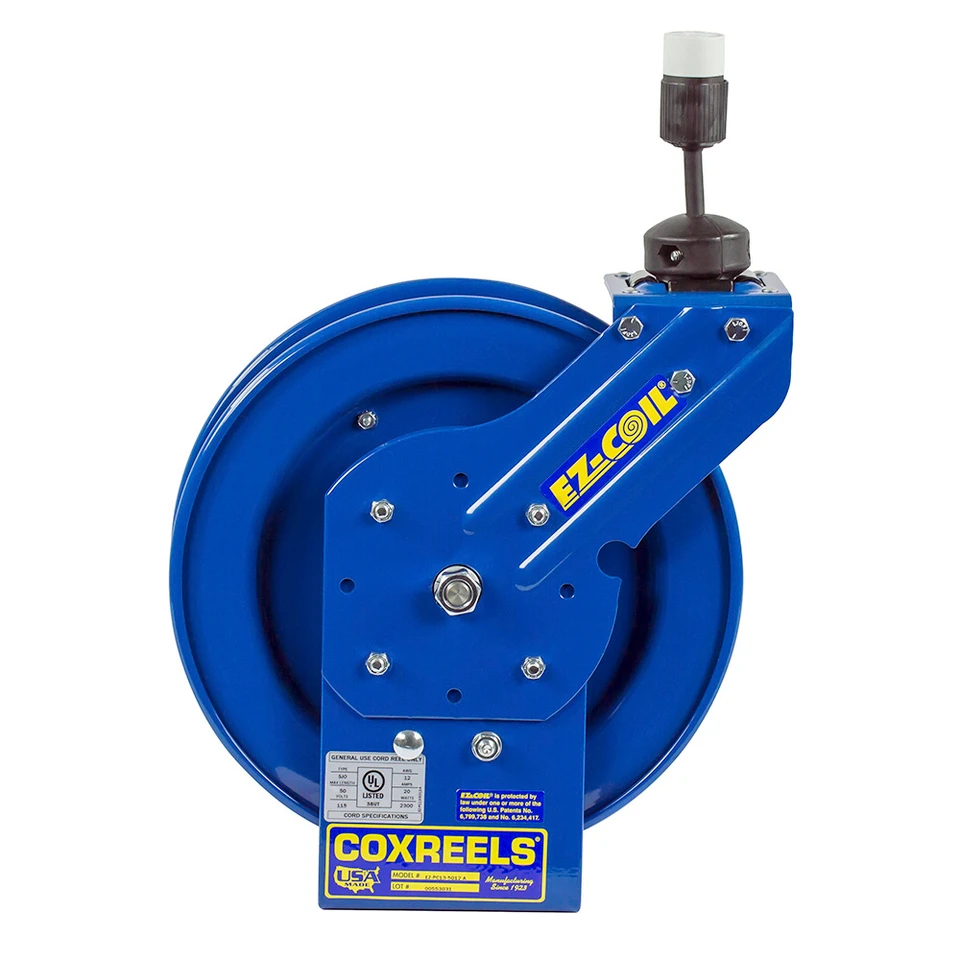

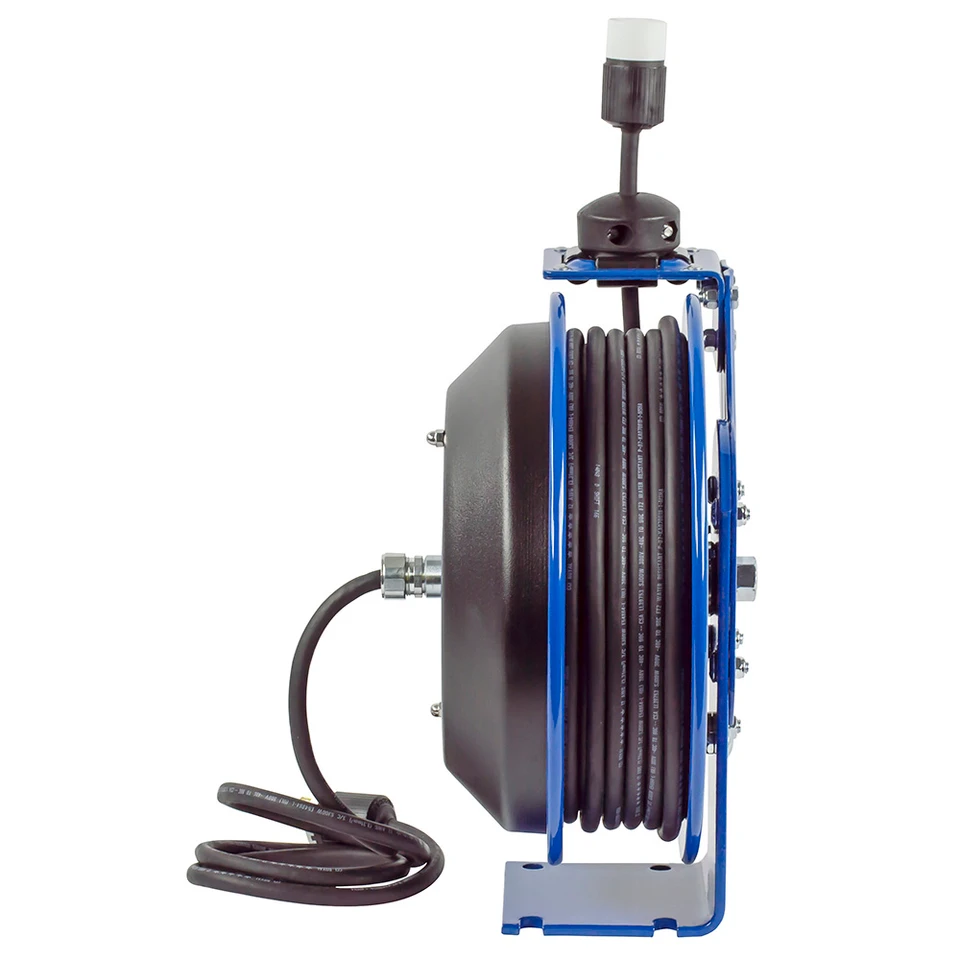

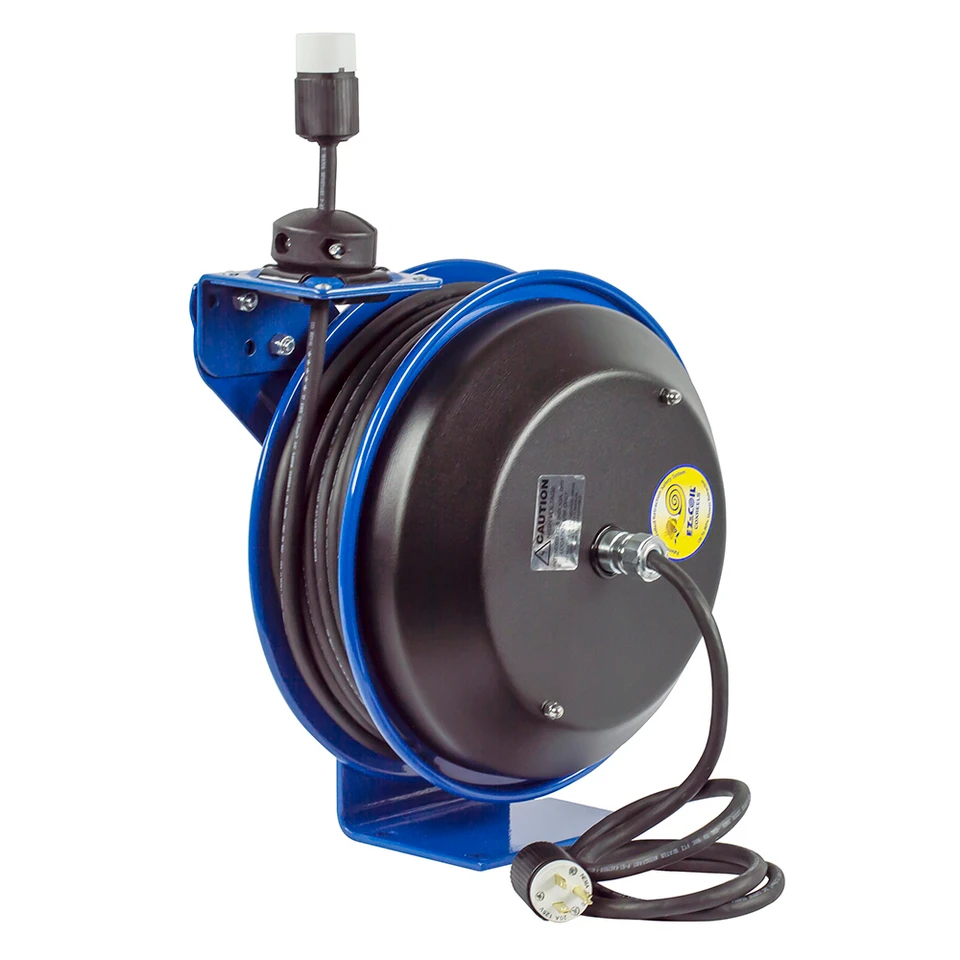

Coxreels EZ-PC13-5012-4 Spring Rewind Power Cord Reel | EZ-PC Series | 50' Cord Length | 20 Amps | 115 Volts

The Coxreels EZ-PC13-5012-4 is a spring rewind power cord reel from the EZ-PC Series, designed to provide controlled, retractable power cord storage for indoor work areas. This model includes a 50 ft cord length with 12/4 SJO cord and is rated for 20 amps at 115 volts, making it a strong fit for compatible electrical applications that require a four-conductor cord and buyer-selected cord-end accessory.

Built with Coxreels EZ-Coil controlled-retraction system, the EZ-PC13-5012-4 rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve handling during return. The with-cord, less-accessory configuration gives buyers the factory-installed cord while allowing the final cord-end accessory to be selected separately for the application. Use this reel in compatible indoor maintenance, repair, production, garage, warehouse, and service environments where the connected load and electrical setup match the reel rating.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC13-5012-4 | Configuration: With Cord, Less Accessory | Cord Included: Yes | Cord Length: 50 ft | Cord Size: 12/4 AWG | Cord Type: SJO | Outlet: Less Accessory | Amps: 20 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only | Approx. Ship Weight: 40 lbs

Features:

• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
• 50 ft cord length provides practical reach for workstations, benches, maintenance zones, garages, and service bays without moving to a longer 75 ft or 100 ft reel.
• 12/4 SJO cord configuration supports compatible 115 volt, 20 amp electrical applications that require a four-conductor cord setup.
• With-cord, less-accessory configuration includes the cord while allowing the buyer to select a compatible final cord-end accessory for the application.
• 20 amp and 115 volt rating supports compatible electrical loads when the connected equipment, selected accessory, plug configuration, and power source match the reel rating.
• Designed for indoor use only and rated for 115 volts, 60 Hz single phase service.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO departments where controlled-retraction cord storage helps keep electrical cable organized between tasks.
• Automotive, fleet, and equipment service bays where 50 ft of retractable cord reach supports compatible electrical devices around nearby vehicles, benches, and work areas.
• Manufacturing, assembly, and repair workstations that need organized point-of-use power with a separately selected cord-end accessory.
• Garages, warehouses, and indoor industrial workspaces where EZ-Coil rewind helps improve cord handling and reduce loose cable across floors and benches.
• Service trucks and mobile repair setups where retractable cord storage helps keep cable controlled during transport and field service work.

FAQs:

• Q: Does the Coxreels EZ-PC13-5012-4 include cord?
  A: Yes. This model includes 50 ft of 12/4 SJO cord.
• Q: What does 'less accessory' mean on this model?
  A: It means the reel includes the power cord but does not include the final cord-end accessory. A compatible accessory must be selected separately to match the application.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels' controlled-retraction system that slows the rewind speed compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: The EZ-PC13-5012-4 is rated for 20 amps at 115 volts, 60 Hz single phase. Confirm that the connected equipment and selected accessory stay within this rating before use.
• Q: What cord type is supplied with this reel?
  A: This model is listed with 50 ft of 12/4 SJO cord. SJO is a portable service cord type commonly used where flexible cord handling is required.
• Q: How is the EZ-PC13-5012-4 different from the EZ-PC13-5012-A?
  A: Both are 50 ft, 20 amp, 115 volt EZ-PC Series reels. The EZ-PC13-5012-4 uses 12/4 SJO cord and is supplied less accessory, while the EZ-PC13-5012-A is listed with 12/3 SJO cord and a single industrial receptacle.
• Q: Can this reel be used outdoors?
  A: No. Coxreels lists EZ-PC Series power cord reels for indoor use only.
• Q: Can this reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are suitable for the reel and work environment.
• Q: When should I choose a 50 ft EZ-PC reel?
  A: Choose a 50 ft reel when the power source is not immediately beside the work area but the application does not require the added reach of a 75 ft or 100 ft cord reel.
