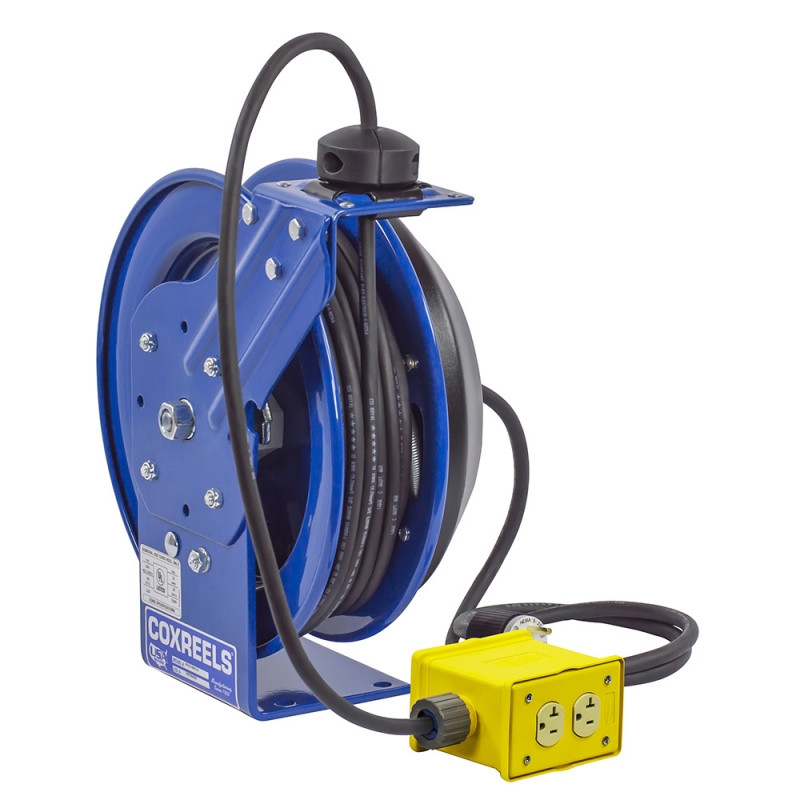

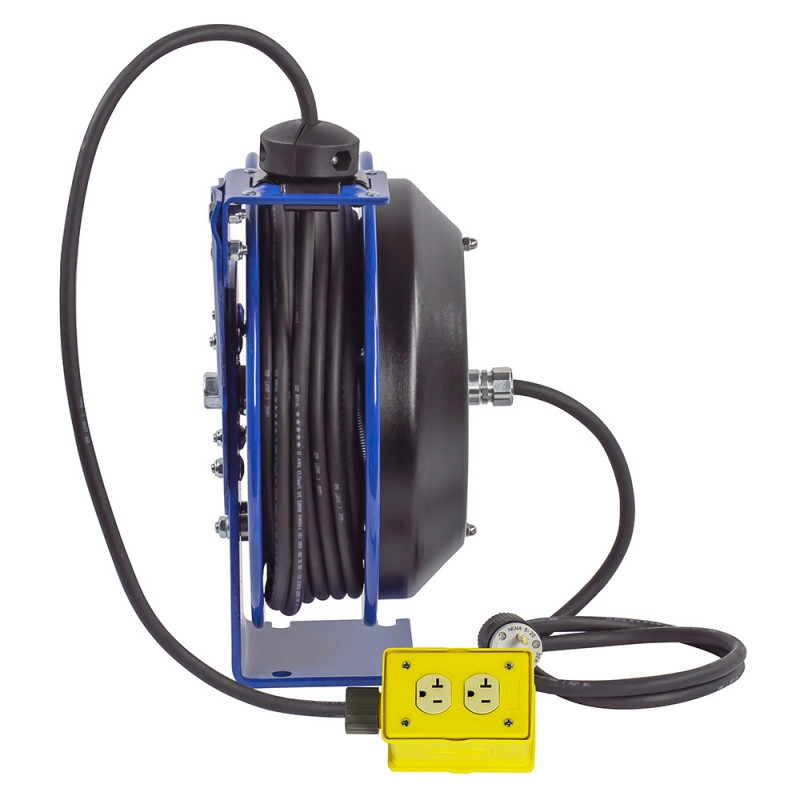

Designed to keep electrical power within reach while providing automatic cord storage, the Coxreels PC13-3512-F Power Cord Spring Rewind Reel is configured with a 35 ft cord for 115-volt, 20-amp service. Part of the PC Series, this model uses spring-powered rewind to retrieve the cord after use, providing a convenient way to manage electrical cord around workstations and other locations where compatible powered equipment is used.
The PC13-3512-F combines automatic spring rewind with Coxreels' single-pedestal reel construction. The cord can be extended to the required working distance and returned to the reel when the task is complete, helping keep unused cord contained rather than loosely stored around the work area. Its 35-foot configuration provides practical reach for installations that do not require the additional cord length of larger PC Series models.
Type: Power Cord Spring Rewind Reel | Series: PC Series | Model: PC13-3512-F | Voltage: 115 V | Amperage: 20 A | Cord Length: 35 ft
Features:
- Supplied with a 35-foot power cord for convenient electrical reach from the reel's installed location.
- Spring-powered rewind retrieves the cord for organized storage after use.
- Multi-position lock ratchet allows the cord to remain extended at the desired working length.
- Adjustable guide arm supports versatile reel mounting positions.
- Enclosed cartridge-style spring motor provides automatic cord retraction.
- Single-pedestal construction provides a compact reel configuration for workplace installations.
- Reel-mounted storage helps keep unused electrical cord contained between tasks.
- Configured for 115-volt electrical service with a 20-amp rating.
Made in USA:
Applications:
- Maintenance and repair areas requiring retractable access to compatible 115-volt electrical power.
- Workshops and service bays where portable electrical equipment is used within the reel's 35-foot cord reach.
- Manufacturing and MRO workstations where automatic rewind helps keep electrical cord stored between tasks.
- Garages and service facilities requiring a retractable power cord from a fixed reel location.
- Work areas using compatible electrical equipment within the reel's specified voltage and amperage ratings.
FAQs:
- Q: What are the electrical ratings of the Coxreels PC13-3512-F?
A: The PC13-3512-F is configured for 115-volt service and carries a 20-amp rating. - Q: How long is the cord supplied with the PC13-3512-F?
A: This model is supplied with a 35-foot power cord. - Q: Does the PC13-3512-F automatically retract the cord?
A: Yes. The spring rewind mechanism retrieves the cord and stores it on the reel after use. - Q: Can the cord remain extended at a selected working length?
A: Yes. The reel's lock ratchet allows the cord to remain extended at the required working length until retraction is initiated. - Q: What should be verified before connecting equipment to this reel?
A: Confirm that the electrical supply and connected equipment are compatible with the reel's 115-volt and 20-amp ratings and follow applicable electrical installation requirements.
| CORD | SIZE INDEX |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | VOLTS | AMPS | APRX. LBS. |
EZ-COIL SKU | |
|
FOR INDOOR USE ONLY!All models rated at 115 volts, 60 hz single phase only.
|
|||||||||
| PC13-3516-A† | Single Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 34 | - | 1 |
| PC13-5016-A† | Single Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 36 | EZ-PC13-5016-A | 1 |
| PC19-7516-A† | Single Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-A† | Single Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-A | 4 |
| PC13-3512-A† | Single Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 37 | - | 1 |
| PC13-5012-A† | Single Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-A | 1 |
| PC19-7512-A† | Single Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-A† | Single Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 81 | EZ-PC24-0012-A | 4 |
| PC13-3512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 38 | - | 1 |
| PC13-5012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 41 | EZ-PC13-5012-B | 1 |
| PC19-7512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 68 | - | 3 |
| PC24-0012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 84 | EZ-PC24-0012-B | 4 |
| PC13-3516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 36 | - | 1 |
| PC13-5016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 38 | EZ-PC13-5016-F | 1 |
| PC19-7516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-F | 4 |
| PC13-3512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 39 | - | 1 |
| PC13-5012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 42 | EZ-PC13-5012-F | 1 |
| PC19-7512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 83 | EZ-PC24-0012-F | 4 |
| PC19-7516-X | With Cord, Less Accessory |
16 / 3 | 75** | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-X | With Cord, Less Accessory |
16 / 3 | 100** | SJO | 115 | 13 | 71 | EZ-PC24-0016-X | 4 |
| PC13-5012-X†† | With Cord, Less Accessory |
12 / 3 | 50** | SJO | 115 | 20 | 40 | EZ-PC13-5012-X | 1 |
| PC19-7512-X | With Cord, Less Accessory |
12 / 3 | 75** | SJO | 115 | 20 | 66 | - | 3 |
| PC24-0012-X | With Cord, Less Accessory |
12 / 3 | 100** | SJO | 115 | 20 | 81 | EZ-PC24-0012-X | 4 |
| PC17-3510-X†† | With Cord, Less Accessory |
10 / 3 | 35** | SO | 115 | 30 | 62 | - | 2 |
| PC17-5010-X†† | With Cord, Less Accessory |
10 / 3 | 50** | SO | 115 | 30 | 67 | - | 2 |
| PC13-3516-4 | With Cord, Less Accessory |
16 / 4 | 35 | SJO | 115 | 10 | 34 | - | 1 |
| PC13-5016-4 | With Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 10 | 36 | - | 1 |
| PC24-0016-4 | With Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 10 | 74 | - | 4 |
| PC13-3512-4 | With Cord, Less Accessory |
12 / 4 | 35 | SJO | 115 | 20 | 31 | - | 1 |
| PC13-5012-4 | With Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-4 | 1 |
| PC24-0012-4 | With Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 20 | 85 | - | 4 |
| PC13L-5016†† | Less Cord, Less Accessory |
16 / 3 | 50* | SJO | 115 | 25 | 31 | EZ-PC13L-5016 | 1 |
| PC19L-7516 | Less Cord, Less Accessory |
16 / 3 | 75 | SJO | 115 | 25 | 52 | - | 3 |
| PC24L-0016 | Less Cord, Less Accessory |
16 / 3 | 100 | SJO | 115 | 25 | 62 | EZ-PC24L-0016 | 4 |
| PC13L-5012†† | Less Cord, Less Accessory |
12 / 3 | 50 | SJO | 115 | 25 | 29 | EZ-PC13L-5012 | 1 |
| PC19L-7512 | Less Cord, Less Accessory |
12 / 3 | 75 | SJO | 115 | 25 | 53 | - | 3 |
| PC24L-0012 | Less Cord, Less Accessory |
12 / 3 | 100 | SJO | 115 | 25 | 64 | EZ-PC24L-0012 | 4 |
| PC17L-5010†† | Less Cord, Less Accessory |
10 / 3 | - | - | 115 | 30 | 49 | - | 2 |
| PC13L-5016-4 | Less Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 25 | 31 | - | 1 |
| PC24L-0016-4 | Less Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 25 | 62 | - | 4 |
| PC13L-5012-4 | Less Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 25 | 29 | - | 1 |
| PC24L-0012-4 | Less Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 25 | 64 | - | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
