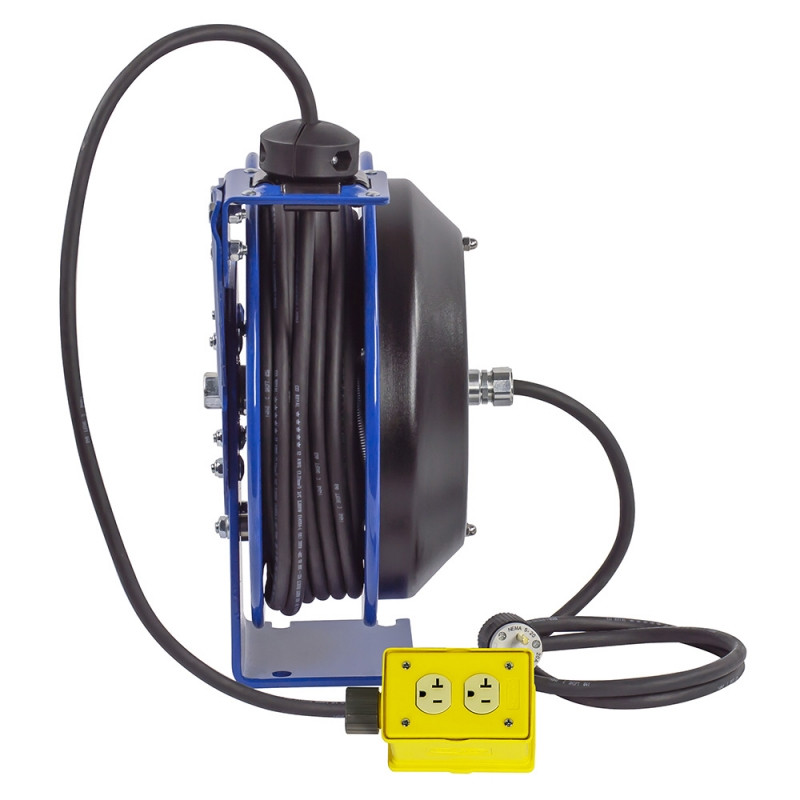

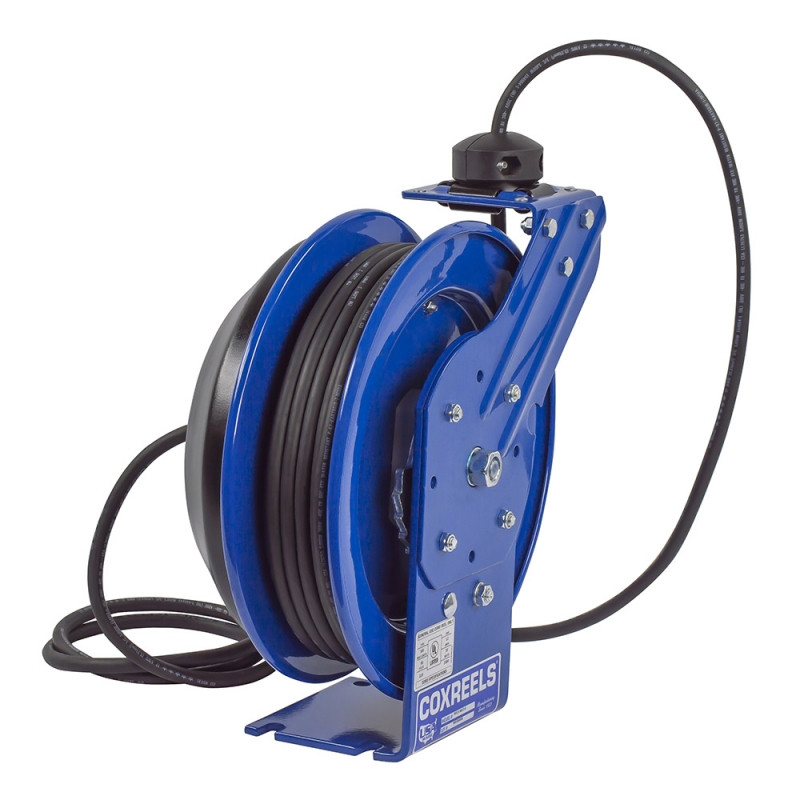

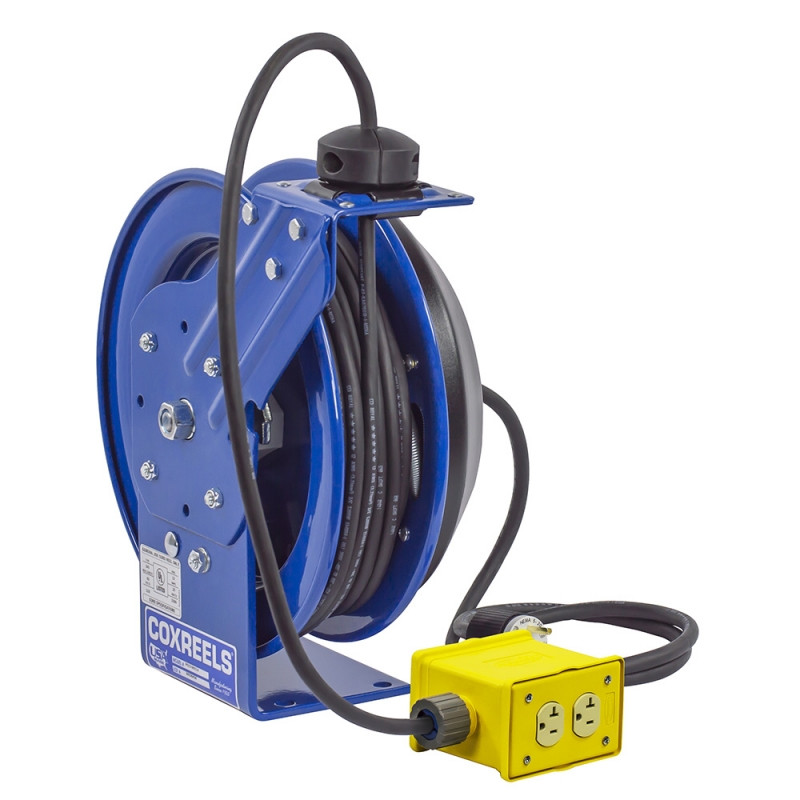

Designed for work areas that need convenient electrical power access with controlled automatic cord retrieval, the Coxreels EZ-PC13-5012-B Spring Rewind Power Cord Reel is equipped with a 50 ft power cord for 115-volt, 20-amp service. Part of the EZ-PC Series, this model incorporates Coxreels' EZ-Coil controlled retraction system to reduce rewind speed for safer cord return. The combination of extended cord reach and controlled spring rewind helps keep electrical cord organized in workshops, maintenance facilities, service areas, and other compatible work environments.
The EZ-PC13-5012-B uses a cartridge-style spring motor for automatic cord retrieval and a multi-position lock ratchet that holds the cord at the required working length. Its adjustable guide arm supports multiple mounting positions, while the compact single-pedestal construction helps conserve installation space. The EZ-Coil system controls cord retraction speed, providing a more manageable return when the cord is released for rewind.
Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC13-5012-B | Voltage: 115 V | Amperage: 20 A | Cord Length: 50 ft
Features:
- EZ-Coil controlled retraction system reduces rewind speed for safer cord return.
- Supplied with a 50-foot power cord for extended reach from the reel's mounting location.
- Configured for 115-volt electrical service with a 20-amp rating.
- Spring-powered rewind automatically retrieves the cord for organized storage after use.
- Multi-position lock ratchet holds the cord at the desired working length.
- Adjustable guide arm supports versatile mounting positions.
- Cartridge-style spring motor provides automatic cord retraction.
- Compact single-pedestal construction helps conserve mounting space.
Made in USA:
Applications:
- Maintenance and repair areas requiring retractable access to compatible 115-volt electrical power.
- Workshops and service bays where portable electrical equipment needs power at varying distances from a fixed reel location.
- Manufacturing and MRO workstations where controlled cord retraction supports organized storage between tasks.
- Garages and service facilities requiring a 50-foot retractable power cord.
- Work areas where the EZ-Coil controlled rewind system is preferred over standard-speed spring retraction.
FAQs:
- Q: What does the EZ-Coil system do on the EZ-PC13-5012-B?
A: The EZ-Coil system controls the retraction speed of the cord, providing a slower and more controlled return than standard spring rewind. - Q: What are the electrical ratings of the Coxreels EZ-PC13-5012-B?
A: This model is rated for 115-volt service at 20 amps. - Q: How much cord is supplied with the EZ-PC13-5012-B?
A: The reel is supplied with a 50-foot power cord. - Q: Can the power cord remain extended while equipment is in use?
A: Yes. The reel's multi-position lock ratchet holds the cord at the selected working length until retraction is initiated. - Q: What should be checked before using electrical equipment with this reel?
A: Verify that the electrical supply and connected equipment are compatible with the reel's 115-volt and 20-amp ratings and follow applicable installation requirements.
| CORD | SIZE INDEX |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | VOLTS | AMPS | APRX. LBS. |
EZ-COIL SKU | |
|
FOR INDOOR USE ONLY!All models rated at 115 volts, 60 hz single phase only.
|
|||||||||
| PC13-3516-A† | Single Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 34 | - | 1 |
| PC13-5016-A† | Single Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 36 | EZ-PC13-5016-A | 1 |
| PC19-7516-A† | Single Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-A† | Single Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-A | 4 |
| PC13-3512-A† | Single Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 37 | - | 1 |
| PC13-5012-A† | Single Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-A | 1 |
| PC19-7512-A† | Single Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-A† | Single Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 81 | EZ-PC24-0012-A | 4 |
| PC13-3512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 38 | - | 1 |
| PC13-5012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 41 | EZ-PC13-5012-B | 1 |
| PC19-7512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 68 | - | 3 |
| PC24-0012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 84 | EZ-PC24-0012-B | 4 |
| PC13-3516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 36 | - | 1 |
| PC13-5016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 38 | EZ-PC13-5016-F | 1 |
| PC19-7516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-F | 4 |
| PC13-3512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 39 | - | 1 |
| PC13-5012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 42 | EZ-PC13-5012-F | 1 |
| PC19-7512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 83 | EZ-PC24-0012-F | 4 |
| PC19-7516-X | With Cord, Less Accessory |
16 / 3 | 75** | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-X | With Cord, Less Accessory |
16 / 3 | 100** | SJO | 115 | 13 | 71 | EZ-PC24-0016-X | 4 |
| PC13-5012-X†† | With Cord, Less Accessory |
12 / 3 | 50** | SJO | 115 | 20 | 40 | EZ-PC13-5012-X | 1 |
| PC19-7512-X | With Cord, Less Accessory |
12 / 3 | 75** | SJO | 115 | 20 | 66 | - | 3 |
| PC24-0012-X | With Cord, Less Accessory |
12 / 3 | 100** | SJO | 115 | 20 | 81 | EZ-PC24-0012-X | 4 |
| PC17-3510-X†† | With Cord, Less Accessory |
10 / 3 | 35** | SO | 115 | 30 | 62 | - | 2 |
| PC17-5010-X†† | With Cord, Less Accessory |
10 / 3 | 50** | SO | 115 | 30 | 67 | - | 2 |
| PC13-3516-4 | With Cord, Less Accessory |
16 / 4 | 35 | SJO | 115 | 10 | 34 | - | 1 |
| PC13-5016-4 | With Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 10 | 36 | - | 1 |
| PC24-0016-4 | With Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 10 | 74 | - | 4 |
| PC13-3512-4 | With Cord, Less Accessory |
12 / 4 | 35 | SJO | 115 | 20 | 31 | - | 1 |
| PC13-5012-4 | With Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-4 | 1 |
| PC24-0012-4 | With Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 20 | 85 | - | 4 |
| PC13L-5016†† | Less Cord, Less Accessory |
16 / 3 | 50* | SJO | 115 | 25 | 31 | EZ-PC13L-5016 | 1 |
| PC19L-7516 | Less Cord, Less Accessory |
16 / 3 | 75 | SJO | 115 | 25 | 52 | - | 3 |
| PC24L-0016 | Less Cord, Less Accessory |
16 / 3 | 100 | SJO | 115 | 25 | 62 | EZ-PC24L-0016 | 4 |
| PC13L-5012†† | Less Cord, Less Accessory |
12 / 3 | 50 | SJO | 115 | 25 | 29 | EZ-PC13L-5012 | 1 |
| PC19L-7512 | Less Cord, Less Accessory |
12 / 3 | 75 | SJO | 115 | 25 | 53 | - | 3 |
| PC24L-0012 | Less Cord, Less Accessory |
12 / 3 | 100 | SJO | 115 | 25 | 64 | EZ-PC24L-0012 | 4 |
| PC17L-5010†† | Less Cord, Less Accessory |
10 / 3 | - | - | 115 | 30 | 49 | - | 2 |
| PC13L-5016-4 | Less Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 25 | 31 | - | 1 |
| PC24L-0016-4 | Less Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 25 | 62 | - | 4 |
| PC13L-5012-4 | Less Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 25 | 29 | - | 1 |
| PC24L-0012-4 | Less Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 25 | 64 | - | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
