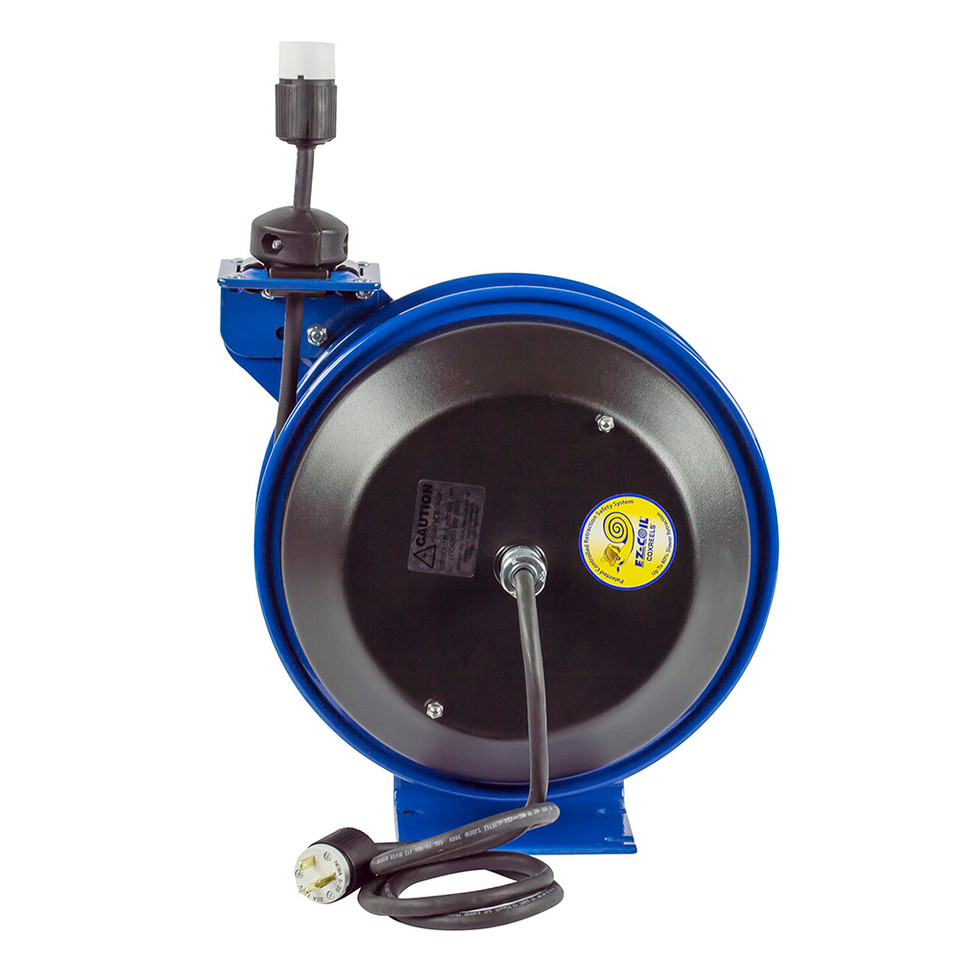

The Coxreels EZ-PC13-5012-F is a spring rewind power cord reel from the EZ-PC Series, designed to provide retractable 115 volt power access with Coxreels EZ-Coil controlled-retraction system. This model includes a 50 ft cord length, 12/3 SJO cord, and is rated for 20 amps at 115 volts, making it a heavier-capacity mid-length cord reel for compatible indoor tools, lights, and electrical devices.
The EZ-PC13-5012-F helps keep electrical cord controlled in service bays, maintenance areas, workstations, garages, and indoor industrial environments. EZ-Coil rewind slows cord return compared with a standard spring rewind reel, helping improve handling during retraction. The 'F' configuration is supplied with a duplex G.F.C.I. metal industrial receptacle, giving users ground-fault protected point-of-use outlet access when the connected load, plug configuration, receptacle type, and indoor work environment match the reel rating.
Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC13-5012-F | Cord Included: Yes | Cord Length: 50 ft | Cord Size: 12/3 AWG | Cord Type: SJO | Outlet: Duplex G.F.C.I. Metal Industrial Receptacle | Amps: 20 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only | Approx. Ship Weight: 42 lbs
Features:
- EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
- 50 ft cord length provides useful reach for service bays, benches, maintenance zones, garages, and production work areas without moving to a longer 75 ft or 100 ft reel.
- 20 amp and 115 volt rating supports compatible electrical loads when the connected equipment, plug, receptacle, and power source match the reel rating.
- 12/3 SJO cord provides a heavier conductor size than 16/3 cord configurations for applications requiring the higher 20 amp rating.
- Duplex G.F.C.I. metal industrial receptacle provides two outlet positions with ground-fault circuit interrupter protection for compatible indoor use.
- Designed for indoor use only and rated for 115 volts, 60 Hz single phase service.
- Spring driven power cord reel helps reduce loose extension cords by storing cord neatly between tasks.
- Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
- Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
- Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
- 1" solid steel axle, lubricated precision bearings, and CPC powder coat finish support dependable operation in shop, service, and industrial work environments.
Made in USA:
Applications:
- Automotive, fleet, and equipment service bays where 50 ft of retractable 115 volt cord helps reach around vehicles, lifts, benches, and nearby equipment.
- Maintenance shops and MRO departments where controlled cord rewind helps reduce loose electrical cord across floors, work areas, and walk paths.
- Manufacturing, assembly, and repair workstations that need organized point-of-use power for compatible 20 amp, 115 volt devices.
- Garages, warehouses, and indoor industrial work areas where mid-length cord reach and automatic rewind support cleaner cord management.
- Service trucks and mobile repair setups where retractable cord storage helps keep electrical cord controlled during transport and field work.
FAQs:
- Q: Does the Coxreels EZ-PC13-5012-F include cord?
A: Yes. This model includes 50 ft of 12/3 SJO cord. - Q: What does the 'F' configuration mean?
A: For this EZ-PC model, the 'F' configuration is listed with a duplex G.F.C.I. metal industrial receptacle. - Q: What is a G.F.C.I. receptacle?
A: G.F.C.I. stands for ground-fault circuit interrupter. It is designed to interrupt power when it detects a ground-fault condition, helping add electrical protection in compatible indoor applications. - Q: What is EZ-Coil retraction?
A: EZ-Coil is Coxreels controlled-retraction system that slows the rewind speed compared with a standard spring rewind reel, helping reduce cord whip during return. - Q: What electrical rating does this reel have?
A: The EZ-PC13-5012-F is rated for 20 amps at 115 volts, 60 Hz single phase. Confirm that the connected load stays within this rating before use. - Q: Can this reel be used outdoors?
A: No. Coxreels lists EZ-PC power cord reel models for indoor use only. - Q: How is the EZ-PC13-5012-F different from the EZ-PC13-5016-F?
A: The EZ-PC13-5012-F uses 12/3 cord and is rated for 20 amps, while the EZ-PC13-5016-F uses 16/3 cord and is rated for 13 amps. Both are 50 ft EZ-Coil power cord reels with an F receptacle configuration. - Q: When should I choose a 50 ft power cord reel?
A: Choose a 50 ft reel when the power source is not close enough for a shorter cord, but the work area does not require the additional reach of a 75 ft or 100 ft reel.
| CORD | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | INLET OUTLET |
AWG / NO COND. |
CORD FT. |
TYPE | VOLTS | AMPS | APRX. LBS. |
EZ-COIL SKU | |
|
FOR INDOOR USE ONLY!All models rated at 115 volts, 60 hz single phase only.
|
||||||||||
| PC13-3516-A† | Single Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 34 | - | 1 | |
| PC13-5016-A† | Single Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 36 | EZ-PC13-5016-A | 1 | |
| PC19-7516-A† | Single Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 | |
| PC24-0016-A† | Single Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-A | 4 | |
| PC13-3512-A† | Single Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 37 | - | 1 | |
| PC13-5012-A† | Single Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-A | 1 | |
| PC19-7512-A† | Single Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 | |
| PC24-0012-A† | Single Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 81 | EZ-PC24-0012-A | 4 | |
| PC13-3512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 38 | - | 1 | |
| PC13-5012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 41 | EZ-PC13-5012-B | 1 | |
| PC19-7512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 68 | - | 3 | |
| PC24-0012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 84 | EZ-PC24-0012-B | 4 | |
| PC13-3516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 36 | - | 1 | |
| PC13-5016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 38 | EZ-PC13-5016-F | 1 | |
| PC19-7516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 | |
| PC24-0016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-F | 4 | |
| PC13-3512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 39 | - | 1 | |
| PC13-5012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 42 | EZ-PC13-5012-F | 1 | |
| PC19-7512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 | |
| PC24-0012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 83 | EZ-PC24-0012-F | 4 | |
| PC19-7516-X | With Cord, Less Accessory |
16 / 3 | 75** | SJO | 115 | 13 | 60 | - | 3 | |
| PC24-0016-X | With Cord, Less Accessory |
16 / 3 | 100** | SJO | 115 | 13 | 71 | EZ-PC24-0016-X | 4 | |
| PC13-5012-X†† | With Cord, Less Accessory |
12 / 3 | 50** | SJO | 115 | 20 | 40 | EZ-PC13-5012-X | 1 | |
| PC19-7512-X | With Cord, Less Accessory |
12 / 3 | 75** | SJO | 115 | 20 | 66 | - | 3 | |
| PC24-0012-X | With Cord, Less Accessory |
12 / 3 | 100** | SJO | 115 | 20 | 81 | EZ-PC24-0012-X | 4 | |
| PC17-3510-X†† | With Cord, Less Accessory |
10 / 3 | 35** | SO | 115 | 30 | 62 | - | 2 | |
| PC17-5010-X†† | With Cord, Less Accessory |
10 / 3 | 50** | SO | 115 | 30 | 67 | - | 2 | |
| PC13-3516-4 | With Cord, Less Accessory |
16 / 4 | 35 | SJO | 115 | 10 | 34 | - | 1 | |
| PC13-5016-4 | With Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 10 | 36 | - | 1 | |
| PC24-0016-4 | With Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 10 | 74 | - | 4 | |
| PC13-3512-4 | With Cord, Less Accessory |
12 / 4 | 35 | SJO | 115 | 20 | 31 | - | 1 | |
| PC13-5012-4 | With Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-4 | 1 | |
| PC24-0012-4 | With Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 20 | 85 | - | 4 | |
| PC13L-5016†† | Less Cord, Less Accessory |
16 / 3 | 50* | SJO | 115 | 25 | 31 | EZ-PC13L-5016 | 1 | |
| PC19L-7516 | Less Cord, Less Accessory |
16 / 3 | 75 | SJO | 115 | 25 | 52 | - | 3 | |
| PC24L-0016 | Less Cord, Less Accessory |
16 / 3 | 100 | SJO | 115 | 25 | 62 | EZ-PC24L-0016 | 4 | |
| PC13L-5012†† | Less Cord, Less Accessory |
12 / 3 | 50 | SJO | 115 | 25 | 29 | EZ-PC13L-5012 | 1 | |
| PC19L-7512 | Less Cord, Less Accessory |
12 / 3 | 75 | SJO | 115 | 25 | 53 | - | 3 | |
| PC24L-0012 | Less Cord, Less Accessory |
12 / 3 | 100 | SJO | 115 | 25 | 64 | EZ-PC24L-0012 | 4 | |
| PC17L-5010†† | Less Cord, Less Accessory |
10 / 3 | - | - | 115 | 30 | 49 | - | 2 | |
| PC13L-5016-4 | Less Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 25 | 31 | - | 1 | |
| PC24L-0016-4 | Less Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 25 | 62 | - | 4 | |
| PC13L-5012-4 | Less Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 25 | 29 | - | 1 | |
| PC24L-0012-4 | Less Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 25 | 64 | - | 4 | |
