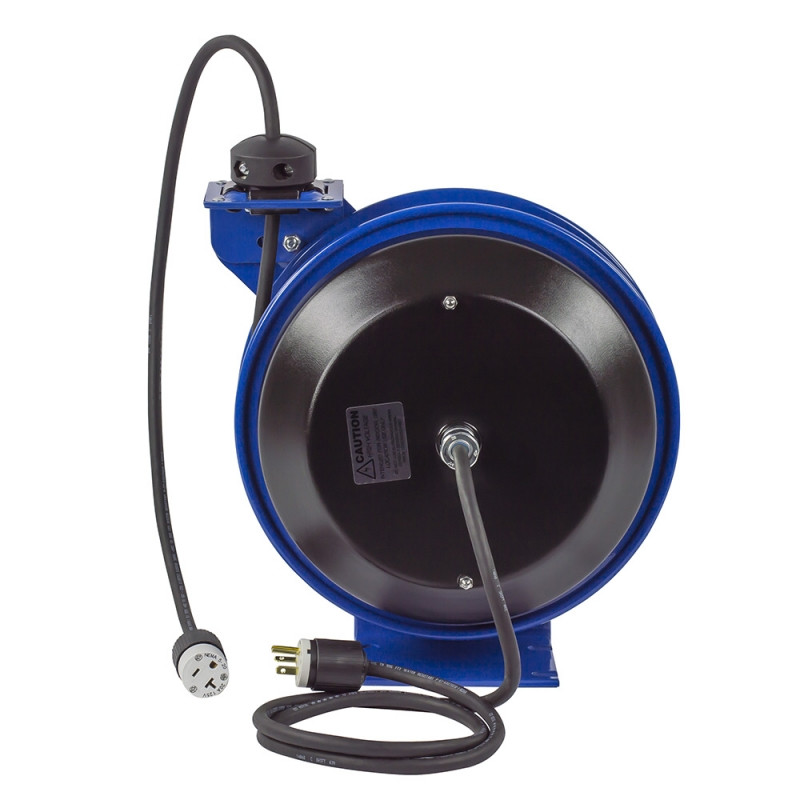

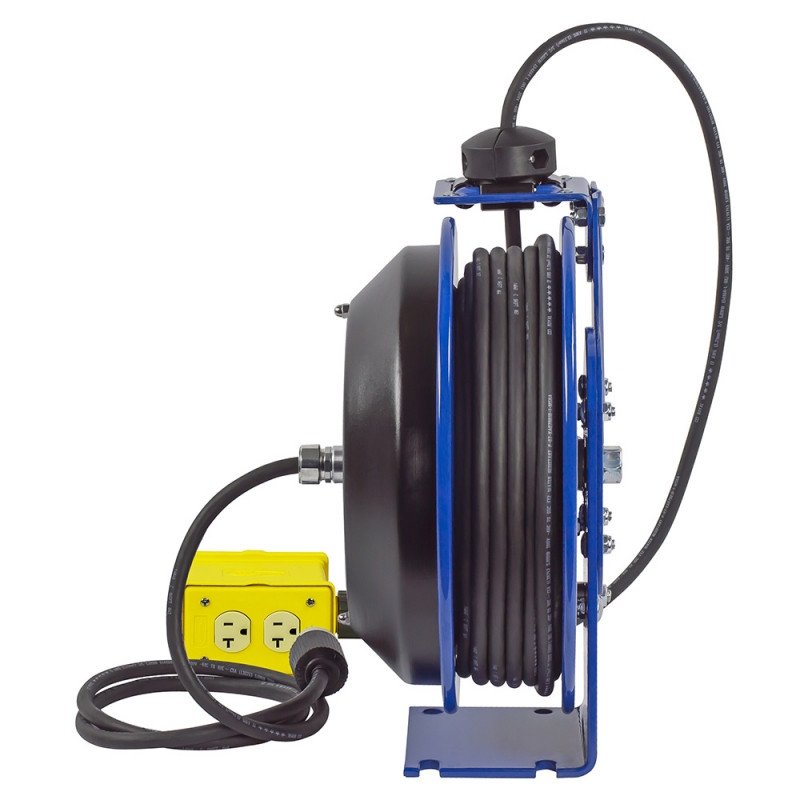

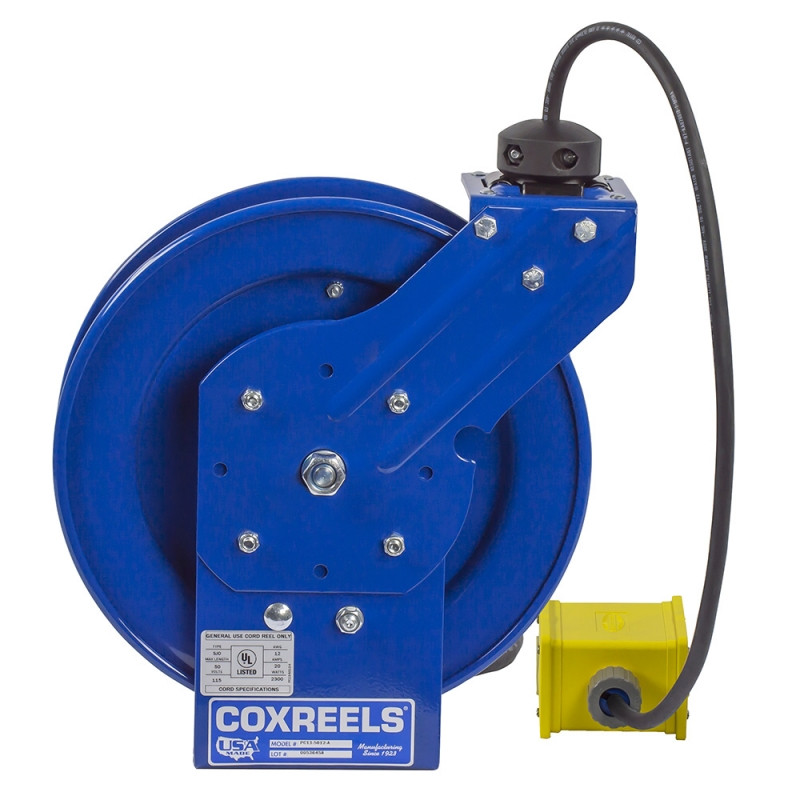

Coxreels PC19-7516-X Spring Rewind Power Cord Reel | PC Series | 75' Cord Length | 13 Amps | 115 Volts

The Coxreels PC19-7516-X is a spring rewind power cord reel from the PC Series, designed to provide organized, retractable 115 volt power cord access in service bays, maintenance shops, garages, warehouses, workstations, and industrial work areas. This model includes a 75 ft cord length with 16/3 SJO cord and is rated for 13 amps at 115 volts, making it a useful mid-to-long reach cord reel for compatible electrical devices where the connected load and installation setup match the reel rating.

The PC19-7516-X is supplied with cord but less accessory, meaning the reel includes the power cord but does not include a final cord-end outlet accessory. This gives buyers flexibility to select the appropriate compatible cord-end accessory for the application. The spring rewind mechanism retracts the cord after use, while the multi-position lock ratchet holds the cord at the selected working length to help reduce loose electrical cable across floors, benches, and walk paths.

Type: Spring Rewind Power Cord Reel | Series: PC Series | Model: PC19-7516-X | Configuration: With Cord, Less Accessory | Cord Included: Yes | Cord Length: 75 ft | Cord Size: 16/3 AWG | Cord Type: SJO | Outlet: Less Accessory | Amps: 13 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: Spring Rewind | Overall Dimensions: 10.13" W x 21" H x 19.5" L | Mounting Pattern: 4" x 5" | Base: 6" x 6" | Approx. Ship Weight: 60 lbs

Features:

• Spring driven power cord reel stores cord neatly between tasks, helping reduce loose electrical cord across floors, benches, walk paths, and service areas.
• 75 ft cord length provides more reach than 35 ft and 50 ft models while avoiding the extra stored cord length of a 100 ft reel.
• 16/3 SJO cord supports compatible 115 volt, 13 amp electrical applications when the connected device, accessory, and power source match the reel rating.
• Less accessory configuration allows the buyer to select a compatible final cord-end accessory for the installation instead of using a factory-supplied receptacle option.
• 13 amp and 115 volt rating supports compatible electrical loads when the full setup stays within the reel’s listed capacity.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, garages, service vehicles, maintenance areas, and production workstations.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO departments where a 75 ft retractable 115 volt cord reel helps keep electrical cord controlled between tasks.
• Automotive, fleet, and equipment service bays where extended cord reach supports compatible lights, chargers, tools, or electrical devices around vehicles and lifts.
• Manufacturing, assembly, and repair workstations that need organized point-of-use power access across a wider work area.
• Garages, warehouses, and general industrial workspaces where spring rewind cord management helps reduce loose cable on floors and benches.
• Service trucks and mobile repair vehicles where retractable cord storage helps keep electrical cable organized during transport and field service work.

FAQs:

• Q: Does the Coxreels PC19-7516-X include cord?
  A: Yes. This model is supplied with 75 ft of 16/3 SJO cord.
• Q: What does 'less accessory' mean on this model?
  A: It means the reel includes the cord but does not include the final cord-end outlet accessory. A compatible accessory must be selected separately to match the application.
• Q: What electrical rating does this reel have?
  A: The PC19-7516-X is rated for 13 amps at 115 volts, 60 Hz single phase. Confirm that the connected equipment and selected accessory stay within this rating before use.
• Q: How is the PC19-7516-X different from the PC19-7516-A?
  A: Both models include 75 ft of 16/3 SJO cord and are rated for 13 amps at 115 volts. The PC19-7516-X is supplied less accessory, while the PC19-7516-A is configured with a single industrial receptacle.
• Q: What does the spring rewind mechanism do?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping keep cord stored neatly and reducing loose cable across the work area.
• Q: Can this reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are suitable for the reel and work environment.
• Q: Is this reel compatible with every 115 volt device?
  A: No. The connected device, selected accessory, plug configuration, and power source must all be compatible with the reel’s 13 amp and 115 volt rating.
• Q: When should I choose a 75 ft cord reel?
  A: Choose a 75 ft cord reel when the power source is farther from the work area than a 35 ft or 50 ft reel can comfortably reach, but the application does not require a full 100 ft cord length.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
