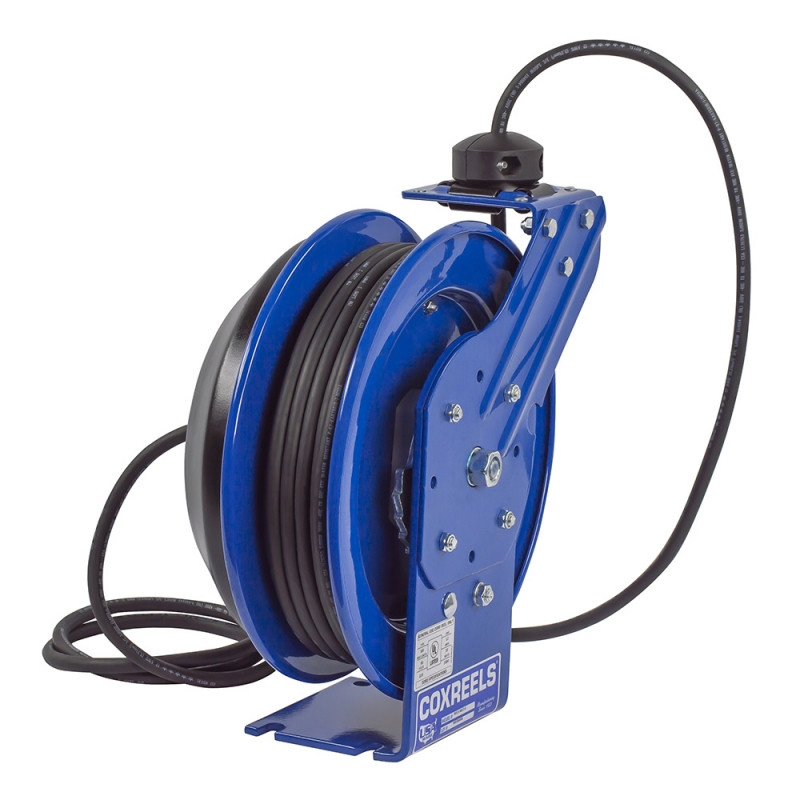

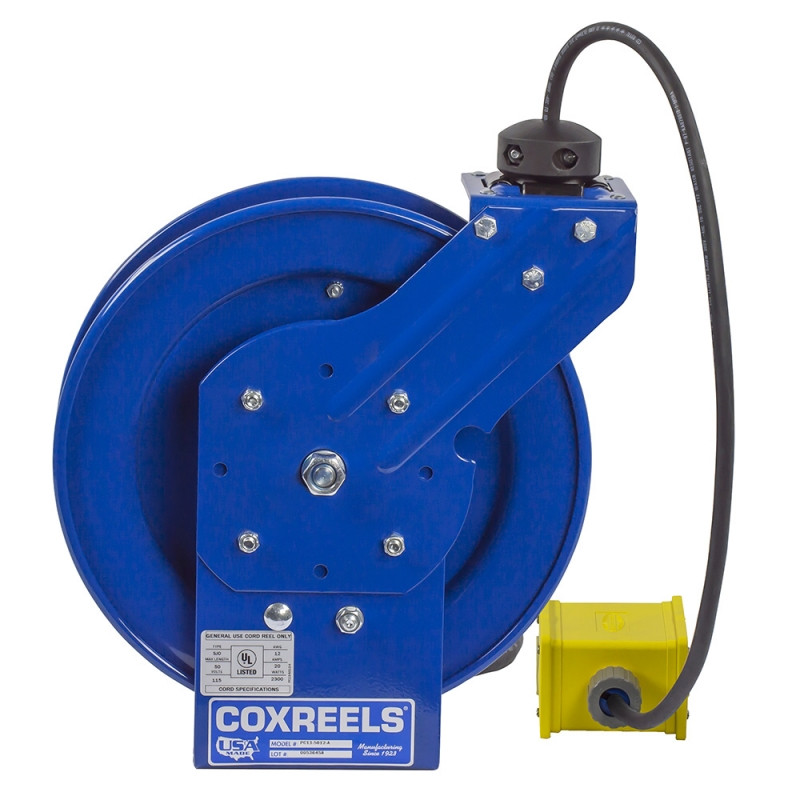

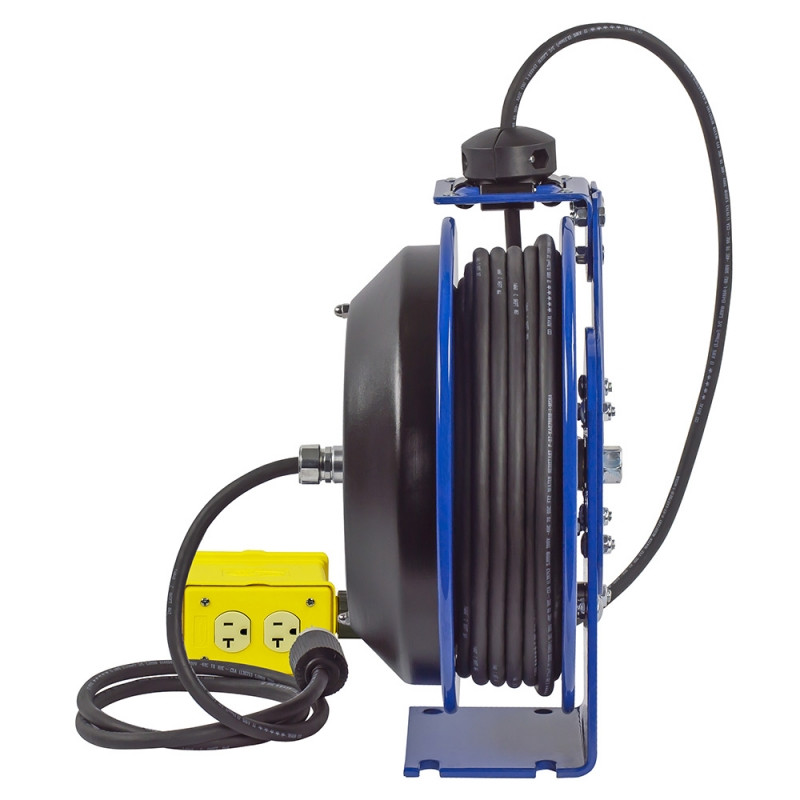

Coxreels PC13-3516-F Spring Rewind Power Cord Reel | PC Series | 35' Cord Length | 13 Amps | 115 Volts

The Coxreels PC13-3516-F is a spring rewind power cord reel from the PC Series, designed to keep electrical cord organized, retractable, and ready for use in maintenance shops, service bays, workstations, garages, and industrial work areas. This model includes a 35 ft cord length and is rated for 13 amps at 115 volts, making it a compact retractable cord reel for compatible electrical applications where the connected equipment, cord rating, plug, receptacle, and power source match the reel specifications.

The PC13-3516-F helps reduce loose cord on floors and work surfaces by allowing users to pull out only the length needed and retract the cord when the task is complete. Its spring rewind mechanism supports automatic cord return, the multi-position lock ratchet holds the cord at the selected working length, and the adjustable guide arm allows wall, floor, vehicle, and overhead mounting positions when properly installed.

Type: Spring Rewind Power Cord Reel | Series: PC Series | Model: PC13-3516-F | Cord Included: Yes | Cord Length: 35 ft | Amps: 13 | Volts: 115 | Rewind Type: Spring Rewind | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Power Cord Reel

Features:

• Spring driven power cord reel keeps electrical cord stored neatly when not in use, helping reduce clutter around benches, bays, and walk paths.
• 35 ft cord length provides practical reach for nearby tools, lights, equipment, and workstations without carrying unnecessary cord length.
• 13 amp and 115 volt rating supports compatible electrical loads when the connected device, plug, receptacle, and power source match the reel rating.
• Compact single pedestal design helps save space in maintenance areas, garages, service vehicles, and shop workstations.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Solid one-piece heavy gauge steel base and support post provide stable reel support.
• 1" solid steel axle and lubricated precision bearings support smooth cord payout and rewind.
• Enclosed factory-tuned cartridge-style spring motor powers automatic cord return after use.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during operation.
• CPC powder coat finish helps protect the reel structure in shop, maintenance, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO areas where a short-to-medium reach retractable power cord helps keep work areas cleaner.
• Automotive, fleet, and equipment service bays where 35 ft of cord reach is enough for nearby tools, lights, and compatible electrical devices.
• Manufacturing workstations and assembly areas where point-of-use electrical access is needed near benches or equipment.
• Service trucks and mobile repair vehicles where retractable cord storage helps reduce loose cable during transport and field work.
• Garages, warehouses, and general industrial work areas where controlled cord payout and automatic rewind improve cord management between tasks.

FAQs:

• Q: Does the Coxreels PC13-3516-F include cord?
  A: Yes. This model is supplied as a power cord reel with a 35 ft cord length.
• Q: What amperage and voltage is this reel rated for?
  A: The PC13-3516-F is rated for 13 amps and 115 volts. Always confirm that the connected equipment does not exceed the reel’s electrical rating.
• Q: What is the benefit of a spring rewind cord reel?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping reduce loose cord on the floor and making the cord easier to store between tasks.
• Q: Can this cord reel be mounted overhead?
  A: Yes. The adjustable guide arm supports overhead mounting as well as wall, floor, and vehicle mounting when the mounting surface and installation method are appropriate for the reel and work environment.
• Q: Is this reel suitable for every 115 volt tool?
  A: No. The connected device must be compatible with the reel’s 13 amp and 115 volt rating, and the plug, receptacle, cord type, and work environment must match the application requirements.
• Q: When should I choose a 35 ft cord reel instead of a longer model?
  A: Choose a 35 ft cord reel when the outlet or power source is relatively close to the work area and a shorter cord helps reduce excess cable on the floor. A longer reel may be better for larger bays or wider service zones.
