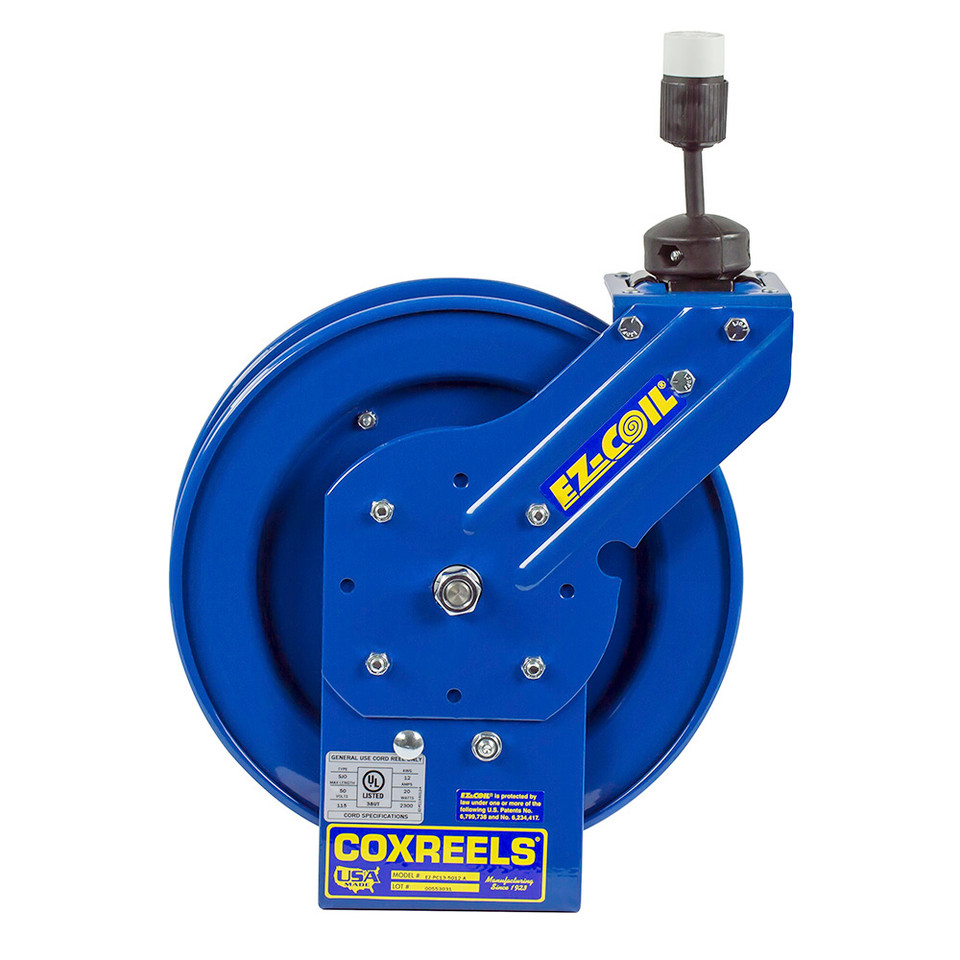

Coxreels EZ-PC13-5016-A Spring Rewind Power Cord Reel | EZ-PC Series | 50' Cord Length | 13 Amps | 115 Volts

The Coxreels EZ-PC13-5016-A is a spring rewind power cord reel from the EZ-PC Series, designed to provide retractable 115 volt power access with Coxreels EZ-Coil controlled-retraction system. This model includes a 50 ft cord length, 16/3 SJO cord, and is rated for 13 amps at 115 volts, making it a practical mid-length power cord reel for compatible electrical tools, lights, and devices in indoor shops, service bays, workstations, and maintenance areas.

The EZ-PC13-5016-A helps replace loose extension cords with controlled, retractable cord storage. EZ-Coil rewind slows the cord return compared with a standard spring rewind reel, helping improve handling during retraction. The multi-position lock ratchet holds the cord at the selected working length, while the 'A' configuration provides a single industrial receptacle for point-of-use power when the connected load, plug, receptacle, and indoor work environment match the reel rating.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC13-5016-A | Cord Included: Yes | Cord Length: 50 ft | Cord Size: 16/3 AWG | Cord Type: SJO | Outlet: Single Industrial Receptacle | Amps: 13 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only | Approx. Ship Weight: 36 lbs

Features:

• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve operator control during return.
• 50 ft cord length provides useful reach for service bays, benches, maintenance zones, and production work areas without moving to a longer 75 ft or 100 ft reel.
• 16/3 SJO cord supports compatible 115 volt, 13 amp electrical applications when the connected device and power source match the reel rating.
• Single industrial receptacle provides a straightforward outlet connection for compatible plugs and point-of-use power needs.
• Designed for indoor use only and rated for 115 volts, 60 Hz single phase service.
• Spring driven power cord reel helps replace tangled extension cords with retractable cord storage for cleaner work areas.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions when installed on a suitable surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, service vehicles, workstations, and maintenance areas.
• Solid one-piece heavy gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive, fleet, and equipment service bays where 50 ft of retractable 115 volt cord helps reach around vehicles, lifts, and nearby workstations.
• Maintenance shops and MRO areas where controlled cord rewind helps reduce loose cord across floors, benches, and walk paths.
• Manufacturing, assembly, and repair workstations that need organized point-of-use power for compatible 115 volt devices.
• Service trucks and mobile repair setups where retractable cord storage helps keep electrical cord controlled during transport and field work.
• Garages, warehouses, and indoor industrial work areas where a mid-length cord reel can improve cord access and storage between tasks.

FAQs:

• Q: Does the Coxreels EZ-PC13-5016-A include cord?
  A: Yes. This model includes 50 ft of 16/3 SJO cord.
• Q: What does the “A” configuration mean?
  A: For this EZ-PC model, the “A” configuration is listed with a single industrial receptacle outlet.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels’ controlled-retraction system that slows the cord rewind compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: The EZ-PC13-5016-A is rated for 13 amps at 115 volts, 60 Hz single phase. Confirm that the connected equipment stays within this rating before use.
• Q: Can this reel be used outdoors?
  A: No. Coxreels lists EZ-PC power cord reel models for indoor use only.
• Q: How is the EZ-PC13-5016-A different from the PC13-5016-A?
  A: The EZ-PC version includes the EZ-Coil controlled-retraction system. The standard PC version uses conventional spring rewind without the EZ-Coil slow-retraction feature.
• Q: When should I choose a 50 ft cord reel?
  A: Choose a 50 ft cord reel when the power source is not close enough for a shorter cord, but the work area does not require the additional reach of a 75 ft or 100 ft reel.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
