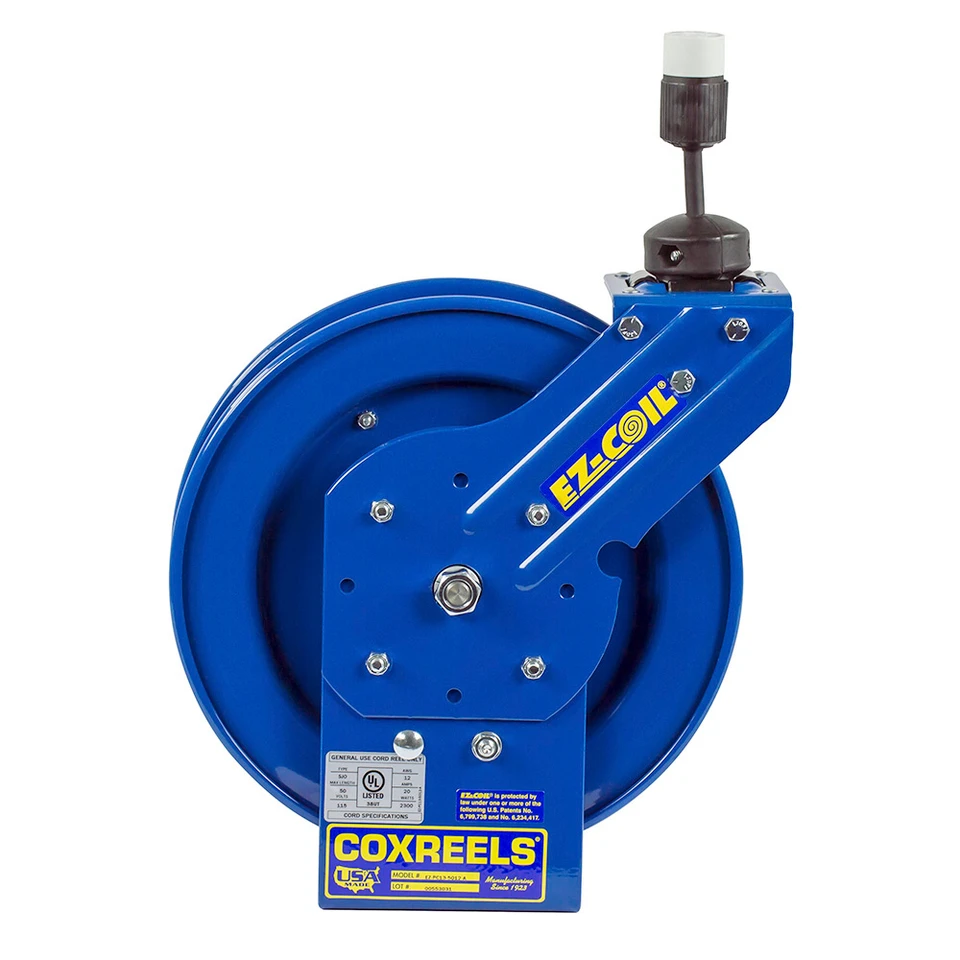

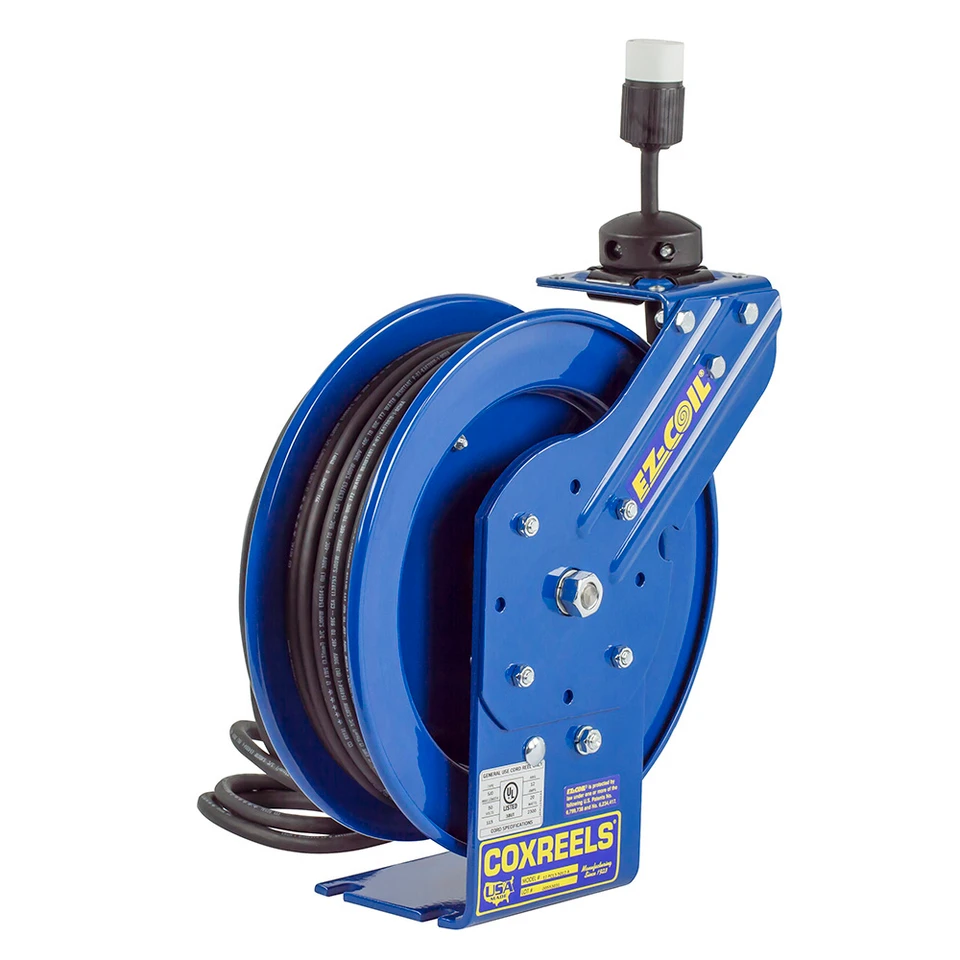

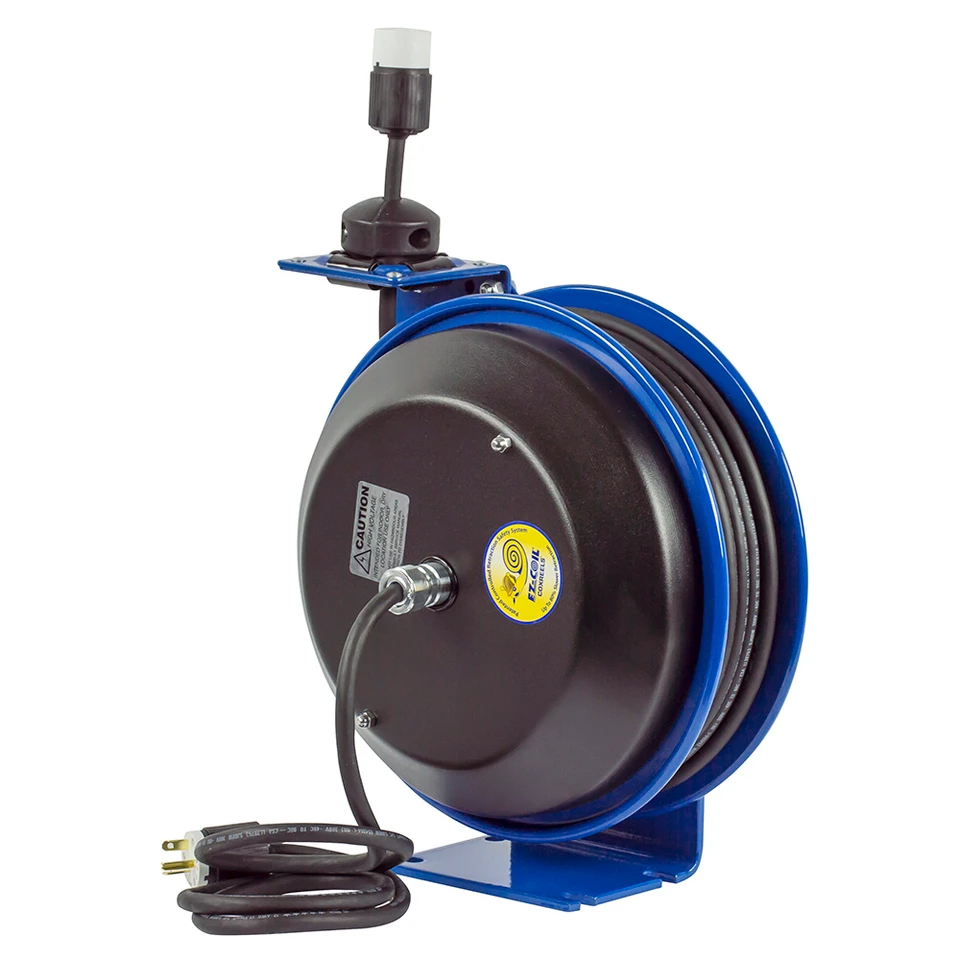

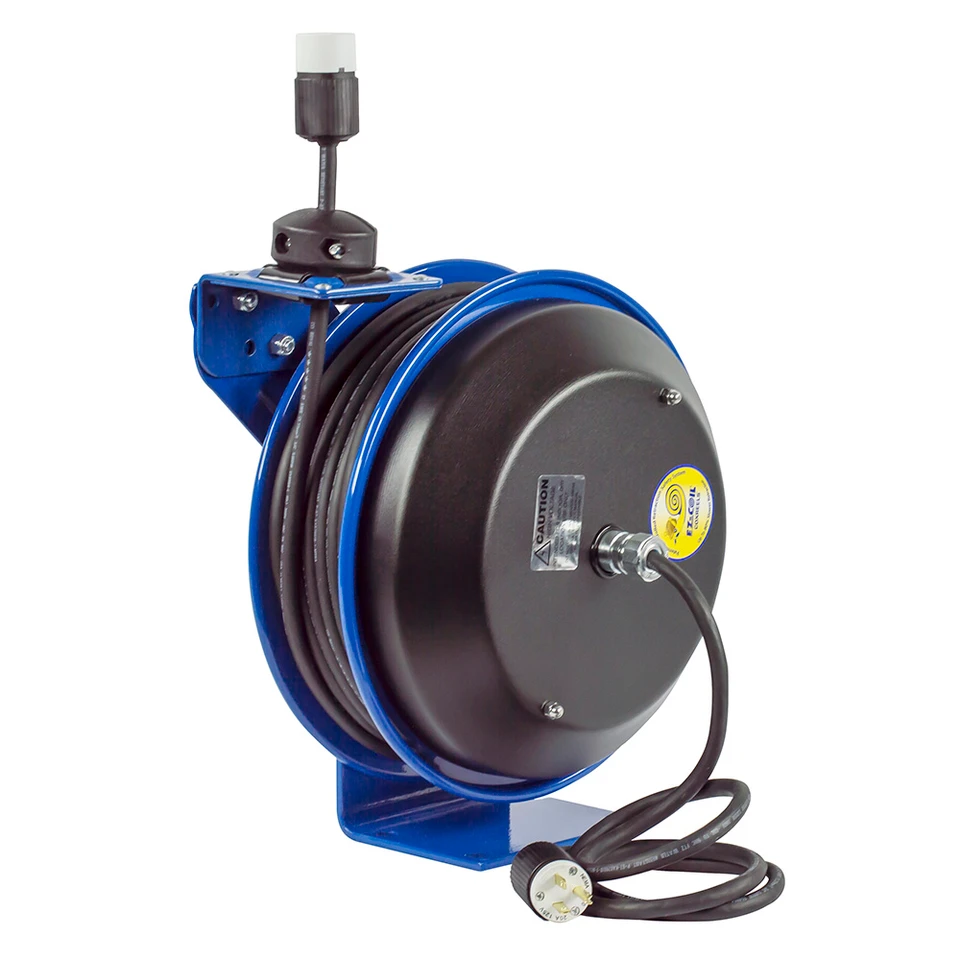

Coxreels EZ-PC13-5012-A Spring Rewind Power Cord Reel | EZ-PC Series | 115 Volts | 50' Cord Length | 20 Amps

Designed for convenient electrical power access with automatic cord storage, the Coxreels EZ-PC13-5012-A Spring Rewind Power Cord Reel provides a 50 ft cord for 115-volt, 20-amp service. Part of the EZ-PC Series, this model combines spring-powered cord retrieval with Coxreels' EZ-Coil controlled retraction system, which slows the rewind speed for safer, more controlled cord return. The 50-foot reach makes the reel suitable for workshops, service bays, maintenance areas, and other work locations using compatible electrical equipment.

The EZ-PC13-5012-A incorporates a multi-position lock ratchet that holds the cord at the desired working length and an adjustable guide arm for versatile mounting positions. Its EZ-Coil system controls the rewind speed as the cord returns to the reel, helping reduce uncontrolled retraction. The compact single-pedestal configuration provides organized cord management while conserving mounting space in fixed work areas.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC13-5012-A | Voltage: 115 V | Amperage: 20 A | Cord Length: 50 ft

Features:

• EZ-Coil controlled retraction system slows the rewind speed for safer and more controlled cord return.
• 50-foot power cord provides extended reach from the reel's installed location.
• Configured for compatible 115-volt electrical service with a 20-amp rating.
• Spring-powered rewind automatically retrieves the cord for organized storage after use.
• Multi-position lock ratchet holds the cord at the desired working length during use.
• The adjustable guide arm supports multiple reel-mounting positions.
• Single-pedestal construction provides a compact footprint for installations where mounting space is limited.
• Reel-mounted cord storage helps keep unused electrical cord contained between tasks.

Made in USA:

2 Year Warranty

Applications:

• Maintenance and repair areas requiring retractable access to 115-volt electrical power.
• Workshops and service bays using compatible portable electrical tools and equipment.
• Manufacturing and MRO workstations where controlled cord retraction helps manage electrical cord between tasks.
• Garages and service facilities requiring a 50-foot power cord from a fixed reel location.
• Work areas where slower, controlled rewind is preferred for managing retractable electrical cord.

FAQs:

• Q: What is the EZ-Coil system on the Coxreels EZ-PC13-5012-A?
  A: EZ-Coil is Coxreels' controlled retraction system that slows the rewind speed as the cord returns to the reel, providing more controlled retraction than a standard spring rewind reel.
• Q: What electrical rating does the EZ-PC13-5012-A provide?
  A: This model is configured for 115-volt service and carries a 20-amp rating.
• Q: How long is the cord supplied with the EZ-PC13-5012-A?
  A: The reel is supplied with 50 feet of power cord.
• Q: Can the cord remain extended at a selected length?
  A: Yes. The multi-position lock ratchet allows the cord to remain extended at the desired working length until retraction is initiated.
• Q: What should be verified before connecting electrical equipment?
  A: Confirm that the electrical supply, connected equipment, and installation requirements are compatible with the reel's 115-volt and 20-amp ratings.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
