Designed for electrical installations where the retractable cord must be selected separately, the Coxreels PC17L-5010 Spring Rewind Power Cord Reel provides capacity for up to a 50 ft cord and is configured for 115-volt, 30-amp service. Part of the PC Series, this less-cord model gives buyers the flexibility to source compatible cord for their specific installation while retaining the convenience of spring-powered retrieval and organized reel storage.
The PC17L-5010 uses an enclosed, factory-tuned cartridge-style spring motor to retract compatible cord after installation. A multi-position lock ratchet allows the cord to remain extended at the required working length, while the adjustable guide arm provides flexibility for different reel mounting arrangements. This configuration is intended for applications requiring separately selected cord within the reel's manufacturer-specified capacity and electrical ratings.

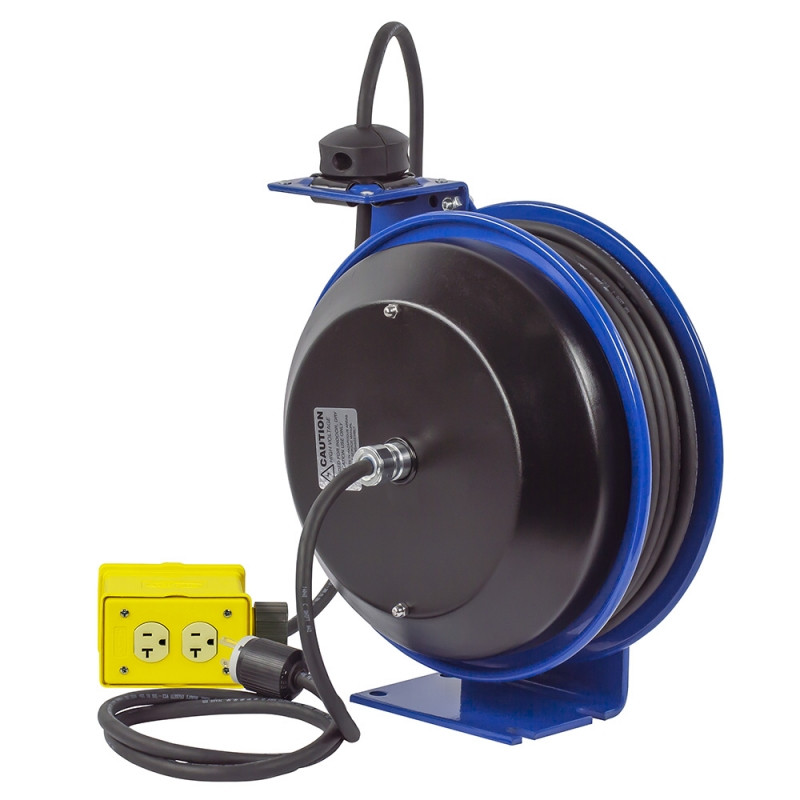

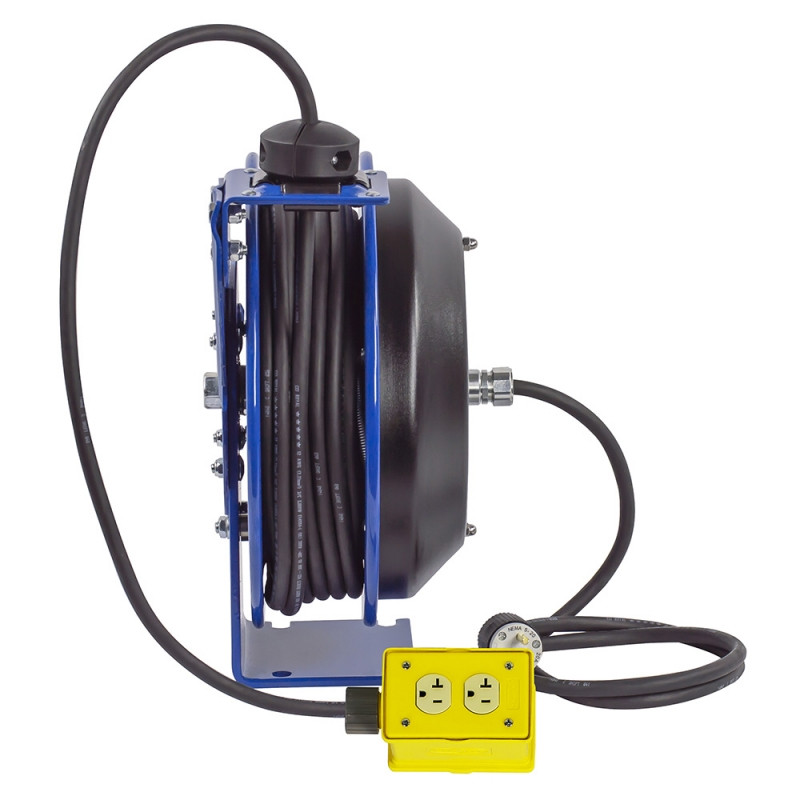

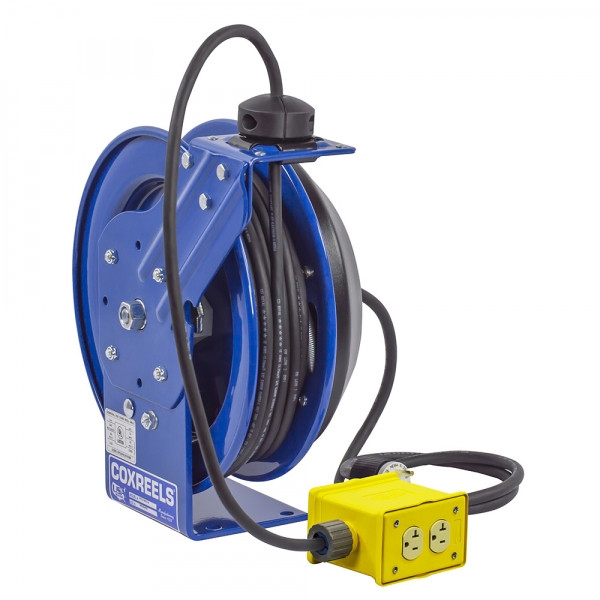

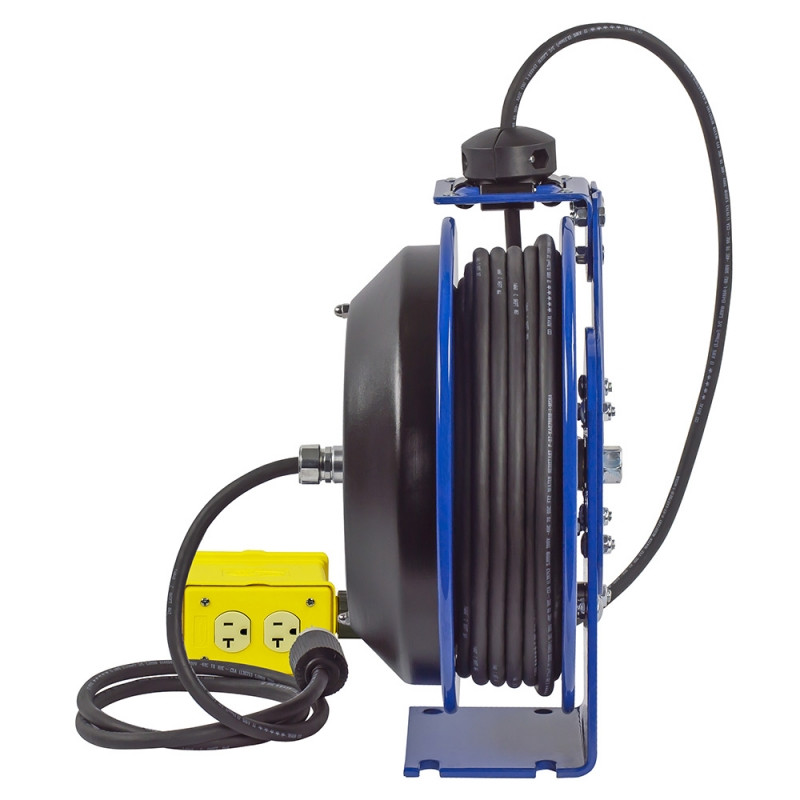

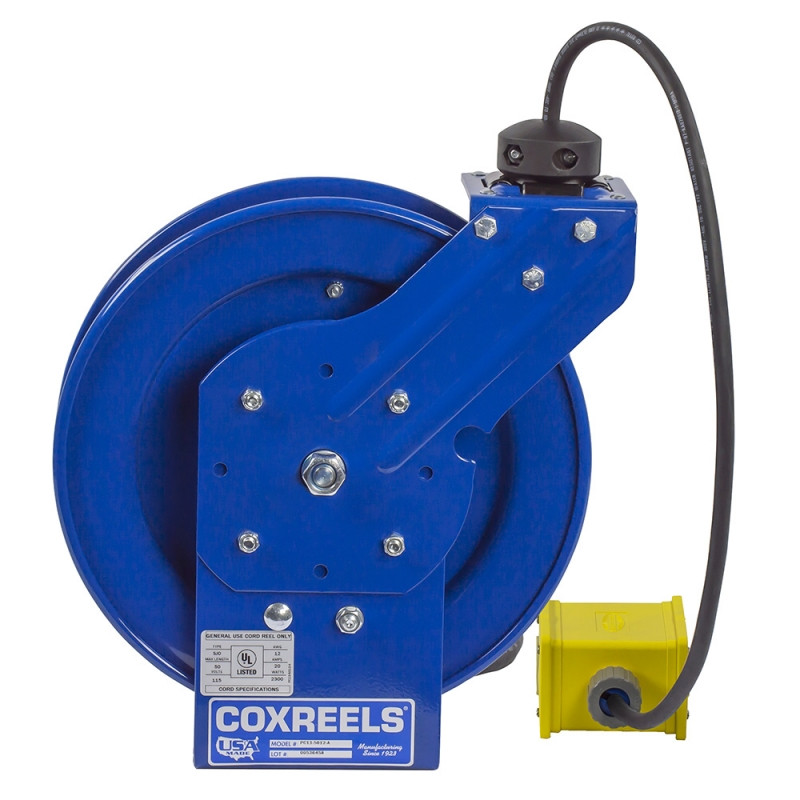

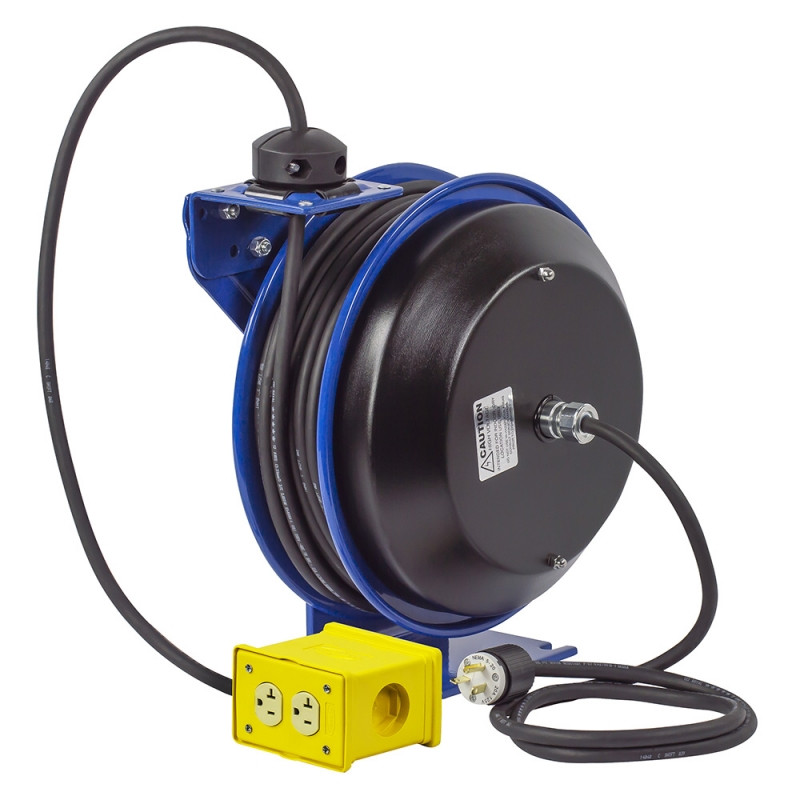

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.
Type: Spring Rewind Power Cord Reel | Series: PC Series | Model: PC17L-5010 | Cord Capacity: 50 ft | Voltage: 115 V | Amperage: 30 A
Features:
- Less-cord configuration allows compatible electrical cord to be selected separately for the installation.
- Provides capacity for up to 50 feet of compatible cord within the manufacturer's specified configuration.
- Spring-powered rewind retrieves installed cord for organized storage after use.
- Multi-position lock ratchet holds the cord at the desired working length during operation.
- Adjustable guide arm provides flexibility for different reel mounting arrangements.
- Enclosed, factory-tuned cartridge-style spring motor provides automatic cord retraction.
- Single-pedestal construction provides an efficient mounting footprint for workplace installations.
- Configured for compatible 115-volt electrical service with a 30-amp rating.
Made in USA:
Applications:
- Electrical installations where the retractable power cord must be selected separately to suit application requirements.
- Maintenance and service areas requiring retractable cord management for compatible 115-volt electrical equipment.
- Workshops and MRO facilities that need up to 50 feet of cord capacity with automatic spring-powered retrieval.
- Fixed work locations using compatible electrical loads within the reel's specified 30-amp rating.
- Applications where a less-cord reel provides flexibility in selecting an appropriate cord for the intended installation.
FAQs:
- Q: Does the Coxreels PC17L-5010 include a power cord?
A: No. The PC17L-5010 is supplied as a less-cord reel, so compatible electrical cord must be selected and supplied separately. - Q: How much cord can the PC17L-5010 accommodate?
A: This configuration is specified for up to 50 feet of compatible cord. - Q: What are the electrical ratings of the PC17L-5010?
A: The reel is configured for 115-volt service with a 30-amp rating. - Q: Will the reel automatically retract the cord after it is installed?
A: Yes. Once a compatible cord is properly installed, the spring rewind mechanism provides automatic cord retrieval and storage. - Q: What should be verified when selecting cord for this less-cord reel?
A: The selected cord and installation must be compatible with the reel's specified cord capacity, electrical ratings, and applicable installation requirements.
| CORD | SIZE INDEX |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | AWG / NO COND. |
CORD FT. |
TYPE | VOLTS | AMPS | APRX. LBS. |
EZ-COIL SKU | |
|
FOR INDOOR USE ONLY!All models rated at 115 volts, 60 hz single phase only.
|
|||||||||
| PC13-3516-A† | Single Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 34 | - | 1 |
| PC13-5016-A† | Single Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 36 | EZ-PC13-5016-A | 1 |
| PC19-7516-A† | Single Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-A† | Single Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-A | 4 |
| PC13-3512-A† | Single Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 37 | - | 1 |
| PC13-5012-A† | Single Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-A | 1 |
| PC19-7512-A† | Single Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-A† | Single Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 81 | EZ-PC24-0012-A | 4 |
| PC13-3512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 38 | - | 1 |
| PC13-5012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 41 | EZ-PC13-5012-B | 1 |
| PC19-7512-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 68 | - | 3 |
| PC24-0012-B† | Quad “4 Plug” Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 84 | EZ-PC24-0012-B | 4 |
| PC13-3516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 35 | SJO | 115 | 13 | 36 | - | 1 |
| PC13-5016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 50 | SJO | 115 | 13 | 38 | EZ-PC13-5016-F | 1 |
| PC19-7516-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 75 | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
16 / 3 | 100 | SJO | 115 | 13 | 73 | EZ-PC24-0016-F | 4 |
| PC13-3512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 35 | SJO | 115 | 20 | 39 | - | 1 |
| PC13-5012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 50 | SJO | 115 | 20 | 42 | EZ-PC13-5012-F | 1 |
| PC19-7512-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 75 | SJO | 115 | 20 | 67 | - | 3 |
| PC24-0012-F† | Duplex G.F.C.I. Metal Industrial Receptacle1 |
12 / 3 | 100 | SJO | 115 | 20 | 83 | EZ-PC24-0012-F | 4 |
| PC19-7516-X | With Cord, Less Accessory |
16 / 3 | 75** | SJO | 115 | 13 | 60 | - | 3 |
| PC24-0016-X | With Cord, Less Accessory |
16 / 3 | 100** | SJO | 115 | 13 | 71 | EZ-PC24-0016-X | 4 |
| PC13-5012-X†† | With Cord, Less Accessory |
12 / 3 | 50** | SJO | 115 | 20 | 40 | EZ-PC13-5012-X | 1 |
| PC19-7512-X | With Cord, Less Accessory |
12 / 3 | 75** | SJO | 115 | 20 | 66 | - | 3 |
| PC24-0012-X | With Cord, Less Accessory |
12 / 3 | 100** | SJO | 115 | 20 | 81 | EZ-PC24-0012-X | 4 |
| PC17-3510-X†† | With Cord, Less Accessory |
10 / 3 | 35** | SO | 115 | 30 | 62 | - | 2 |
| PC17-5010-X†† | With Cord, Less Accessory |
10 / 3 | 50** | SO | 115 | 30 | 67 | - | 2 |
| PC13-3516-4 | With Cord, Less Accessory |
16 / 4 | 35 | SJO | 115 | 10 | 34 | - | 1 |
| PC13-5016-4 | With Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 10 | 36 | - | 1 |
| PC24-0016-4 | With Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 10 | 74 | - | 4 |
| PC13-3512-4 | With Cord, Less Accessory |
12 / 4 | 35 | SJO | 115 | 20 | 31 | - | 1 |
| PC13-5012-4 | With Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 20 | 40 | EZ-PC13-5012-4 | 1 |
| PC24-0012-4 | With Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 20 | 85 | - | 4 |
| PC13L-5016†† | Less Cord, Less Accessory |
16 / 3 | 50* | SJO | 115 | 25 | 31 | EZ-PC13L-5016 | 1 |
| PC19L-7516 | Less Cord, Less Accessory |
16 / 3 | 75 | SJO | 115 | 25 | 52 | - | 3 |
| PC24L-0016 | Less Cord, Less Accessory |
16 / 3 | 100 | SJO | 115 | 25 | 62 | EZ-PC24L-0016 | 4 |
| PC13L-5012†† | Less Cord, Less Accessory |
12 / 3 | 50 | SJO | 115 | 25 | 29 | EZ-PC13L-5012 | 1 |
| PC19L-7512 | Less Cord, Less Accessory |
12 / 3 | 75 | SJO | 115 | 25 | 53 | - | 3 |
| PC24L-0012 | Less Cord, Less Accessory |
12 / 3 | 100 | SJO | 115 | 25 | 64 | EZ-PC24L-0012 | 4 |
| PC17L-5010†† | Less Cord, Less Accessory |
10 / 3 | - | - | 115 | 30 | 49 | - | 2 |
| PC13L-5016-4 | Less Cord, Less Accessory |
16 / 4 | 50 | SJO | 115 | 25 | 31 | - | 1 |
| PC24L-0016-4 | Less Cord, Less Accessory |
16 / 4 | 100 | SJO | 115 | 25 | 62 | - | 4 |
| PC13L-5012-4 | Less Cord, Less Accessory |
12 / 4 | 50 | SJO | 115 | 25 | 29 | - | 1 |
| PC24L-0012-4 | Less Cord, Less Accessory |
12 / 4 | 100 | SJO | 115 | 25 | 64 | - | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
