Built for controlled hose management in service bays, maintenance shops, fleet trucks, and hydraulic oil handling areas, the Coxreels EZ-P-MPL-430 EZ Coil Spring Rewind Hose Reel combines the compact footprint of the EZ-P Series with Coxreels’ controlled-return EZ-Coil retraction system. This reel is configured for 1/2" hose I.D., a 30 ft hose capacity, and 2,500 PSI maximum pressure, giving buyers a medium-pressure reel platform for routing compatible hose where air, water, or oil service may be required. The EZ-Coil mechanism is a controlled rewind system that retracts the hose up to 80% slower than conventional spring driven reels, helping reduce whip-back and making hose return more predictable in busy work areas. The EZ-P-MPL-430 is sold in a less hose configuration, making it useful when the hose material, fittings, or service media must be selected separately for the application.

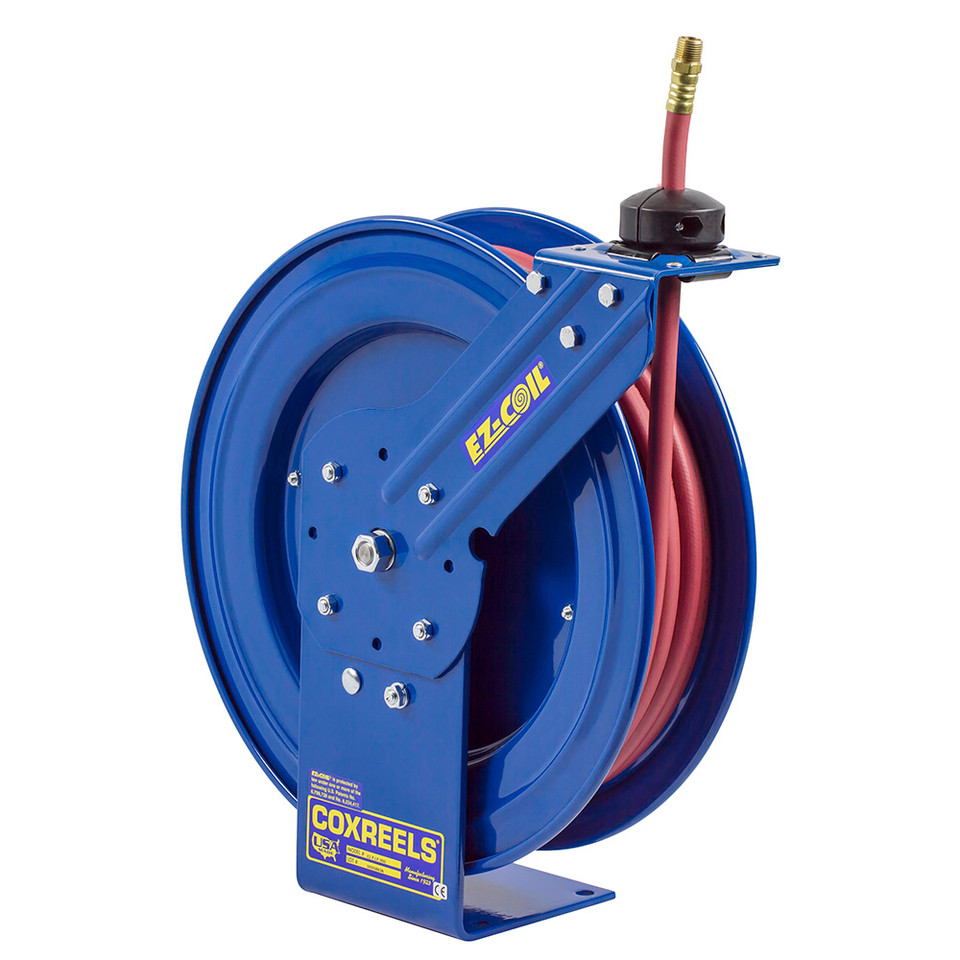

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ Coil Spring Rewind Hose Reel | Series: EZ-P Series | Model: EZ-P-MPL-430 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 30 ft | Max Pressure: 2,500 PSI | Approx. Weight: 43 lbs. | Size Index: 4
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel assembly.
- Nitrile swivel seals support compatibility with common reel service applications when matched with the correct hose and media.
- Sturdy single-pedestal reel design helps conserve space while keeping hose stored off the floor.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to suit fixed shop layouts or mobile service equipment.
- Solid one-piece heavy gauge 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle with lubricated precision bearings promotes smooth drum rotation during payout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Maintenance shops and MRO areas — managing medium-pressure hose for routine air, water, or oil service when fitted with compatible hose.
- Fleet and service trucks — keeping hose organized on mobile equipment where compact mounting and controlled rewind are valuable.
- Hydraulic and lubrication workstations — routing hose for oil service within the reel’s 2,500 PSI pressure rating.
- Vehicle service facilities — storing hose neatly near lifts, benches, and equipment bays to reduce floor clutter.
- Industrial work cells — supporting repeat hose payout and rewind where the hose specification must be selected separately.
FAQs:
- Q: What does “less hose” mean on the EZ-P-MPL-430?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/2" I.D. hose separately and confirm the hose outside diameter, pressure rating, fittings, and service media before installation. - Q: What is EZ-Coil retraction?
A: EZ-Coil is Coxreels’ controlled rewind system. It retracts the hose up to 80% slower than conventional spring driven reels, which helps make rewind more controlled in active work areas. - Q: Can this reel be used for oil service?
A: Yes, the medium-pressure EZ-P Series is listed for air, water, or oil applications when the reel, hose, fittings, and system pressure are compatible. Because this model is less hose, the hose must be selected to match the intended media and operating pressure. - Q: How should this reel be mounted?
A: The adjustable guide arm allows wall, floor, vehicle, and overhead mounting positions. Use the listed mounting dimensions and appropriate hardware for the mounting surface. - Q: Does the 2,500 PSI rating apply to the hose?
A: The reel is rated for 2,500 PSI maximum pressure. Since this configuration does not include hose, the installed hose must also be rated for the application’s pressure and media requirements.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
