Coxreels EZ-P-LPL-150 EZ Coil Spring Rewind Hose Reel | EZ-P Series | 1/4" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

When you need a compact reel body with controlled hose return for shop air, water, or low-pressure oil service, the Coxreels EZ-P-LPL-150 provides EZ-Coil controlled retraction in a spring rewind configuration. This EZ-P Series reel is built for a 1/4" hose I.D. with up to 50 ft of hose capacity, giving workstations, service bays, and mobile setups enough reach for routine dispensing without leaving loose hose on the floor.

Rated for 300 PSI, the EZ-P-LPL-150 is a low-pressure reel suited to air, water, and oil applications when paired with a compatible customer-supplied hose. The EZ-Coil system is Coxreels’ controlled-retraction safety feature, retracting more slowly than conventional spring-driven reels to help reduce whip, improve handling, and support a cleaner work area in maintenance shops, manufacturing cells, fleet service areas, and general MRO environments.

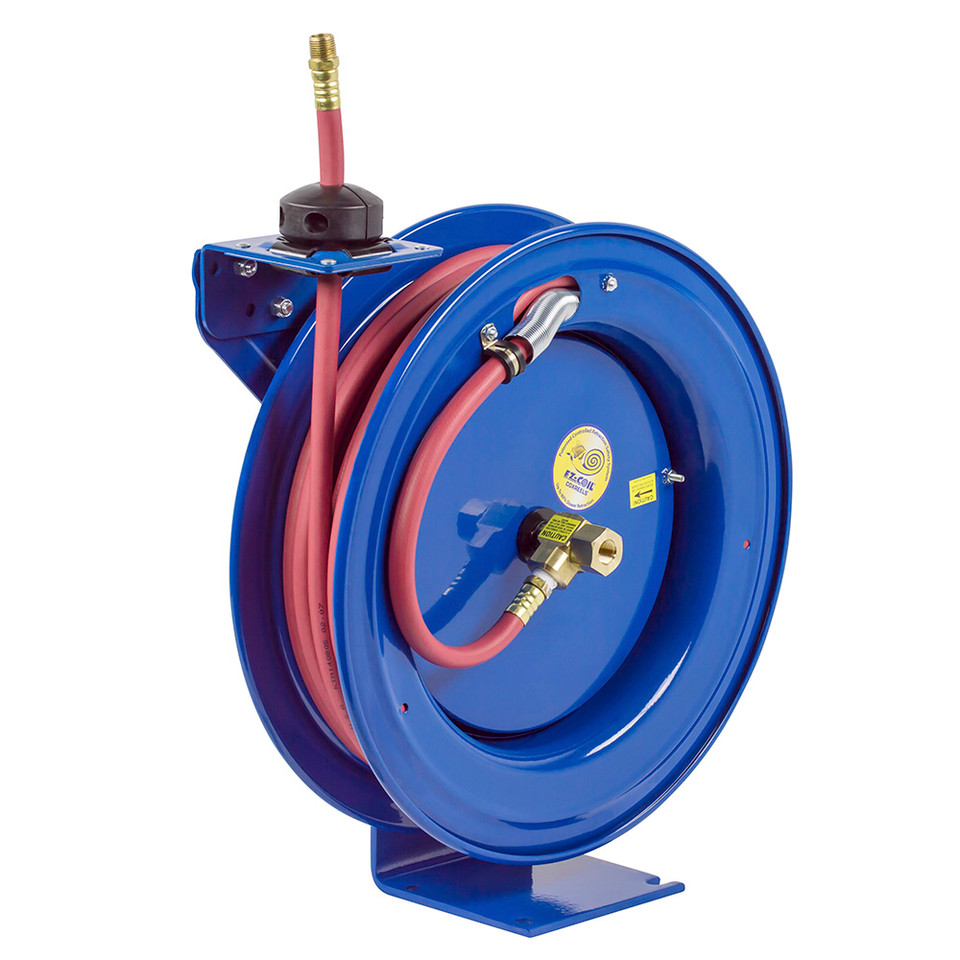

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Swivel: Machined solid brass 90° full-flow NPT swivel | Swivel Seals: Nitrile | Ship Weight: 35 lbs | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• EZ-Coil controlled retraction uses Coxreels’ patented safety system to retract up to 80% slower than conventional spring driven reels.
• Machined solid brass 90° full-flow NPT swivel supports the external fluid path and allows seal maintenance without removing the reel from its mount.
• Nitrile swivel seals support compatibility with the listed low-pressure air, water, and oil service range.
• Single pedestal reel design helps organize hose at fixed workstations, maintenance bays, service trucks, and production areas.
• Guide arm adjusts for wall, floor, ceiling, overhead, and vehicle mounting positions to fit the layout of the work area.
• Solid one-piece 1/4" steel base and support post provide a stable mounting foundation for repeated hose pull-out and rewind cycles.
• 1" solid steel axle and permanently lubricated precision bearings support smooth drum rotation during dispensing and retraction.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during use.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO areas for organizing low-pressure air, water, or oil hose at benches, tool cribs, and service points.
• Fleet and vehicle service bays where controlled rewind helps keep hose off the floor around lifts, tires, and work carts.
• Manufacturing and assembly workstations that need a compact reel footprint with 50 ft of hose reach for routine production support.
• Mobile service trucks and utility vehicles where adjustable mounting positions help fit the reel into limited storage space.
• DIY garages and home workshops when the user needs a reel-only configuration for installing a compatible hose of their choice.

FAQs:

• Q: What does “less hose” mean on the EZ-P-LPL-150?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/4" I.D., 1/2" O.D., 50 ft capacity, and 300 PSI pressure rating.
• Q: What is EZ-Coil controlled retraction?
  A: EZ-Coil is Coxreels’ patented controlled-rewind system. It retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and making rewind more controlled around people, tools, and equipment.
• Q: Can this reel be used for shop air service?
  A: Yes, this low-pressure less-hose reel can be used for air service when the installed hose, fittings, and system pressure are compatible with the reel’s 300 PSI rating.
• Q: Can the EZ-P-LPL-150 be mounted on a wall or ceiling?
  A: Yes, the guide arm adjusts for wall, floor, ceiling, overhead, and vehicle mounting positions. Always mount the reel to a surface capable of supporting the reel, hose, and pull forces during use.
• Q: What hose should be used with this reel?
  A: Use a hose that matches the application fluid, pressure, temperature, and dimensional capacity of the reel. For this model, do not exceed the listed 1/2" hose O.D. if you need the full 50 ft capacity.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
