When controlled hose rewind matters in a busy shop, service bay, or fleet truck, the Coxreels EZ-P-LPL-450 EZ Coil Spring Rewind Hose Reel provides organized storage for a 1/2" I.D. hose up to 50 ft long while supporting low-pressure service up to 300 PSI. This EZ-P Series reel is supplied less hose, giving buyers the flexibility to install a compatible air, water, or oil hose that matches their application, temperature range, and fitting requirements. The EZ-Coil controlled rewind system is Coxreels’ patented safety system that retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and improving control during rewind. Its compact single-pedestal frame, adjustable guide arm, brass full-flow swivel, and cartridge-style spring motor make it a practical choice for fixed benches, maintenance areas, mobile service vehicles, and overhead or wall-mounted hose management layouts.

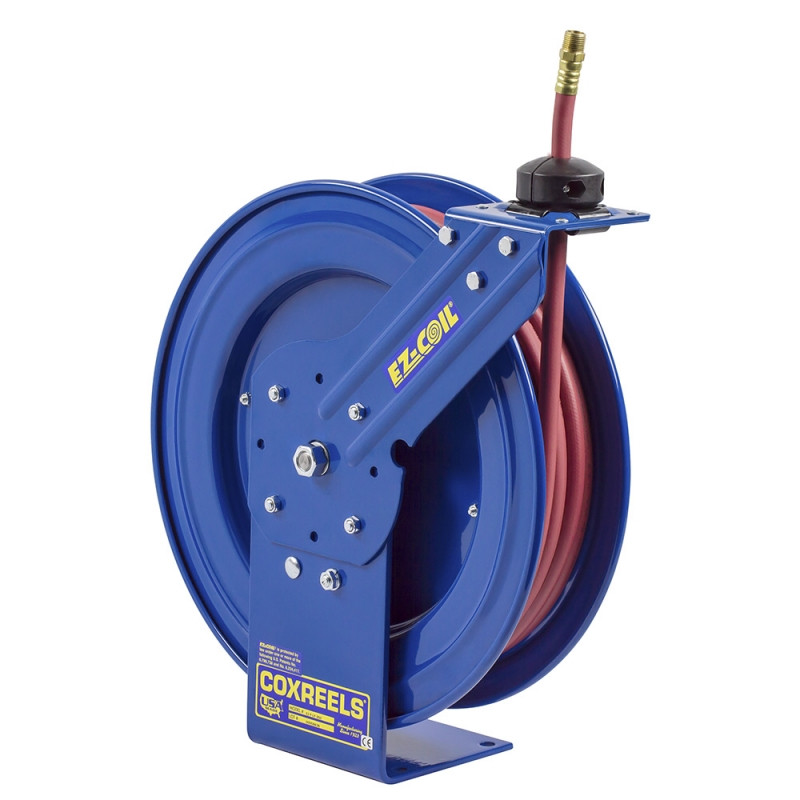

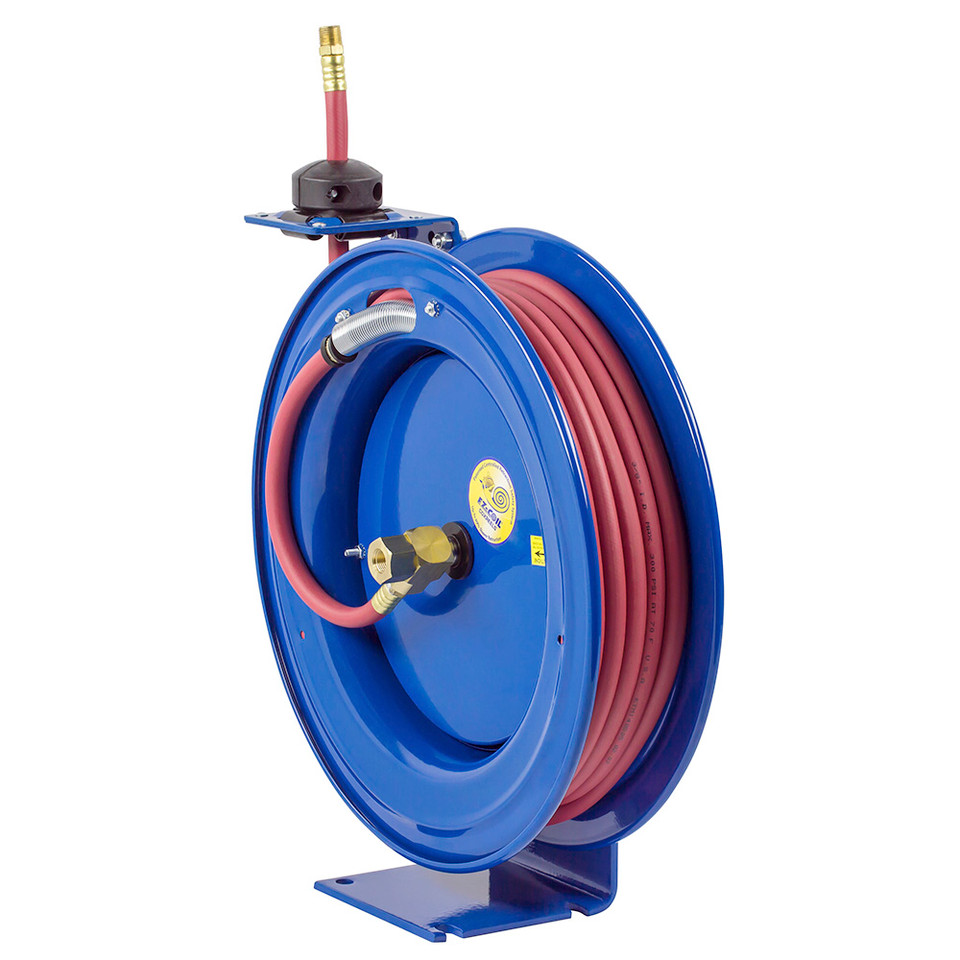

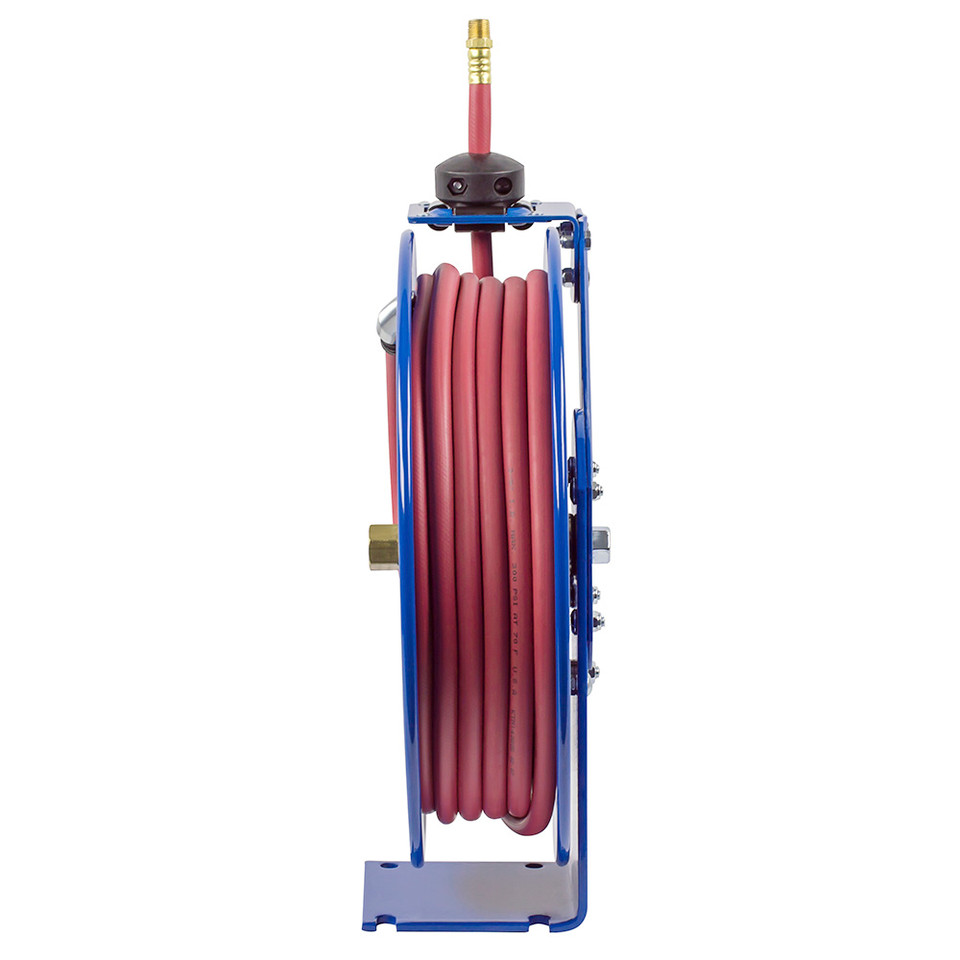

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ Coil Spring Rewind Hose Reel | Series: EZ-P Series | Model: EZ-P-LPL-450 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 43 lb | Size Index: 4
Features:
- EZ-Coil controlled rewind system retracts the hose up to 80% slower than conventional spring driven reels, helping reduce hose whip during rewind.
- External fluid path with machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel body.
- Nitrile swivel seals provide compatibility for the listed low-pressure air, water, and oil reel service.
- Sturdy single-pedestal design saves mounting space while helping keep hoses organized and off the floor.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to fit different shop and service truck layouts.
- Solid one-piece heavy-gauge 1/4" steel base and support post provide stable reel mounting.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Enclosed, factory-tuned cartridge-style spring motor helps simplify spring service while keeping the rewind mechanism protected.
- Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet support reliable locking and retraction performance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fleet and service trucks: Managing air, water, or oil hose on mobile maintenance vehicles where hose control and compact storage are important.
- Automotive repair shops: Keeping 1/2" hose accessible for bays, benches, and general shop service without leaving excess hose across the floor.
- Industrial maintenance and MRO: Supplying low-pressure hose access near workstations, equipment service areas, and plant maintenance zones.
- Fabrication and manufacturing areas: Organizing utility hose near machinery, work cells, and assembly spaces where repeated hose pullout and rewind are common.
- Garage and workshop setups: Providing controlled hose storage for users who want to select and install their own compatible 1/2" hose.
FAQs:
- Q: What does “less hose” mean on the EZ-P-LPL-450?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately and should not exceed the listed hose O.D. if the full 50 ft capacity is needed. - Q: Can this reel be used for air, water, or oil?
A: Yes. Coxreels lists the low-pressure less-hose models for air, water, or oil service, provided the installed hose, fittings, pressure, and temperature ratings match the application. - Q: What is the benefit of EZ-Coil controlled rewind?
A: EZ-Coil slows the spring rewind action compared with conventional spring driven reels. This helps improve control as the hose returns to the reel and can reduce the whipping action that may occur with faster rewind systems. - Q: Can the guide arm be repositioned?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be set up around the direction the hose will be pulled. - Q: What size hose is this reel built to hold?
A: This model is built for up to 50 ft of 1/2" I.D. hose with a listed 3/4" hose O.D. capacity. Using hose with a larger outside diameter may reduce how much hose the reel can hold.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
