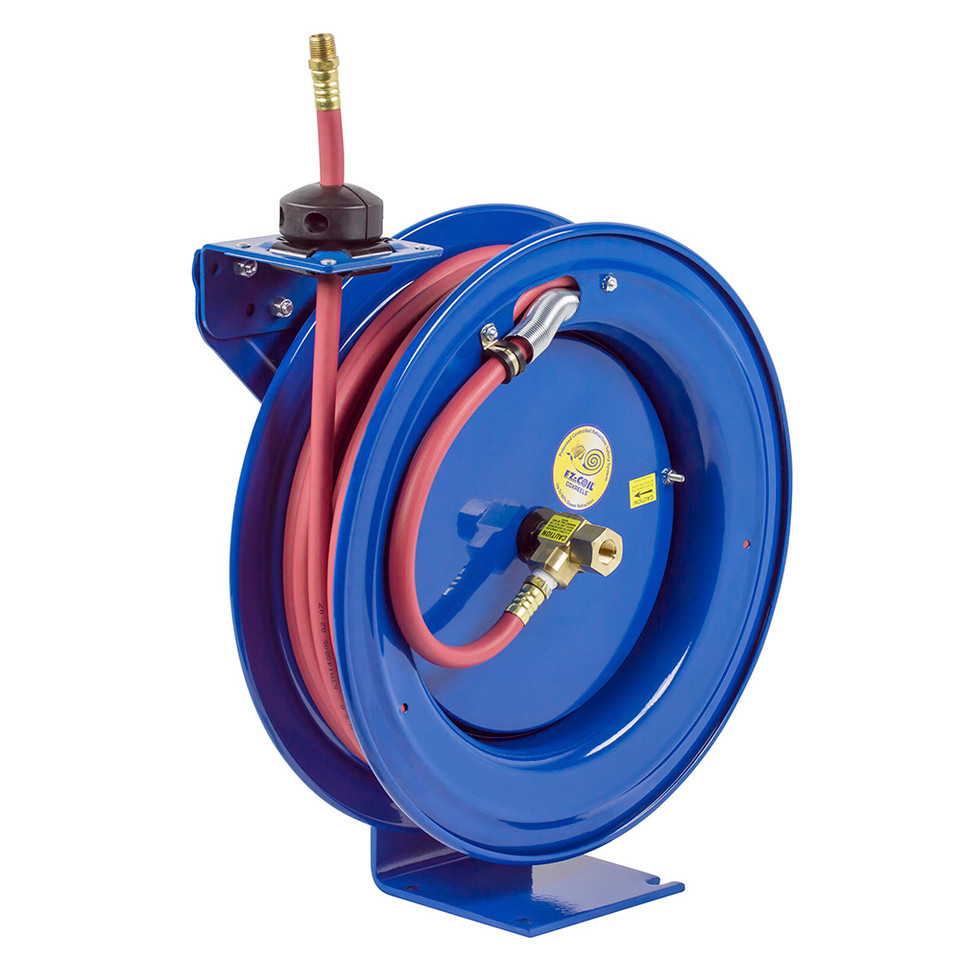

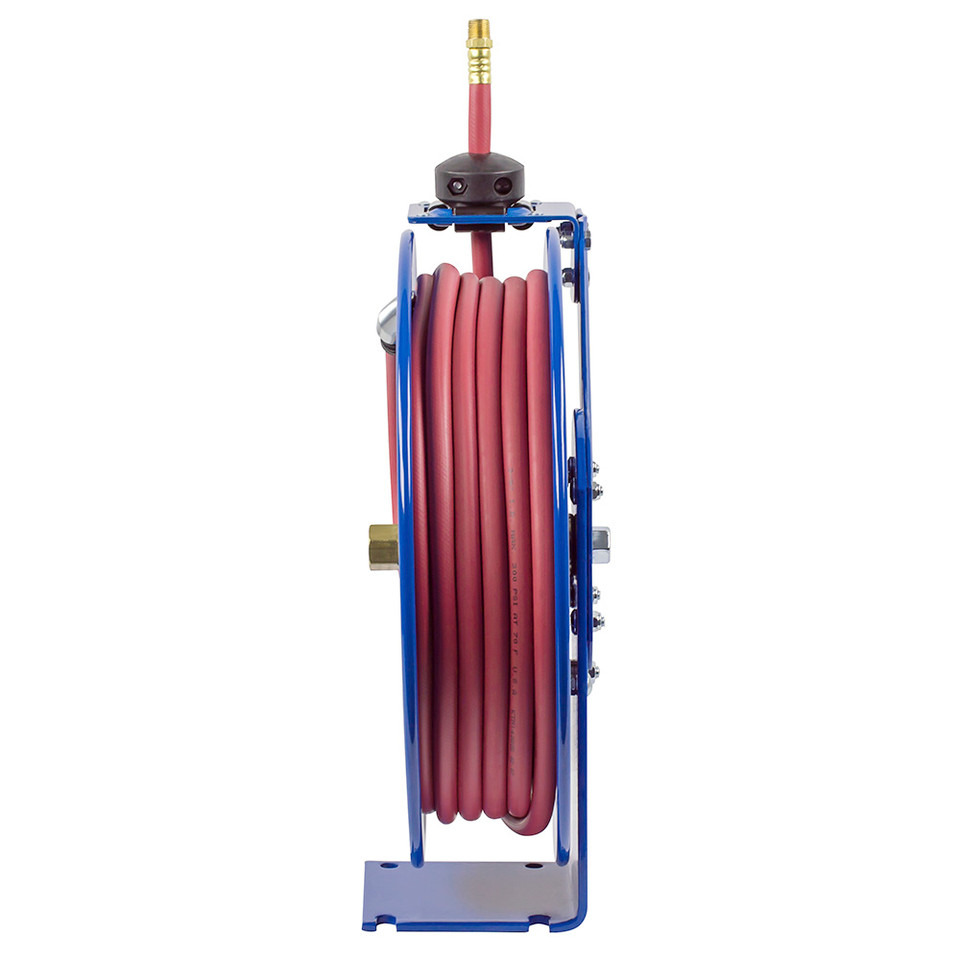

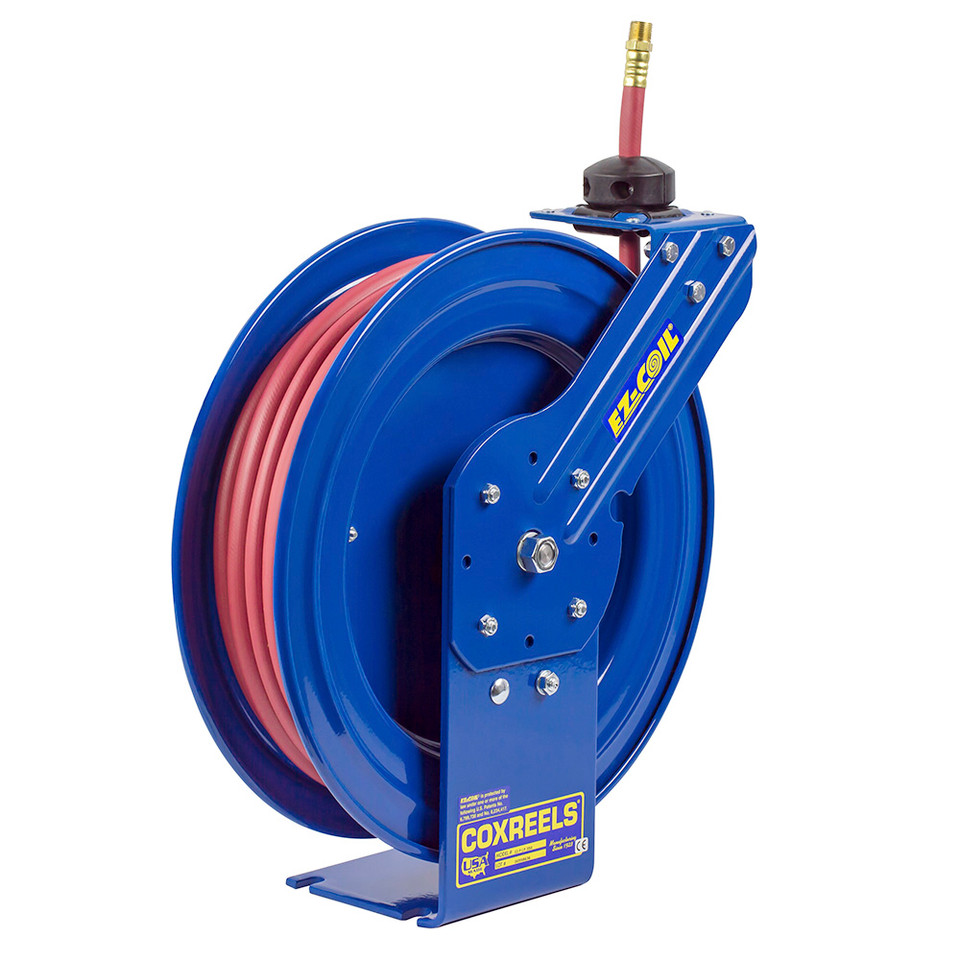

Built for controlled hose handling in lube rooms, service bays, fleet shops, and maintenance areas, the Coxreels EZ-P-MPL-425 EZ Coil spring rewind hose reel provides organized storage for 1/2" I.D. medium-pressure hose up to 25 ft long. Its 2,500 PSI rating supports higher-pressure air, water, and oil transfer setups when paired with a compatible hose selected for the fluid, pressure, and temperature requirements. The EZ Coil retraction system uses Coxreels’ patented safety rewind design, which retracts up to 80% slower than conventional spring driven reels to help reduce hose whip and improve control during rewind. The EZ-P Series combines a compact single-pedestal frame with a heavy-gauge steel base, adjustable guide arm, and multi-position lock ratchet for practical installation on floors, walls, benches, vehicles, or overhead structures. As a less hose configuration, this reel is a strong fit for buyers who already have a preferred hose type or need to match a specific oil, water, or air service requirement without paying for a pre-installed hose that may not suit the job.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ Coil Spring Rewind Hose Reel | Series: EZ-P Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 25 ft | Max Pressure: 2,500 PSI | Swivel Seals: Nitrile | Approx. Ship Weight: 42 lbs
Features:
- EZ Coil patented safety rewind system retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel body.
- Nitrile swivel seals provide compatibility for many common air, water, and oil applications when used with the correct hose and fluid setup.
- Sturdy single pedestal reel with a space-saving footprint helps keep work areas cleaner and reduces loose hose on the floor.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible placement around work cells or service equipment.
- Solid one-piece, heavy-gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle with lubricated precision bearings supports smooth reel rotation during pull-out and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fleet maintenance and vehicle service areas using medium-pressure hose for oil, water, or shop fluid delivery.
- Industrial maintenance departments that need controlled hose storage near machinery, pumps, compressors, or lubrication points.
- Automotive and truck shops where a compact rewind reel helps keep hoses off the floor between service tasks.
- Plant MRO and facility repair stations requiring a reel-only setup so the hose can be selected separately for the application.
- Mobile service trucks and work vehicles where the adjustable guide arm supports vehicle-mounted hose routing.
FAQs:
- Q: What does “less hose” mean on the EZ-P-MPL-425?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately and confirm the hose pressure, temperature, and fluid compatibility before use. - Q: What is the benefit of the EZ Coil rewind system?
A: Coxreels’ EZ Coil system retracts up to 80% slower than conventional spring driven reels. This gives the user more control during rewind and helps reduce the sudden snap-back often associated with standard spring rewind reels. - Q: Can this reel be used for oil service?
A: Yes, this model is commonly used for medium-pressure oil, water, or air applications when paired with a hose suitable for the fluid and working pressure. Because this SKU does not include hose, final compatibility depends on the hose selected. - Q: How can this reel be mounted?
A: The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Confirm the mounting surface and fasteners can support the reel, hose, and operating loads before installation. - Q: What hose size should be used with this reel?
A: This reel is listed for 1/2" I.D. hose with a 13/16" hose O.D. and 25 ft capacity. Do not exceed the listed hose O.D. if you need to maintain the full rated hose capacity.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
