Built for air, water, or oil service where the customer wants to install their own hose, the Coxreels EZ-P-LPL-125 provides EZ-Coil controlled retraction — Coxreels’ patented safety system that retracts up to 80% slower than conventional Spring Driven Reels. This “less hose” model accepts 25 ft. of 1/4" I.D. hose with a maximum 1/2" O.D., making it a compact choice for workstations, service benches, mobile equipment, and shop air drops. Rated for 300 PSI low-pressure service, the reel uses a single pedestal frame, adjustable guide arm, solid 1/4" steel base and support post, and a 1" solid steel axle with lubricated precision bearings for smooth payout and rewind. The multi-position lock ratchet secures the hose at the working length you choose.

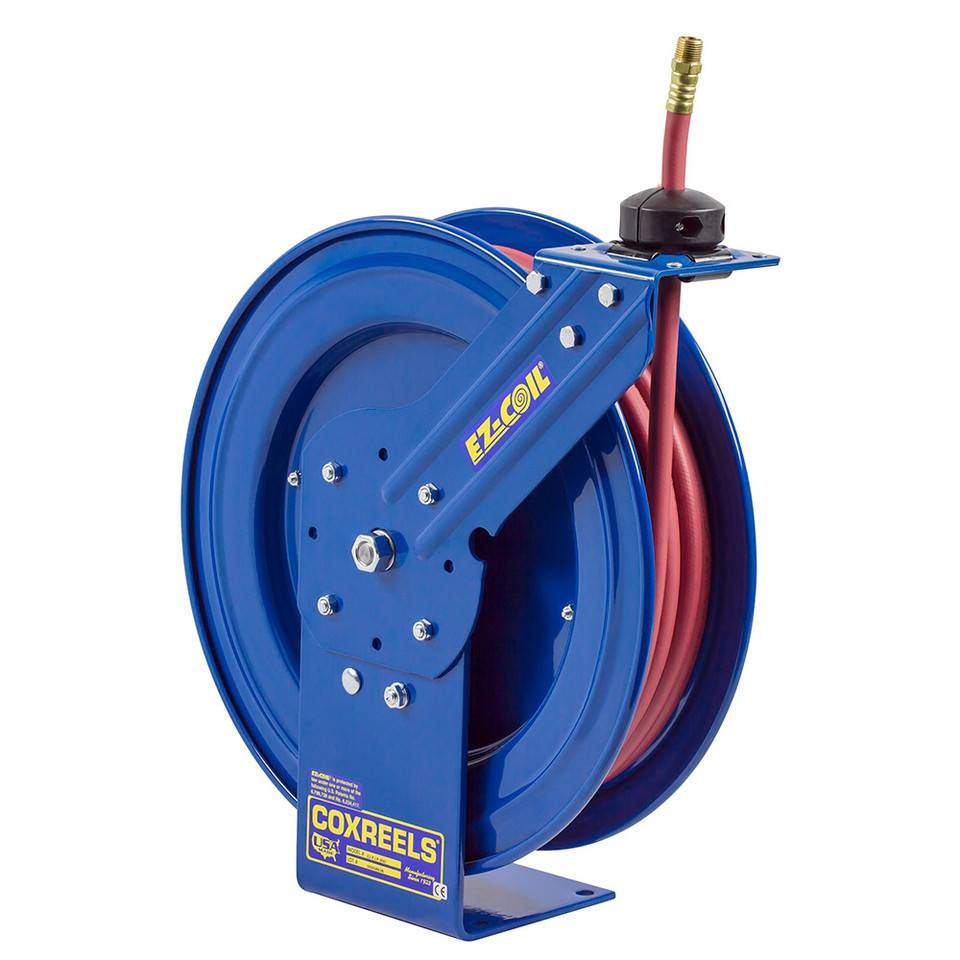

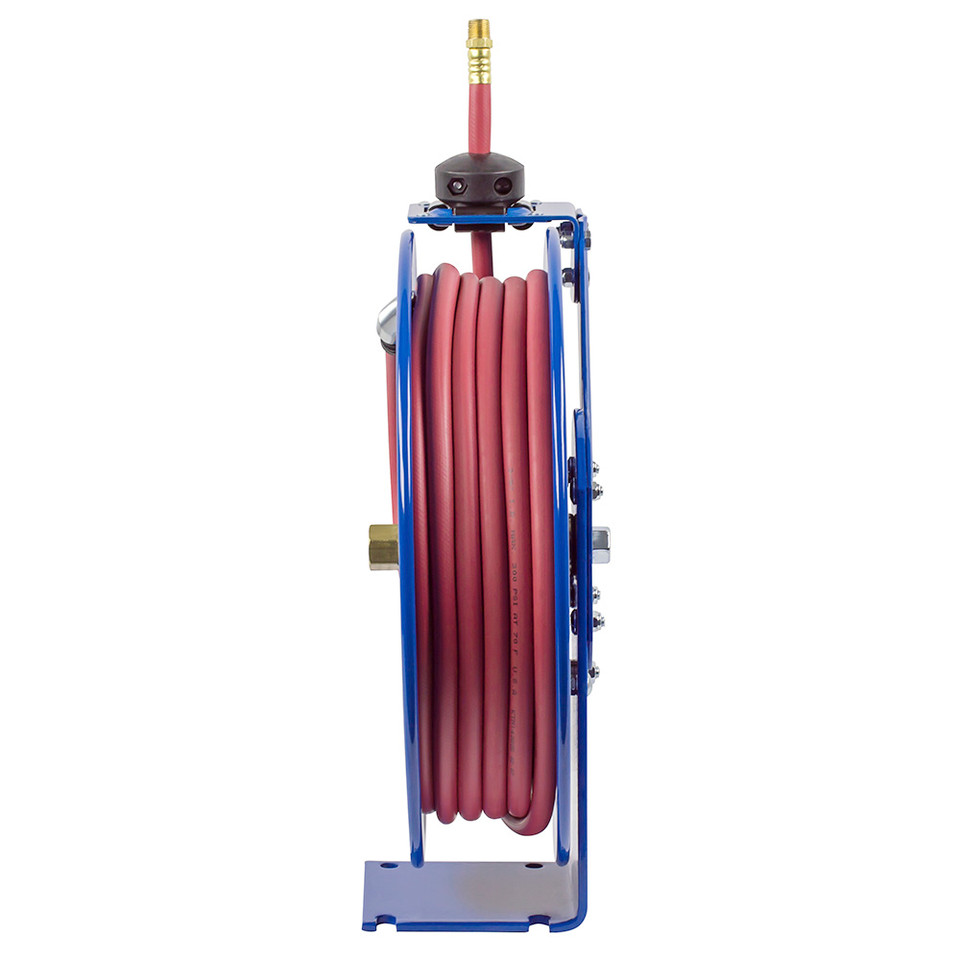

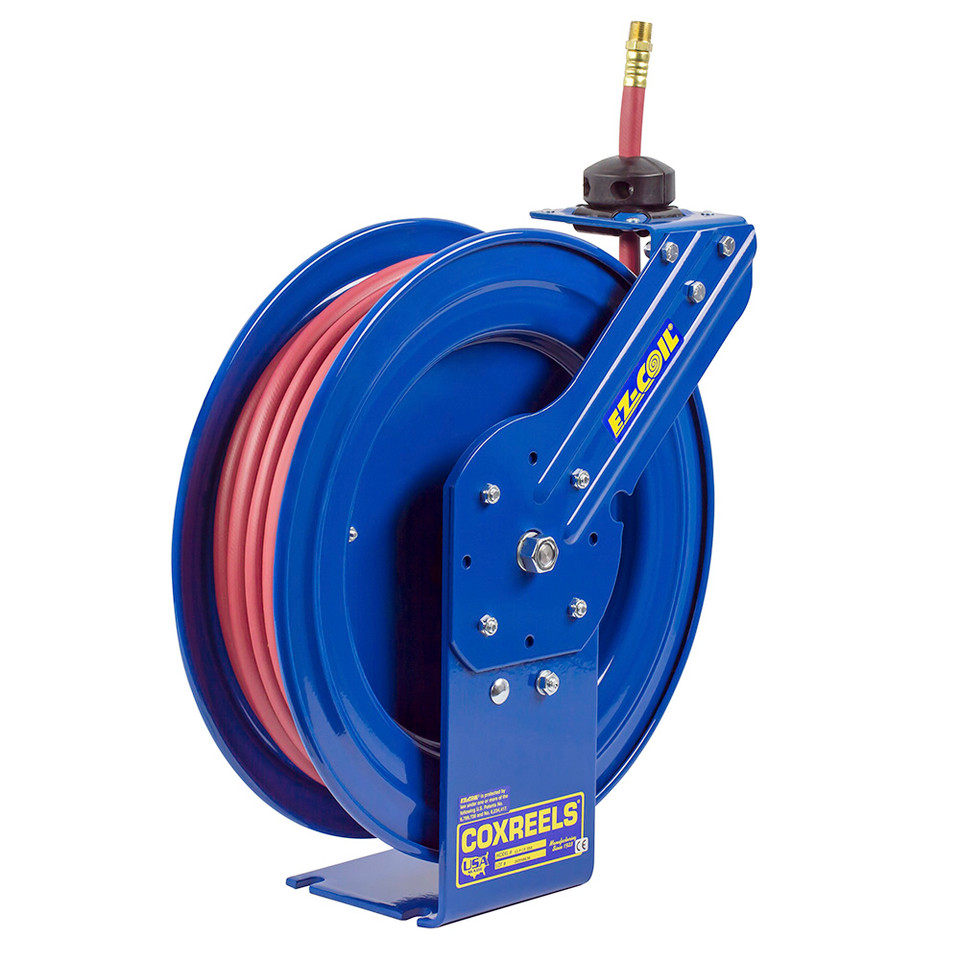

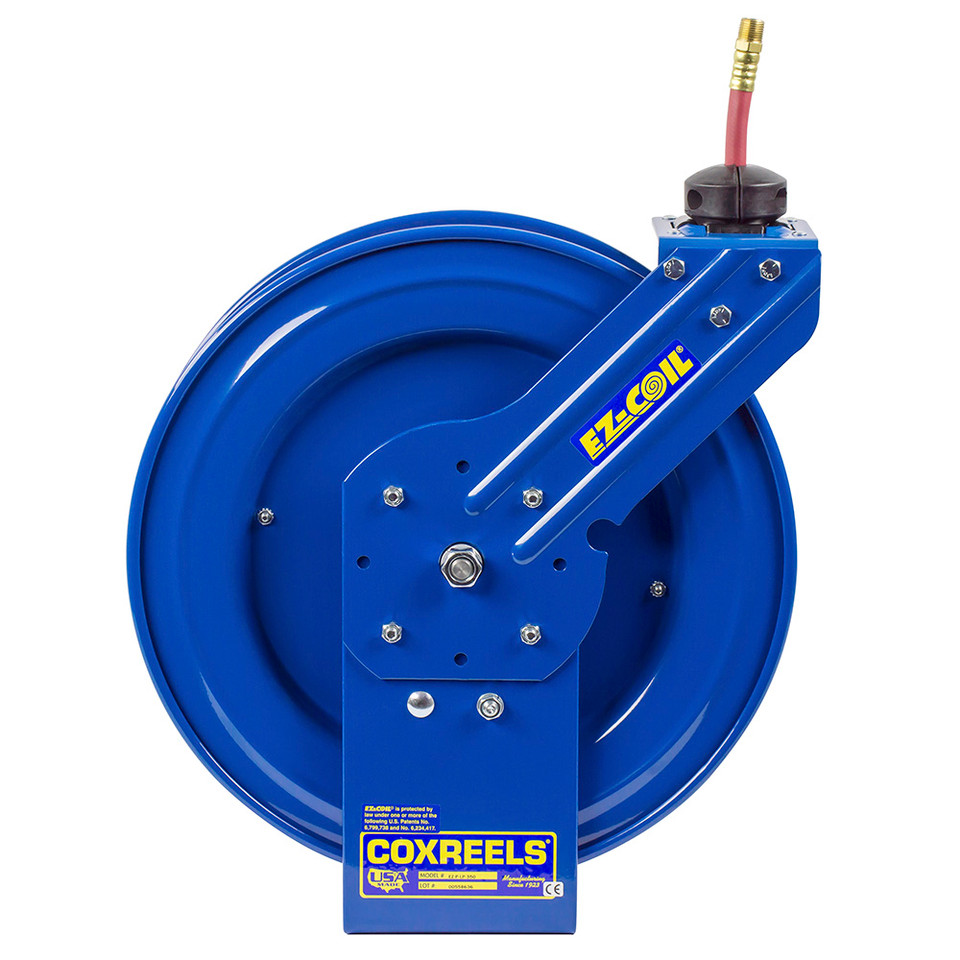

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel, Less Hose | Series: EZ-P Series | Model: EZ-P-LPL-125 | Hose I.D.: 1/4" | Max Hose O.D.: 1/2" | Hose Capacity: 25 ft. | Max Pressure: 300 PSI | Approx. Weight: 24 lbs. | Size Index: 1 | Overall Dimensions: W 5-7/8" x H 14-7/8" x L 13-1/2" | Base Mounting Pattern: X 5" x Y 6" | Mounting Hole Pattern: M 3" x N 5"
Features:
- EZ-Coil patented safety system retracts up to 80% slower than conventional spring driven reels
- Less-hose configuration lets you install a hose matched to your application
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet
- NITRILE swivel seals for low-pressure air, water, or oil service
- Sturdy single pedestal reel with compact, space-saving footprint
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions
- Solid one-piece heavy gauge 1/4" steel base and support post
- Multi-position lock ratchet secures hose at the desired length
Made in USA:
Applications:
- Shop air stations — keeping short air hose runs controlled at benches, lifts, and tool stations
- Maintenance & MRO — routing air, water, or oil lines where hose length and material are selected by the user
- Service trucks & mobile repair — compact hose storage with controlled rewind in limited vehicle space
- Manufacturing workcells — organized hose access for assembly, cleaning, and light fluid transfer tasks
- Garage & home workshop — safer hose rewind and cleaner storage than loose hose on the floor
FAQs:
- Q: What does “less hose” mean on the EZ-P-LPL-125?
A: It means the reel is supplied without hose. You select and install a compatible 1/4" I.D. hose up to 25 ft. long with a maximum 1/2" outside diameter. - Q: Can this reel be used for air, water, or oil?
A: Coxreels states that low-pressure models less hose can be used for air, water, or oil service. Confirm hose material compatibility with the fluid being used before installation. - Q: What is EZ-Coil retraction?
A: EZ-Coil is Coxreels’ patented controlled-retraction safety system. It slows rewind speed up to 80% compared with conventional spring driven reels, helping reduce hose whip during rewind. - Q: Can the guide arm be repositioned?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be installed around the way the hose will be pulled.
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- EZ Coil Spring Rewind Hose Reel
- Series
- EZ-P Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 25
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
