Built for low-pressure hose management where a larger 1/2" hose is preferred, the Coxreels EZ-P-LPL-430 EZ Coil Spring Rewind Hose Reel gives service shops, maintenance teams, and mobile technicians a controlled-rewind reel without a preinstalled hose. This EZ-P Series less-hose model is sized for 1/2" hose I.D., supports up to 30 ft of hose, and is rated for 300 PSI maximum pressure, allowing buyers to match the reel with their own compatible hose, end fittings, and fluid-handling requirements. The EZ-Coil safety rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the user more control as the hose returns to the reel. A single pedestal frame keeps the footprint compact, while the solid one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support smooth pullout and rewind. The adjustable guide arm allows wall, floor, vehicle, or overhead installation to suit the workspace layout.

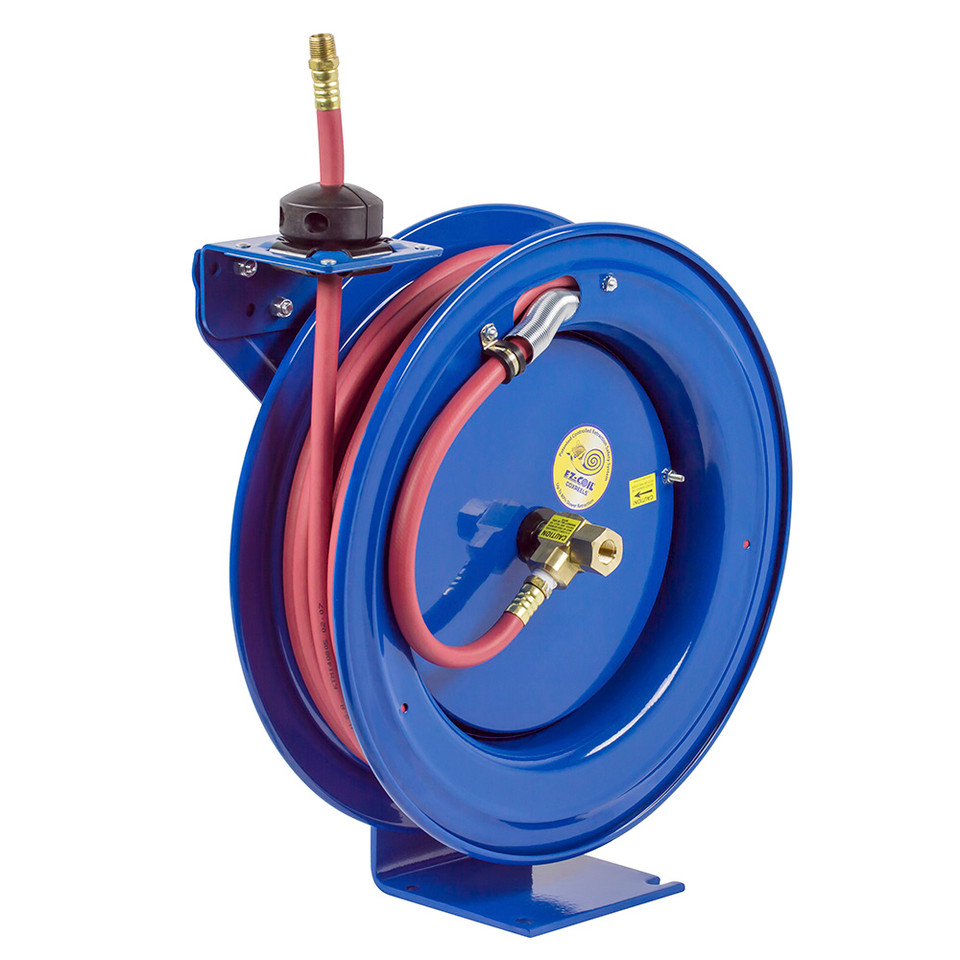

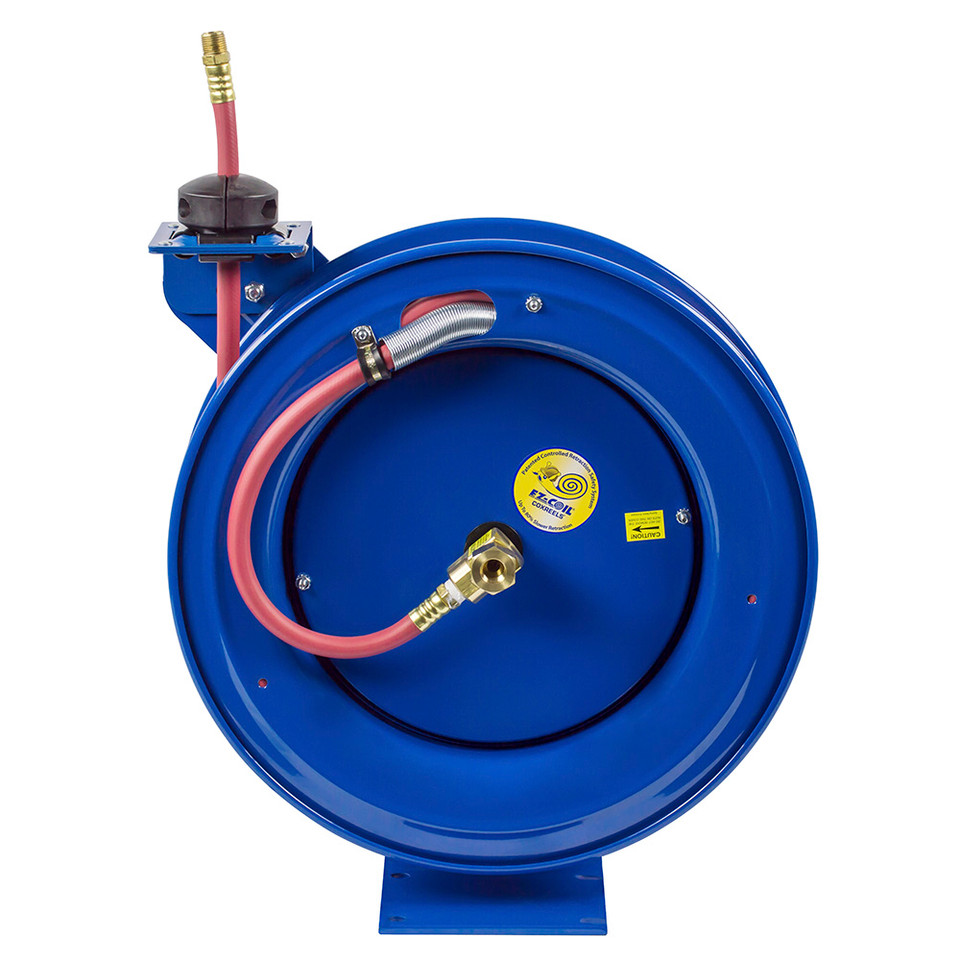

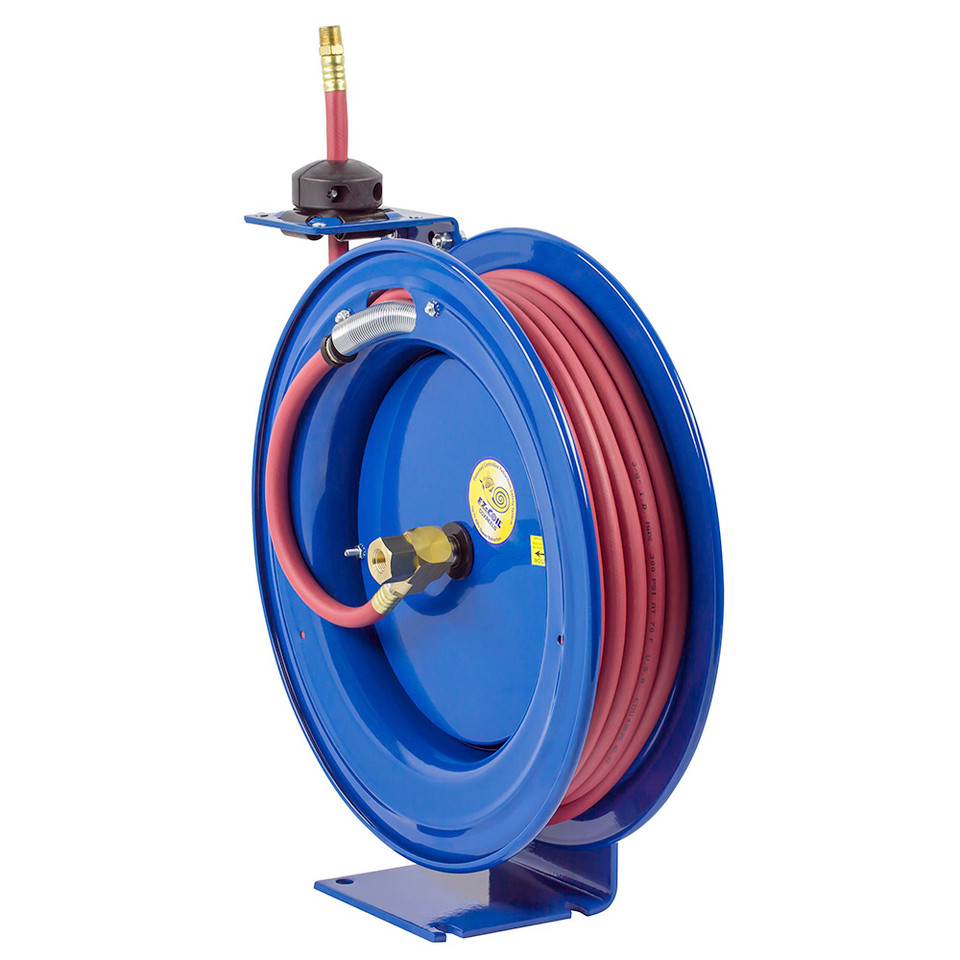

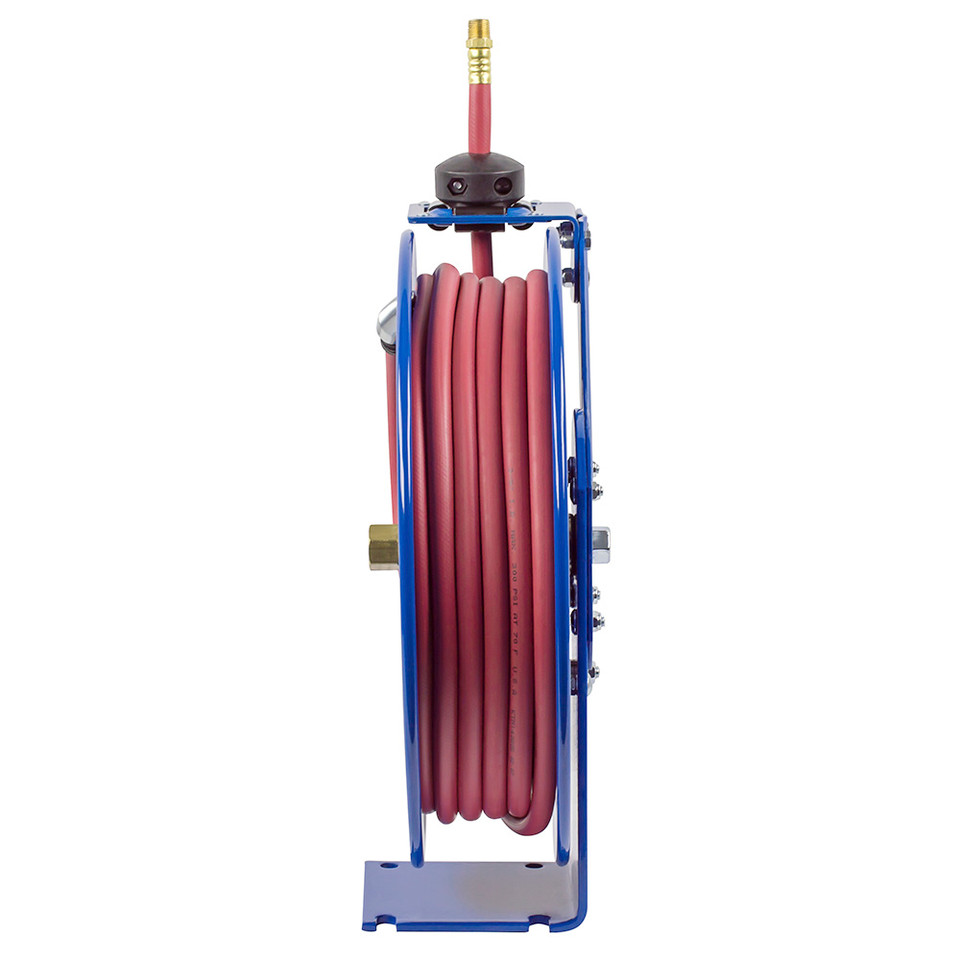

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Model: EZ-P-LPL-430 | Configuration: Less Hose | Hose I.D.: 1/2" | Max Hose O.D.: 3/4" | Hose Capacity: 30 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 40 lbs. | Size Index: 4
Features:
- EZ-Coil controlled rewind retracts up to 80% slower than conventional spring driven reels for a steadier, more manageable hose return.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet to help maintain efficient flow through the reel.
- Nitrile swivel seals support the reel’s listed low-pressure air, water, and oil service.
- Single pedestal reel design helps conserve mounting space while keeping hose stored neatly between uses.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation in shops, trucks, and work cells.
- Solid one-piece 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle and lubricated precision bearings promote smooth reel rotation during hose pullout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the selected working length.
- Enclosed, factory tuned cartridge-style spring motor supports consistent spring rewind performance.
Made in USA:
Applications:
- Fleet and vehicle service — managing 1/2" low-pressure hose for general shop air, washdown, or fluid transfer tasks within the reel rating.
- Industrial maintenance areas — placing hose at equipment service points, benches, and utility stations where a larger hose I.D. is needed.
- Mobile service trucks — mounting a compact reel to a truck or trailer while selecting hose material separately for the job.
- Manufacturing and repair shops — keeping low-pressure air, water, or oil hose organized near production support and repair stations.
- Garage and workshop setups — adding controlled 1/2" hose storage for users who want to choose their own hose and fittings.
FAQs:
- Q: Does the EZ-P-LPL-430 come with hose installed?
A: No. This is a less-hose model, meaning the reel is supplied without hose. The user must provide compatible hose separately. - Q: What hose size fits this model?
A: The EZ-P-LPL-430 is listed for 1/2" hose I.D. with a maximum hose O.D. of 3/4". Do not exceed the listed hose O.D. if you need the full 30 ft hose capacity. - Q: What does EZ-Coil do?
A: EZ-Coil is Coxreels’ patented safety rewind system. It slows hose retraction compared with conventional spring driven reels, giving the operator better control as the hose returns. - Q: Can this reel be used for oil service?
A: Yes. The manufacturer states that low-pressure less-hose models can be used for air, water, or oil. The separately supplied hose, fittings, and any accessories must also be compatible with the fluid being used. - Q: Can the reel be mounted overhead or on a service vehicle?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, allowing the reel to be installed around the direction of hose payout.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
