When high-pressure hose control needs a slower, safer rewind, the Coxreels EZ-P-HPL-125 EZ-Coil spring rewind hose reel gives maintenance teams a compact reel platform for managing 1/4" I.D. hose up to 25 ft with a 5,000 PSI maximum pressure rating. This EZ-P Series reel is supplied less hose, allowing the buyer to install a compatible hose for the intended fluid, pressure, temperature, and fitting requirements. Its EZ-Coil controlled rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce whip, impact, and uncontrolled hose return in busy work areas. Built on Coxreels’ single pedestal P Series frame, the EZ-P-HPL-125 uses a solid one-piece steel base and support post, a 1" solid steel axle, lubricated precision bearings, and a zinc plated steel swivel used on HP models. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, making this reel a practical fit for lube trucks, hydraulic service areas, fleet maintenance bays, and shop installations where high-pressure hose must stay organized and ready for repeat use.

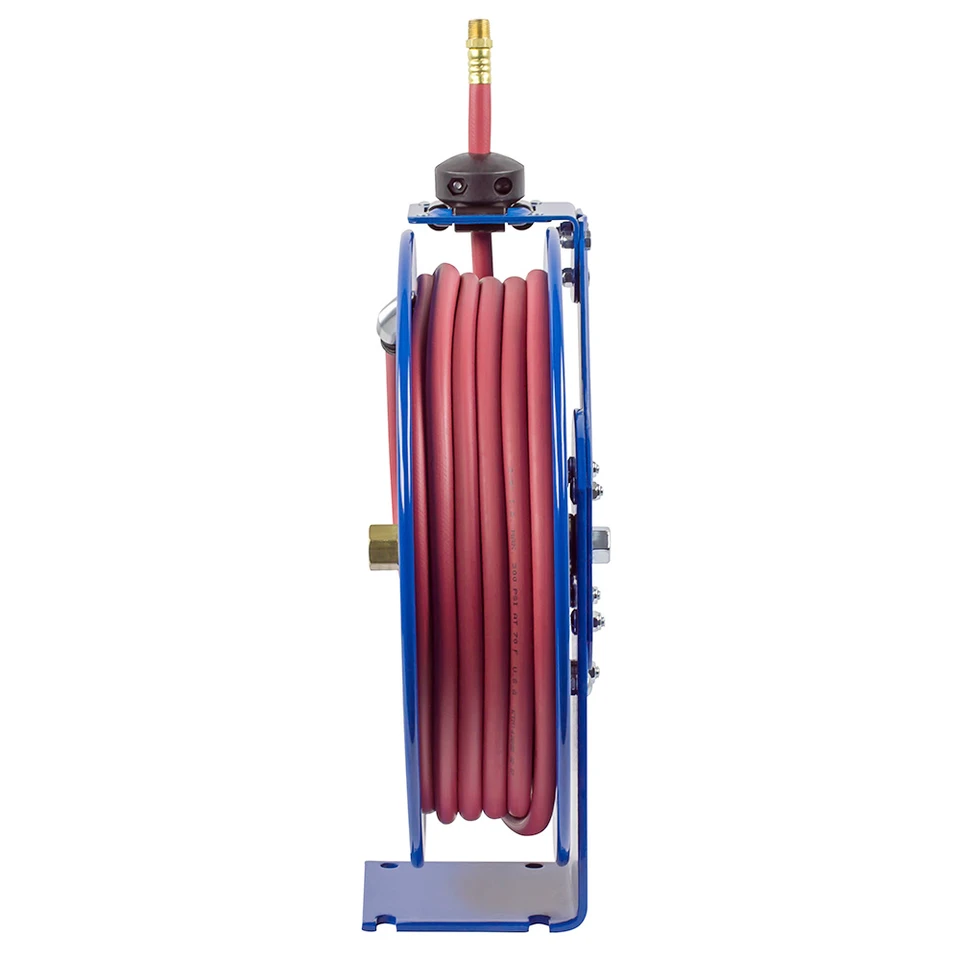

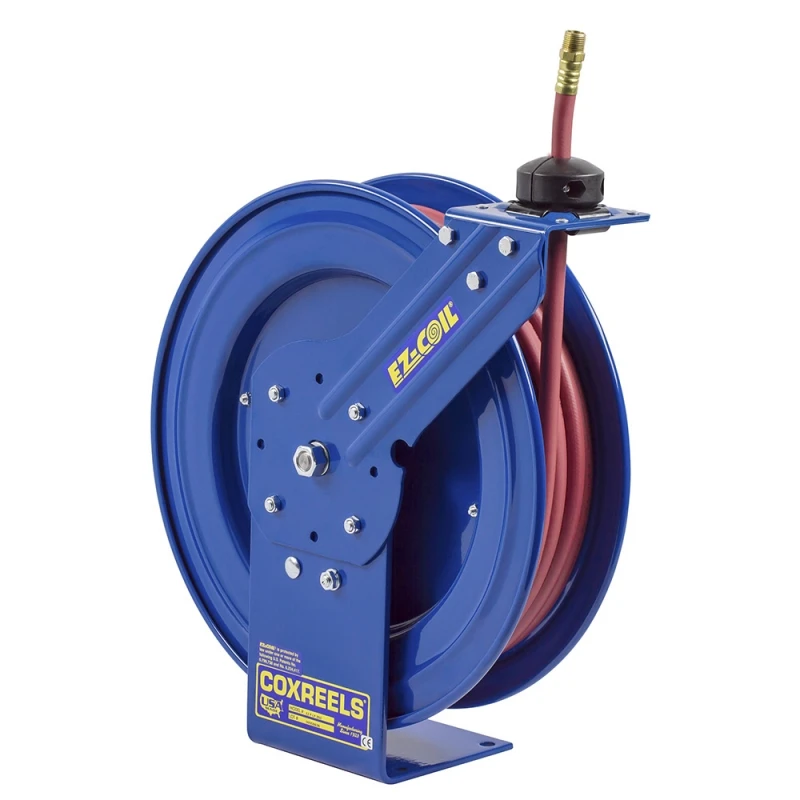

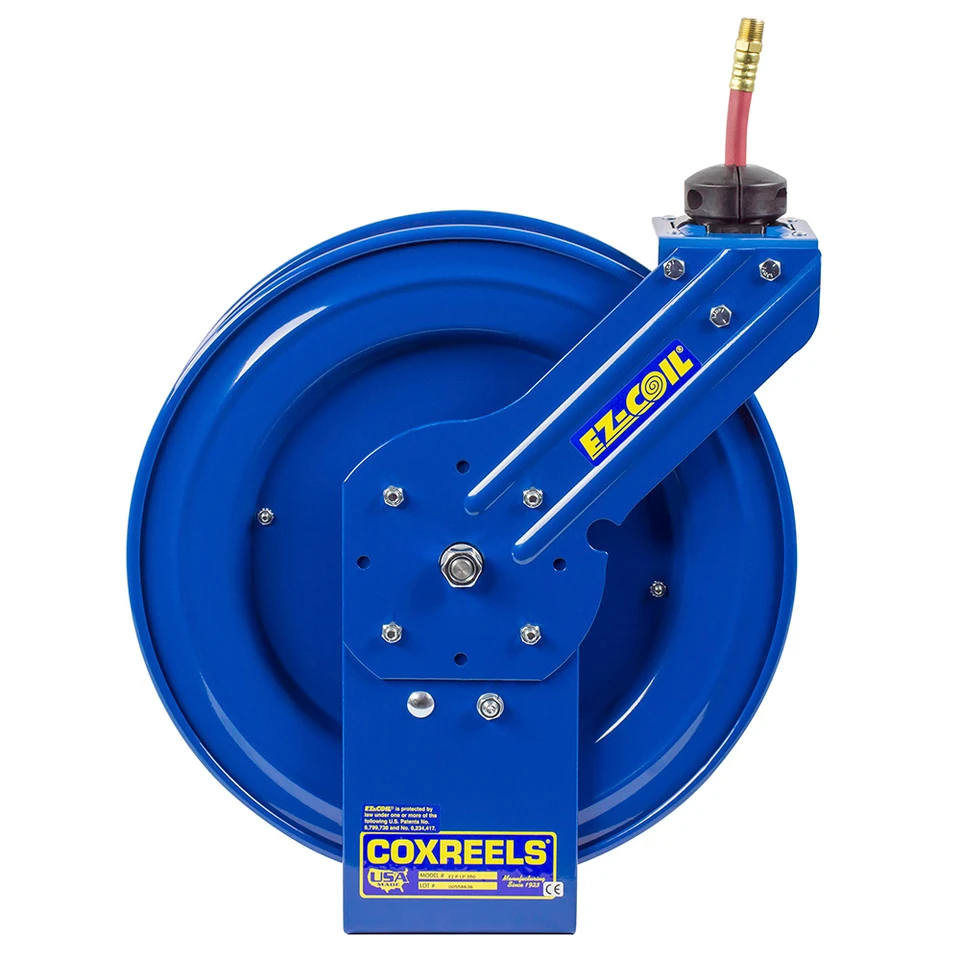

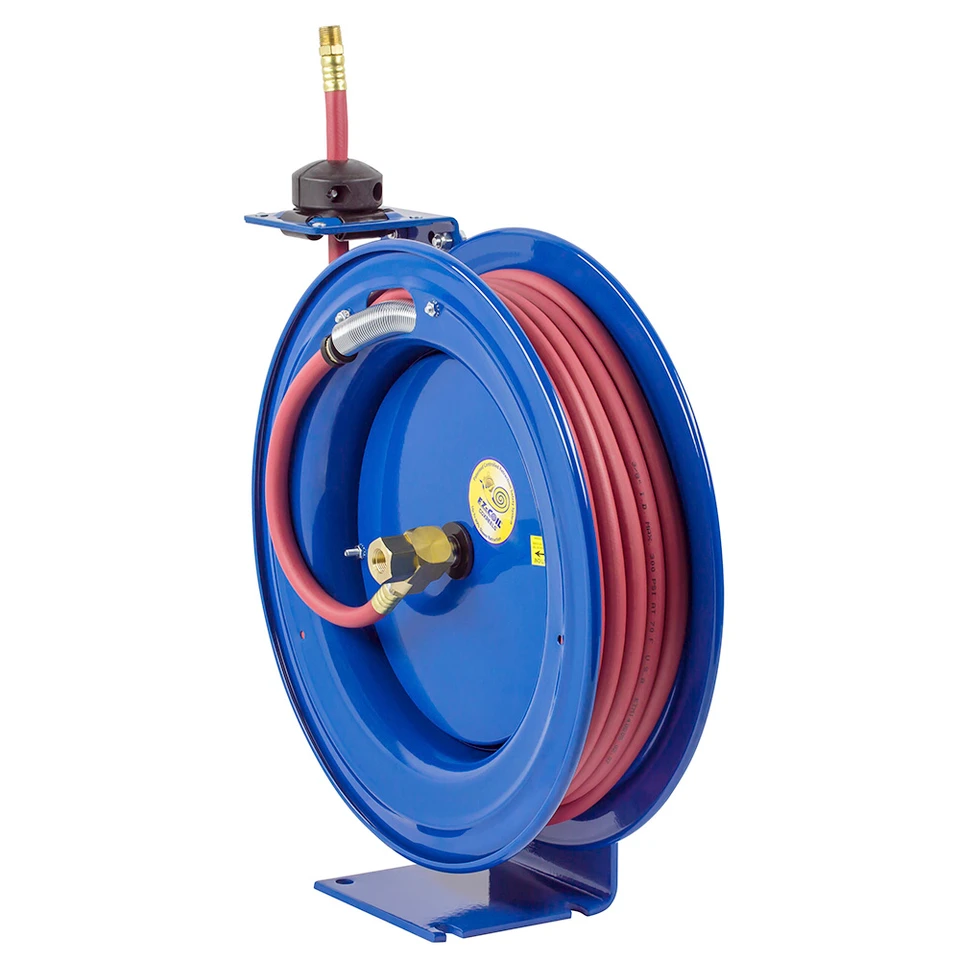

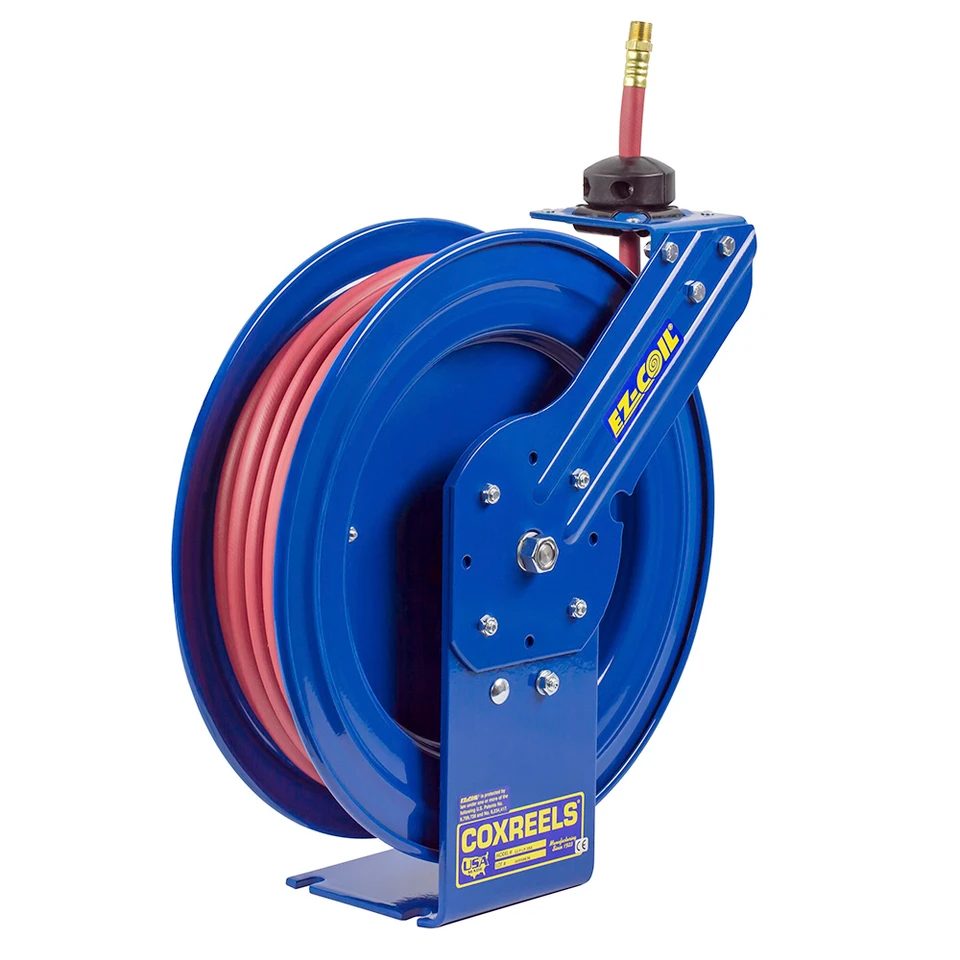

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Configuration: Less Hose | Model: EZ-P-HPL-125 | Hose I.D.: 1/4" | Maximum Hose O.D.: 9/16" | Hose Capacity: 25 ft | Max Pressure: 5,000 PSI | Swivel: Zinc Plated Steel Swivel on HP Models | Swivel Seals: Nitrile | Size Index: 4 | Approx. Weight: 42 lbs | Overall Dimensions: 7" W x 18-5/8" H x 17-1/8" L | Base Mounting Pattern: 6" x 6" | Mounting Holes: 4" x 5"
Features:
- EZ-Coil patented safety system retracts up to 80% slower than conventional spring driven reels, giving operators more controlled hose return.
- External fluid path with zinc plated steel swivel on HP models supports high-pressure service while keeping the swivel accessible for maintenance.
- Nitrile swivel seals provide compatibility with common petroleum-based service fluids when matched with the correct hose and system requirements.
- Sturdy single pedestal frame saves space and helps keep hose off the floor for cleaner, more organized work areas.
- Guide arm adjusts for wall, floor, vehicle, and overhead positions, giving installers flexibility when mounting the reel in shops or on service equipment.
- Solid one-piece heavy gauge 1/4" steel base and support post provide stable support without relying on a welded post joint.
- 1" solid steel axle and lubricated precision bearings promote smooth rotation during pull-out and rewind.
- Multi-position lock ratchet mechanism secures the hose at the selected working length and helps prevent unwanted retraction during use.
Made in USA:
Applications:
- Hydraulic service areas — managing short high-pressure hose runs for maintenance, testing, and service work where 5,000 PSI capacity is required.
- Fleet and mobile service trucks — keeping hydraulic or grease service hose stored compactly on trucks, skids, and maintenance vehicles.
- Industrial maintenance and MRO — organizing hose around work cells, equipment service stations, and repair bays to reduce trip hazards and hose damage.
- Lubrication and grease systems — supporting compatible high-pressure hose installations for grease delivery when the hose, fittings, and fluid match system requirements.
- Repair shops and fabrication facilities — mounting on floors, benches, walls, or overhead structures where controlled rewind and compact hose storage improve workflow.
FAQs:
- Q: What does “less hose” mean on the EZ-P-HPL-125?
A: It means this reel is supplied without hose installed. The buyer must provide a compatible 1/4" I.D. hose that fits the reel capacity, does not exceed the listed hose O.D., and is rated for the system pressure, fluid, and temperature. - Q: What is EZ-Coil rewind?
A: EZ-Coil is Coxreels’ controlled rewind system. It retracts the hose up to 80% slower than a conventional spring driven reel, which helps reduce hose whip and improves control during rewind. - Q: Can this reel be used for hydraulic oil or grease service?
A: The EZ-P-HPL-125 is part of the high-pressure HP configuration, and the catalog lists HP models for grease and hydraulic oil applications when properly equipped. Because this SKU is less hose, the installed hose and fittings must also be rated for the intended service. - Q: How can this reel be mounted?
A: The guide arm can be adjusted for wall, floor, vehicle, and overhead mounting positions. The listed size index 4 frame has a 6" x 6" base mounting pattern with 4" x 5" mounting hole spacing. - Q: Is the hose stop included?
A: The source material confirms this model is supplied less hose, but does not clearly confirm included hose stop details for this exact SKU. Please verify the supplied components before publishing or ordering if a hose stop is required.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
