When hose control matters in a service bay, maintenance shop, or mobile work area, the Coxreels EZ-P-LPL-330 EZ Coil Spring Rewind Hose Reel gives buyers a compact reel platform with controlled retraction and flexible mounting options. This EZ-P Series reel is configured for 3/8" hose I.D. with a 30 ft hose capacity and 300 PSI maximum pressure, making it a practical reel-only choice for low-pressure air, water, or oil service when the user wants to install a compatible hose separately. The EZ-Coil system uses Coxreels’ patented safety rewind design to retract up to 80% slower than conventional spring driven reels, helping reduce hose whip and improve control during rewind. A single pedestal frame, one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support smooth rotation, while the multi-position guide arm allows installation on a wall, floor, vehicle, or overhead surface.

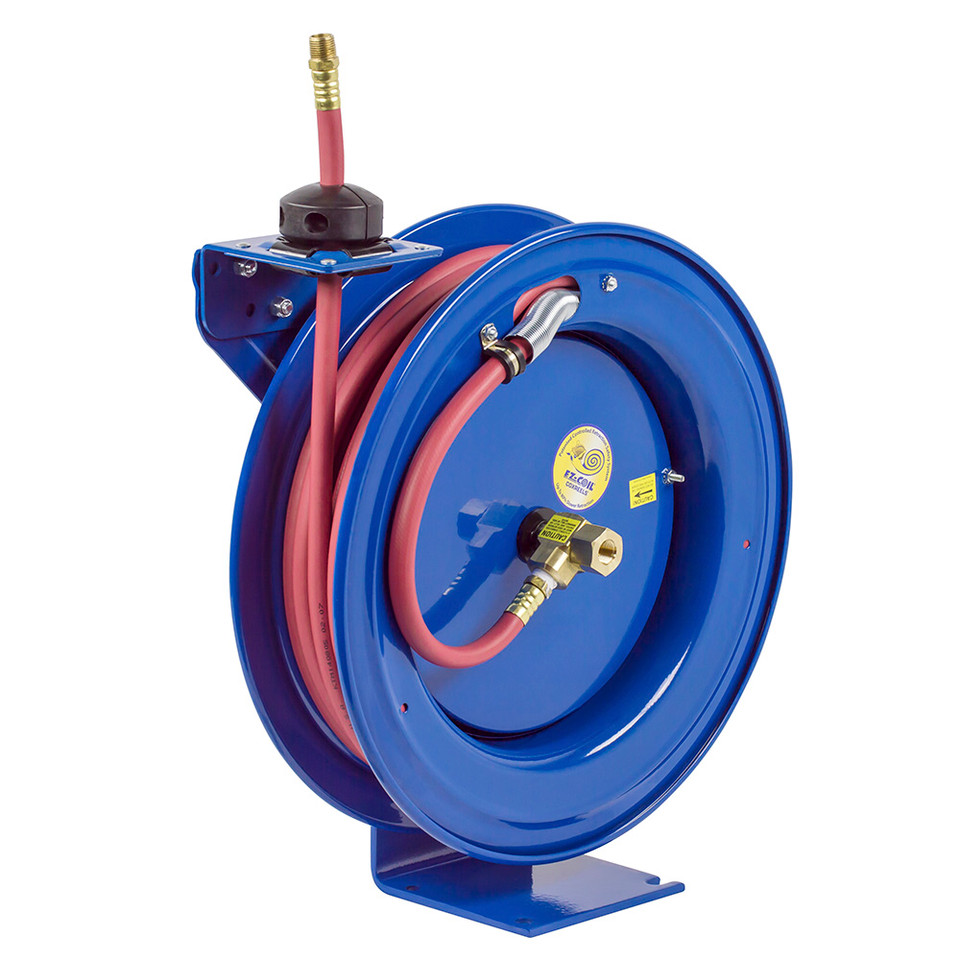

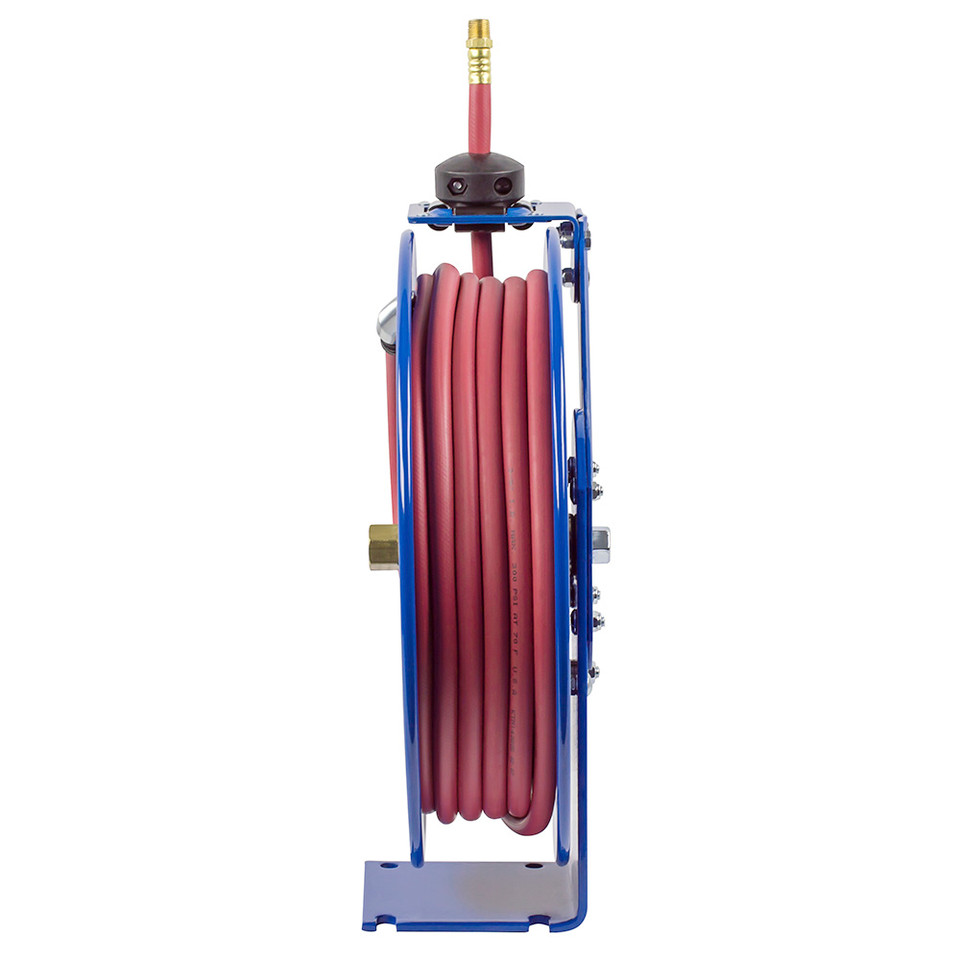

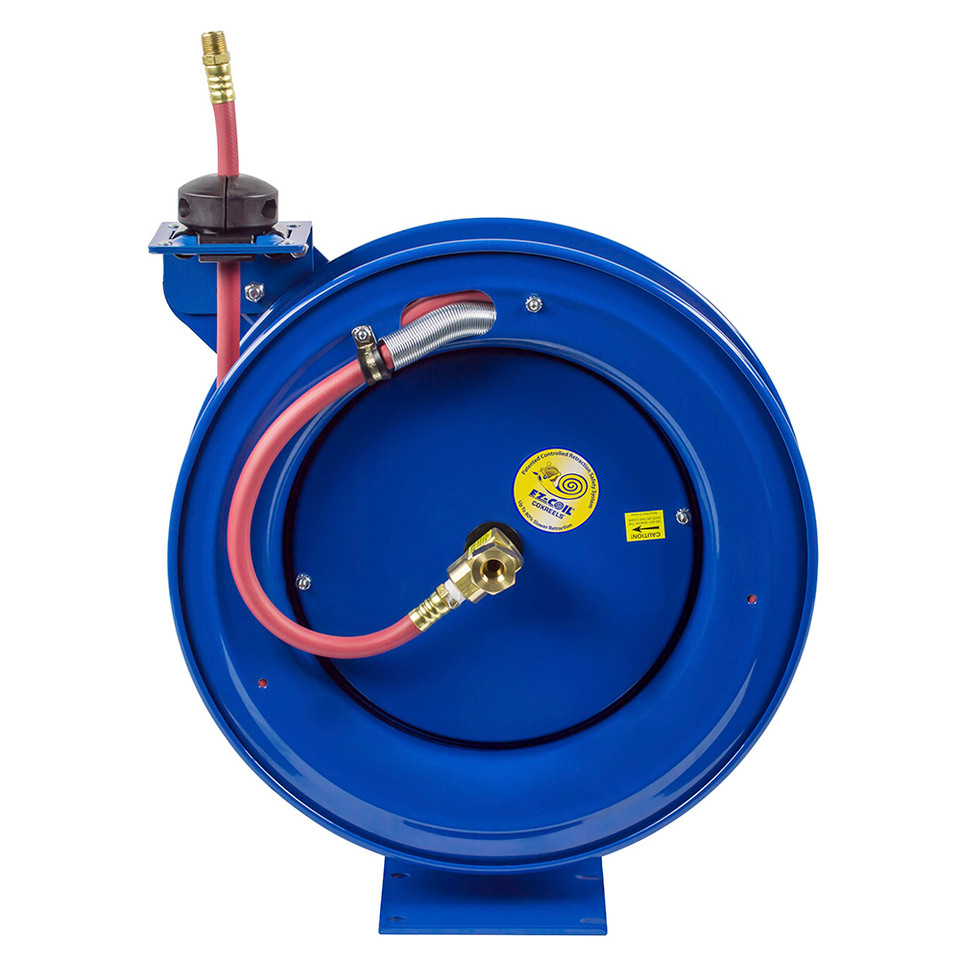

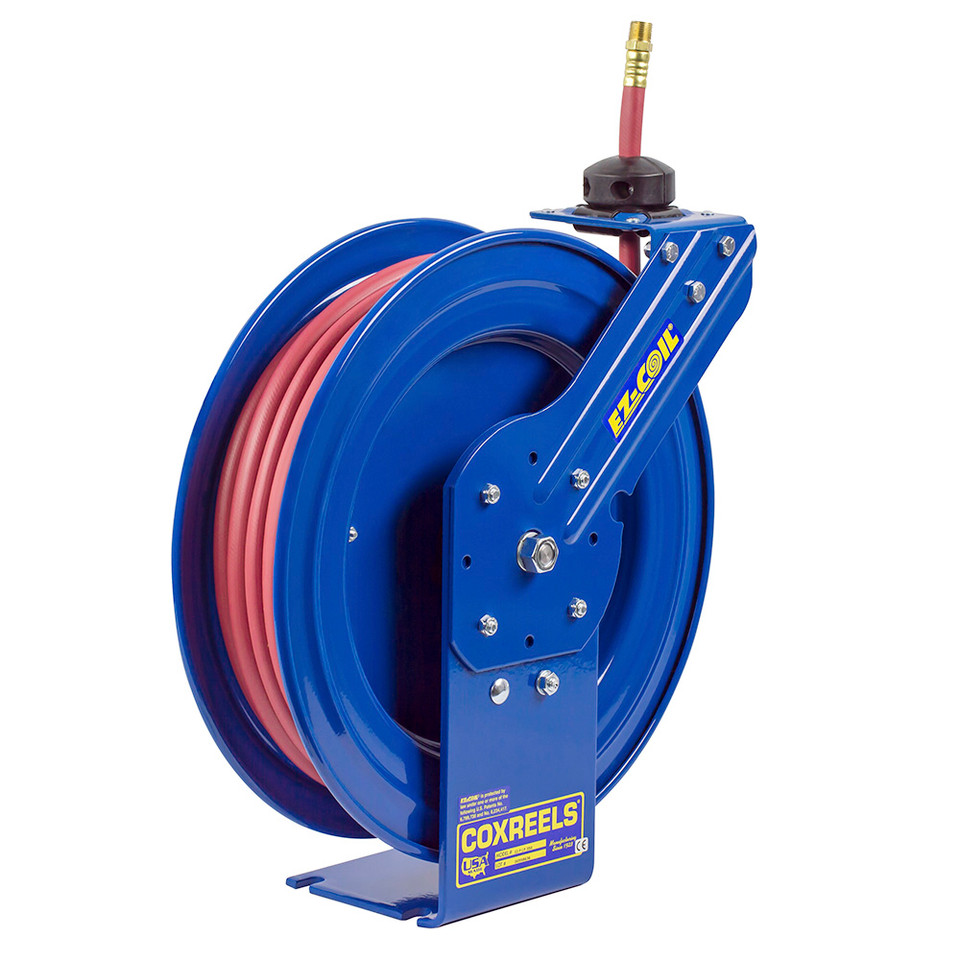

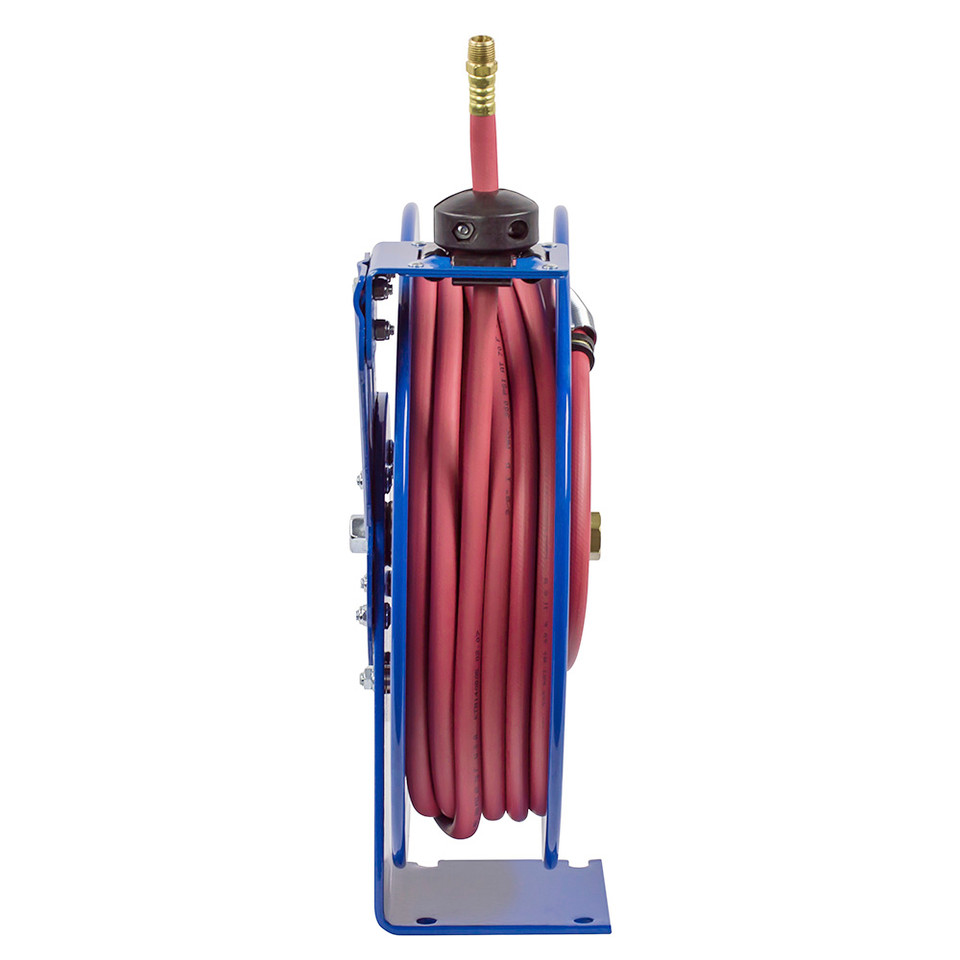

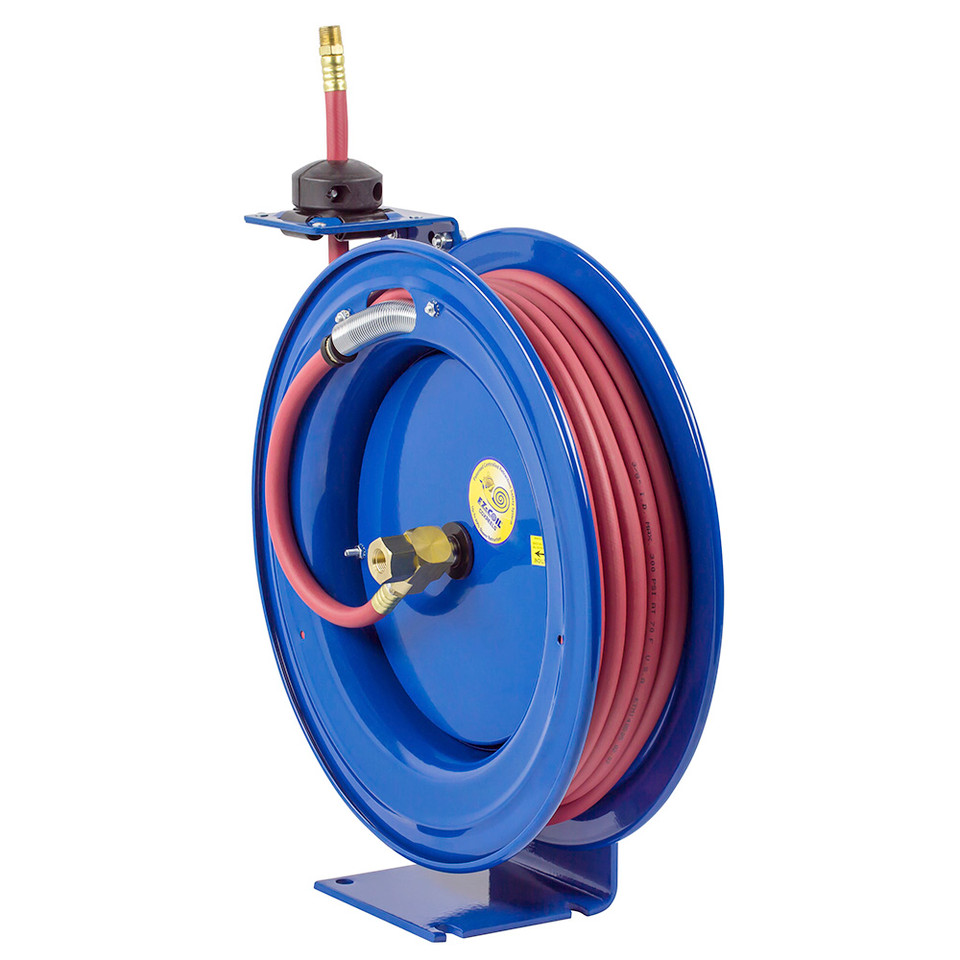

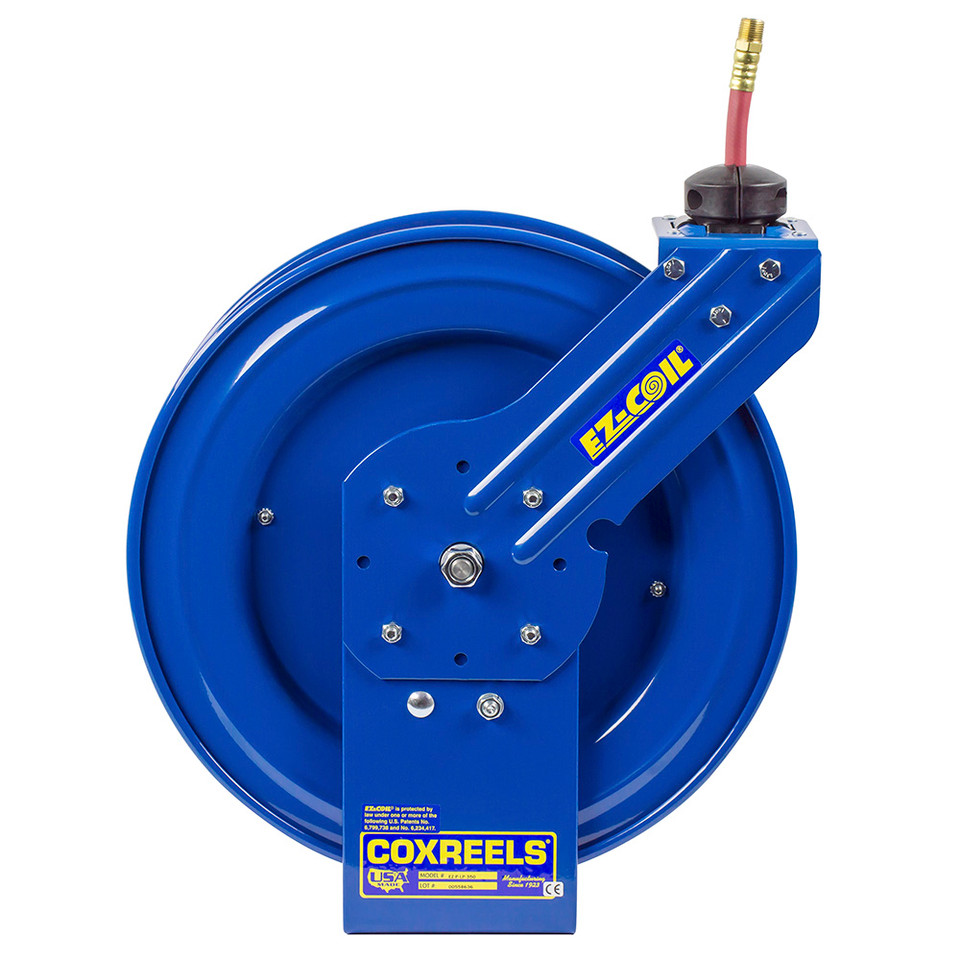

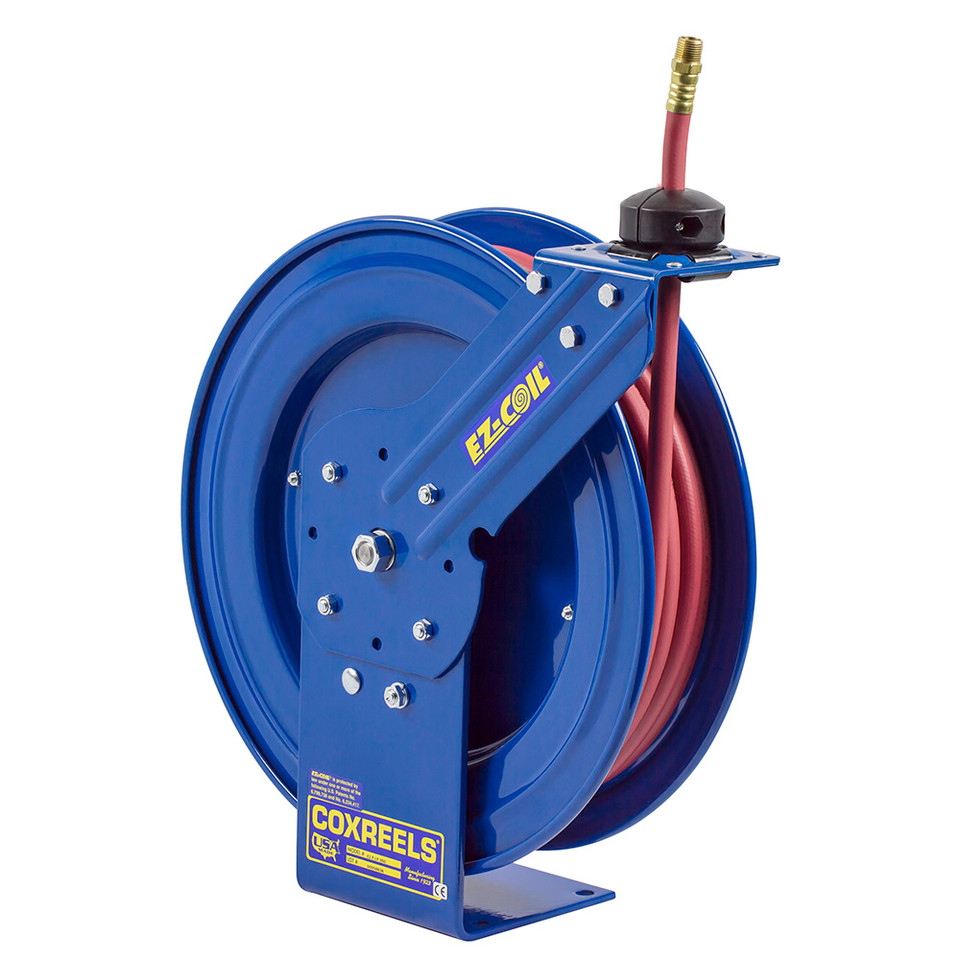

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Model: EZ-P-LPL-330 | Configuration: Less Hose | Hose I.D.: 3/8" | Max Hose O.D.: 5/8" | Hose Capacity: 30 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 33 lbs. | Size Index: 3
Features:
- EZ-Coil controlled rewind retracts up to 80% slower than conventional spring driven reels, helping manage hose return more safely and predictably.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient flow and simplifies swivel access.
- Nitrile swivel seals provide compatibility for the reel’s listed low-pressure air, water, and oil service.
- Single pedestal frame uses a space-saving layout that helps keep hoses organized in shops, service trucks, and maintenance areas.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match the installation location.
- Solid one-piece 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle with lubricated precision bearings promotes smooth reel rotation during pullout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Automotive and fleet service bays — keeping air or fluid hoses off the floor while supporting routine tire, repair, and maintenance work.
- Industrial MRO areas — organizing low-pressure hose runs at workstations, benches, and equipment service points.
- Mobile service vehicles — mounting to trucks or trailers where a compact reel helps manage hose storage between jobs.
- General shop air systems — pairing with compatible 3/8" hose for blow guns, pneumatic tools, and common shop air tasks within the reel’s pressure rating.
- DIY garages and home workshops — adding controlled hose storage for users who want to supply their own hose and fittings.
FAQs:
- Q: What does “less hose” mean on the EZ-P-LPL-330?
A: It means this product is supplied as the reel only, without hose installed. The buyer must provide compatible 3/8" I.D. hose separately and must not exceed the listed 5/8" maximum hose O.D. when using the full 30 ft capacity. - Q: Can this reel be used for shop air service?
A: Yes, this low-pressure less-hose model can be used for air service when the selected hose, fittings, and system pressure match the 300 PSI reel rating. - Q: What is the benefit of EZ-Coil retraction?
A: EZ-Coil is Coxreels’ controlled rewind system. It retracts up to 80% slower than a conventional spring driven reel, giving the user more control as the hose returns to the reel. - Q: Can the guide arm be repositioned?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, which helps the installer route the hose from the direction that best fits the work area. - Q: Is this reel suitable for oil service?
A: The manufacturer states that low-pressure less-hose models can be used for air, water, or oil. Hose and fittings should be selected separately for the exact fluid, pressure, and temperature conditions.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- EZ Coil Spring Rewind Hose Reel
- Series
- EZ-P Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 30
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
