Built for controlled hose storage in compact work areas, the Coxreels EZ-P-LPL-135 is an EZ-Coil Spring Rewind Hose Reel supplied in a less hose configuration for buyers who want to install their own compatible hose. This EZ-P Series reel is sized for 1/4" I.D. hose with up to 35 ft capacity and a 300 PSI maximum pressure rating, making it a practical choice for low-pressure air, water, or oil service when matched with the correct hose. The EZ-Coil retraction system slows rewind speed compared with conventional spring-driven reels, helping reduce hose whip during rewind. Its single pedestal frame, adjustable guide arm, brass 90° full-flow NPT swivel inlet, nitrile swivel seals, and multi-position lock ratchet support organized hose handling on benches, walls, floors, service vehicles, and overhead mounting locations.

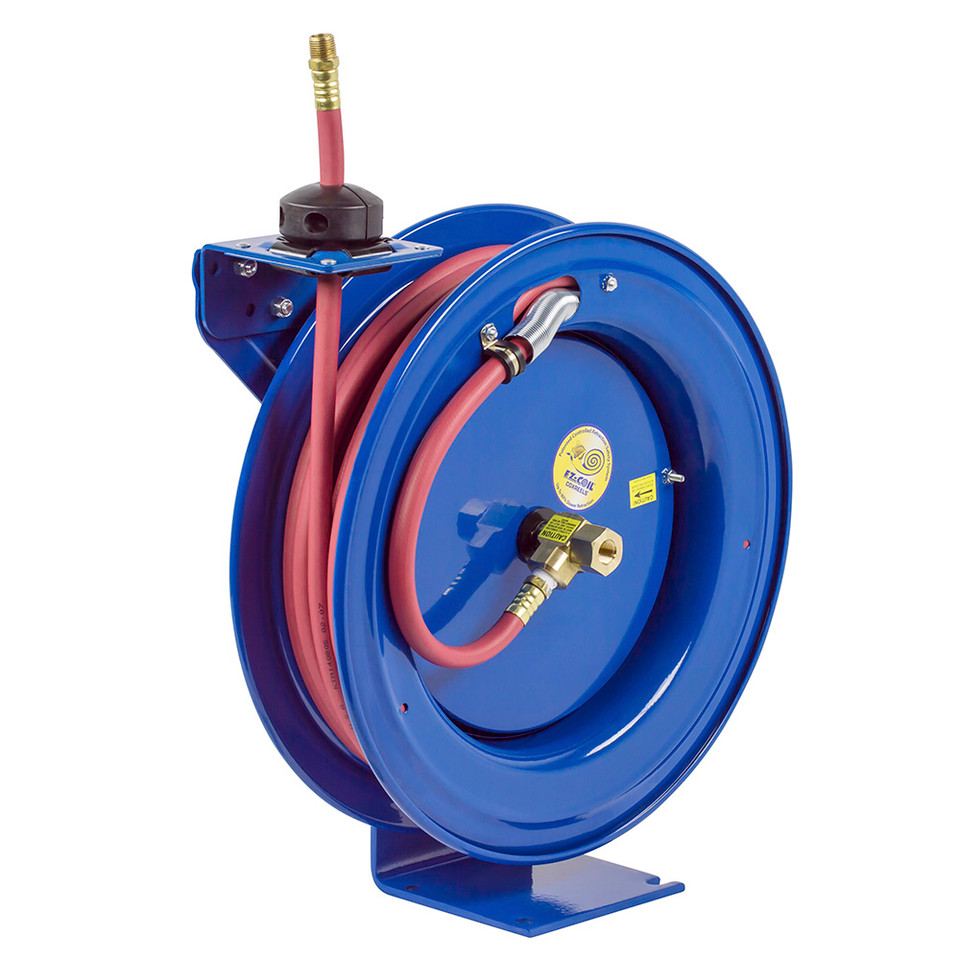

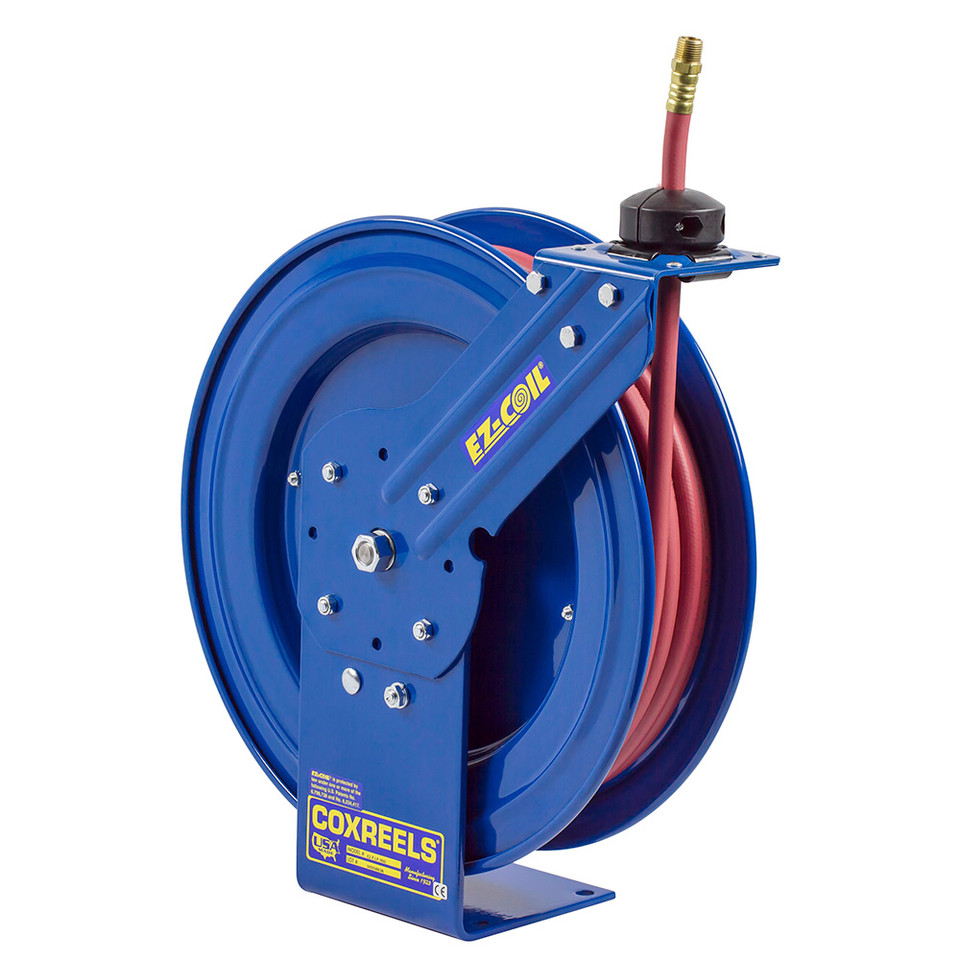

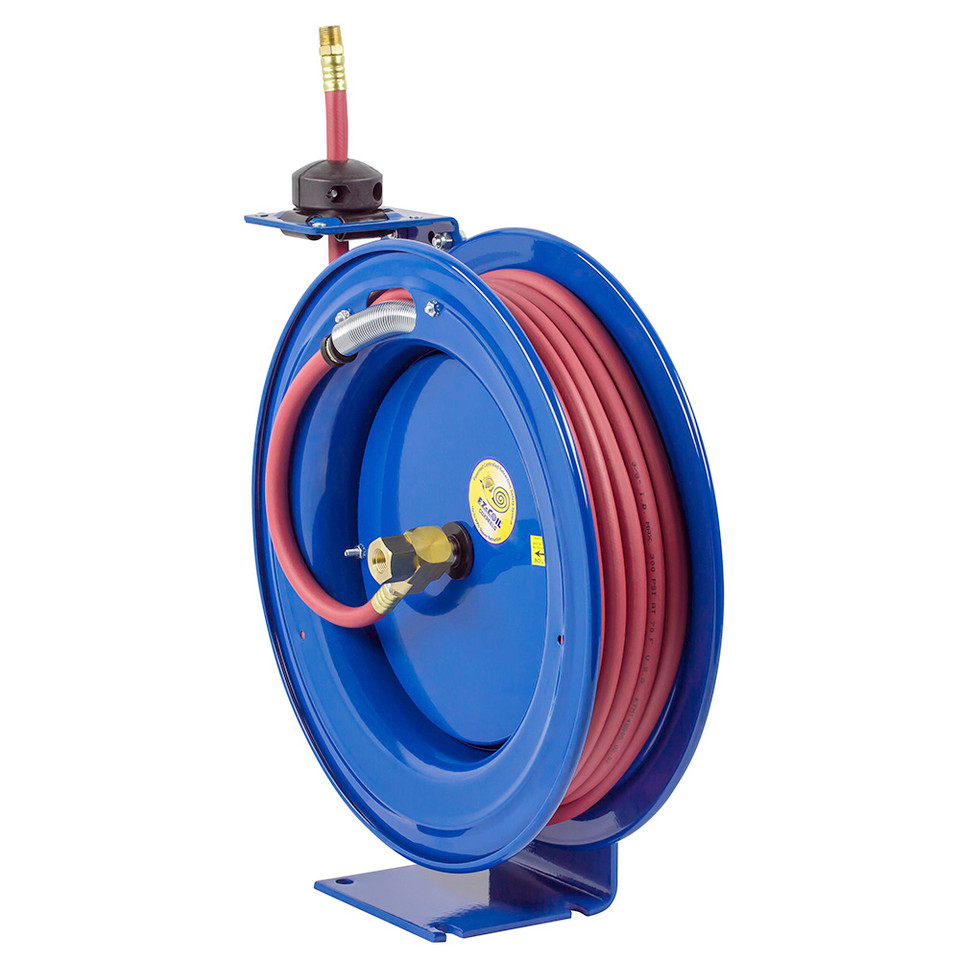

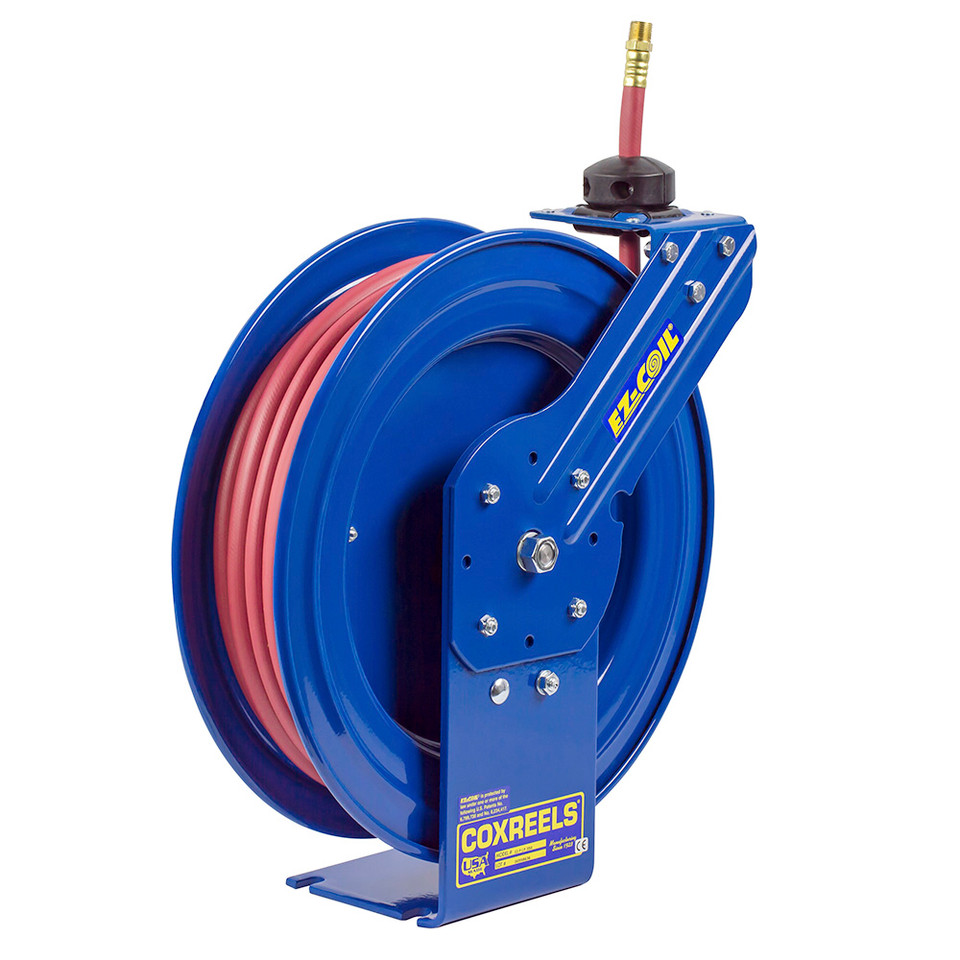

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Configuration: Less Hose | Model: EZ-P-LPL-135 | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 25 lbs
Features:
- EZ-Coil patented safety system retracts up to 80% slower than conventional spring driven reels for more controlled hose rewind.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet.
- Nitrile swivel seals support low-pressure air, water, and oil service compatibility when paired with the proper hose.
- Sturdy single pedestal design helps organize hose storage while conserving mounting space.
- Guide arm adjusts for wall, floor, vehicle, and overhead installation positions.
- Solid one-piece heavy gauge 1/4" steel base and support post provide stable reel support.
- 1" solid steel axle with lubricated precision bearings supports smooth spool rotation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Maintenance shops using customer-supplied 1/4" hose for low-pressure air, water, or oil transfer.
- Service vehicles that need compact spring rewind hose storage without a pre-installed hose.
- Manufacturing and MRO areas where hoses must be kept off floors to reduce clutter and improve workflow.
- Garage and workshop installations where the user wants to select a specific hose material or fitting setup.
- Bench, wall, floor, or overhead mounting locations requiring adjustable guide arm positioning.
FAQs:
- Q: What does “less hose” mean?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hose separately. - Q: Can this reel be used for shop air service?
A: Yes, when the hose, fittings, and system pressure are compatible with the reel’s 300 PSI maximum rating. - Q: What hose size fits this model?
A: This model is listed for 1/4" I.D. hose with 1/2" O.D. and up to 35 ft capacity. Do not exceed the listed hose O.D. if you need the full rated length. - Q: What is EZ-Coil retraction?
A: EZ-Coil is Coxreels’ controlled rewind system that retracts more slowly than conventional spring driven reels, helping manage hose return speed. - Q: Can the guide arm be repositioned?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- EZ Coil Spring Rewind Hose Reel
- Series
- EZ-P Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 35
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
